Model LG OLED65C5AUA – Common Parts & Diagrams

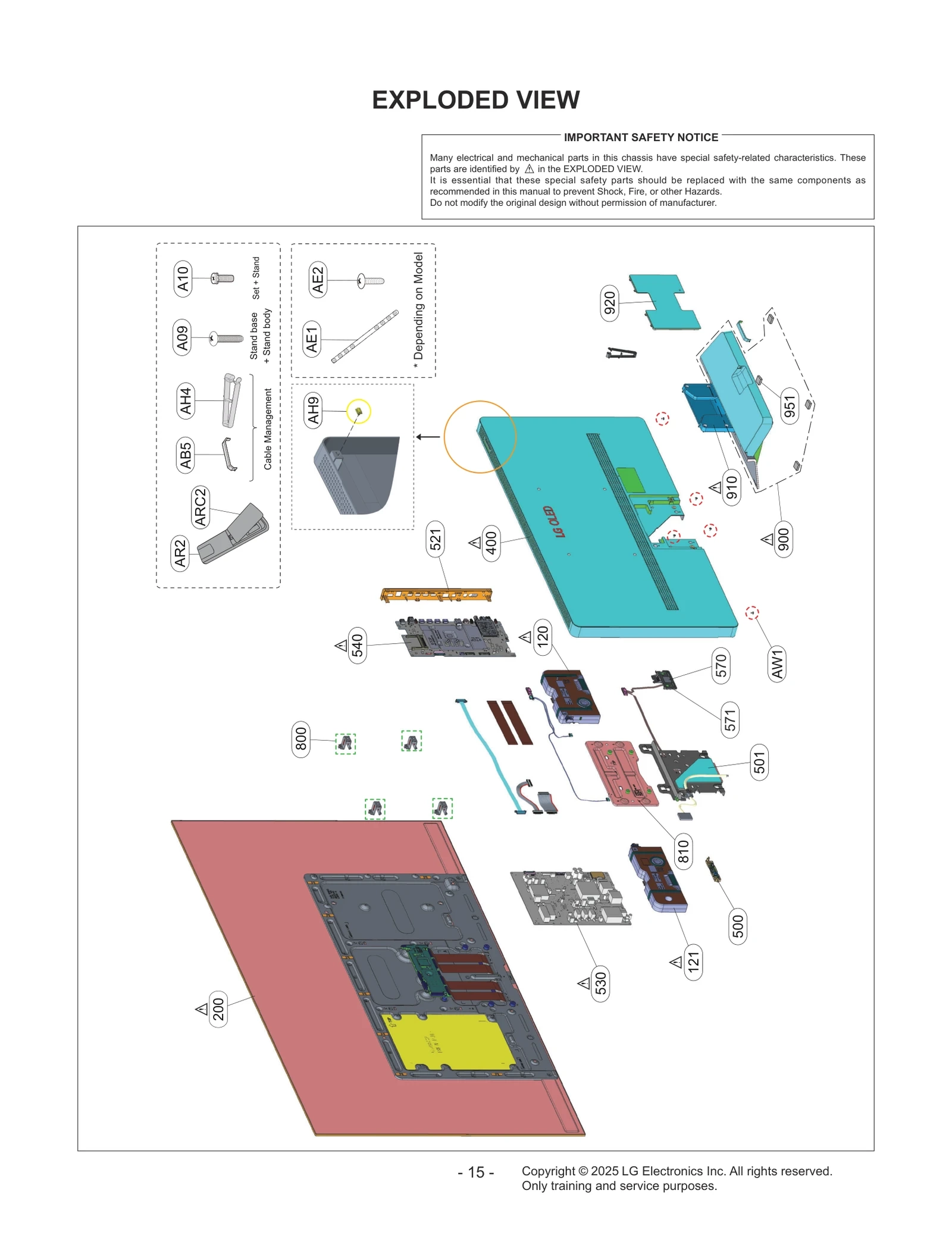

Diagram 0

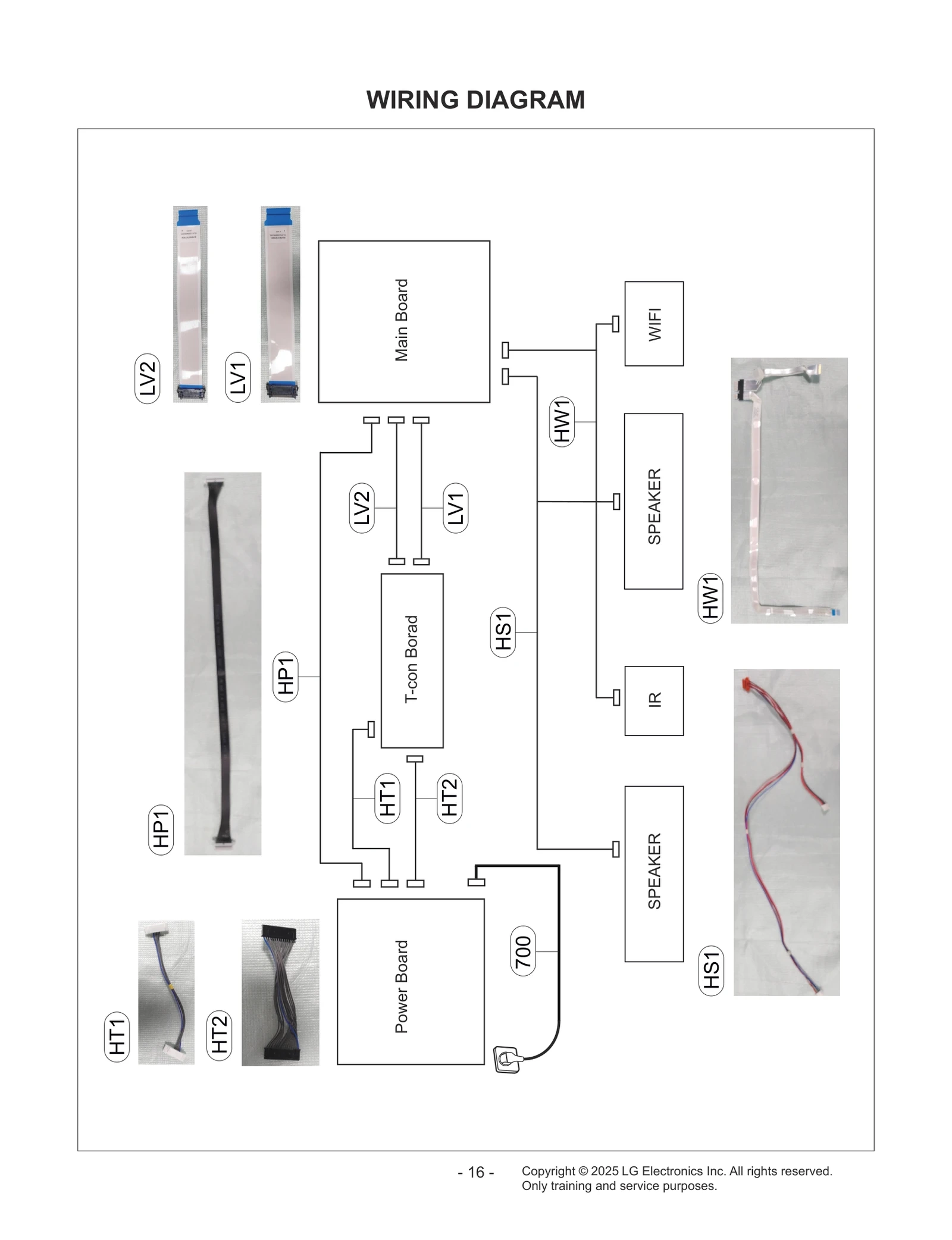

Diagram 1
Common parts from model LG OLED65C5AUA
200
OLED Module Assembly LGE EAJ65964909 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30645819 Contact Us For Availability
501
Bracket LGE MAZ67575115 Contact Us For Availability
521
Bracket Assembly LGE ABA30105550 Contact Us For Availability
530
PCB Assembly,Power package LGE EBR44470101 Contact Us For Availability
540
Mainboard,ORP Total Assembly,SVC LGE EBU30167016 Contact Us For Availability
571
Bracket LGE MAZ67455507 Contact Us For Availability
800
Bracket,Mount LGE MAZ66347901 Contact Us For Availability
810
Plate LGE MGJ67336902 Contact Us For Availability
900
Base Assembly LGE AAN30041366 Contact Us For Availability
910
Bracket,Stand LGE MAZ67575035 Contact Us For Availability
920
Cover,Accessory LGE MCK71576330 Contact Us For Availability
AB5
Bracket LGE MAZ67579011 Contact Us For Availability
AH4
Holder LGE MEG66681205 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
ARC2
Part LGE EBZ30385903 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
HP1
Harness,Single LGE EAD65305508 Contact Us For Availability
LV2
Cable,FFC LGE EAD63787936 Contact Us For Availability
× ![]()
