  • LG OLED55B5PUA Parts List

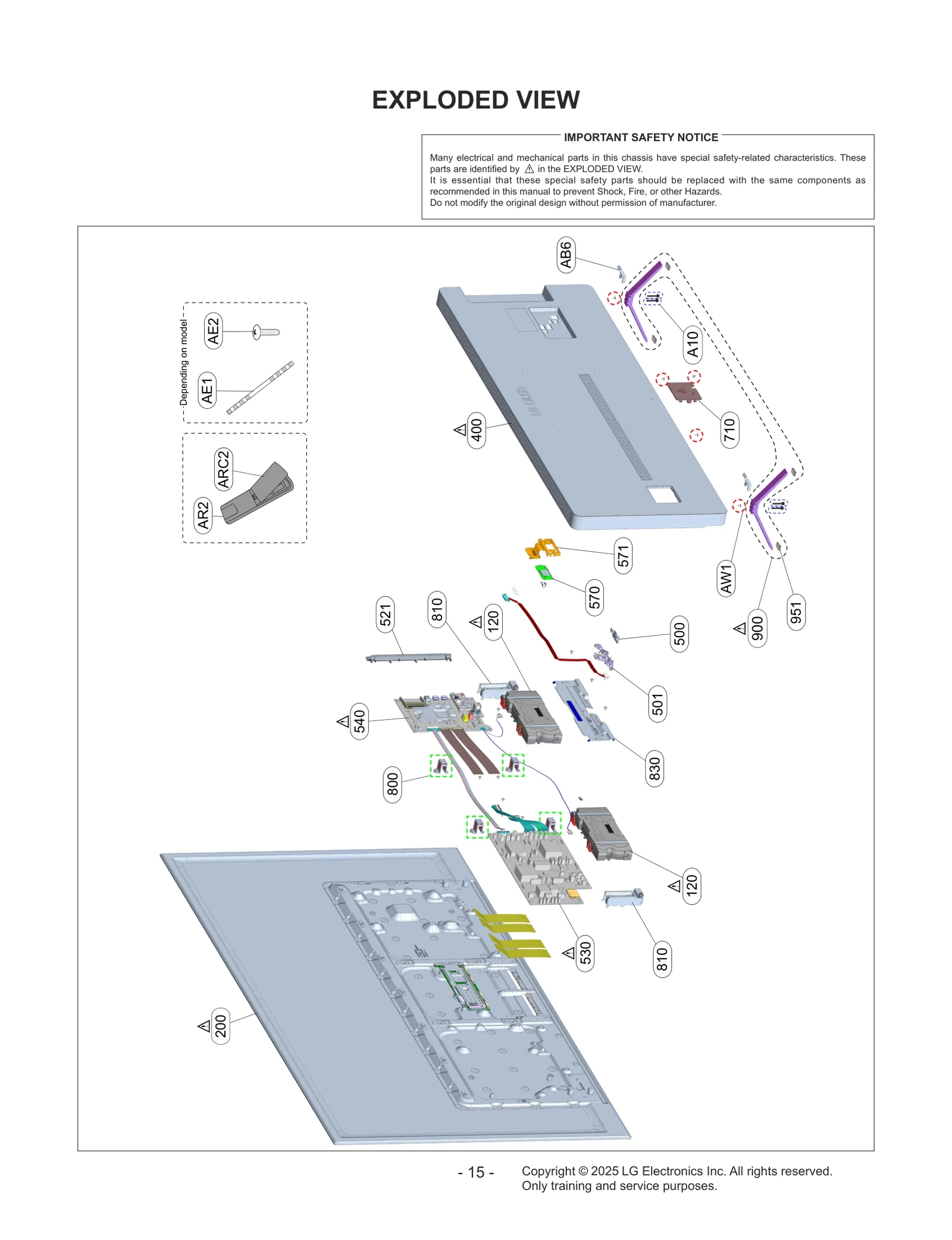

Model LG OLED55B5PUA – Common Parts & Diagrams

120
Speaker Assembly
Speaker Assembly LGE EAB64370908 Contact Us For Availability
View on Model
200
OLED Module Assembly
OLED Module Assembly LGE EAJ65970303 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30651157 Contact Us For Availability
View on Model
501
Bracket
Bracket LGE MAZ67571208 Contact Us For Availability
View on Model
521
Bracket
Bracket LGE MAZ67571024 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY65689471 Contact Us For Availability
View on Model
571
Bracket
Bracket LGE MAZ67509103 Contact Us For Availability
View on Model
700
Power Cord,Attach
Power Cord,Attach LGE EAD65887402 Contact Us For Availability
View on Model
710
Cover,Power Cord
Cover,Power Cord LGE MCK70375640 Contact Us For Availability
View on Model
710
Cover,Power Cord
Cover,Power Cord LGE MCK70375639 Contact Us For Availability
View on Model
800
Bracket,Mount
Bracket,Mount LGE MAZ66347903 Contact Us For Availability
View on Model
810
Bracket
Bracket LGE MAZ67577101 Contact Us For Availability
View on Model
A10
Screw Assembly
Screw Assembly LGE FAB30016137 Contact Us For Availability
View on Model
AB6
Bracket
Bracket LGE MAZ67571108 Contact Us For Availability
View on Model
AR2
Remote Controller Assembly
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
View on Model
ARC2
Part
Part LGE EBZ30385903 Contact Us For Availability
View on Model
AW1
Screw,Machine
Screw,Machine LGE FAB31843211 Contact Us For Availability
View on Model

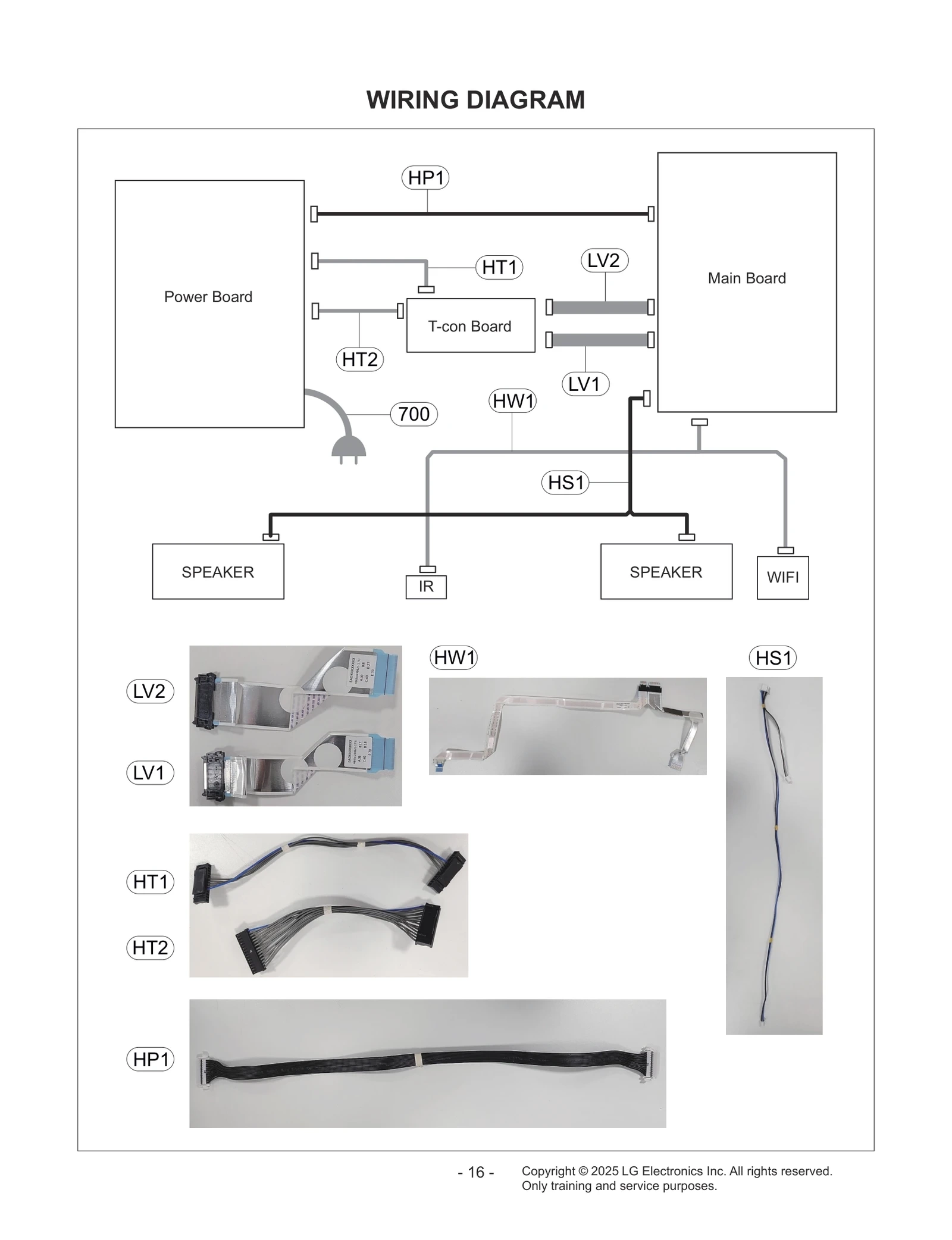

HP1
Harness,Single
Harness,Single LGE EAD65305508 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD63727361 Contact Us For Availability
View on Model
HT2
Harness,Single
Harness,Single LGE EAD63046220 Contact Us For Availability
View on Model
