Model LG OLED48B5PUA – Common Parts & Diagrams

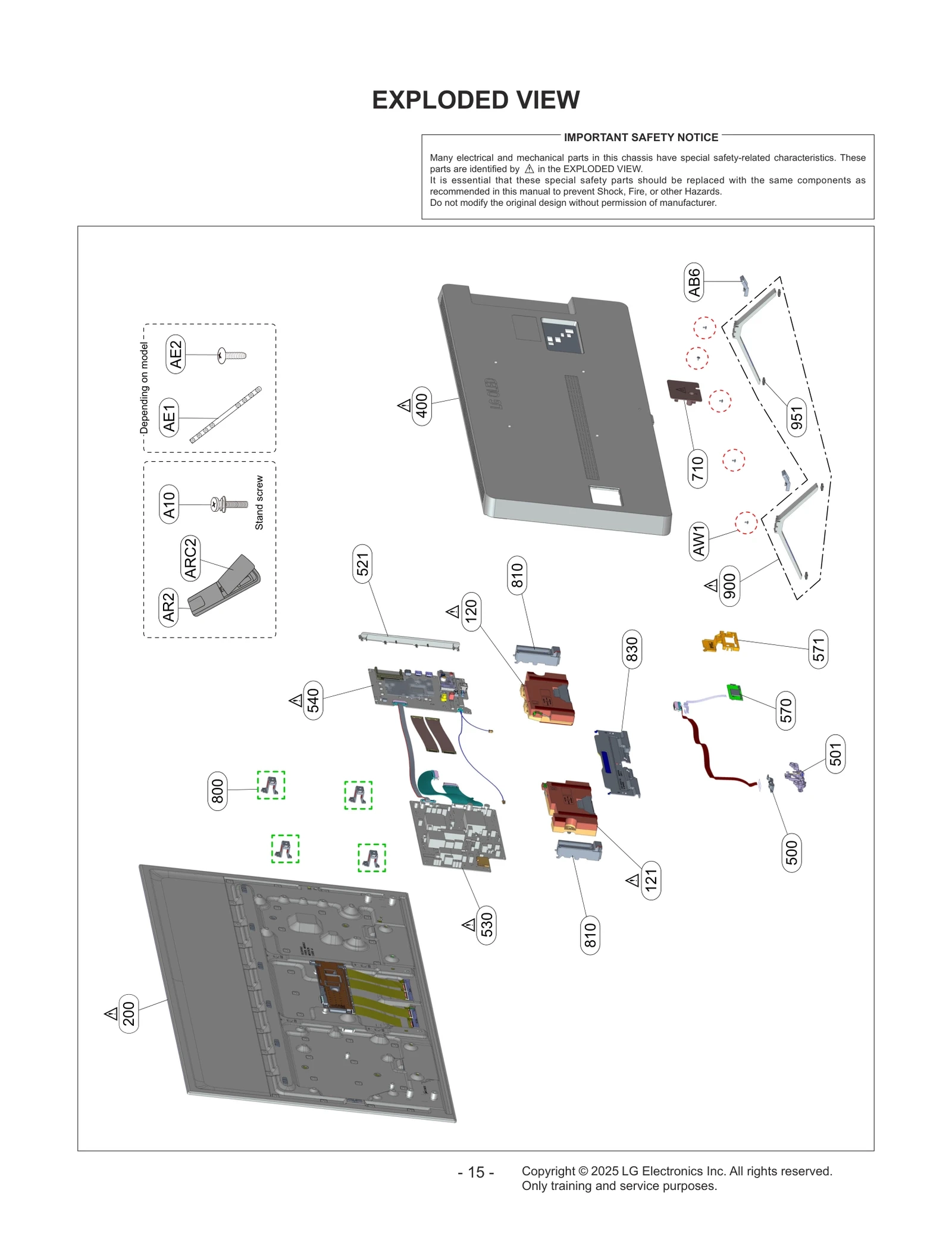

Diagram 0

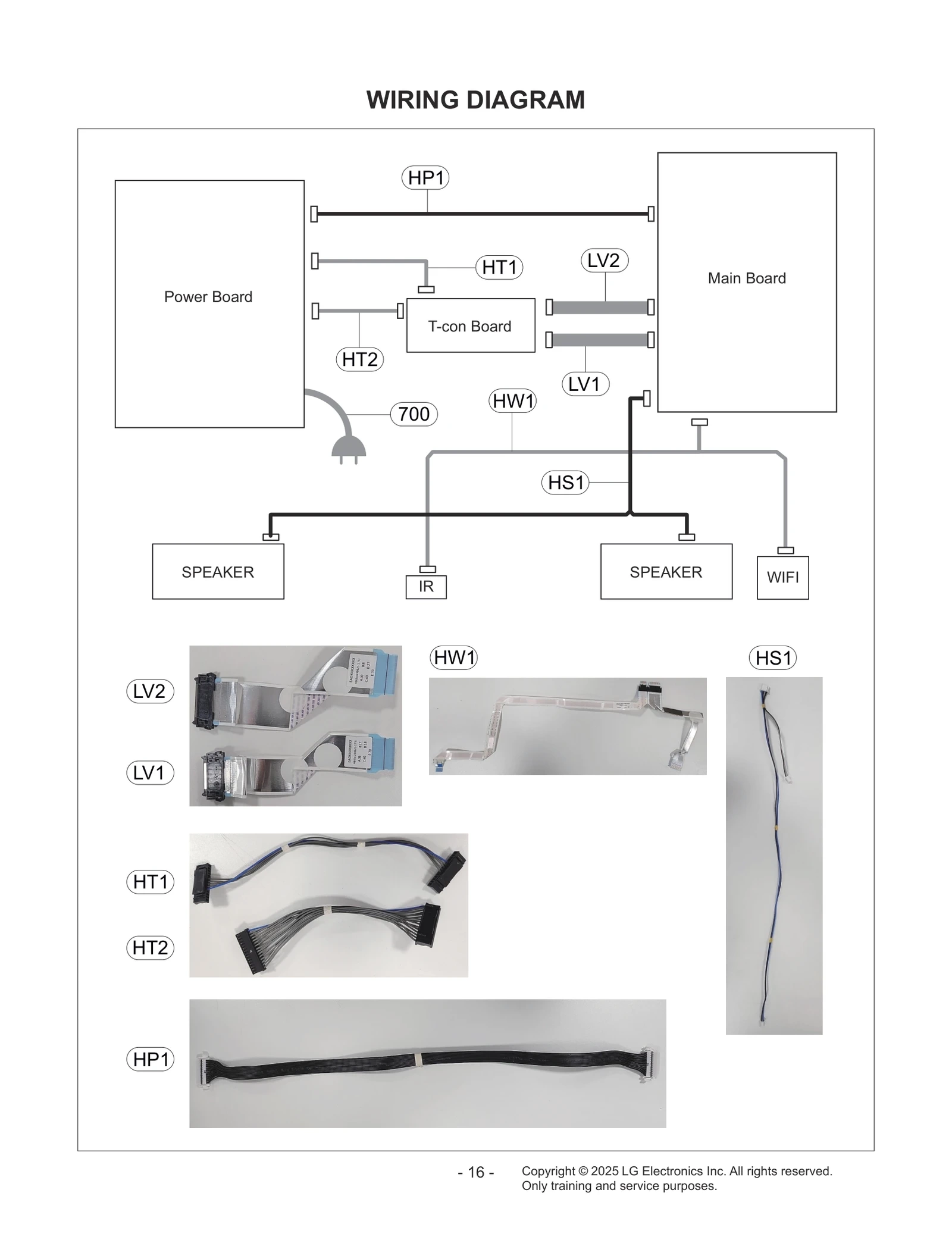

Diagram 1
Common parts from model LG OLED48B5PUA
120
Speaker Assembly LGE EAB65823803 Contact Us For Availability
121
Speaker Assembly LGE EAB65823804 Contact Us For Availability
200
OLED Module Assembly LGE EAJ65971603 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30651036 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30651039 Contact Us For Availability
501
Bracket LGE MAZ67571208 Contact Us For Availability
530
Power Supply Assembly LGE EAY65904151 Contact Us For Availability
571
Bracket LGE MAZ67509103 Contact Us For Availability
710
Cover,Power Cord LGE MCK70375639 Contact Us For Availability
710
Cover,Power Cord LGE MCK70375640 Contact Us For Availability
800
Bracket,Mount LGE MAZ66347903 Contact Us For Availability
810
Bracket LGE MAZ67577101 Contact Us For Availability
A10
Screw Assembly LGE FAB30016137 Contact Us For Availability
AB6
Bracket LGE MAZ67571108 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
ARC2
Part LGE EBZ30385903 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727362 Contact Us For Availability
HT2
Harness,Single LGE EAD63046220 Contact Us For Availability
HW1
Cable,FFC LGE EAD65940107 Contact Us For Availability
LV1
Cable,FFC LGE EAD63787895 Contact Us For Availability
LV2
Cable,FFC LGE EAD63787944 Contact Us For Availability
× ![]()
