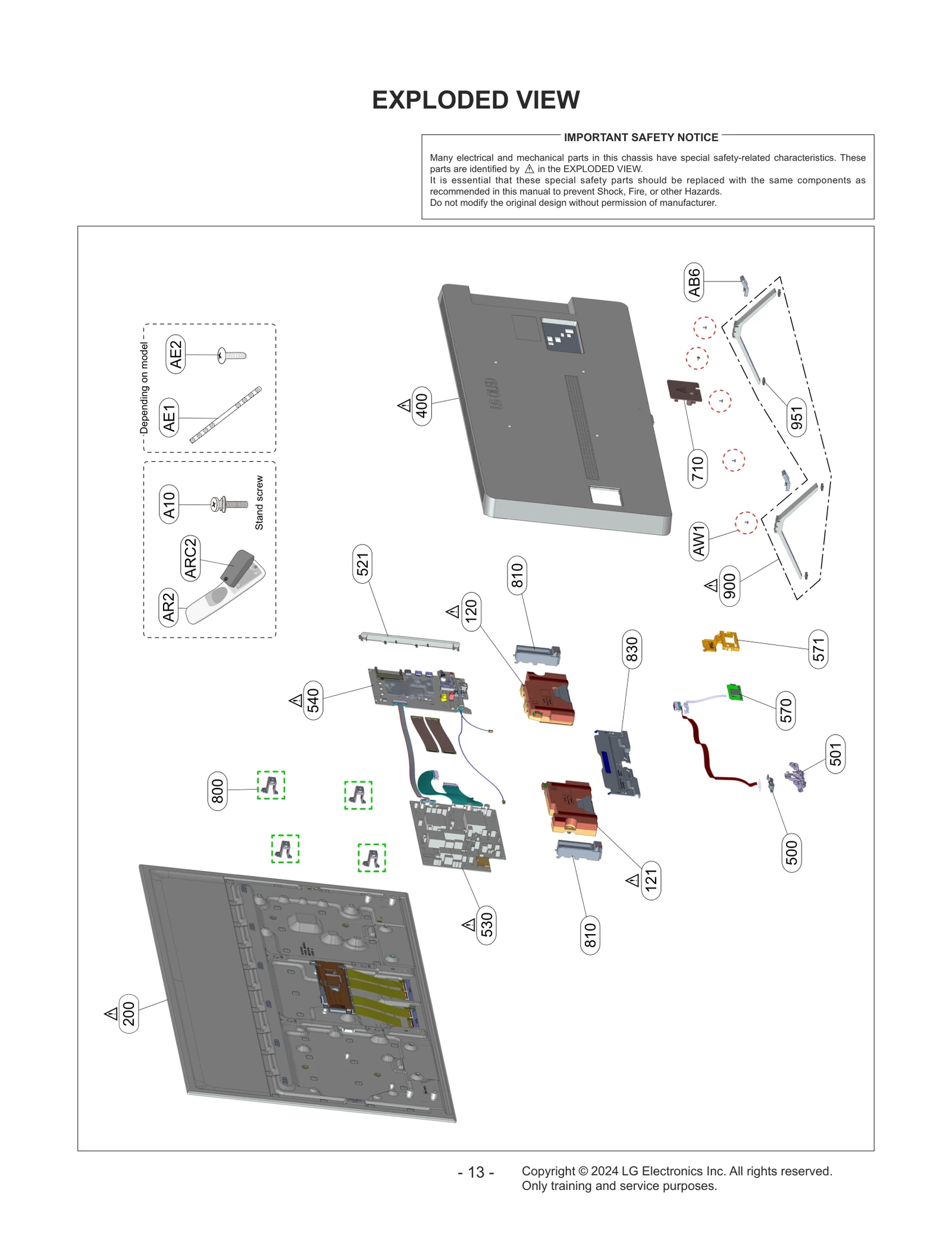

Model LG OLED48B4PUA – Common Parts & Diagrams

120
Speaker Assembly
Speaker Assembly LGE EAB65823803 Contact Us For Availability
View on Model
121
Speaker Assembly
Speaker Assembly LGE EAB65823804 Contact Us For Availability
View on Model
200
OLED Module Assembly
OLED Module Assembly LGE EAJ65900003 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30651019 Contact Us For Availability
View on Model
501
Bracket
Bracket LGE MAZ67571205 Contact Us For Availability
View on Model
521
Bracket
Bracket LGE MAZ67571015 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU67646499 Contact Us For Availability
View on Model
571
Bracket
Bracket LGE MAZ67509103 Contact Us For Availability
View on Model
810
Bracket
Bracket LGE MAZ67577101 Contact Us For Availability
View on Model
A10
Screw Assembly
Screw Assembly LGE FAB30016137 Contact Us For Availability
View on Model
AR2
Remote Controller Assembly
Remote Controller Assembly LGE AKB76045002 Contact Us For Availability
View on Model
AW1
Screw,Machine
Screw,Machine LGE FAB31843211 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD63727362 Contact Us For Availability
View on Model
HT2
Harness,Single
Harness,Single LGE EAD63046220 Contact Us For Availability
View on Model
HW1
Cable,FFC
Cable,FFC LGE EAD65940107 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63787895 Contact Us For Availability
View on Model
LV2
Cable,FFC
Cable,FFC LGE EAD63787944 Contact Us For Availability
View on Model
