Model LG OLED42C5PUA – Common Parts & Diagrams

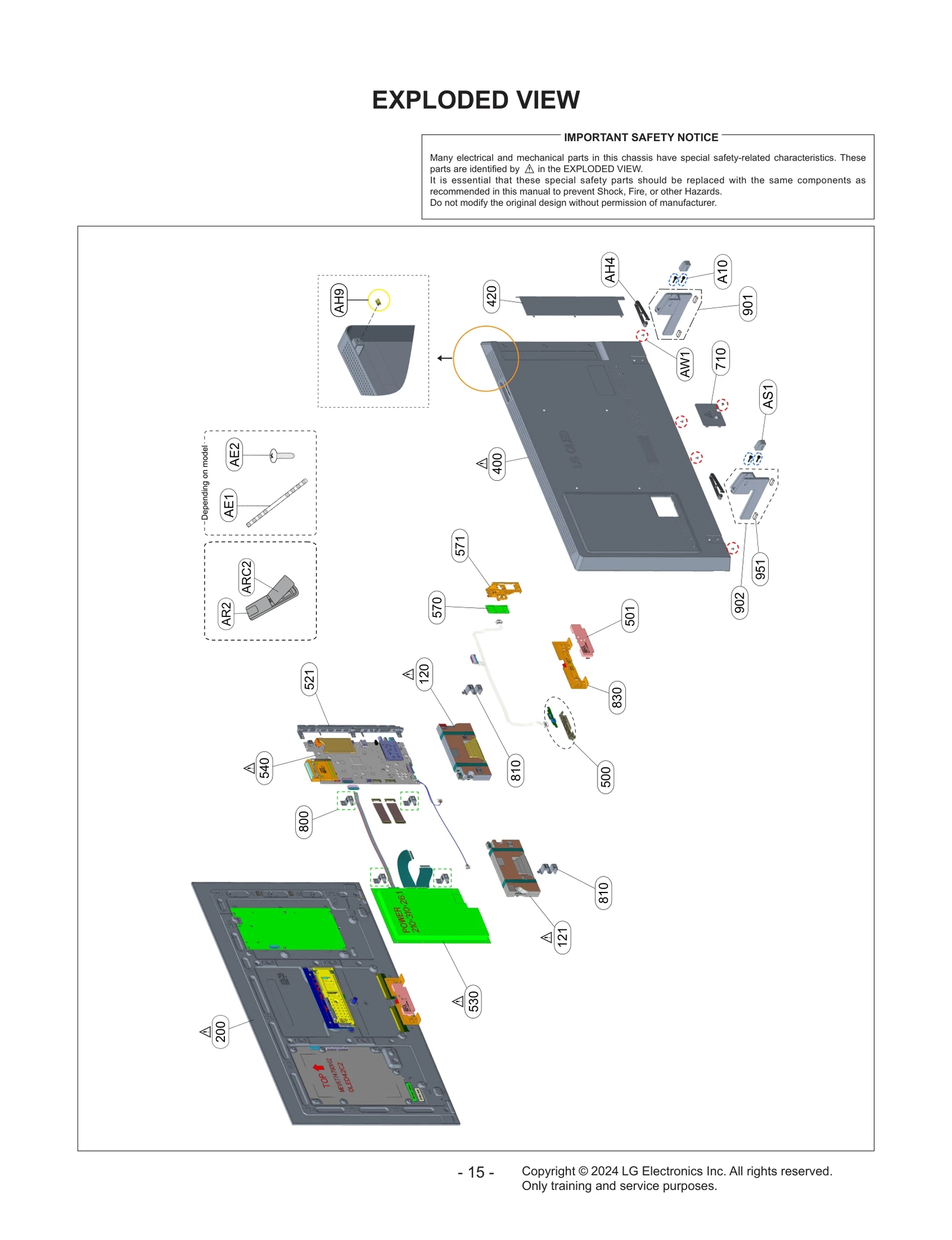

Diagram 0

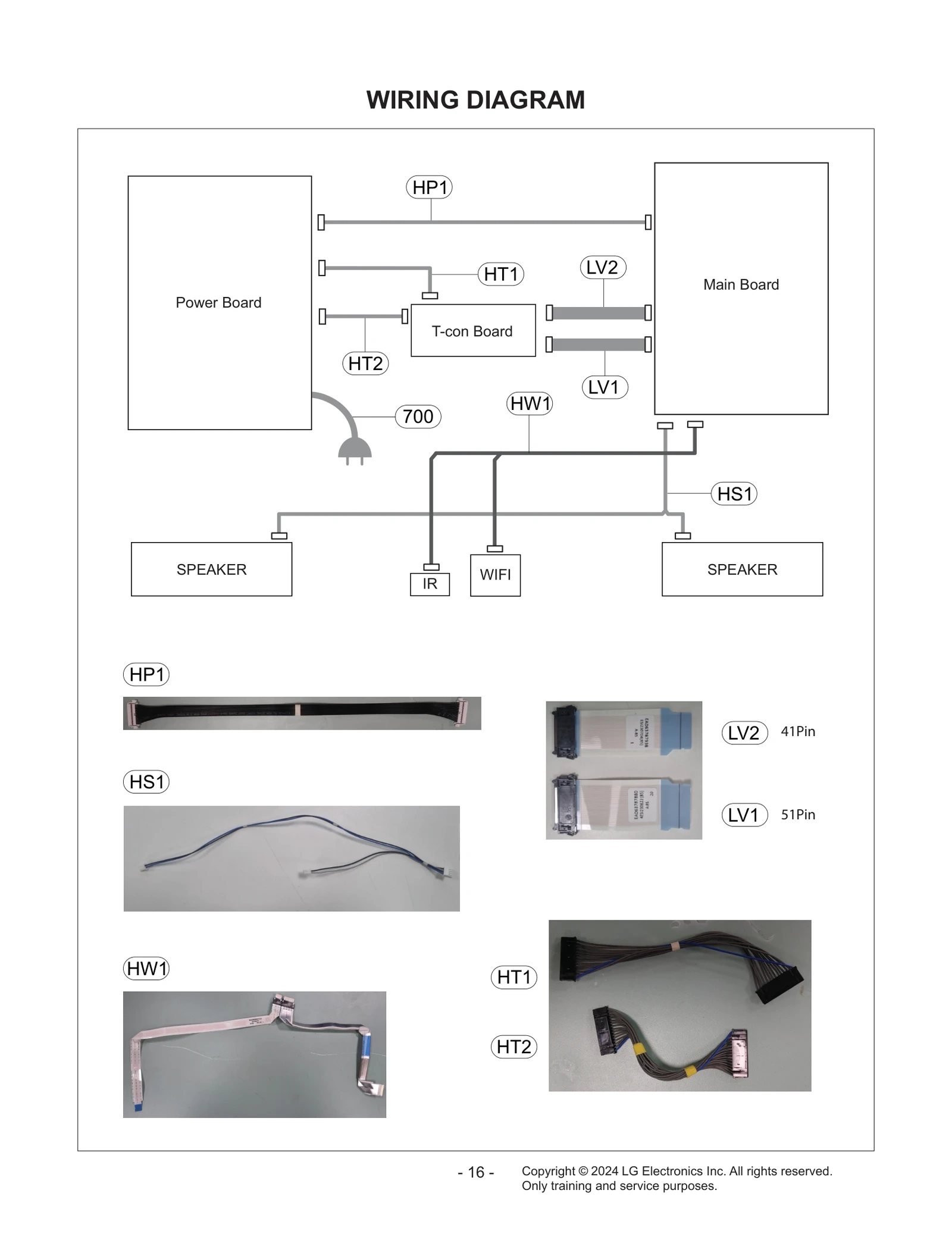

Diagram 1
Common parts from model LG OLED42C5PUA
200
OLED Module Assembly LGE EAJ65969103 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30632637 Contact Us For Availability
420
Cover,Accessory LGE MCK71577110 Contact Us For Availability
501
Bracket LGE MAZ67576503 Contact Us For Availability
521
Bracket LGE MAZ67576855 Contact Us For Availability
530
Power Supply Assembly LGE EAY65904141 Contact Us For Availability
540
Mainboard,ORP Total Assembly,SVC LGE EBU30166808 Contact Us For Availability
571
Bracket LGE MAZ67576603 Contact Us For Availability
710
Cover,Power Cord LGE MCK70375648 Contact Us For Availability
710
Cover,Power Cord LGE MCK70375649 Contact Us For Availability
810
Bracket LGE MAZ67577003 Contact Us For Availability
830
Bracket LGE MAZ67576903 Contact Us For Availability
901
Base Assembly LGE AAN30041953 Contact Us For Availability
901
Base Assembly LGE AAN30041959 Contact Us For Availability
902
Base Assembly LGE AAN30041954 Contact Us For Availability
902
Base Assembly LGE AAN30041960 Contact Us For Availability
AH4
Holder LGE MEG66681205 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
ARC2
Part LGE EBZ30385903 Contact Us For Availability
AS1
Bracket LGE MAZ67578310 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
HP1
Harness,Single LGE EAD65305515 Contact Us For Availability
HW1
Cable,FFC LGE EAD65940102 Contact Us For Availability
× ![]()
