Model LG OLED42C3PUA – Common Parts & Diagrams

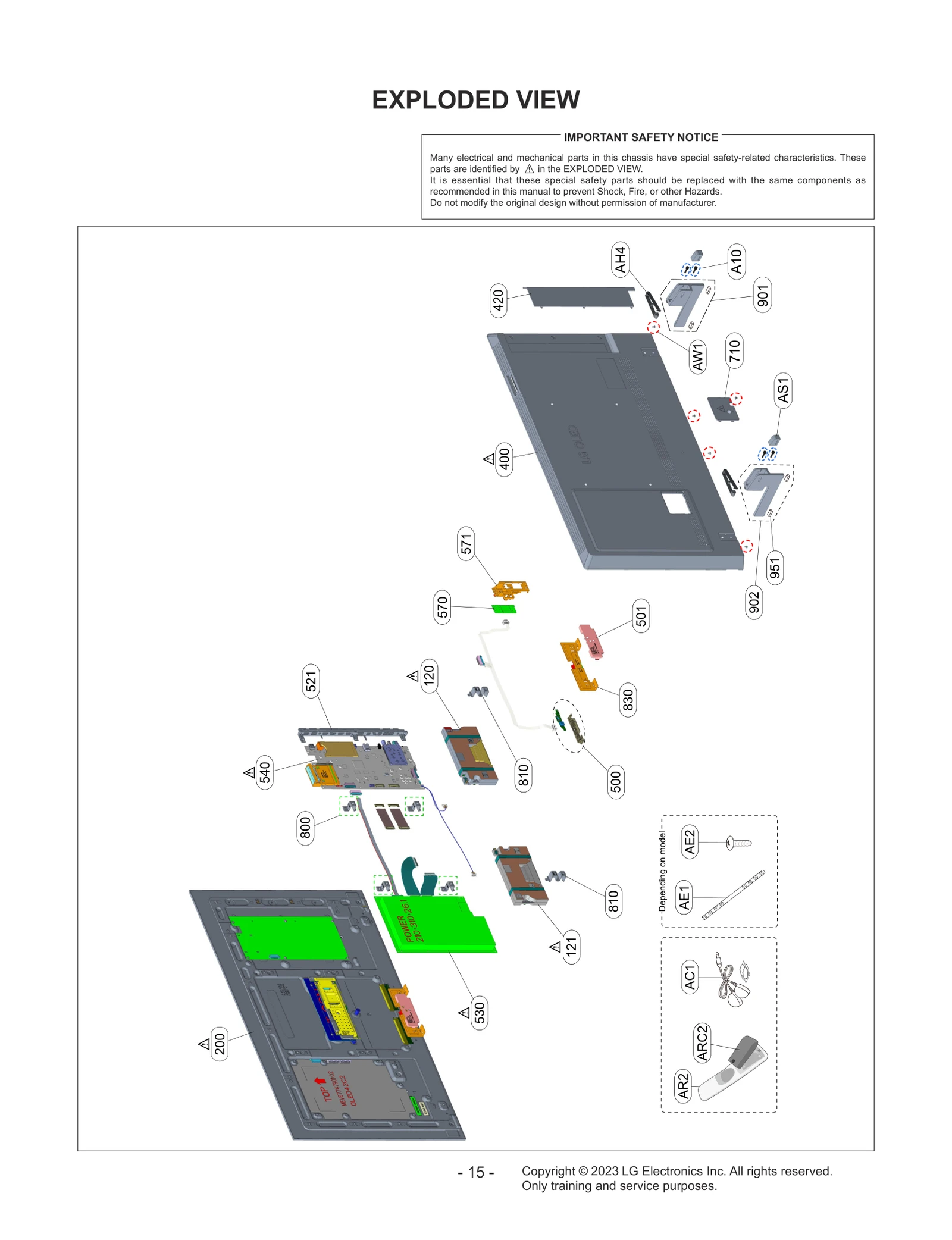

Diagram 0
Diagram 1
Common parts from model LG OLED42C3PUA
400
Cover Assembly,Rear LGE ACQ30553303 Contact Us For Availability
501
Bracket LGE MAZ67576503 Contact Us For Availability
521
Bracket LGE MAZ67576801 Contact Us For Availability
521
Bracket LGE MAZ67576813 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU67309401 Contact Us For Availability
571
Bracket LGE MAZ67576603 Contact Us For Availability
710
Cover,Power Cord LGE MCK70375622 Contact Us For Availability
810
Bracket LGE MAZ67577003 Contact Us For Availability
830
Bracket LGE MAZ67576903 Contact Us For Availability
901
Base Assembly LGE AAN30041935 Contact Us For Availability
902
Base Assembly LGE AAN30041936 Contact Us For Availability
AS1
Bracket LGE MAZ67578303 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
HP1
Harness,Single LGE EAD65305515 Contact Us For Availability
HW1
Cable,FFC LGE EAD65940102 Contact Us For Availability
× ![]()
