Model LG OK99 – Common Parts & Diagrams
Diagram 0

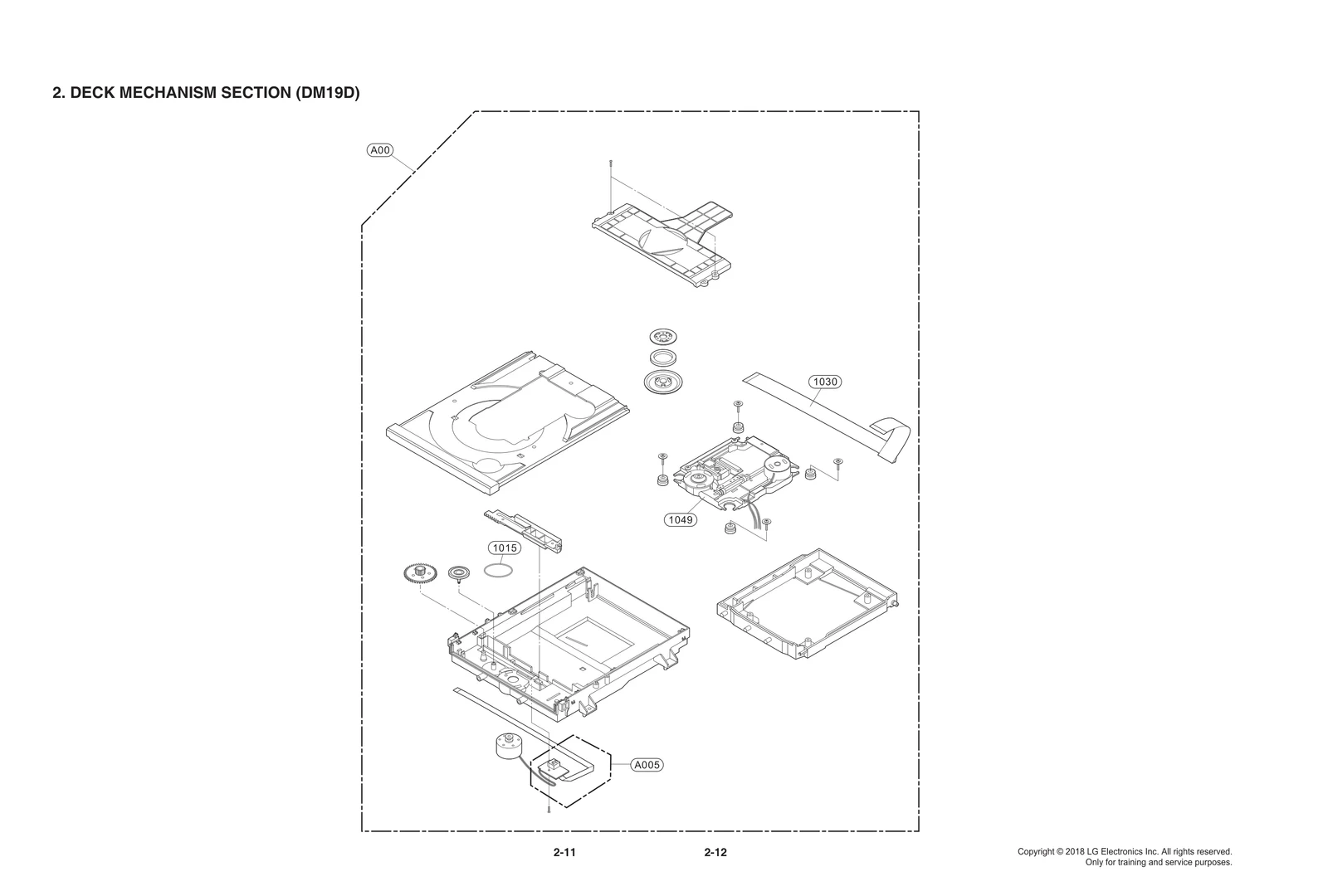

Diagram 1

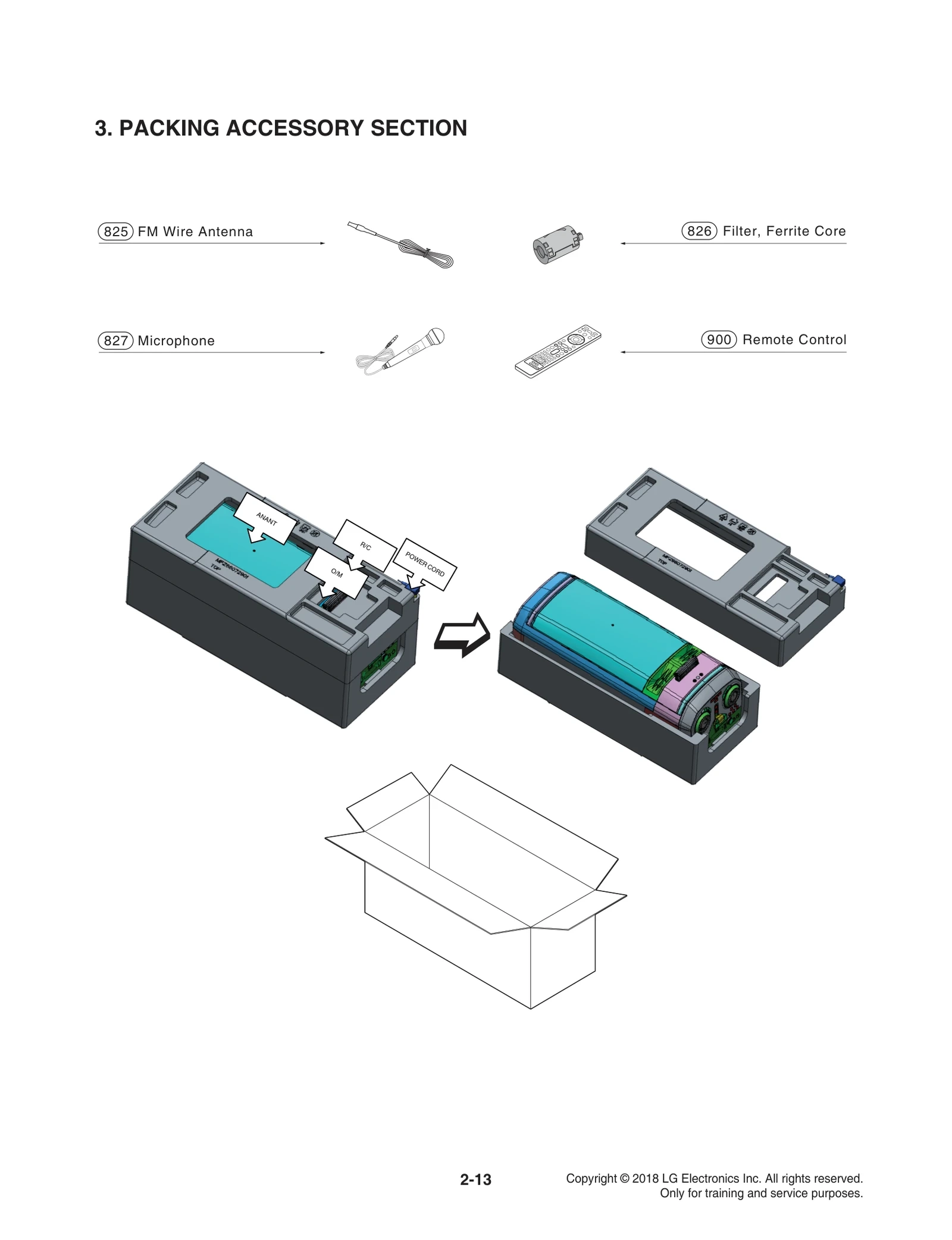

Diagram 2
Diagram 3
Common parts from model LG OK99
251
Plate LGE MGJ66041101 Contact Us For Availability
255
Cover LGE MCK70036002 Contact Us For Availability
256
Knob Assembly LGE AEZ75273304 Contact Us For Availability
257
Knob Assembly LGE AEZ75293304 Contact Us For Availability
258
Knob LGE MEY64574401 Contact Us For Availability
259
Knob Assembly LGE AEZ75253301 Contact Us For Availability
260L
Cover LGE MCK69997502 Contact Us For Availability
260R
Cover LGE MCK69957702 Contact Us For Availability
261
Panel Assembly,Front LGE AGL76354804 Contact Us For Availability
262
Bracket LGE MAZ65994901 Contact Us For Availability
263
Bracket LGE MAZ66072901 Contact Us For Availability
265
Bracket LGE MAZ66011101 Contact Us For Availability
266
Cover LGE MCK69996204 Contact Us For Availability
267
Cover LGE MCK70055301 Contact Us For Availability
268
Cover LGE MCK70055402 Contact Us For Availability
269
Fan Module LGE EAL60700914 Contact Us For Availability
270
Panel,Rear LGE MGC65200301 Contact Us For Availability
272
Damper LGE MCQ68386802 Contact Us For Availability
273
Holder LGE MEG65020201 Contact Us For Availability
274
Holder LGE MEG65020301 Contact Us For Availability
275
Bracket LGE MAZ65994801 Contact Us For Availability
277
Holder LGE MEG65502501 Contact Us For Availability
521
Screw,Customized LGE 353-100AAAD Contact Us For Availability
825
Antenna,T LGE EAA56671906 Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
827
Microphone Assembly LGE EAB60772003 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74955371 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1030
Cable,FFC LGE EAD62056614 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673606 Contact Us For Availability
A00
Deck Assembly,DVD LGE EAZ62761493 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR82255101 Contact Us For Availability
A42
PCB Assembly LGE EBR85921701 Contact Us For Availability
A44
Panel Assembly,Front LGE AGL76413806 Contact Us For Availability
A45
PCB Assembly LGE EBR85881201 Contact Us For Availability
A46
Option Code Assembly LGE EBR85801502 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR83584202 Contact Us For Availability
A50
PCB Assembly LGE EBR85093201 Contact Us For Availability
A51
Module,Bluetooth LGE EAT62833602 Contact Us For Availability
A52
PCB Assembly LGE EBR85901801 Contact Us For Availability
A60
Speaker System Total LGE TCG37028003 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD43523204 Contact Us For Availability
CABLE2
Harness,Single LGE EAD63947302 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62130037 Contact Us For Availability
CABLE4
Harness,Single LGE 6631R-G007J Contact Us For Availability
CABLE5
Harness,Single LGE EAD63925702 Contact Us For Availability
CABLE7
Harness,Single LGE EAD64767302 Contact Us For Availability
CABLE8
Harness,Single LGE EAD64489802 Contact Us For Availability
CN803
Harness,Single LGE EAD42004424 Contact Us For Availability
IC111A
S/W,System Program LGE SAA39952701 Contact Us For Availability
IC503A
S/W,System Program LGE SAA39952601 Contact Us For Availability
IC504A
S/W,System Program LGE SAA39952801 Contact Us For Availability
× ![]()
