Model LG OCF100 TV Acc Speaker(Except for PDP TV) – Common Parts & Diagrams

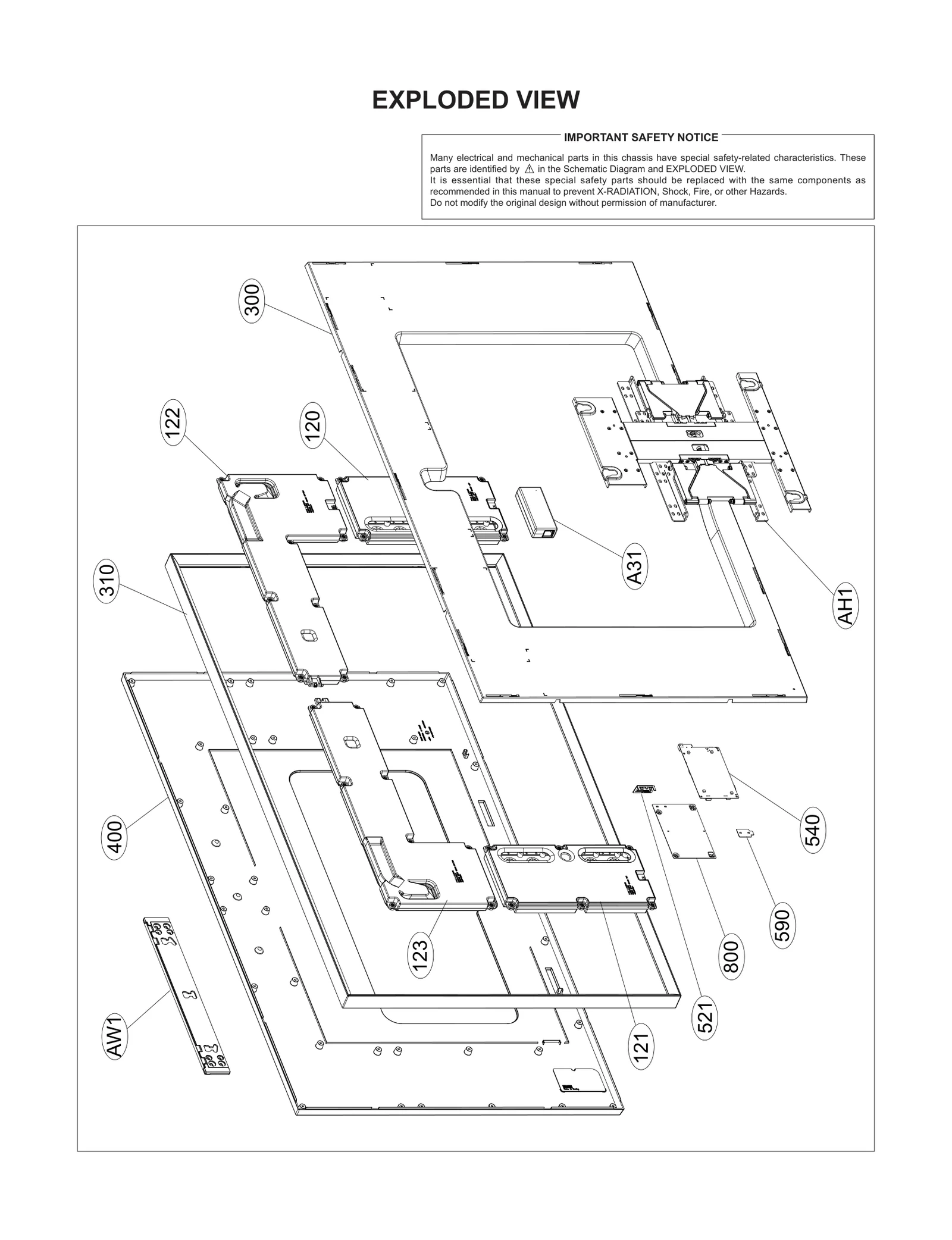

Diagram 0

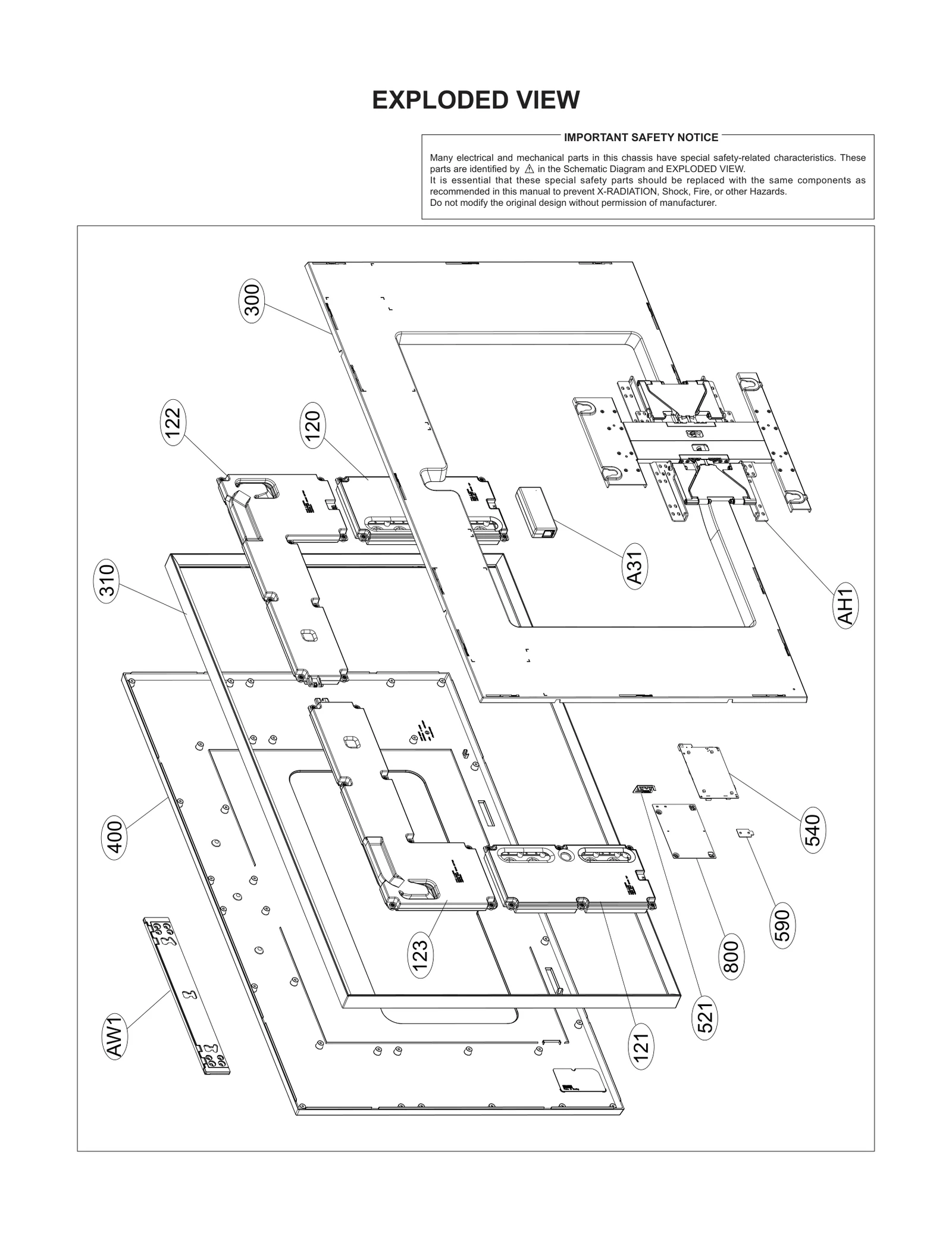

Diagram 1
Common parts from model LG OCF100 TV Acc Speaker(Except for PDP TV)
300
Cover Assembly LGE ACQ86659801 Contact Us For Availability
310
Frame Assembly LGE ADV74569401 Contact Us For Availability
521
Bracket LGE MAZ63836402 Contact Us For Availability
540
Chassis Assembly LGE EBT62698802 Contact Us For Availability
590
PCB Assembly,Sub LGE EBR77750201 Contact Us For Availability
800
Plate,Metal LGE MGJ63609601 Contact Us For Availability
A31
Adapters LGE EAY63149001 Contact Us For Availability
AH1
Hanger LGE MEC61925019 Contact Us For Availability
AW1
Bracket Assembly LGE ABA74590201 Contact Us For Availability
C104
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C111
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C306
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C346
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C359
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C701
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C741
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C743
Capacitor,Ceramic,Ch LGE 0CK333DK56A Contact Us For Availability
C747
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C749
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C752
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C756
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C766
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C804
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C806
Capacitor,Ceramic,Chip LGE 0CK682CK51A Contact Us For Availability
C808
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C836
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C837
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C840
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C841
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C842
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C5740
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
CN301
Connector,Wafer LGE EAG58732904 Contact Us For Availability
D100
Diode,TVS LGE EAH42720601 Contact Us For Availability
D802
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D850
Diode,Rectifier LGE EAH37911701 Contact Us For Availability
FL702
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
IC100
S/W Package LGE SAB35190601 Contact Us For Availability
IC101
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC103
S/W Package LGE SAB35190701 Contact Us For Availability
IC104
IC,Reset LGE EAN60670101 Contact Us For Availability
IC104
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN62408102 Contact Us For Availability
IC305
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC707
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC802
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC803
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
JK303
Connector,USB LGE EAG62571101 Contact Us For Availability
L2
Filter,Bead LGE EAM38769505 Contact Us For Availability
L714
Inductor,Wire Wound,Chip LGE EAP62267601 Contact Us For Availability
L803
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L811
Inductor,Wire Wound,Chip LGE EAP61746101 Contact Us For Availability
L826
Filter,Bead LGE EAM42641607 Contact Us For Availability
P3007
Connector,Wafer LGE EAG58732906 Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
R100
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R305
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R306
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R336
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R340
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R375
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R376
RESISTOR,METAL GLAZED(CHIP) LGE 0RJ1003E672 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R714
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R731
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R808
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R810
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R812
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R819
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R829
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R841
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R842
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R853
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R854
Resistor,Chip LGE 0RH1101D422 Contact Us For Availability
R888
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R890
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R898
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R899
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
X100
Crystal LGE 6212AB2018B Contact Us For Availability
X300
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
ZD701
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD709
Diode,TVS LGE EAH61515101 Contact Us For Availability
× ![]()
