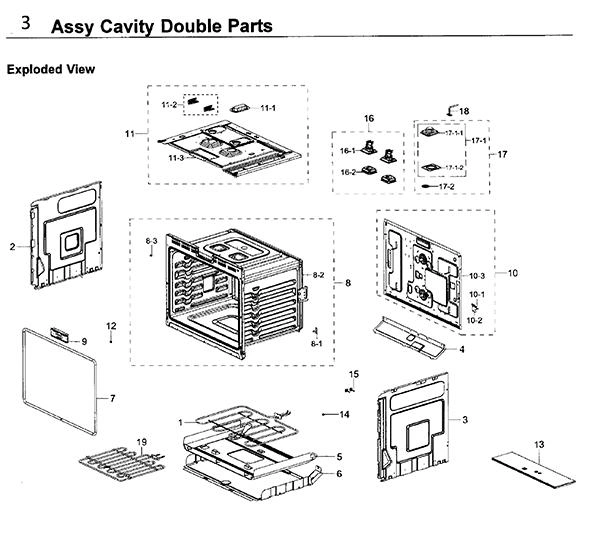

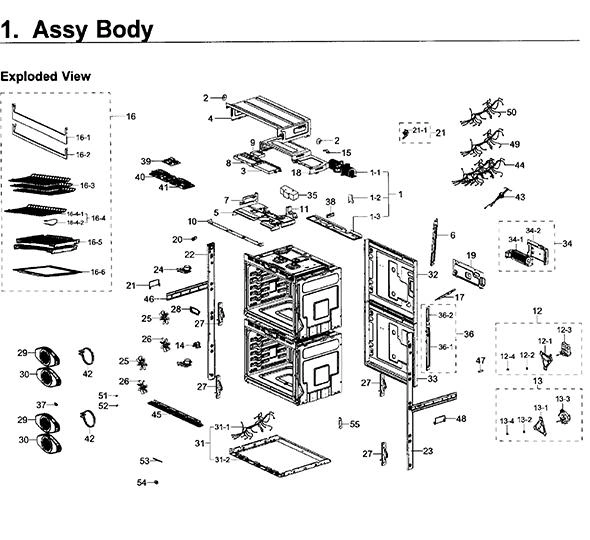

Model Samsung NV51K7770DG-AA-00 – Common Parts &amp; Diagrams

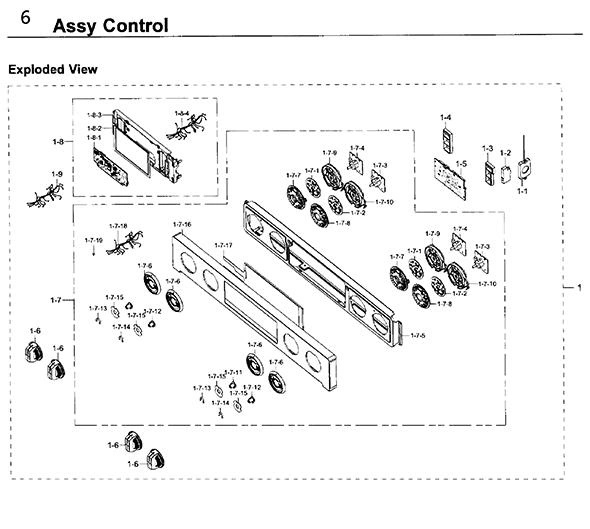

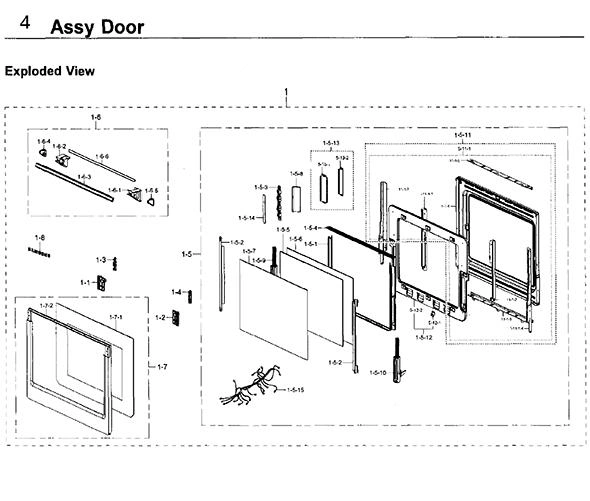

1

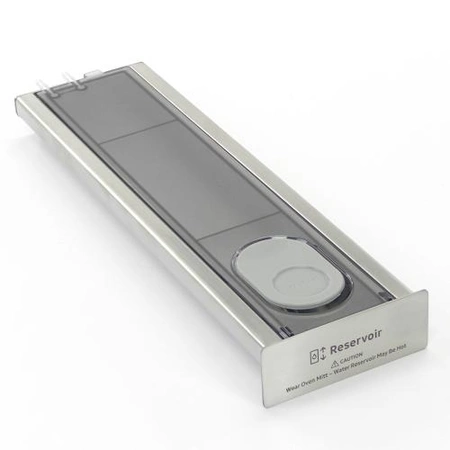

DG94-01548A Samsung Wall Oven Assembly Bowl S Backorder SMG DG94-01548A $473.74

1

DG94-01619B Samsung Motor Holder Backorder SMG DG94-01619B $294.91

1

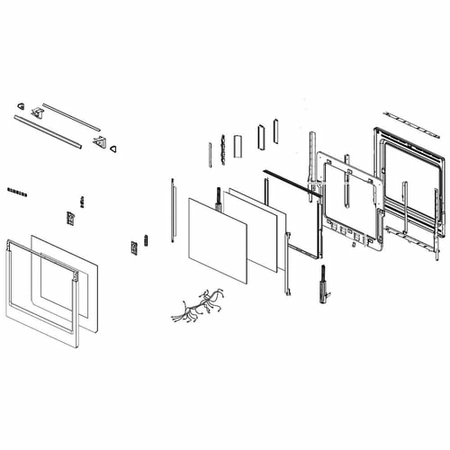

DG94-01649A Samsung Door Display Assembly Bla Backorder SMG DG94-01649A $523.90

1

Control SMG DG90-00551B Contact Us For Availability

DG31-00027A Samsung Wall Oven AC Motor Fan Bl In Stock SMG DG31-00027A $246.33

HOLDER H SMG DG61-01100A Contact Us For Availability

Speaker SMG 3001-002825 Contact Us For Availability

COVER BOWL SMG DG63-00480A Contact Us For Availability

4709-002331 Samsung Air Conditioner Wi-Fi Mod Backorder SMG 4709-002331 $96.37

DG32-00016A Samsung Wall Oven Sensor Magnet In Stock SMG DG32-00016A $87.51

HOLDER H SMG DG61-01101A Contact Us For Availability

Gasket SMG DG63-00489A Contact Us For Availability

1-3

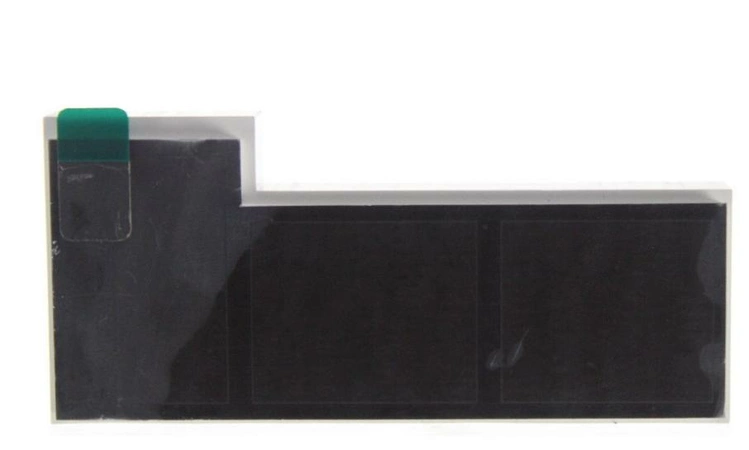

DE07-00139A Samsung LED Display Assembly Backorder SMG DE07-00139A $146.30

1-3

CAP DOOR- SMG DG67-00139B Contact Us For Availability

1-3

RUBBER WAT SMG DG67-00126A Contact Us For Availability

1-4

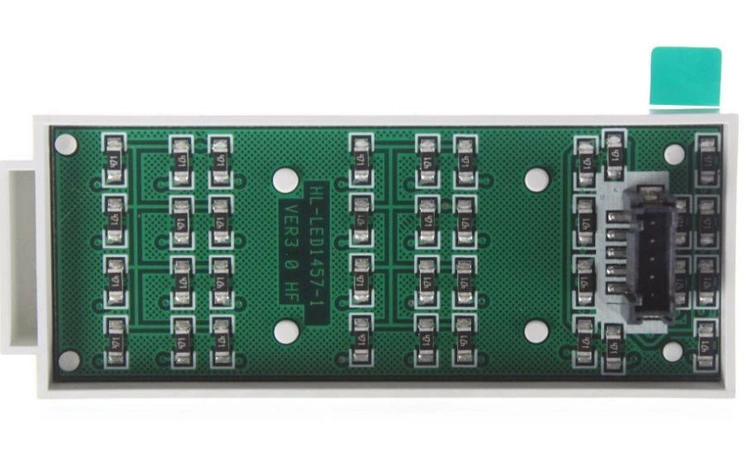

DE07-00140A Samsung LED Display Backorder SMG DE07-00140A $151.96

1-4

CAP DOOR- SMG DG67-00140B Contact Us For Availability

1-4

BOWL WATER SMG DG94-01545A Contact Us For Availability

1-5

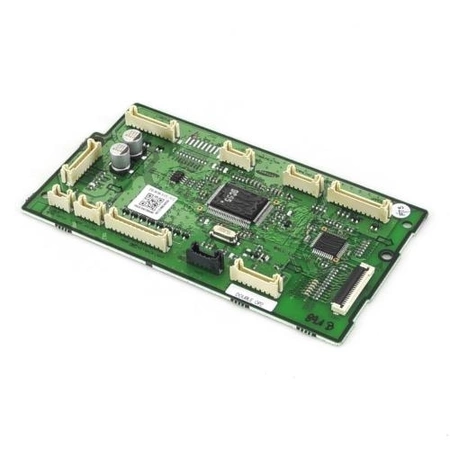

DE94-03894B Samsung Assembly Printed Circuit Backorder SMG DE94-03894B $214.17

1-5

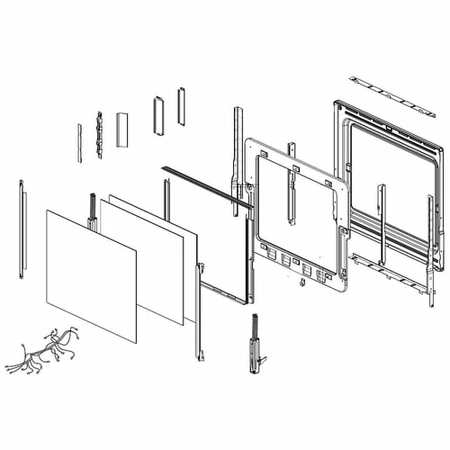

DG94-01600A Samsung Door E-Assembly Backorder SMG DG94-01600A $518.71

1-6

DG94-01589B Samsung Assembly Knob for NV51K77 Backorder SMG DG94-01589B $192.25

1-6

DG94-01635A Samsung Assembly Handle NV51K6650 In Stock SMG DG94-01635A $422.95

1-7

DG94-01601B Samsung Control Panel Assembly NW Backorder SMG DG94-01601B $1,144.45

1-7

Door Sub SMG DG94-01653A Contact Us For Availability

1-8

DG64-00360C Samsung Wall Oven/Microwave Inlet Backorder SMG DG64-00360C $19.00

1-8

Wall Oven Display Board Assembly SMG DG94-01617A Contact Us For Availability

1-9

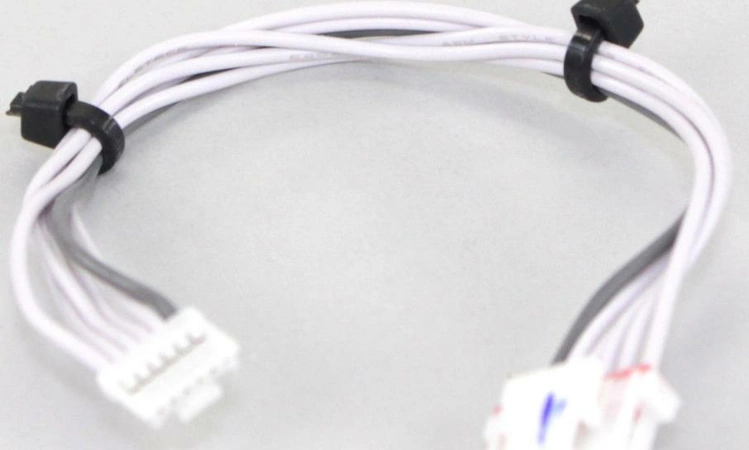

DG96-00535A Samsung DC Signal Wire Harness As Backorder SMG DG96-00535A $48.74

1-51

Frame SMG DG61-01084A Contact Us For Availability

1-52

BRACKET G SMG DG61-01085A Contact Us For Availability

1-53

HOLDER LE SMG DG61-01098A Contact Us For Availability

1-54

COVER GLAS SMG DG63-00453A Contact Us For Availability

1-55

Glass SMG DG64-00612A Contact Us For Availability

1-56

GLASS-MIDD SMG DG64-00613A Contact Us For Availability

1-57

GLASS-SUB SMG DG64-00614A Contact Us For Availability

1-58

GLASS-LIGH SMG DG64-00623A Contact Us For Availability

1-59

DG94-01487A Samsung Hinge Left Assembly Backorder SMG DG94-01487A $147.30

1-61

SUPPORT H SMG DG61-01102B Contact Us For Availability

1-62

SUPPORT H SMG DG61-01103B Contact Us For Availability

1-63

HANDLE DO SMG DG64-00591B Contact Us For Availability

1-64

HANDLE SU SMG DG64-00592B Contact Us For Availability

1-65

HANDLE SU SMG DG64-00593B Contact Us For Availability

1-66

HANDLE SU SMG DG64-00610B Contact Us For Availability

1-71

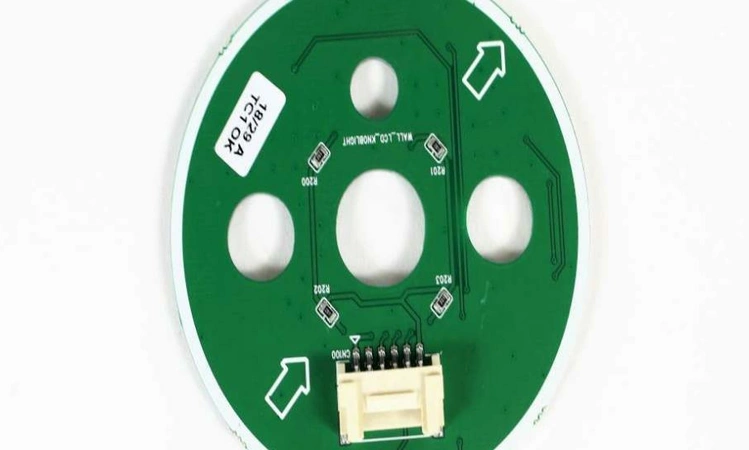

DE92-04041A Samsung Module Assembly Backorder SMG DE92-04041A $163.96

1-71

GLASS-OUT SMG DG64-00615A Contact Us For Availability

1-72

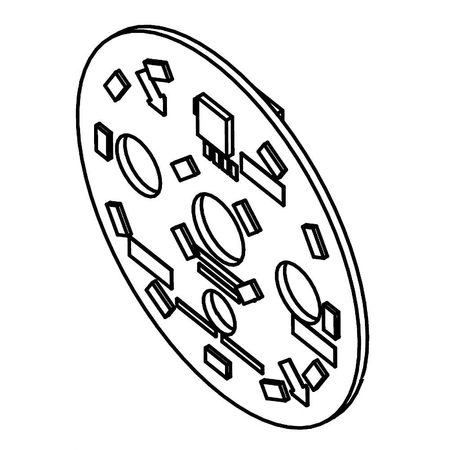

DE92-04041B Samsung Module Assembly Backorder SMG DE92-04041B $98.87

1-72

Chassis SMG DG64-00586A Contact Us For Availability

1-73

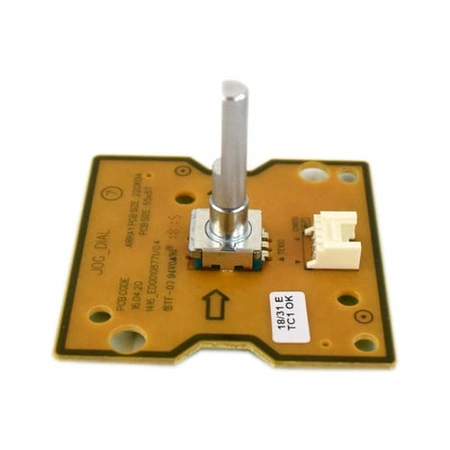

DE92-04042A Samsung Jog Dial Module Assembly Backorder SMG DE92-04042A $79.33

1-74

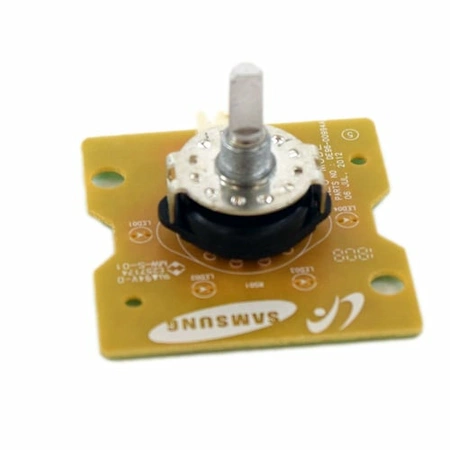

DE96-00994A Samsung Assembly Mode Backorder SMG DE96-00994A $159.28

1-75

BRACKET P SMG DG61-01093B Contact Us For Availability

1-76

HOLDER KNO SMG DG61-01111A Contact Us For Availability

1-77

Guide SMG DG61-01112A Contact Us For Availability

1-78

GUIDE LE SMG DG61-01112B Contact Us For Availability

1-79

HOLDER SUP SMG DG61-01159A Contact Us For Availability

1-81

PCB DISPLA SMG DE92-04050A Contact Us For Availability

1-82

LCD SMG DG07-01004A Contact Us For Availability

1-83

HOLDER LC SMG DG61-01094A Contact Us For Availability

1-84

Wire Harness SMG DG96-00526A Contact Us For Availability

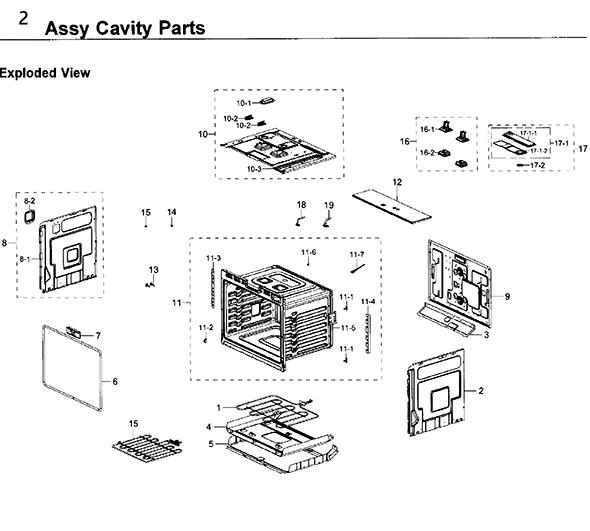

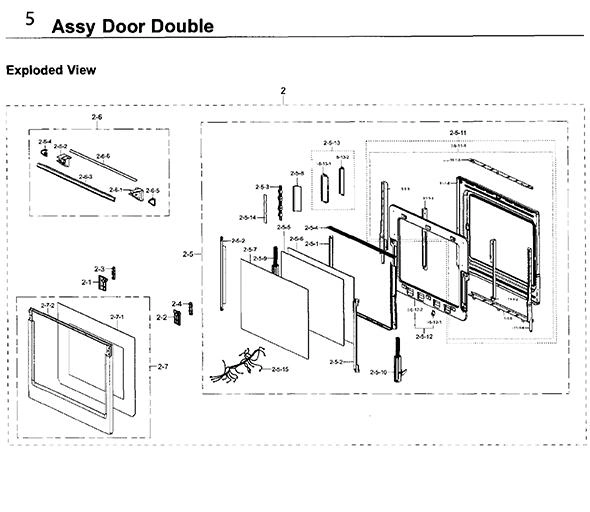

2

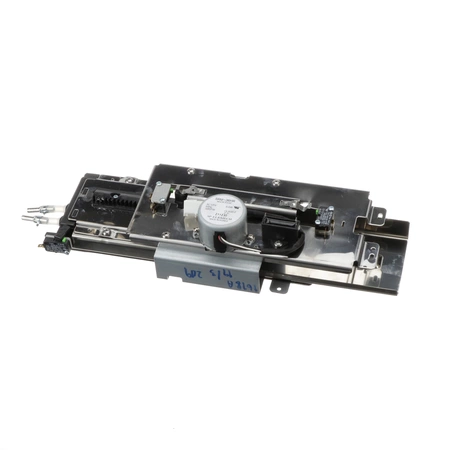

DG94-01618A Samsung Bracket Steam Assembly Backorder SMG DG94-01618A $312.36

2

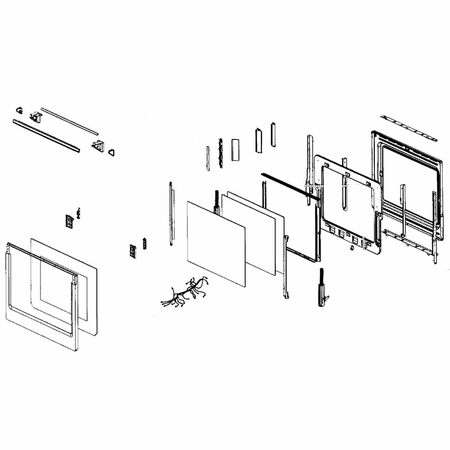

DG94-01651A Samsung Door Double Display Assem Backorder SMG DG94-01651A $531.00

2

CASE-LEFT SMG DG61-01071B Contact Us For Availability

2-2

DG31-00028A Samsung AC Motor Drive Backorder SMG DG31-00028A $212.35

2-3

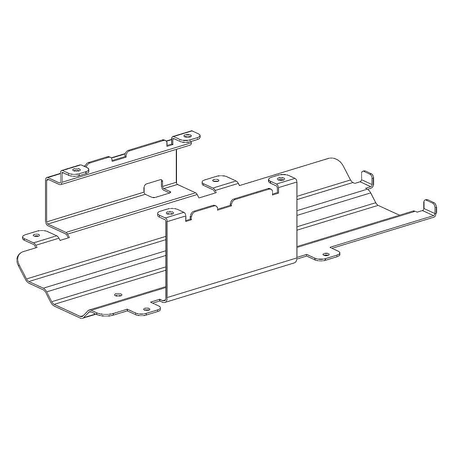

DG61-01188A Samsung Bracket COVER-BOTTOM;NV51 Backorder SMG DG61-01188A $97.85

2-4

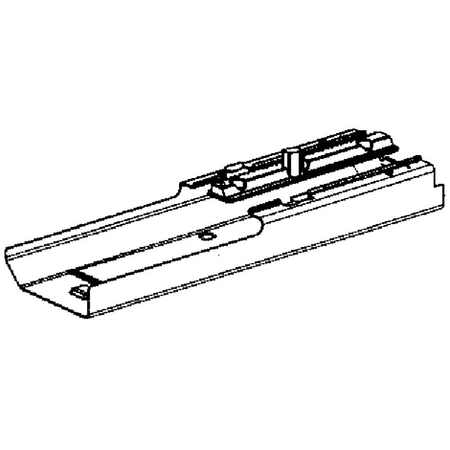

DG61-01189A Samsung Water Tank Guide Backorder SMG DG61-01189A $171.10

2-5

DG61-01192A Samsung Water Guide Bowl Backorder SMG DG61-01192A $70.90

2-6

DG61-01197A Samsung Holder NV51K6650DS PBT+GF Backorder SMG DG61-01197A $31.42

2-7

HOLDER-BOT SMG DG61-01198A Contact Us For Availability

2-8

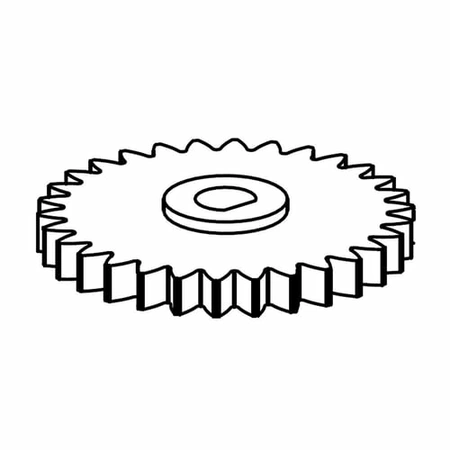

DG66-00042A Samsung Motor Gear Assembly Backorder SMG DG66-00042A $19.18

2-9

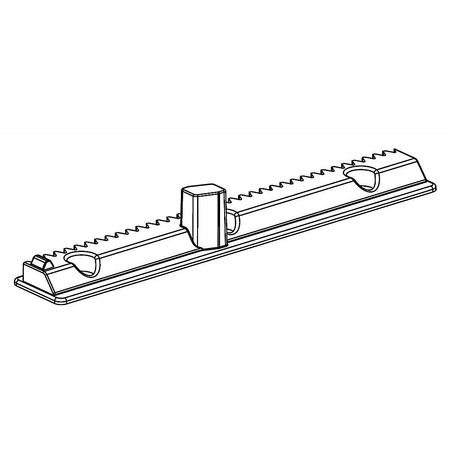

DG66-00043A Samsung Gear Assembly Backorder SMG DG66-00043A $33.63

2-10

DG66-00045A Samsung Lever Assembly NV51K7770D Backorder SMG DG66-00045A $11.19

2-11

DG94-01528A Samsung Assembly SLIDER;NW51K7650 Backorder SMG DG94-01528A $160.88

2-12

BRACKET-TO SMG DG94-01647A Contact Us For Availability

2-13

RUBBER WAT SMG DG67-00092B Contact Us For Availability

2-14

2504-000009 Samsung C Motor Run Box Backorder SMG 2504-000009 $30.32

2-15

DG65-00011D Samsung Clamp-STEAM Tube Backorder SMG DG65-00011D $93.77

3

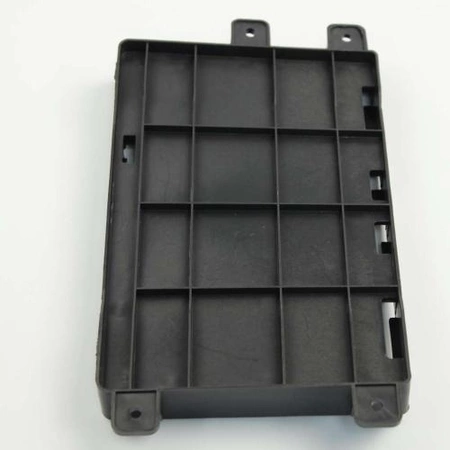

DG61-00060C Samsung Main PCB Holder Backorder SMG DG61-00060C $5.85

3

DG61-01072A Samsung Case Right NV51K6650DS GI Backorder SMG DG61-01072A $103.45

3

HOLDER PUM SMG DG94-01633B Contact Us For Availability

3-1

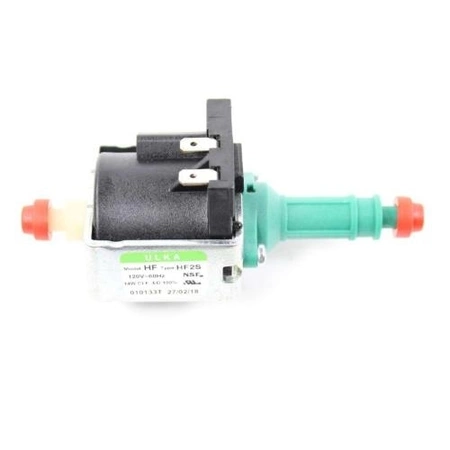

DE31-00065C Samsung Solenoid Coil Valve Backorder SMG DE31-00065C $169.88

3-2

DE61-01081A Samsung Guide Tube Backorder SMG DE61-01081A $8.51

3-3

BRACKET HO SMG DG61-00927A Contact Us For Availability

3-4

HOLDER PU SMG DG61-01177A Contact Us For Availability

3-5

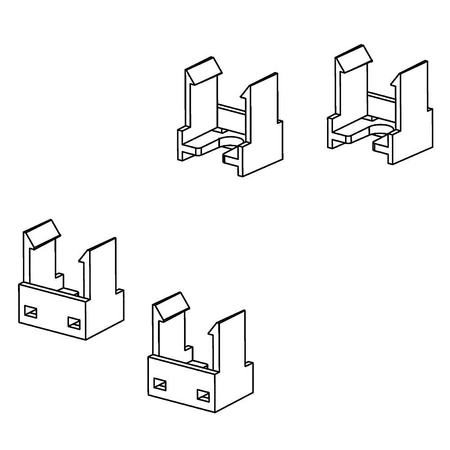

DG61-01208A Samsung Holder Support Backorder SMG DG61-01208A $7.99

3-6

DG62-00144A Samsung Water Tube Backorder SMG DG62-00144A $15.98

3-7

TUBE WATER SMG DG62-00144B Contact Us For Availability

3-8

DG67-00093A Samsung Rubber Damper Backorder SMG DG67-00093A $49.73

3-9

DG67-00143A Samsung Rubber NV51K6650DS Silico Backorder SMG DG67-00143A $44.98

3-10

DG67-00145A Samsung Rubber Water Backorder SMG DG67-00145A $6.91

3-11

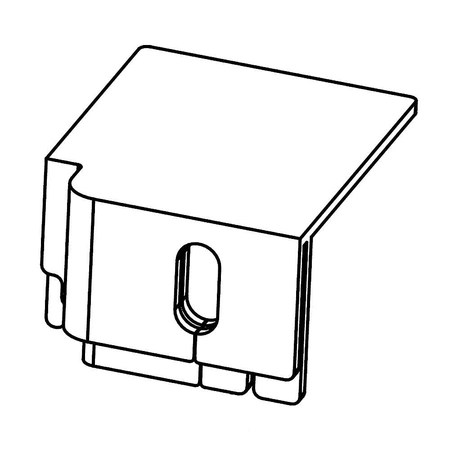

DG67-00146A Samsung Rubber Water Backorder SMG DG67-00146A $6.91

3-13

DG96-00533A Samsung Assembly Wire Harness - S Backorder SMG DG96-00533A $76.00

4

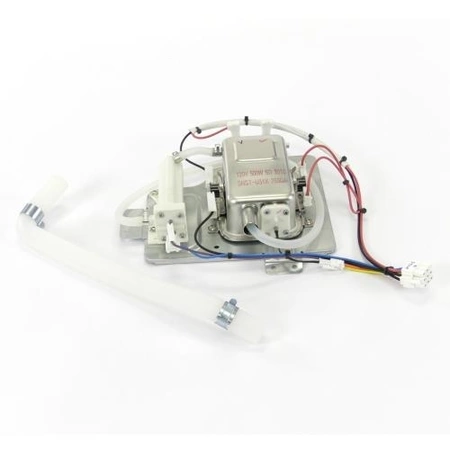

DG94-01636A Samsung Assembly Holder Steam NV5 Backorder SMG DG94-01636A $382.50

4

COVER HEA SMG DG63-00443A Contact Us For Availability

4-1

DE47-20037A Samsung Range Oven High Limit The In Stock SMG DE47-20037A $15.88

4-2

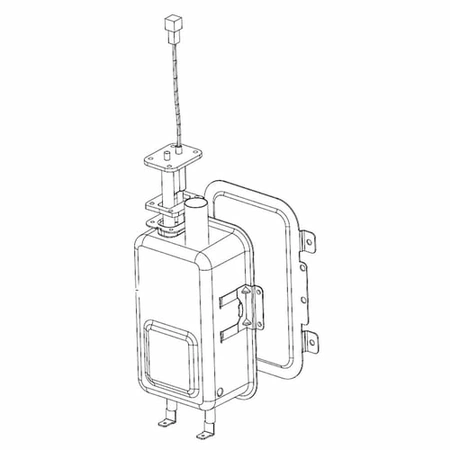

DG47-00048B Samsung Steam Heater Backorder SMG DG47-00048B $311.47

4-3

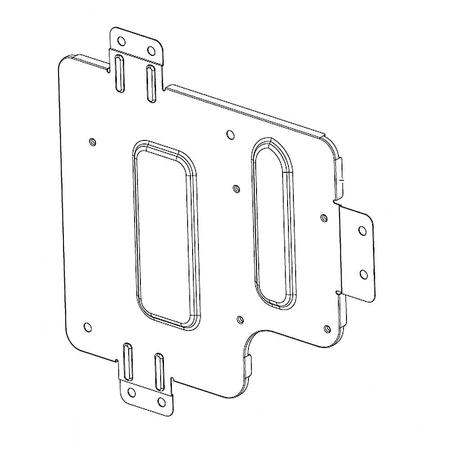

DG61-01099A Samsung Holder Panel Backorder SMG DG61-01099A $34.10

4-5

DG62-00185A Samsung Steam Tube Assembly Backorder SMG DG62-00185A $122.53

4-6

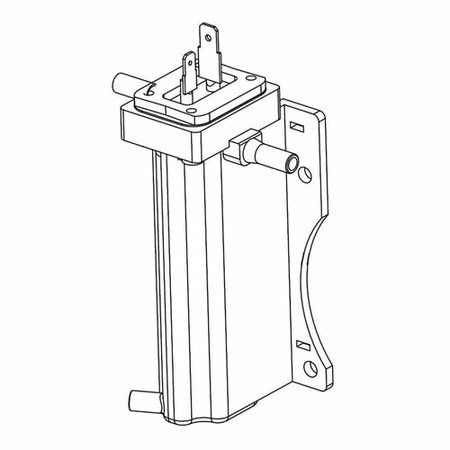

DG94-01549A Samsung Assembly Steamer NV51K665 Backorder SMG DG94-01549A $35.44

4-8

DG65-00011A Samsung Steam Tube Clamp Backorder SMG DG65-00011A $6.56

4-9

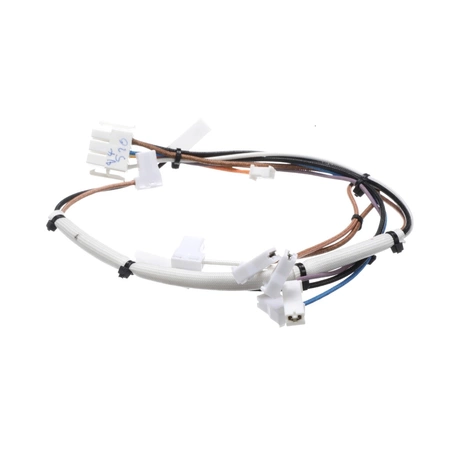

DG96-00520A Samsung Assembly Wire Harness Ste Backorder SMG DG96-00520A $142.31

5

COVER HEA SMG DG63-00445A Contact Us For Availability

6

COVER AD SMG DG63-00462A Contact Us For Availability

7

DG63-00483A Samsung Door Gasket Backorder SMG DG63-00483A $153.62

8

CASE-LEFT SMG DG94-01605A Contact Us For Availability

8

CAVITY MAI SMG DG94-01665A Contact Us For Availability

8-1

DG32-00004C Samsung Range Thermistor Sensor In Stock SMG DG32-00004C $107.21

8-1

CASE-LEFT SMG DG61-01071A Contact Us For Availability

8-2

COVER SENS SMG DG63-00482A Contact Us For Availability

8-2

CAVITY-COA SMG DG94-01590D Contact Us For Availability

8-3

DE60-30016A Samsung Microwave/Range Flange Nu Backorder SMG DE60-30016A $19.18

9

BRACKET-RE SMG DG94-01602A Contact Us For Availability

9

COVER ADIA SMG DG94-01631C Contact Us For Availability

10

COVER ADIA SMG DG94-01654C Contact Us For Availability

10

COVER ADIA SMG DG94-01631B Contact Us For Availability

10-2

DE61-50490A Samsung TCO Bracket Backorder SMG DE61-50490A $1.18

10-3

COVER AD SMG DG63-00461A Contact Us For Availability

11

CAVITY MAI SMG DG94-01664A Contact Us For Availability

11

COVER ADIA SMG DG94-01654B Contact Us For Availability

11-1

Bracket SMG DG61-01182A Contact Us For Availability

11-2

DG94-00674A Samsung Probe Meat Backorder SMG DG94-00674A $153.28

11-2

Bracket SMG DG61-01215A Contact Us For Availability

11-3

COVER AD SMG DG63-00460A Contact Us For Availability

11-3

Bracket SMG DG61-01075A Contact Us For Availability

11-4

Bracket SMG DG61-01076A Contact Us For Availability

11-5

CAVITY-COA SMG DG94-01590C Contact Us For Availability

11-7

DG96-00389A Samsung Wire Harness - Earth Backorder SMG DG96-00389A $30.34

12

6021-001207 Samsung Circular Nut Backorder SMG 6021-001207 $21.83

12

DG96-00110E Samsung Range Oven Convection Fan In Stock SMG DG96-00110E $155.42

12-2

DG67-00028A Samsung Oven Convection Motor Cap Backorder SMG DG67-00028A $1.69

12-3

DG31-00005C Samsung Range Oven Convection AC Backorder SMG DG31-00005C $156.22

13

DG96-00110F Samsung Oven Convection Motor Ass In Stock SMG DG96-00110F $154.28

13

Adiabatic SMG DG62-00191A Contact Us For Availability

13-3

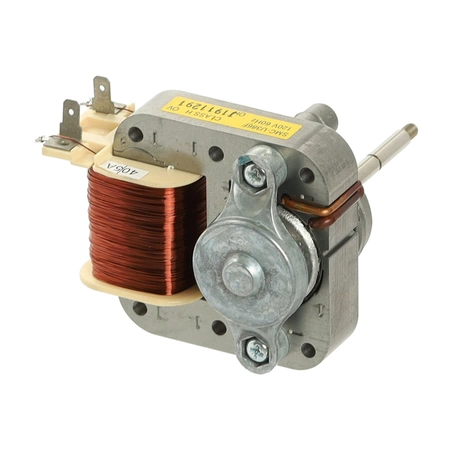

DG31-00007E Samsung Range Oven 30" AC Convect Backorder SMG DG31-00007E $162.21

15

DG73-00003A Samsung Range Oven Door Rubber Cu In Stock SMG DG73-00003A $3.35

16

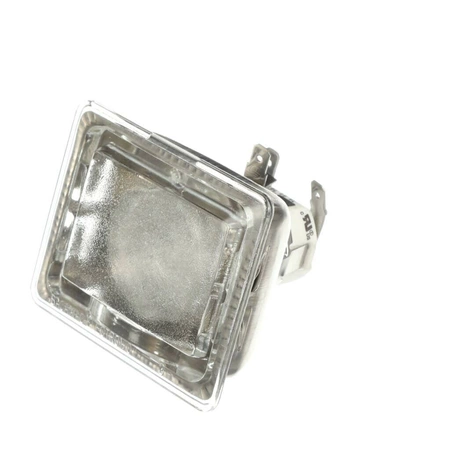

DG96-00541A Samsung Halogen Lamp Assembly Backorder SMG DG96-00541A $161.53

16-1

DG94-01661A Samsung Pedestal Trim Assembly Backorder SMG DG94-01661A $177.78

16-1

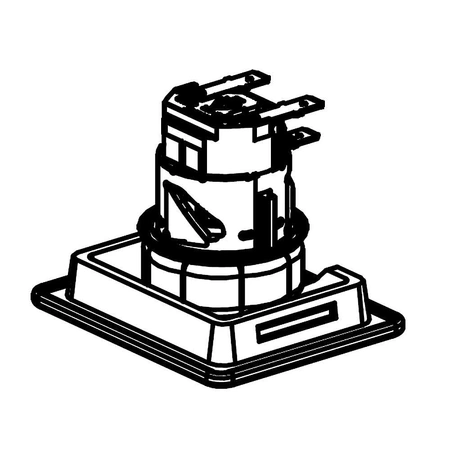

DG96-00371B Samsung Halogen Lamp Assembly NV5 Backorder SMG DG96-00371B $160.60

16-2

COVER LAM SMG DG63-00493A Contact Us For Availability

16-5

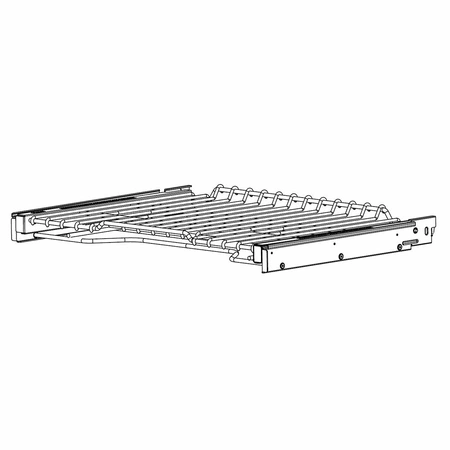

DG94-01486A Samsung Wire Rack Assembly Backorder SMG DG94-01486A $482.11

17

DG94-01266A Samsung Vent Filter Assembly Backorder SMG DG94-01266A $95.62

17

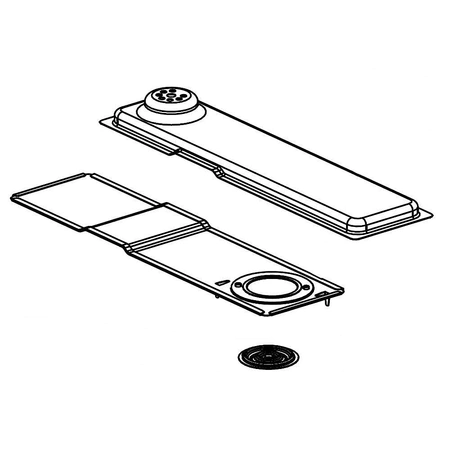

DG94-01597A Samsung Vent Assembly Backorder SMG DG94-01597A $123.54

17-1

DG94-00905A Samsung Vent Assembly Backorder SMG DG94-00905A $53.51

17-1

Air Duct SMG DG94-01599A Contact Us For Availability

17-2

Mesh Filter SMG DG63-00148A Contact Us For Availability

18

INLET WATE SMG DG94-01543A Contact Us For Availability

19

DG47-00070A Samsung Heater Sheath Backorder SMG DG47-00070A $228.56

19

DG94-01544A Samsung Assembly PIPE STEAM-IN;-, Backorder SMG DG94-01544A $143.63

21-1

3405-001034 Samsung Microwave Oven Range Micr In Stock SMG 3405-001034 $16.96

24

DG66-00041A Samsung Door Latch Assembly Backorder SMG DG66-00041A $216.25

25

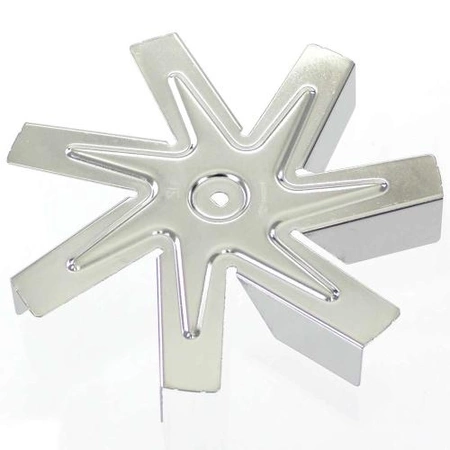

DG67-00120A Samsung Fan Convection Assembly N Backorder SMG DG67-00120A $68.26

27

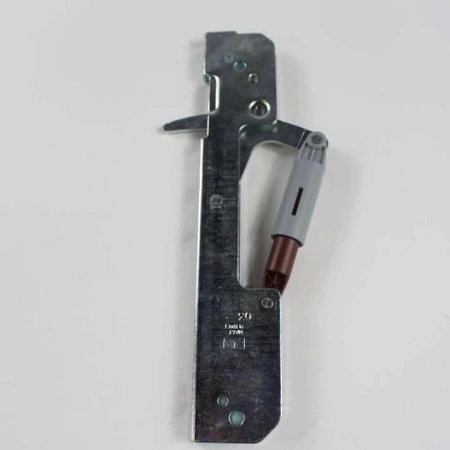

DG94-01120C Samsung NY58J9850 Hinge Support A Backorder SMG DG94-01120C $202.19

34-1

DG31-00026B Samsung AC Blower Fan Motor Assem Backorder SMG DG31-00026B $206.34

35

DG96-00173A Samsung Oven Terminal Block Assem In Stock SMG DG96-00173A $61.51

39

DA92-00675A Samsung Refrigerator Power Module Backorder SMG DA92-00675A $176.89

40

DE92-03960E Samsung Main Printed Circuit Boar Backorder SMG DE92-03960E $261.98

41

DE92-04045B Samsung Main Assembly Printed Cir Backorder SMG DE92-04045B $302.37

42

DG47-00009C Samsung Oven Convection Heater Sh Backorder SMG DG47-00009C $111.07

43

DG96-00493A Samsung Assembly Power Wire Harne Backorder SMG DG96-00493A $290.33

44

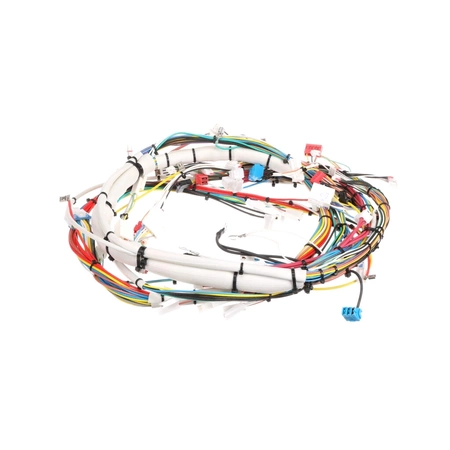

DG96-00529A Samsung Assembly Wire Harness Backorder SMG DG96-00529A $435.46

47

DG60-00001A Samsung Oven Convection Fan Blade Backorder SMG DG60-00001A $8.94

49

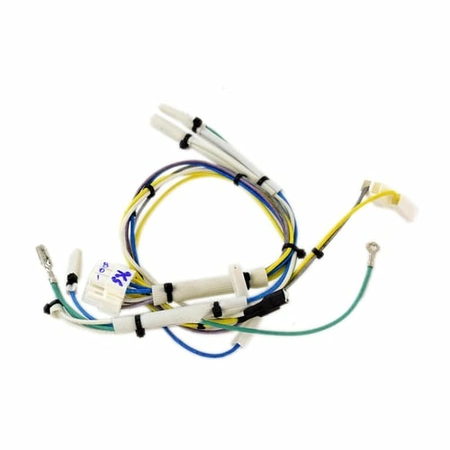

DG96-00536A Samsung Motor Wire Harness Assemb Backorder SMG DG96-00536A $142.77

51

6021-001208 Samsung Washer Hexagon Nut Cap Backorder SMG 6021-001208 $6.71

52

6021-001211 Samsung Range Oven Convection Fan In Stock SMG 6021-001211 $15.37

1111

BRACKET D SMG DG61-01082A Contact Us For Availability

1112

BRACKET D SMG DG61-01083A Contact Us For Availability

1113

BRACKET H SMG DG61-01086A Contact Us For Availability

1114

BRACKET H SMG DG61-01087A Contact Us For Availability

1115

BRACKET D SMG DG61-01104A Contact Us For Availability

1116

Inner Door Assembly SMG DG64-00579A Contact Us For Availability

1510

DG94-01488A Samsung Assembly Right Hinge Backorder SMG DG94-01488A $147.64

1511

DOOR E-COA SMG DG94-01575A Contact Us For Availability

1642

DG32-00013A Samsung Range Oven Meat Probe Sen Backorder SMG DG32-00013A $181.51

1710

HOLDER SUP SMG DG61-01159B Contact Us For Availability

1711

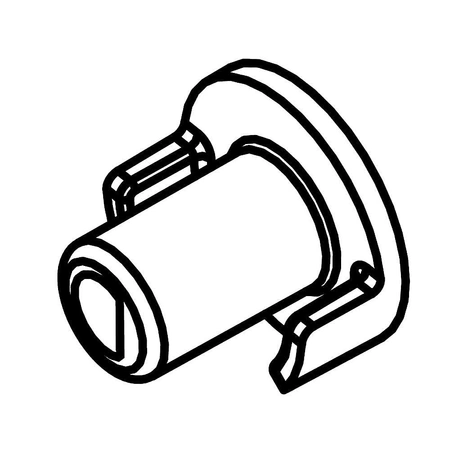

DG61-01211A Samsung GUIDE;NV51K7770DS,ABS,HG- Backorder SMG DG61-01211A $19.55

1711

DUCT AIR- SMG DG67-00118A Contact Us For Availability

1711

Bracket SMG DG61-00786A Contact Us For Availability

1712

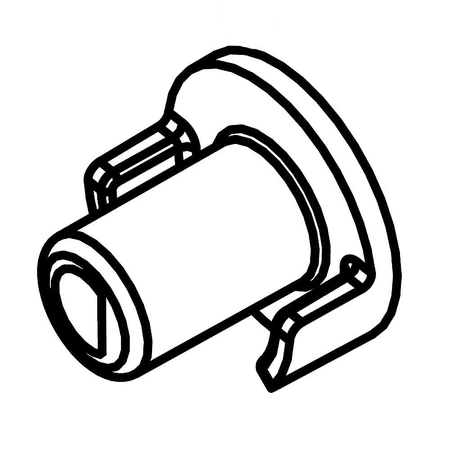

DG61-01219A Samsung Guide Backorder SMG DG61-01219A $3.90

1712

Air Duct SMG DG67-00119A Contact Us For Availability

1712

Bracket SMG DG61-00802A Contact Us For Availability

1713

SPRING ETC SMG DG61-01220A Contact Us For Availability

1714

SPRING ETC SMG DG61-01221A Contact Us For Availability

1715

RUBBER RIN SMG DG67-00131A Contact Us For Availability

1716

CONTROL CH SMG DG94-01547B Contact Us For Availability

1717

Touch SMG DG96-00480A Contact Us For Availability

1718

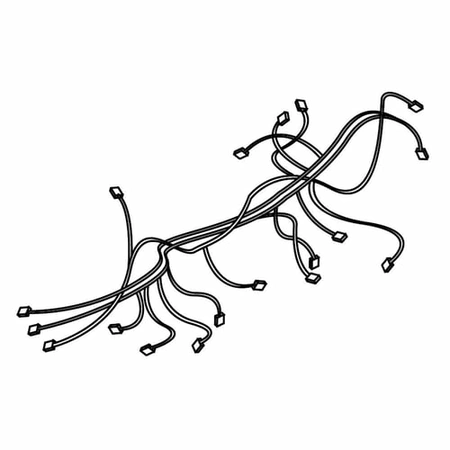

DG96-00531A Samsung Assembly Display Wire Har Backorder SMG DG96-00531A $173.67

1719

6002-000444 Samsung Appliance Tapping Screw Backorder SMG 6002-000444 $1.69

2121

DG61-01187A Samsung Dryer Top Cover Bracket Backorder SMG DG61-01187A $128.85

2122

HOLDER SPR SMG DG61-01212A Contact Us For Availability

2512

BAFFLE DO SMG DG94-01609A Contact Us For Availability

2513

COVER-LED SMG DG94-01612A Contact Us For Availability

2514

DG96-00484A Samsung Assembly LED Lamp Backorder SMG DG96-00484A $137.62

2515

DG96-00538A Samsung Wall Oven Wire Harness Backorder SMG DG96-00538A $96.35

5111

DOOR E-WEL SMG DG94-01577A Contact Us For Availability

5121

HOLDER L SMG DG61-01160A Contact Us For Availability

5122

BAFFLE DO SMG DG62-00180A Contact Us For Availability

5131

COVER LED SMG DG63-00446A Contact Us For Availability

5132

COVER LED- SMG DG63-00447A Contact Us For Availability
