Model Maytag NTW4800VQ0 WASHER – Common Parts & Diagrams
01 - TOP AND CABINET PARTS

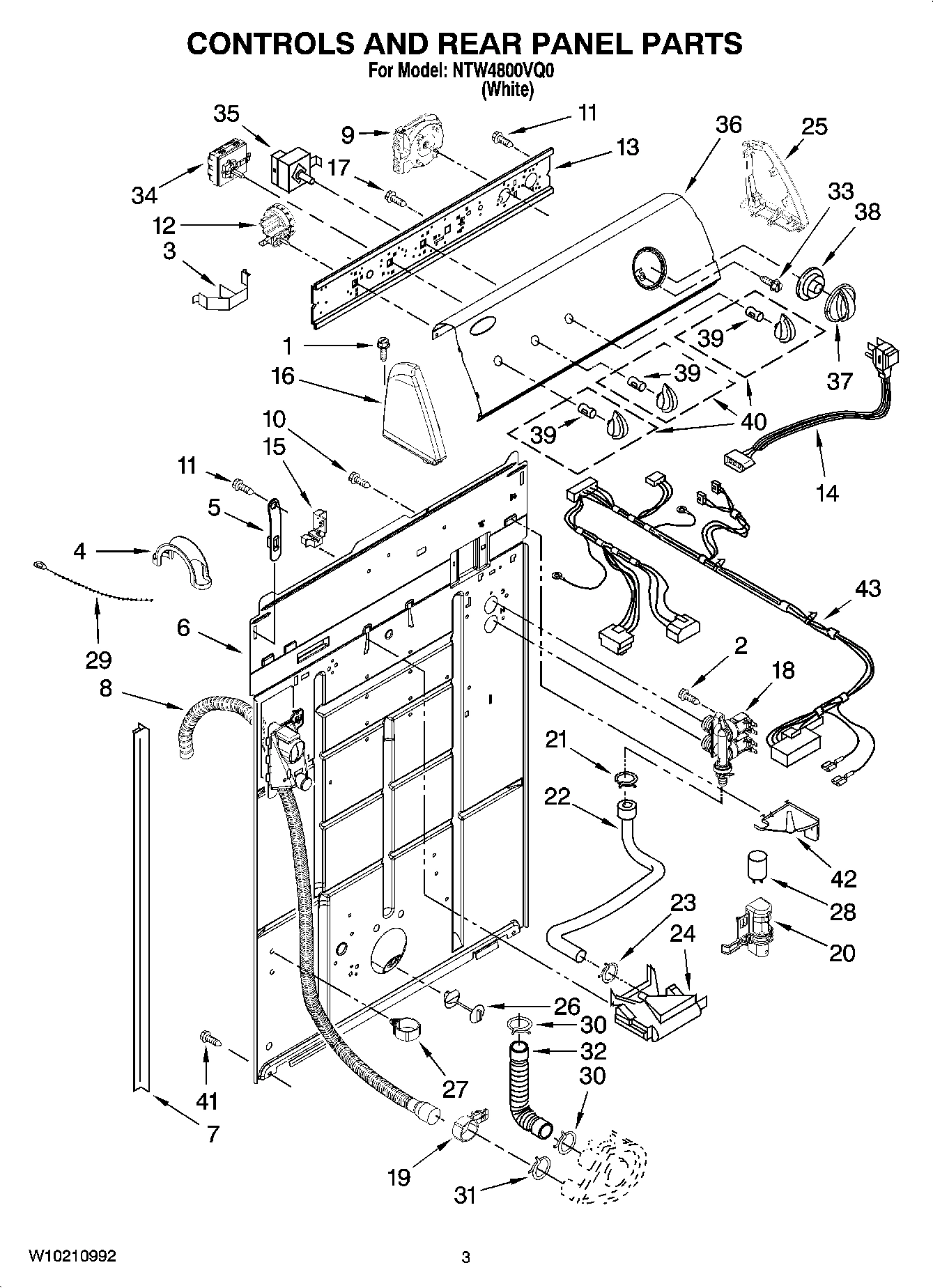

02 - CONTROLS AND REAR PANEL PARTS

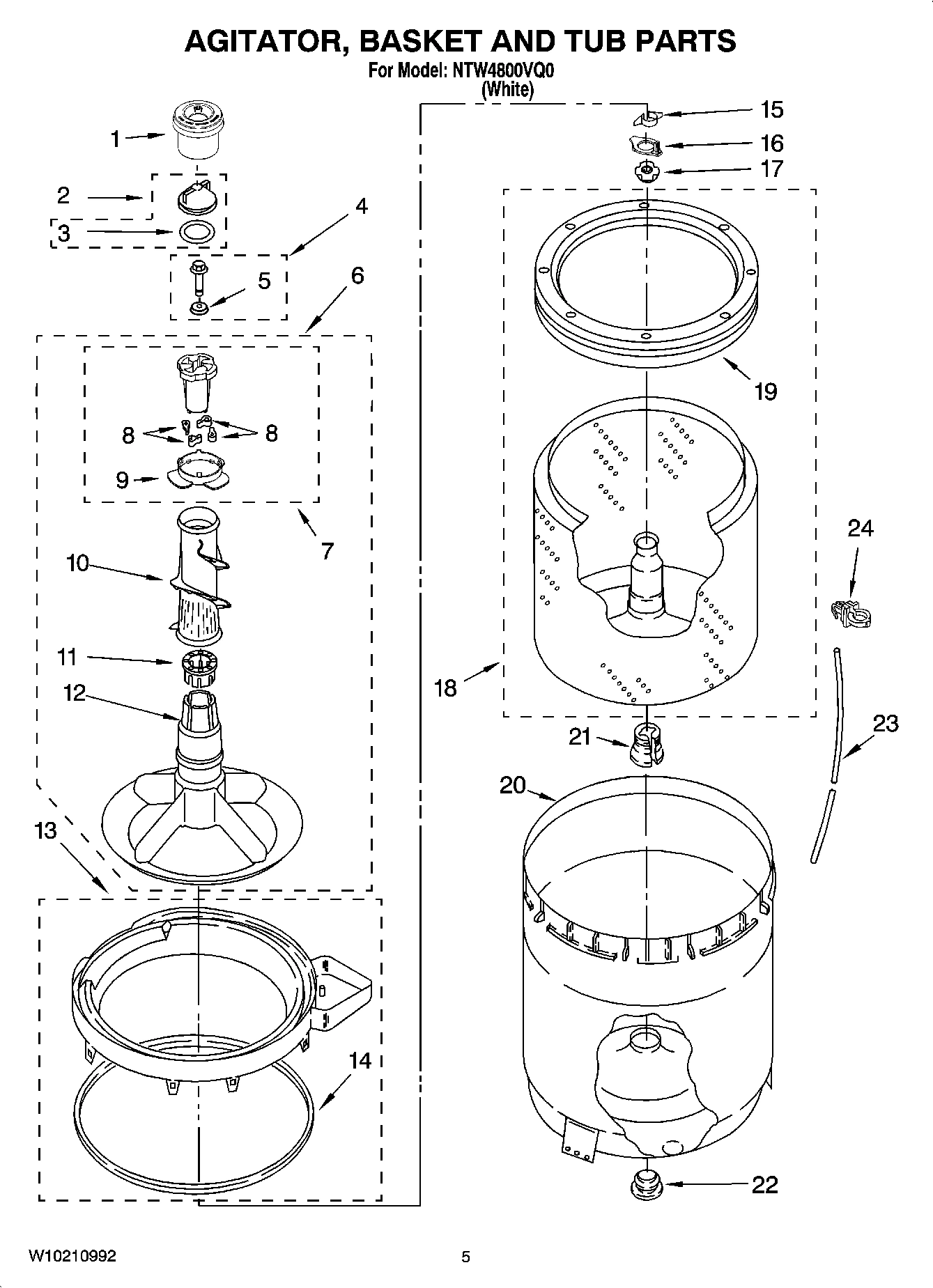

03 - AGITATOR, BASKET AND TUB PARTS

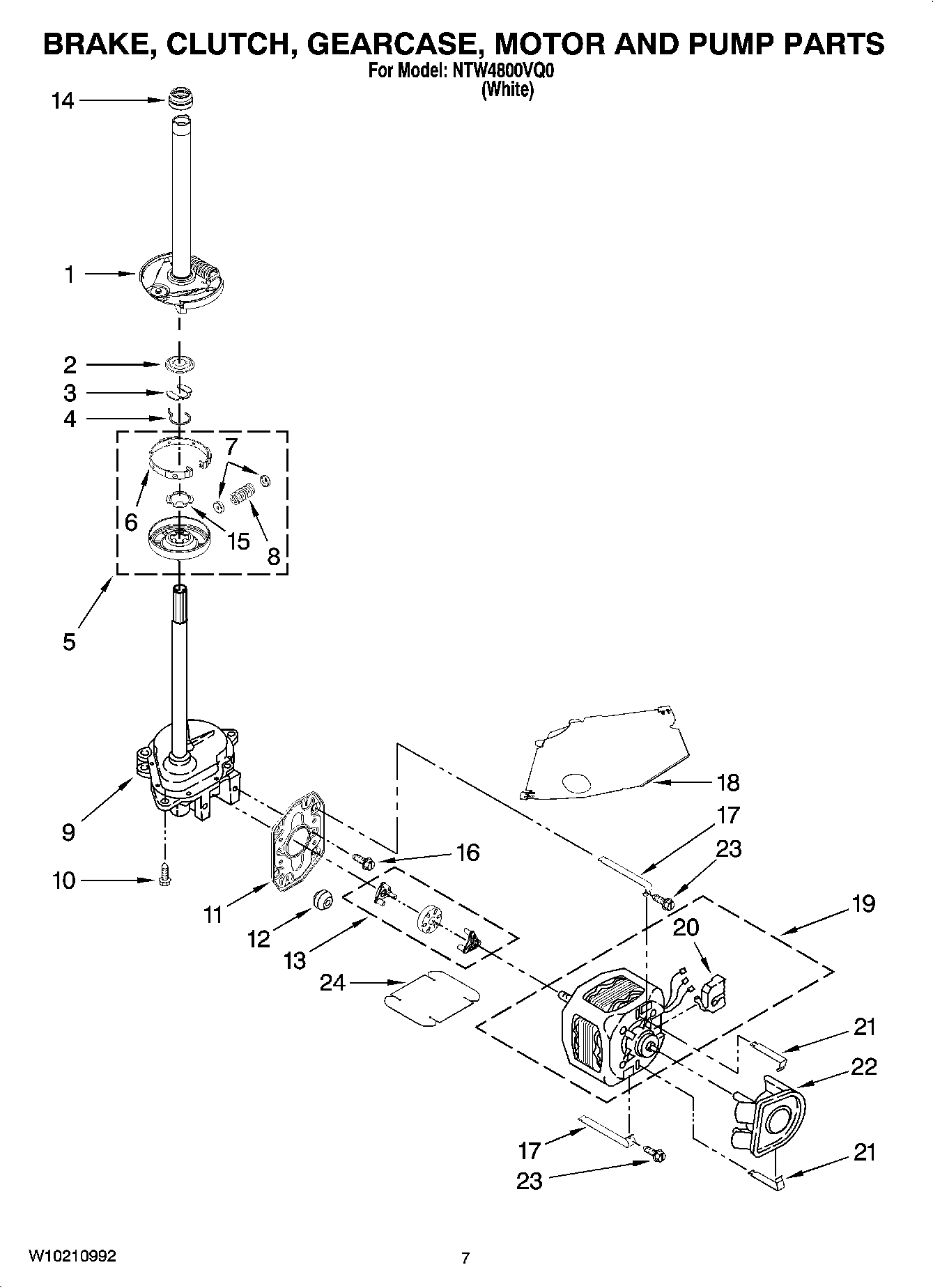

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

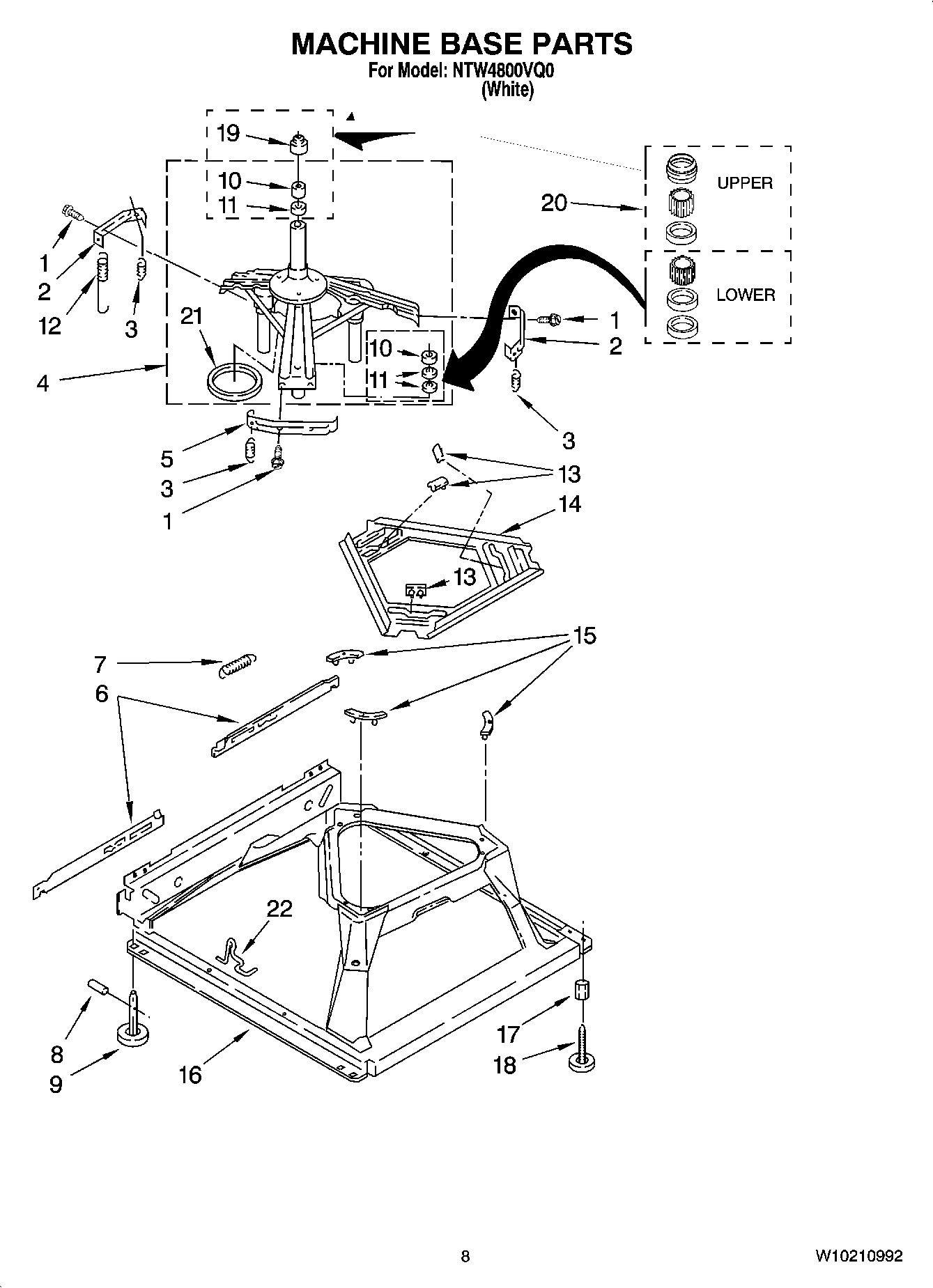

05 - MACHINE BASE PARTS

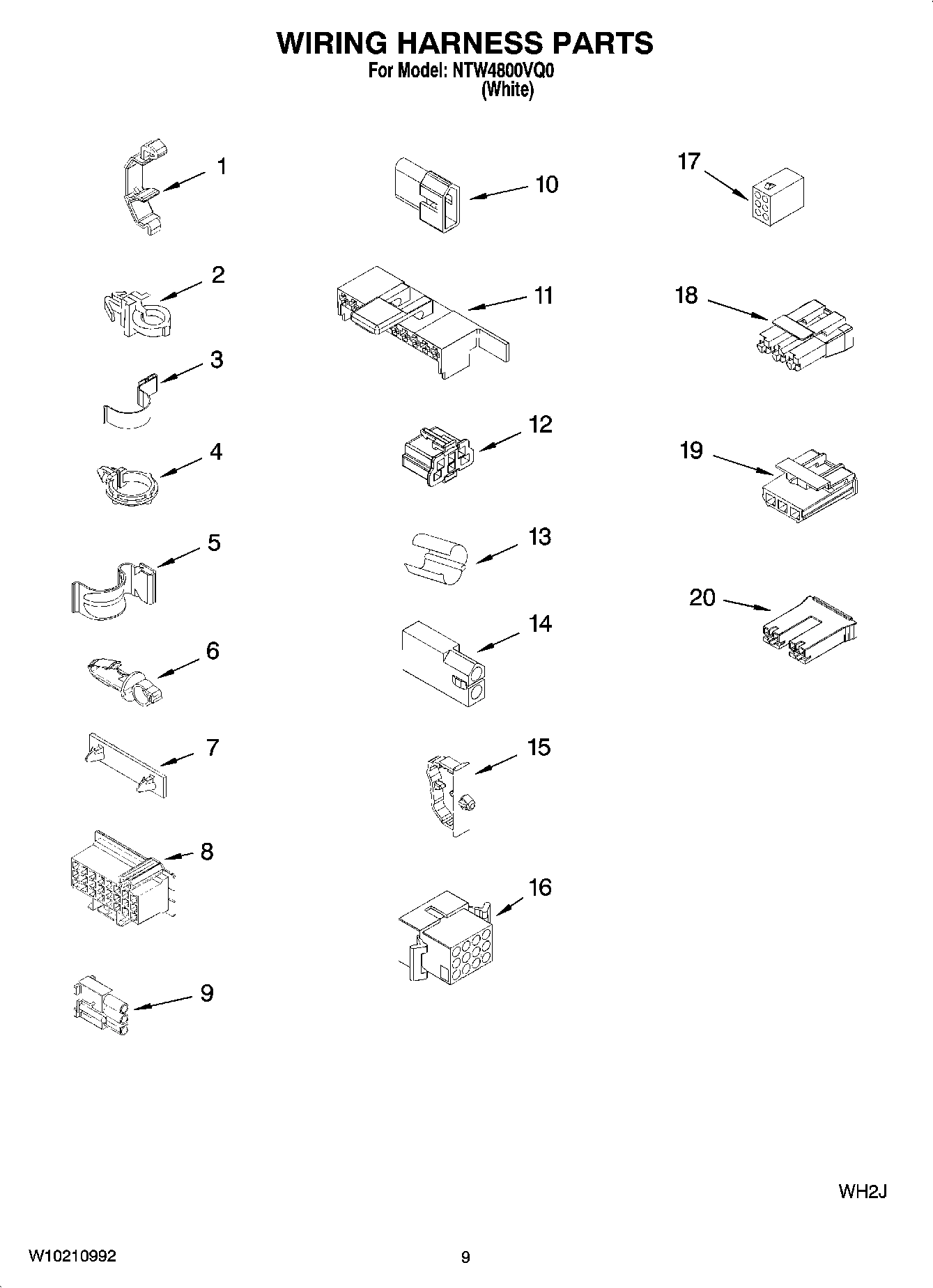

06 - WIRING HARNESS PARTS

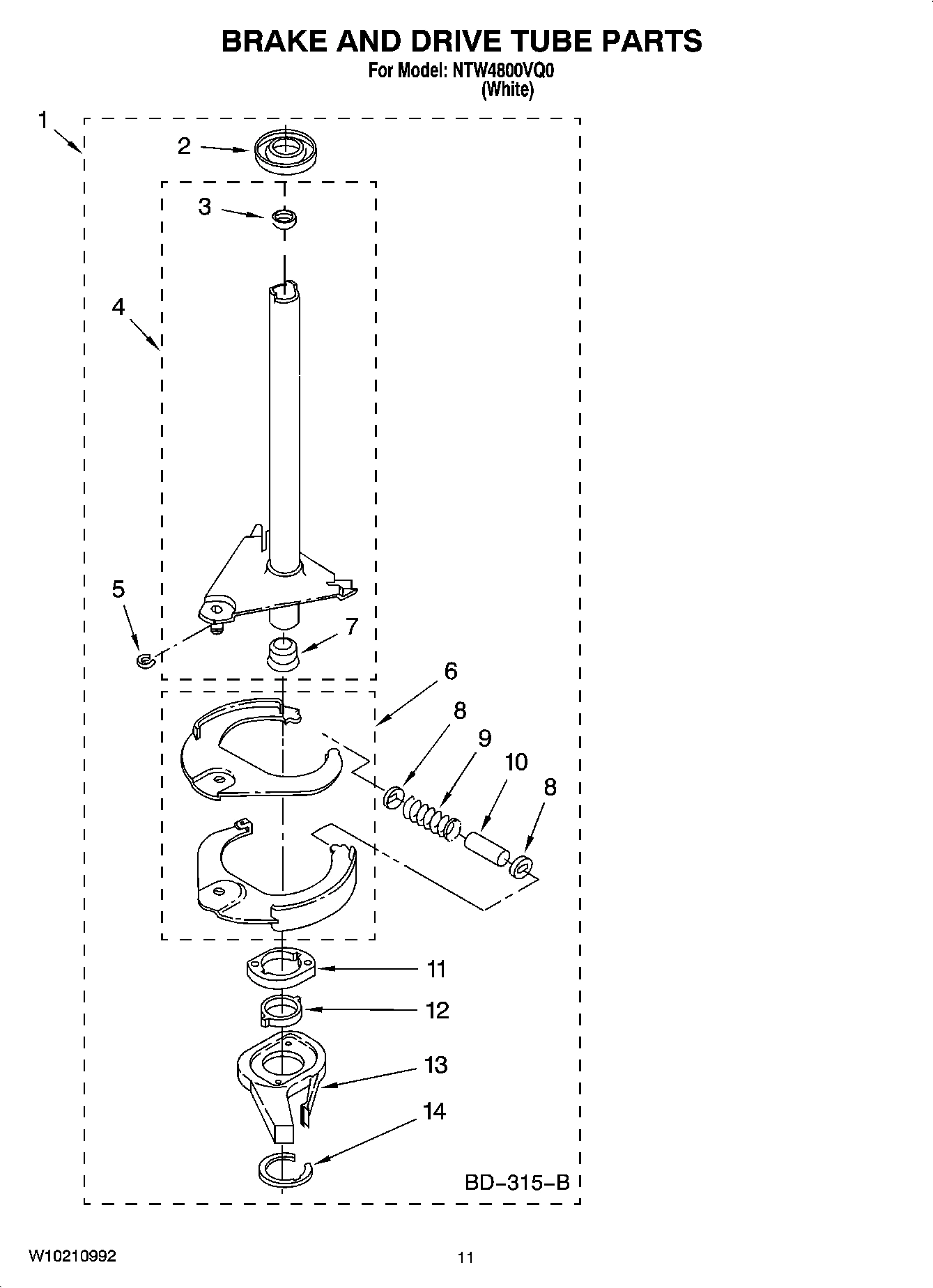

07 - BRAKE AND DRIVE TUBE PARTS

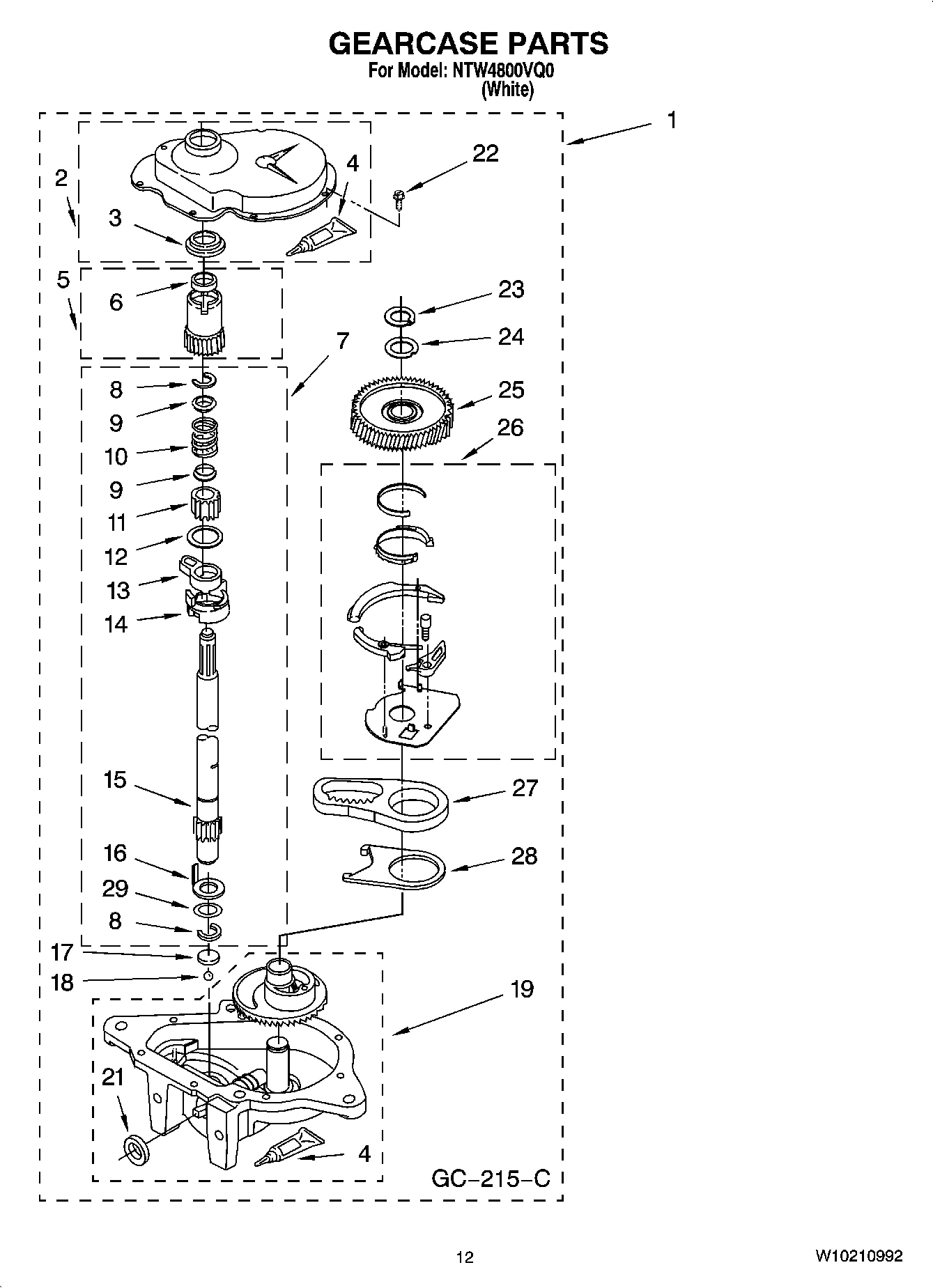

08 - GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NTW4800VQ0 WASHER
1
MAY W10175555 MAY W10175555 Contact Us For Availability
1
MAY W10192178 MAY W10192178 Contact Us For Availability
1
MAY W10192179 MAY W10192179 Contact Us For Availability
1
MAY W10192180 MAY W10192180 Contact Us For Availability
1
MAY W10192181 MAY W10192181 Contact Us For Availability
1
MAY W10192182 MAY W10192182 Contact Us For Availability
1
Installation Instructions (English) MAY W10200331 Contact Us For Availability
1
MAY W10200662 MAY W10200662 Contact Us For Availability
1
Screw, 8-18 x 1.25 (Panel to Top) MAY 388326 Contact Us For Availability
1
MAY 8575076 MAY 8575076 Contact Us For Availability
1
Brake And Drive Tube (Complete) MAY 388952 Contact Us For Availability
1
Gearcase (Complete) MAY 3360630 Contact Us For Availability
1
MAY 3400076 MAY 3400076 Contact Us For Availability
1
Retainer, Harness MAY 3349557 Contact Us For Availability
2
MAY W10194570 MAY W10194570 Contact Us For Availability
2
MAY 9740848 MAY 9740848 Contact Us For Availability
2
MAY 3354733 MAY 3354733 Contact Us For Availability
2
MAY 63292 MAY 63292 Contact Us For Availability
2
MAY 64067 MAY 64067 Contact Us For Availability
2
MAY 388498 MAY 388498 Contact Us For Availability
2
MAY 62658 MAY 62658 Contact Us For Availability
2
MAY 285202 MAY 285202 Contact Us For Availability
3
MAY 62750 MAY 62750 Contact Us For Availability
3
MAY 8055003 MAY 8055003 Contact Us For Availability
3
MAY W10072840 MAY W10072840 Contact Us For Availability
3
MAY 62697 MAY 62697 Contact Us For Availability
3
SPRING, SUSPENSION(3) MAY 63907 Contact Us For Availability
3
MAY 3347812 MAY 3347812 Contact Us For Availability
3
MAY 3349985 MAY 3349985 Contact Us For Availability
4
Nut-Push-In (2) MAY 357213 Contact Us For Availability
4
MAY 8577378 MAY 8577378 Contact Us For Availability
4
Screw & Washer (5/16-24 x 1) MAY 358237 Contact Us For Availability
4
MAY 63283 MAY 63283 Contact Us For Availability
4
MAY 8575214 MAY 8575214 Contact Us For Availability
4
Clip, Harness (Push-In) MAY 3352501 Contact Us For Availability
4
MAY 64027 MAY 64027 Contact Us For Availability
5
Cabinet MAY 63424 Contact Us For Availability
5
Strap, Console (2) MAY 8568314 Contact Us For Availability
5
MAY 3949550 MAY 3949550 Contact Us For Availability
5
MAY 3951311 MAY 3951311 Contact Us For Availability
5
MAY 64065 MAY 64065 Contact Us For Availability
5
Clip, Harness (Half-Harness) MAY 90016 Contact Us For Availability
5
MAY 64035 MAY 64035 Contact Us For Availability
5
Pinion, Spin (Includes Illus. 25) MAY 63320 Contact Us For Availability
6
MAY 62780 MAY 62780 Contact Us For Availability
6
MAY 8318015 MAY 8318015 Contact Us For Availability
6
MAY 3348117 MAY 3348117 Contact Us For Availability
6
Band & Lining, Clutch (Includes Items 7 & 8) MAY 3951308 Contact Us For Availability
6
MAY 63466 MAY 63466 Contact Us For Availability
6
MAY 3390496 MAY 3390496 Contact Us For Availability
6
Seal, Spin Pinion MAY 356427 Contact Us For Availability
6
MAY 64232 MAY 64232 Contact Us For Availability
7
MAY 62747 MAY 62747 Contact Us For Availability
7
MAY 3363663 MAY 3363663 Contact Us For Availability
7
MAY 62646 MAY 62646 Contact Us For Availability
7
MAY 62597 MAY 62597 Contact Us For Availability
7
Retainer, Harness MAY 389379 Contact Us For Availability
7
MAY 62703 MAY 62703 Contact Us For Availability
7
MAY 389387 MAY 389387 Contact Us For Availability
8
MAY W10192089 MAY W10192089 Contact Us For Availability
8
MAY W10138068 MAY W10138068 Contact Us For Availability
8
MAY 3366877 MAY 3366877 Contact Us For Availability
8
MAY 3946792 MAY 3946792 Contact Us For Availability
8
MAY 62837 MAY 62837 Contact Us For Availability
8
MAY 352089 MAY 352089 Contact Us For Availability
8
Timer, Block Disconnect (Natural) MAY 3948614 Contact Us For Availability
8
MAY 3353956 MAY 3353956 Contact Us For Availability
8
MAY 90369 MAY 90369 Contact Us For Availability
9
MAY 9724509 MAY 9724509 Contact Us For Availability
9
MAY W10175553 MAY W10175553 Contact Us For Availability
9
BEARING, DRIVEN CAM MAY 3363661 Contact Us For Availability
9
MAY 62596 MAY 62596 Contact Us For Availability
9
Receptacle, Terminal (3-Way) MAY 62889 Contact Us For Availability
9
MAY 387806 MAY 387806 Contact Us For Availability
9
MAY 62677 MAY 62677 Contact Us For Availability
10
MAY 8318084 MAY 8318084 Contact Us For Availability
10
MAY 3348752 MAY 3348752 Contact Us For Availability
10
MAY 3357334 MAY 3357334 Contact Us For Availability
10
MAY 8546455 MAY 8546455 Contact Us For Availability
10
Plug, Terminal (3-Way) MAY 353424 Contact Us For Availability
10
MAY 3355360 MAY 3355360 Contact Us For Availability
10
MAY 62676 MAY 62676 Contact Us For Availability
11
MAY W10119828 MAY W10119828 Contact Us For Availability
11
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
11
Spacer, Thrust MAY 3350389 Contact Us For Availability
11
MAY 62611 MAY 62611 Contact Us For Availability
11
MAY 357409 MAY 357409 Contact Us For Availability
11
Block, Disconnect (Motor 2 Speed) MAY 62505 Contact Us For Availability
11
MAY 661516 MAY 661516 Contact Us For Availability
11
MAY 63273 MAY 63273 Contact Us For Availability
12
MAY 8559336 MAY 8559336 Contact Us For Availability
12
MAY 8577843 MAY 8577843 Contact Us For Availability
12
MAY 3347288 MAY 3347288 Contact Us For Availability
12
MAY 62691 MAY 62691 Contact Us For Availability
12
MAY 388492 MAY 388492 Contact Us For Availability
12
Block, Disconnect MAY 3347243 Contact Us For Availability
12
MAY 63022 MAY 63022 Contact Us For Availability
12
MAY 62619 MAY 62619 Contact Us For Availability
13
MAY 91770 MAY 91770 Contact Us For Availability
13
MAY 3948608 MAY 3948608 Contact Us For Availability
13
Tub Ring & Gasket MAY W10093698 Contact Us For Availability
13
Coupling, Motor & Isolation MAY 3364003 Contact Us For Availability
13
MAY 62568 MAY 62568 Contact Us For Availability
13
MAY 63523 MAY 63523 Contact Us For Availability
13
MAY 64194 MAY 64194 Contact Us For Availability
13
MAY 62580 MAY 62580 Contact Us For Availability
14
MAY 8319539 MAY 8319539 Contact Us For Availability
14
MAY 8578842 MAY 8578842 Contact Us For Availability
14
MAY 3976308 MAY 3976308 Contact Us For Availability
14
MAY 8577374 MAY 8577374 Contact Us For Availability
14
Plate, Suspension (Includes Item 13) MAY 3946509 Contact Us For Availability
14
Connector (2-Way) MAY 717252 Contact Us For Availability
14
MAY 90368 MAY 90368 Contact Us For Availability
14
MAY 62581 MAY 62581 Contact Us For Availability
15
MAY W10171313 MAY W10171313 Contact Us For Availability
15
MAY 3952821 MAY 3952821 Contact Us For Availability
15
MAY 3354845 MAY 3354845 Contact Us For Availability
15
MAY 3355454 MAY 3355454 Contact Us For Availability
15
MAY 3363660 MAY 3363660 Contact Us For Availability
15
MAY 3352944 MAY 3352944 Contact Us For Availability
15
MAY 285509 MAY 285509 Contact Us For Availability
16
Screw 10-16 X 3/8 (4) MAY 3390631 Contact Us For Availability
16
MAY 8271365 MAY 8271365 Contact Us For Availability
16
MAY 8543666 MAY 8543666 Contact Us For Availability
16
MAY 3400516 MAY 3400516 Contact Us For Availability
16
Base Assembly (Includes Items 6, 7, 8, 9, 13, MAY 3946512 Contact Us For Availability
16
Block, Disconnect (12-Way) MAY 3390423 Contact Us For Availability
16
MAY 62618 MAY 62618 Contact Us For Availability
17
MAY 3400073 MAY 3400073 Contact Us For Availability
17
MAY 21366 MAY 21366 Contact Us For Availability
17
MAY W10086010 MAY W10086010 Contact Us For Availability
17
MAY 3359452 MAY 3359452 Contact Us For Availability
17
Receptacle (6-Way) MAY 3347730 Contact Us For Availability
17
MAY 16018 MAY 16018 Contact Us For Availability
18
Valve, Water Inlet W/Thermistor MAY 3979347 Contact Us For Availability
18
MAY 8526016 MAY 8526016 Contact Us For Availability
18
MAY 3362089 MAY 3362089 Contact Us For Availability
18
MAY W10001130 MAY W10001130 Contact Us For Availability
18
Connector (T.P.A.) (3-Circuit) MAY 3948617 Contact Us For Availability
18
MAY 85529 MAY 85529 Contact Us For Availability
19
MAY 8541668 MAY 8541668 Contact Us For Availability
19
MAY 387240 MAY 387240 Contact Us For Availability
19
MAY 8528157 MAY 8528157 Contact Us For Availability
19
MAY 8577376 MAY 8577376 Contact Us For Availability
19
Plug (T.P.A) (3-Circuit) (Pressure Switch) MAY 3360056 Contact Us For Availability
19
MAY 389230 MAY 389230 Contact Us For Availability
20
MAY 8318046 MAY 8318046 Contact Us For Availability
20
MAY 63849 MAY 63849 Contact Us For Availability
20
MAY 3952056 MAY 3952056 Contact Us For Availability
20
Centerpost Bearing Kit (Includes Items 10, 11 MAY 285203 Contact Us For Availability
20
Block, Connector (Natural) MAY 3354925 Contact Us For Availability
20
Block, Connector (Red) MAY 3354926 Contact Us For Availability
21
MAY 301958 MAY 301958 Contact Us For Availability
21
MAY 389140 MAY 389140 Contact Us For Availability
21
MAY 8546127 MAY 8546127 Contact Us For Availability
21
MAY 63134 MAY 63134 Contact Us For Availability
21
MAY 285352 MAY 285352 Contact Us For Availability
22
SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X MAY 3351614 Contact Us For Availability
22
MAY 8317974 MAY 8317974 Contact Us For Availability
22
MAY 383727 MAY 383727 Contact Us For Availability
22
MAY 3363394 MAY 3363394 Contact Us For Availability
22
MAY W10145155 MAY W10145155 Contact Us For Availability
23
MAY 370450 MAY 370450 Contact Us For Availability
23
MAY 3347780 MAY 3347780 Contact Us For Availability
23
MAY 3387485 MAY 3387485 Contact Us For Availability
23
MAY 3362552 MAY 3362552 Contact Us For Availability
24
MAY 387606 MAY 387606 Contact Us For Availability
24
MAY 2219077 MAY 2219077 Contact Us For Availability
24
MAY 3946532 MAY 3946532 Contact Us For Availability
24
MAY 285735 MAY 285735 Contact Us For Availability
25
MAY 8271359 MAY 8271359 Contact Us For Availability
25
MAY 62570 MAY 62570 Contact Us For Availability
26
MAY 8519200 MAY 8519200 Contact Us For Availability
26
MAY 388253 MAY 388253 Contact Us For Availability
27
MAY 8541667 MAY 8541667 Contact Us For Availability
27
MAY 3349296 MAY 3349296 Contact Us For Availability
28
MAY 8572717 MAY 8572717 Contact Us For Availability
28
MAY 62621 MAY 62621 Contact Us For Availability
29
MAY 3347868 MAY 3347868 Contact Us For Availability
29
MAY 388815 MAY 388815 Contact Us For Availability
30
MAY 3363366 MAY 3363366 Contact Us For Availability
31
MAY 8317496 MAY 8317496 Contact Us For Availability
32
Hose, Pump To Tub (Includes Item 30) MAY 3951449 Contact Us For Availability
33
MAY 3400818 MAY 3400818 Contact Us For Availability
34
MAY W10184148 MAY W10184148 Contact Us For Availability
35
MAY 3949187 MAY 3949187 Contact Us For Availability
36
MAY W10192128 MAY W10192128 Contact Us For Availability
37
MAY W10196505 MAY W10196505 Contact Us For Availability
38
MAY W10196506 MAY W10196506 Contact Us For Availability
39
MAY 8536939 MAY 8536939 Contact Us For Availability
40
Knob, Control MAY W10196503 Contact Us For Availability
41
MAY 62863 MAY 62863 Contact Us For Availability
42
MAY 8539874 MAY 8539874 Contact Us For Availability
43
MAY W10189201 MAY W10189201 Contact Us For Availability
NI
Lubricant (Use Only in Brake Shoe Assembly On MAY 285208 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 280129 MAY 280129 Contact Us For Availability
NI
MAY 280130 MAY 280130 Contact Us For Availability
NI
MAY 280131 MAY 280131 Contact Us For Availability
NI
MAY 285448A MAY 285448A Contact Us For Availability
NI
MAY 285452A MAY 285452A Contact Us For Availability
NI
MAY 350572 MAY 350572 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Drain Protector MAY 367031 Contact Us For Availability
NI
Fabric Dispenser MAY 63580 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE H MAY 8212545RP Contact Us For Availability
NI
MAY 8212546RP MAY 8212546RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE ST MAY 8212637RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Black Hoses W/Straigh MAY 8212641RP Contact Us For Availability
NI
INLET HOSES, 10 FT (TWO BLACK HOSES W/ STRAIG MAY 8212656RP Contact Us For Availability
× ![]()
