Model Whirlpool NT23L9A REFRIGERATOR – Common Parts & Diagrams
05 - UNIT COMPARTMENT & SYSTEM

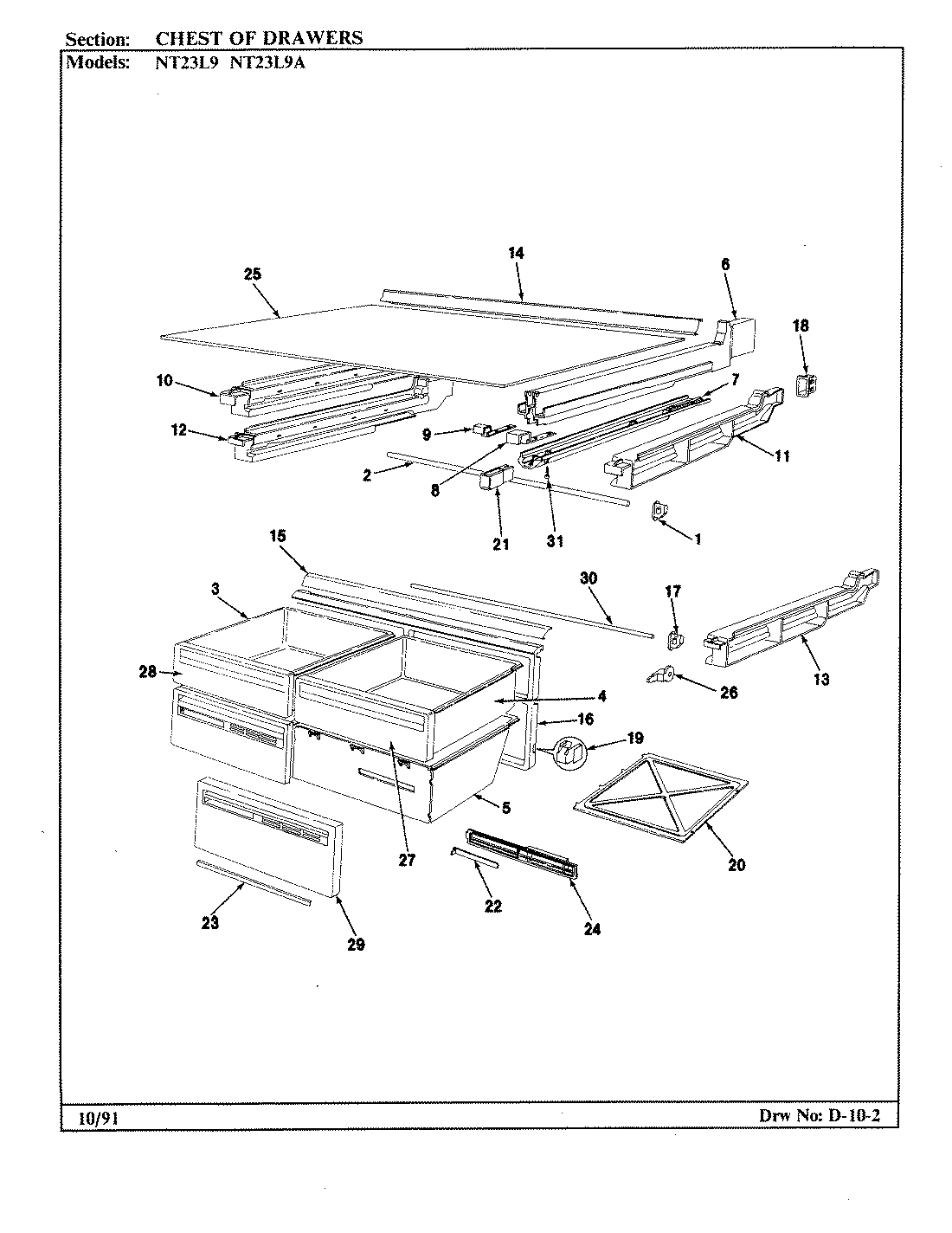

01 - CHEST OF DRAWERS

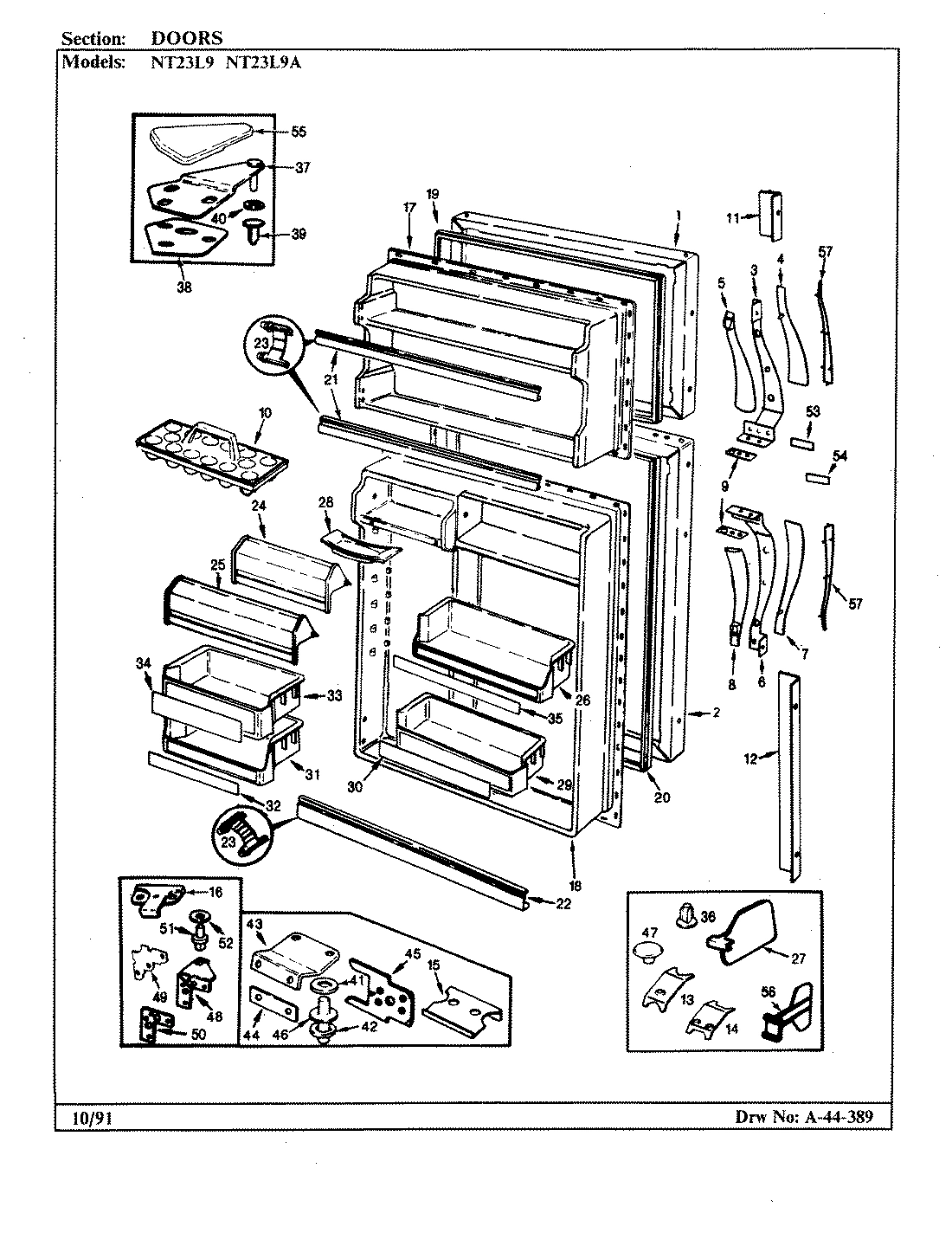

02 - DOORS

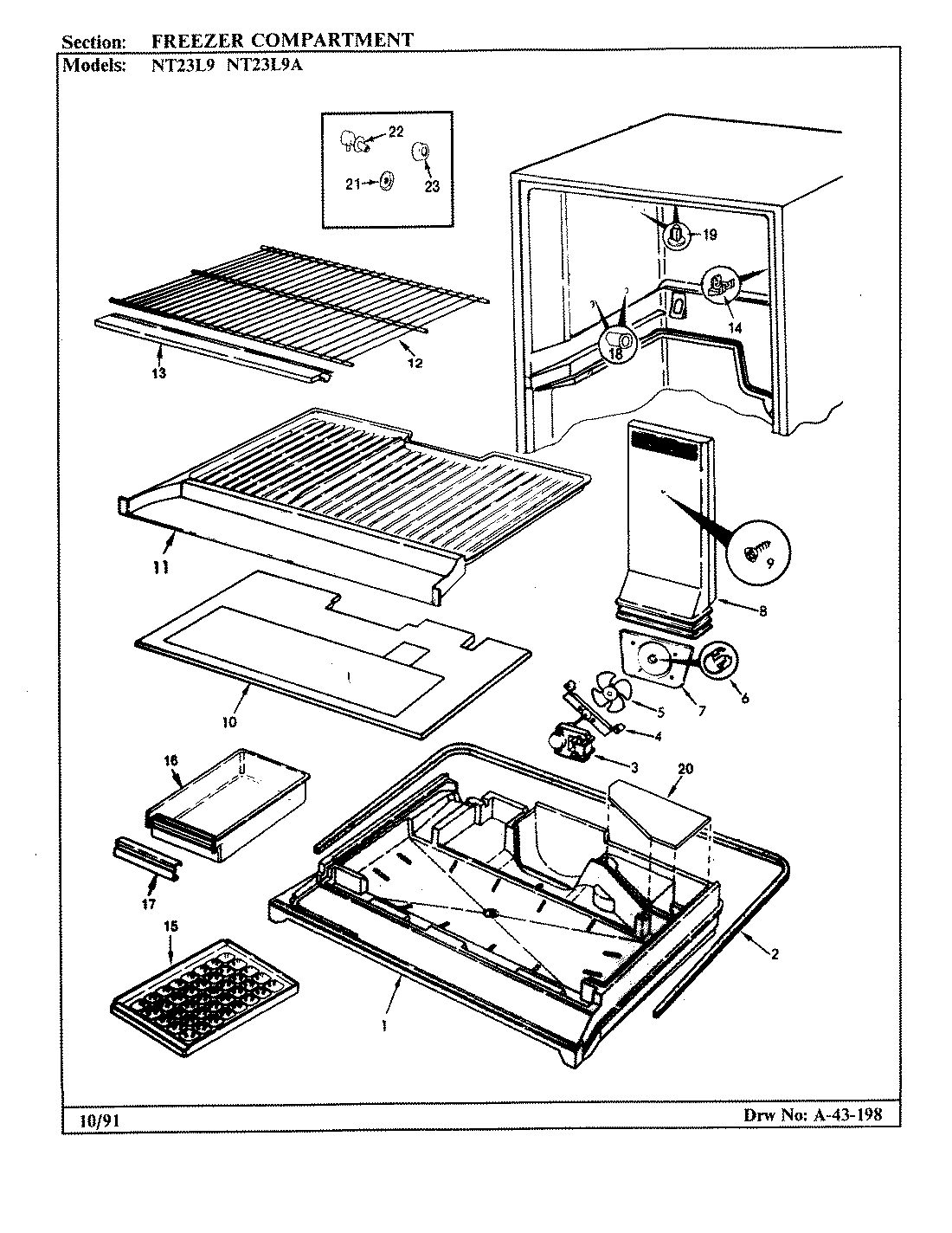

03 - FREEZER COMPARTMENT

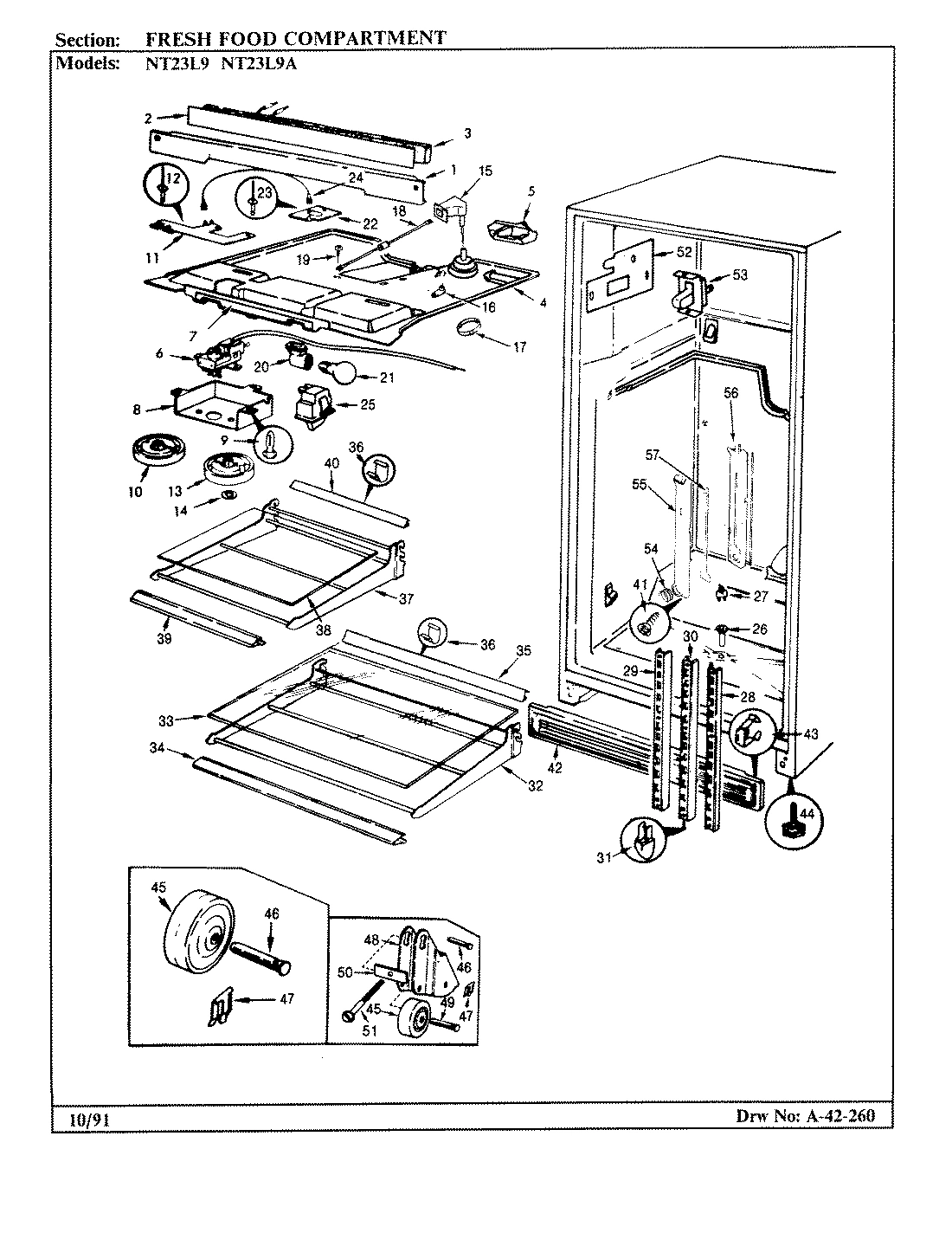

04 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool NT23L9A REFRIGERATOR
1
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
1
PANEL, OUTER (ALM) WPL 684761AM Contact Us For Availability
1
TRAY, FOAM MULL WPL 675213 Contact Us For Availability
1
SCREW WPL 6527523 Contact Us For Availability
1
SCREW WPL 6527554 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684343AM Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
CRISPER SHELF ROD WPL 687563 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684751AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
FOAM SEAL 84`` WPL 688664 Contact Us For Availability
2
HEATER WPL 688293 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DRAWER, UTILITY WPL 685131 Contact Us For Availability
3
DOOR HANDLE WPL 662553 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
INSULATION WPL 601403 Contact Us For Availability
3
WIRE HARNESS WPL 686852 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
PAN, MEAT WPL 685134 Contact Us For Availability
4
HANDLE INSERT, FRONT WPL 680163 Contact Us For Availability
4
HANDLE INSERT, FRONT WPL 680165 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685332 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
5
PAN, CRISPER WPL 685141 Contact Us For Availability
5
SCREW WPL 6527553 Contact Us For Availability
5
SCREW WPL 9986112 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
UPPER RAIL WPL 685153 Contact Us For Availability
6
DOOR HANDLE WPL 662554 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
RAIL WPL 682681 Contact Us For Availability
7
INSERT WPL 680164 Contact Us For Availability
7
HANDLE INSERT, FRONT WPL 680166 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
INSERT TEMP CONTROL WPL 6057178 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
INSERT, HANDLE (BACK) WPL 604453 Contact Us For Availability
8
INSERT, HANDLE (BACK) WPL 604454 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
AIR TUNNEL WPL 685924 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
9
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
RAIL, SIDE (LT-UPPER) WPL 685161 Contact Us For Availability
10
TRAY, EGG WPL 600661 Contact Us For Availability
10
COVER, EVAPORATOR WPL 605573 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686003 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
RAIL, SIDE (RT-UPPER) WPL 685162 Contact Us For Availability
11
TRIM, HANDLE EXTENSION WPL 6045320 Contact Us For Availability
11
HANDLE TRIM EXTENSION WPL 6045322 Contact Us For Availability
11
SEAL, FOAM TRAY WPL 6632511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664771 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
12
BAFFLE WPL 664933 Contact Us For Availability
12
RAIL, SIDE (LH LOWER) WPL 685165 Contact Us For Availability
12
TRIM EXTENSION WPL 6045319 Contact Us For Availability
12
HANDLE TRIM EXTENSION WPL 6045321 Contact Us For Availability
12
SHELF, FRZ WPL 6043821 Contact Us For Availability
12
SHELF, FRZ WPL 6043830 Contact Us For Availability
13
RAIL, SIDE (RT-LOWER) WPL 685166 Contact Us For Availability
13
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
13
TRIM, SHELF WPL 6813625 Contact Us For Availability
13
KNOB WPL 686004 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
TRIM WPL 682711 Contact Us For Availability
14
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
14
SCREW WPL 9986122 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
SCREW WPL 4000191 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
TRIM, FRONT SHELF WPL 687877 Contact Us For Availability
15
DOOR STOP WPL 600301 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
15
ORIFICE DAMPER ASSEMBLY WPL 675584 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
FRONT, DRAWER WPL 682733 Contact Us For Availability
16
SCREW WPL 6527557 Contact Us For Availability
16
DOOR STOP WPL 6041910 Contact Us For Availability
16
SCREW WPL 9986108 Contact Us For Availability
16
PAN, ICE WPL 606531 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
SUPPORT ROD CUP WPL 687581 Contact Us For Availability
17
LINER, DOOR WPL 659364 Contact Us For Availability
17
TRIM, HANDLE PAN WPL 60132100 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682752 Contact Us For Availability
18
SCREW WPL 652755 Contact Us For Availability
18
INNER PANEL WPL 687211 Contact Us For Availability
18
CUP, SHELF WPL 603131 Contact Us For Availability
18
ROD WPL 674994 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
GASKET, DOOR WPL 661997 Contact Us For Availability
19
PLUG BUTTON WPL 669202 Contact Us For Availability
19
PLUG BUTTON WPL 675571 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
PAN COVER WPL 682781 Contact Us For Availability
20
GASKET, DOOR WPL 661998 Contact Us For Availability
20
COVER, PLENUM WPL 664806 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
TRIM, FRZ DR SHELF WPL 6837513 Contact Us For Availability
21
CAP, CONNECTOR WPL 681871 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CONTROL, SLIDE WPL 685823 Contact Us For Availability
22
TRIM, SHELF WPL 6837521 Contact Us For Availability
22
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
23
TRIM, HANDLE WPL 6858311 Contact Us For Availability
23
TRIM, HANDLE WPL 685837 Contact Us For Availability
23
TRIM, HANDLE WPL 685839 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
CAP, GROMMET WPL 683871 Contact Us For Availability
23
RIVET WPL 263972 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
RETAINER, CONTROL SLIDE WPL 682883 Contact Us For Availability
24
DOOR, DAIRY WPL 66184365 Contact Us For Availability
24
GROUND WIRE WPL 2967528 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
COVER, GLASS WPL 682924 Contact Us For Availability
25
DOOR, DAIRY WPL 66184367 Contact Us For Availability
25
SWITCH, LIGHT WPL 557321 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
PICK-OFF SHELF WPL 6003753 Contact Us For Availability
26
GROMMET WPL 545318 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
ORGANIZER PACKAGE WPL 666456 Contact Us For Availability
27
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
28
EVAPORATOR WPL RA4362012 Contact Us For Availability
28
FRONT, MEAT PAN WPL 6863915 Contact Us For Availability
28
FRONT, MEAT PAN WPL 686393 Contact Us For Availability
28
TRAY, BUTTER WPL 299362 Contact Us For Availability
28
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
29
TRAY, DRIP WPL 601019 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
FRONT, CRISPER PAN WPL 686403 Contact Us For Availability
29
FRUIT & VEG PAN FRONT WPL 686409 Contact Us For Availability
29
PICK-OFF SHELF WPL 6003754 Contact Us For Availability
29
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
SCREW WPL 4000161 Contact Us For Availability
30
RAIL, SUPPORT WPL 687564 Contact Us For Availability
30
TRIM, PICK-OFF SHELF WPL 6813063 Contact Us For Availability
30
SCREW WPL 40003728 Contact Us For Availability
30
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
31
PICK-OFF SHELF WPL 6003751 Contact Us For Availability
31
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
32
HEATER, DEFROST WPL 6010636 Contact Us For Availability
32
INSERT, PICKOFF SHELF WPL 6813058 Contact Us For Availability
32
FRAME, SHELF WPL 6057026 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
33
PICK-OFF SHELF WPL 6003752 Contact Us For Availability
33
GLASS, CANTILEVER SHELF WPL 6660426 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
TRIM, PICK-OFF SHELF WPL 6813061 Contact Us For Availability
34
TRIM, CNATILEVER SHELF WPL 6813636 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
TRIM PICK-OFF SHELF WPL 6813059 Contact Us For Availability
35
TRIM, REAR-FULL WPL 6527627 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
36
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
HINGE, UPPER WPL 5370920 Contact Us For Availability
37
FRAME, SHELF WPL 6057011 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
38
GLASS, SHELF WPL 6660427 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS WPL 688393 Contact Us For Availability
39
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
39
TRIM, CANTILEVER SHELF WPL 6813626 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
TRIM, REAR-1/2 SHELF WPL 6527636 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1069022 Contact Us For Availability
41
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
41
SCREW WPL 40001531 Contact Us For Availability
42
WASHER WPL 542331 Contact Us For Availability
42
WASHER WPL 542332 Contact Us For Availability
42
SCREW WPL 6527552 Contact Us For Availability
42
SCREW WPL 998687 Contact Us For Availability
42
KICKPLATE WPL 601388 Contact Us For Availability
43
SCREW WPL 4000171 Contact Us For Availability
43
HINGE, CENTER WPL 688112 Contact Us For Availability
43
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
44
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
44
LEG, LEVELING WPL 686641 Contact Us For Availability
45
SCREW WPL 6527524 Contact Us For Availability
45
SCREW WPL 6527555 Contact Us For Availability
45
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
45
WHEEL WPL 298342 Contact Us For Availability
46
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
46
PIN, WHEEL WPL 298352 Contact Us For Availability
47
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
47
CLIP WPL 602161 Contact Us For Availability
48
WPL 677146 WPL 677146 Contact Us For Availability
48
BRACKET, WHEEL WPL 675301 Contact Us For Availability
49
WPL 4031001 WPL 4031001 Contact Us For Availability
49
WPL 657903 WPL 657903 Contact Us For Availability
49
PIN, WHEEL WPL 649651 Contact Us For Availability
50
WPL 606261 WPL 606261 Contact Us For Availability
50
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
51
WPL 687881 WPL 687881 Contact Us For Availability
51
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
52
WPL 674832 WPL 674832 Contact Us For Availability
52
SCREW WPL 4020131 Contact Us For Availability
52
BRACKET, SWITCH WPL 605831 Contact Us For Availability
53
WPL 6060313 WPL 6060313 Contact Us For Availability
53
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
54
WPL 6060314 WPL 6060314 Contact Us For Availability
54
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
55
WPL 650033 WPL 650033 Contact Us For Availability
55
COVER, AIR TUNNEL WPL 682853 Contact Us For Availability
56
WPL 6409711 WPL 6409711 Contact Us For Availability
56
INSULATION, AIR TUNNEL WPL 682892 Contact Us For Availability
57
WPL 680173 WPL 680173 Contact Us For Availability
57
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
57
SEAL, CLOSED CELL WPL 684181 Contact Us For Availability
× ![]()
Login and Registration Form
