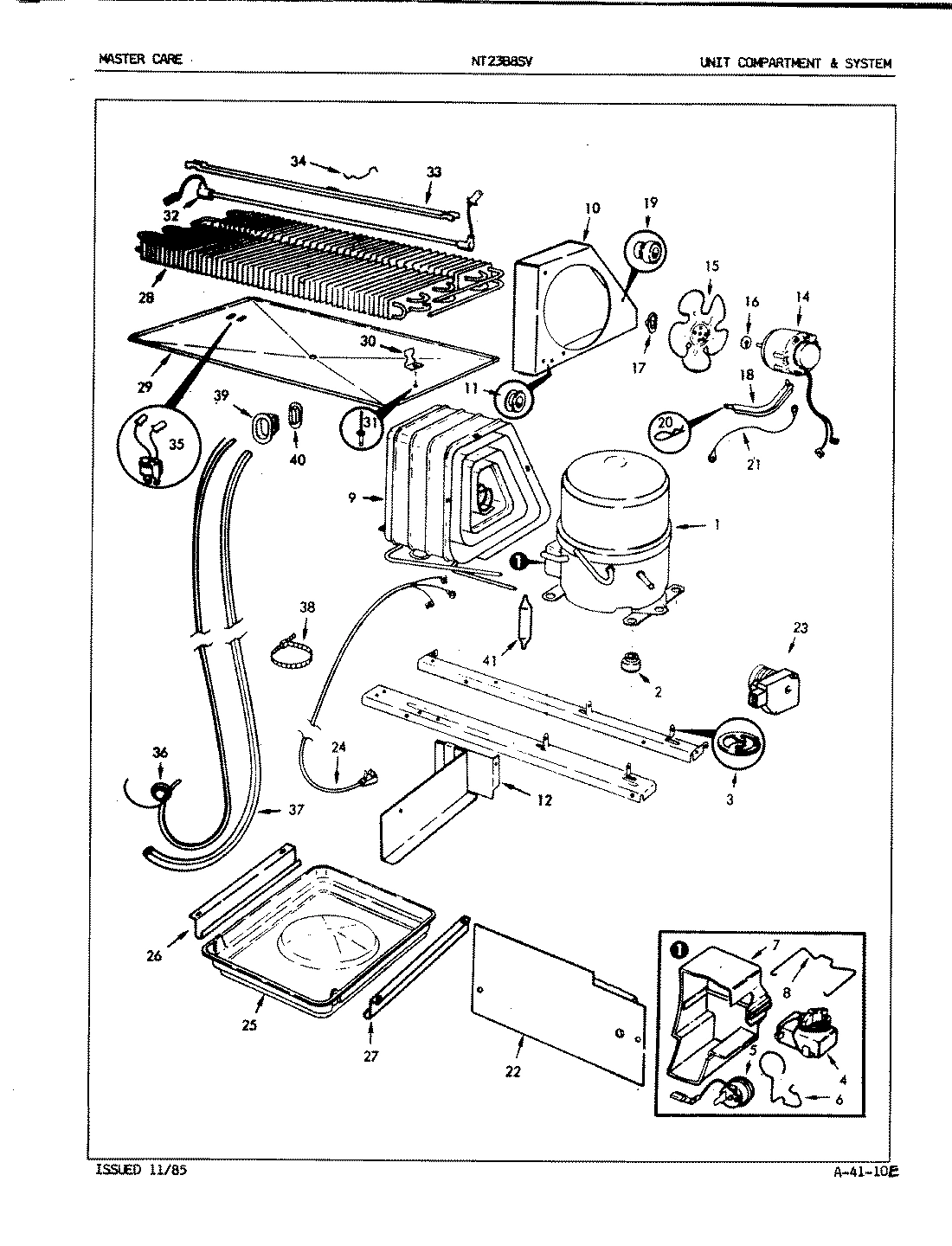

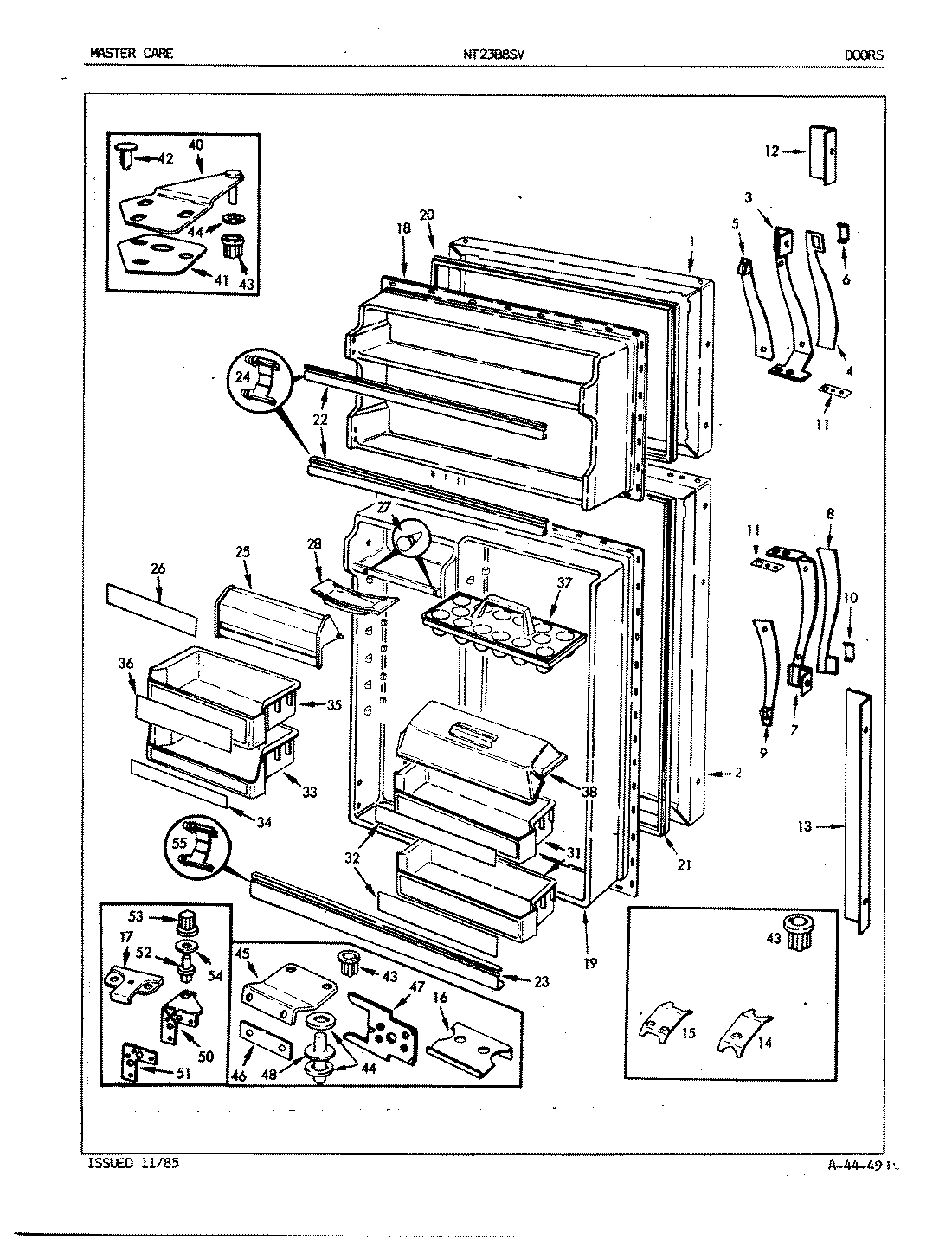

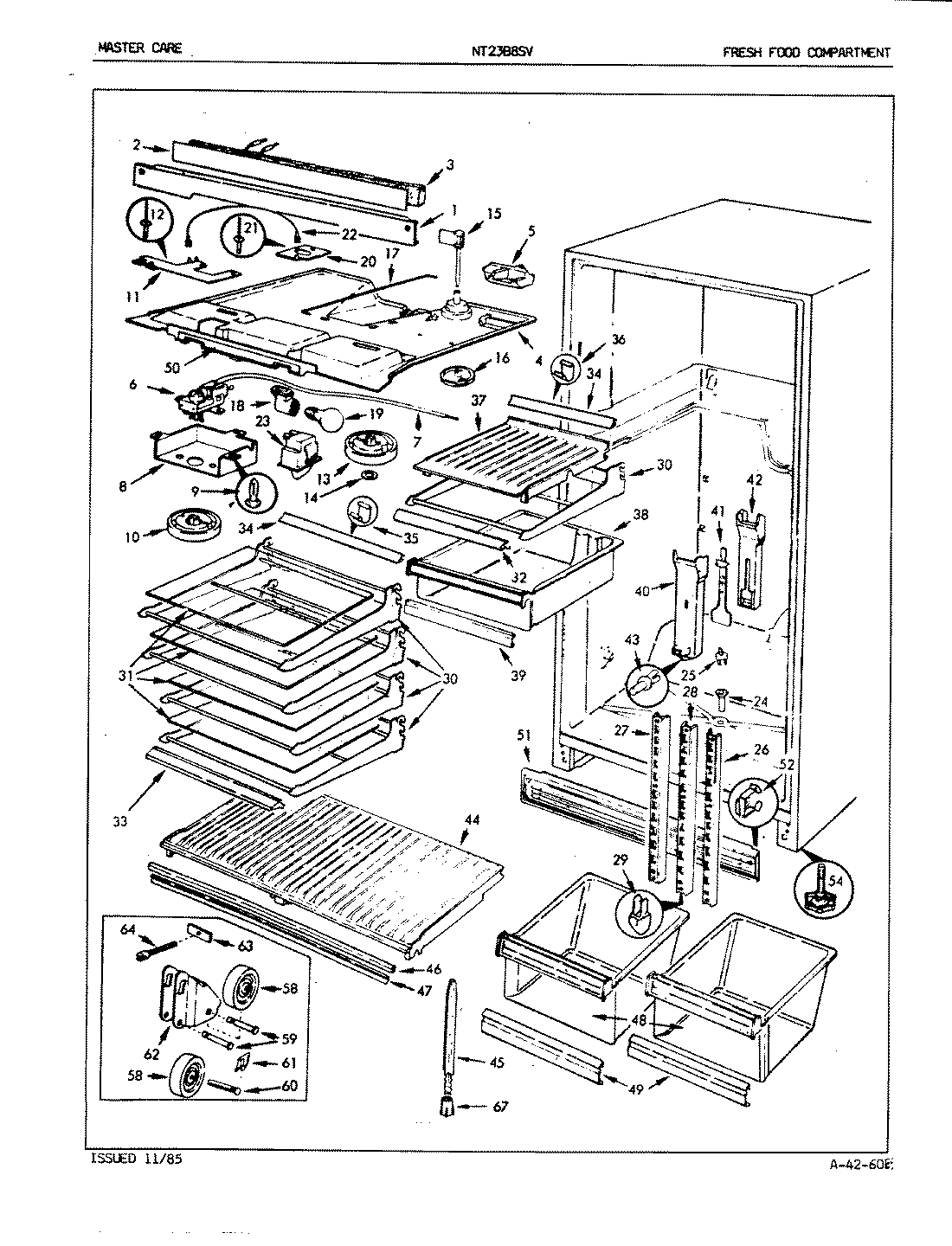

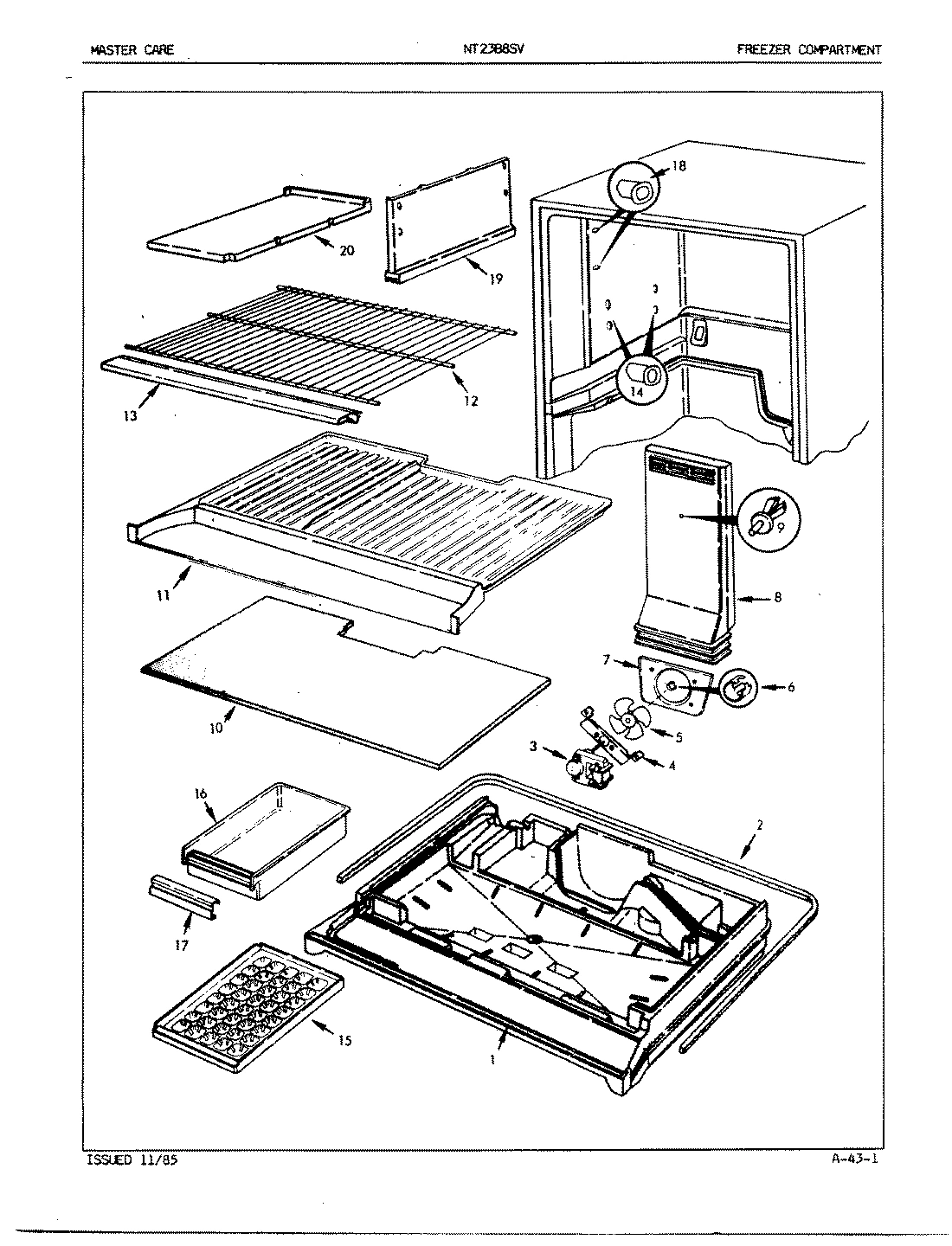

Model Whirlpool NT23B8SVA REFRIGERATOR – Common Parts &amp; Diagrams

1

OUTER PANEL WPL 6003312AM Contact Us For Availability

1

TRAY, DIVIDER WPL 605764 Contact Us For Availability

1

DIVIDER, MULLION (ALM) WPL 657973AM Contact Us For Availability

1

SCREW WPL 9986117 Contact Us For Availability

2

OUTER PANEL WPL 6003258AM Contact Us For Availability

2

SEAL WPL 655184 Contact Us For Availability

2

HEATER WIRE WPL 601059 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

3

HANDLE WPL 604435 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability

3

INSULATION WPL 601403 Contact Us For Availability

3

WIRE HARNESS WPL 605602 Contact Us For Availability

3

SCREW WPL 4140011 Contact Us For Availability

3

CLIP WPL 621651 Contact Us For Availability

4

INSERT, HANDLE WPL 606021 Contact Us For Availability

4

GROUND WIRE WPL 2967530 Contact Us For Availability

4

SCREW WPL 40001512 Contact Us For Availability

4

WIRE HARNESS WPL 605651 Contact Us For Availability

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

TOP, F.F. COMPARTMENT WPL 6008537 Contact Us For Availability

4

RELAY, START WPL 632932 Contact Us For Availability

5

SCREW WPL 9986112 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability

5

DEFLECTOR WPL 601202 Contact Us For Availability

5

OVERLOAD WPL 632942 Contact Us For Availability

6

INSERT WPL 606037 Contact Us For Availability

6

GROUND WIRE WPL 2967522 Contact Us For Availability

6

CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability

6

CLIP WPL 632951 Contact Us For Availability

7

HANDLE WPL 604436 Contact Us For Availability

7

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

7

PLASTIC TUBE WPL 400812 Contact Us For Availability

7

COVER WPL 632962 Contact Us For Availability

8

INSERT, HANDLE WPL 606022 Contact Us For Availability

8

TUNNEL, AIR WPL 660444 Contact Us For Availability

8

COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability

8

CLIP WPL 632971 Contact Us For Availability

9

INSERT WPL 604451 Contact Us For Availability

9

PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604081 Contact Us For Availability

9

CONDENSER WPL RA438711 Contact Us For Availability

INSERT WPL 606036 Contact Us For Availability

COVER, EVAPORATOR WPL 605573 Contact Us For Availability

KNOB WPL 600611 Contact Us For Availability

CONDENSER SHROUD WPL 600212 Contact Us For Availability

SHIM WPL 604561 Contact Us For Availability

BOTTOM, FRZ. WPL 604744 Contact Us For Availability

BRACKET, CONTROL WPL 601471 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

12

TRIM WPL 602365 Contact Us For Availability

12

SHELF WPL 6032329 Contact Us For Availability

12

AIR DIVIDER WPL 606393 Contact Us For Availability

TRIM WPL 602364 Contact Us For Availability

SCREW WPL 402017103 Contact Us For Availability

TRIM WPL 6041418 Contact Us For Availability

FREEZER SHELF CUP WPL 655701 Contact Us For Availability

KNOB WPL 600613 Contact Us For Availability

CLIP, STOP SCREW WPL 562093 Contact Us For Availability

WASHER, SPRING WPL 420092900 Contact Us For Availability

FAN MOTOR WPL 2805613 Contact Us For Availability

SCREW WPL 4030141 Contact Us For Availability

CLIP, STOP SCREW WPL 601232 Contact Us For Availability

SCREW WPL 9986122 Contact Us For Availability

ICE CUBE TRAY WPL 601121 Contact Us For Availability

DAMPER WPL 600711 Contact Us For Availability

BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability

DOOR STOP WPL 600301 Contact Us For Availability

PAN, ICE WPL 606531 Contact Us For Availability

CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability

WASHER WPL 199134 Contact Us For Availability

DOOR STOP WPL 604191 Contact Us For Availability

SCREW WPL 9986108 Contact Us For Availability

HANDLE WPL 6013210 Contact Us For Availability

ROD, FRZR CONTROL WPL 600784 Contact Us For Availability

CLIP WPL 199140 Contact Us For Availability

LINER, DOOR WPL 604052 Contact Us For Availability

CUP, SHELF WPL 603131 Contact Us For Availability

PLUG WPL 603211 Contact Us For Availability

SOCKET, LIGHT WPL 605771 Contact Us For Availability

BRACKET WPL 600361 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

INNER PANEL WPL 600474 Contact Us For Availability

SCREW,DOOR LINER WPL 998612 Contact Us For Availability

DIVIDER WPL 601166 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

GASKET, DOOR WPL 604627 Contact Us For Availability

SHELF WPL 606551 Contact Us For Availability

BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability

CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability

21

GASKET, DOOR WPL 604628 Contact Us For Availability

21

RIVET WPL 263972 Contact Us For Availability

21

GROUND WIRE WPL 296753 Contact Us For Availability

TRIM, DOOR SHELF WPL 65151157 Contact Us For Availability

GROUND WIRE WPL 2967528 Contact Us For Availability

COVER WPL 660322 Contact Us For Availability

SCREW WPL 998645 Contact Us For Availability

SUB 59704-14 WPL 600805 Contact Us For Availability

SWITCH, LIGHT WPL 557321 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 653221 Contact Us For Availability

24

RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability

24

GROMMET WPL 545318 Contact Us For Availability

24

CORD, POWER WPL 528902 Contact Us For Availability

25

DOOR, DAIRY WPL 6040611 Contact Us For Availability

25

CAP, DRAIN TUBE WPL 650391 Contact Us For Availability

25

PAN, DRAIN WPL 298394 Contact Us For Availability

26

INSERT WPL 605731 Contact Us For Availability

26

SUPPORT WPL 600965 Contact Us For Availability

26

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

BUMPER, DOOR WPL 282726 Contact Us For Availability

SUPPORT WPL 600964 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

28

TRAY, BUTTER WPL 299362 Contact Us For Availability

28

SUPPORT WPL 600966 Contact Us For Availability

28

EVAPORATOR WPL RA4362012 Contact Us For Availability

29

END CAP, CENTER RAIL WPL 603401 Contact Us For Availability

29

TRAY, DRIP WPL 601019 Contact Us For Availability

30

FRAME, SHELF WPL 605704 Contact Us For Availability

30

BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability

31

DOOR SHELF WPL 600379 Contact Us For Availability

31

GLASS SHELF WPL 6016226 Contact Us For Availability

31

RIVET WPL 263979 Contact Us For Availability

32

INSERT WPL 605723 Contact Us For Availability

32

TRIM WPL 604146 Contact Us For Availability

32

HEATER, DEFROST WPL 6010636 Contact Us For Availability

33

DOOR SHELF WPL 6003711 Contact Us For Availability

33

TRIM WPL 605245 Contact Us For Availability

33

SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability

34

INSERT WPL 605722 Contact Us For Availability

34

TRIM, REAR WPL 652767 Contact Us For Availability

34

CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability

35

DOOR SHELF WPL 600378 Contact Us For Availability

35

CLIP WPL 653581 Contact Us For Availability

35

THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability

36

INSERT WPL 605724 Contact Us For Availability

36

CLIP WPL 653582 Contact Us For Availability

36

HEAT EXCHANGER WPL RA4364514 Contact Us For Availability

37

TRAY, EGG WPL 600663 Contact Us For Availability

37

COVER, MEAT PAN WPL 600756 Contact Us For Availability

37

COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability

38

COVER WPL 603823 Contact Us For Availability

38

PAN, MEAT WPL 60466204 Contact Us For Availability

38

WIRE TIE WPL 575763 Contact Us For Availability

39

HANDLE WPL 6013211 Contact Us For Availability

39

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

40

DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability

40

TUNNEL WPL 600943 Contact Us For Availability

40

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

SHIM, UPPER HINGE WPL 650311 Contact Us For Availability

DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability

COVER WPL 600673 Contact Us For Availability

COVER, WIRE HARNESS WPL 601102 Contact Us For Availability

RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability

WIRE HARNESS WPL 605667 Contact Us For Availability

42

INSULATION WPL 600922 Contact Us For Availability

43

W10772617 Whirlpool Outer Tub Backorder WPL W10772617 $365.40

43

BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability

44

WASHER WPL 521851 Contact Us For Availability

44

SCREW WPL 998687 Contact Us For Availability

44

SHELF, CRISPER WPL 600198 Contact Us For Availability

45

DOOR HINGE, CENTER WPL 600312 Contact Us For Availability

45

SHELF SUPPORT WPL 658161 Contact Us For Availability

46

SPACER, CENTER HINGE WPL 600341 Contact Us For Availability

46

TRIM WPL 604543 Contact Us For Availability

47

TAPPING PLATE WPL 606221 Contact Us For Availability

47

SCREW WPL 9986107 Contact Us For Availability

47

SEAL WPL 601486 Contact Us For Availability

48

PIN, CENTER HINGE WPL 600354 Contact Us For Availability

48

PAN, CRISPER WPL 60457224 Contact Us For Availability

49

HANDLE WPL 601323 Contact Us For Availability

50

SCREW WPL 4030625 Contact Us For Availability

50

HINGE WPL 606303 Contact Us For Availability

50

INSERT WPL 605711 Contact Us For Availability

51

SHIM, LOWER HINGE WPL 606261 Contact Us For Availability

51

KICKPLATE WPL 6013811 Contact Us For Availability

52

PIN, LOWER HINGE WPL 536721 Contact Us For Availability

52

SCREW WPL 4020394 Contact Us For Availability

52

CLIP, KICKPLATE WPL 601001 Contact Us For Availability

53

BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability

54

WASHER WPL 542332 Contact Us For Availability

54

LEG, LEVELING WPL 60128 Contact Us For Availability

58

WHEEL WPL 298342 Contact Us For Availability

59

PIN, WHEEL WPL 298352 Contact Us For Availability

60

PIN, WHEEL WPL 649651 Contact Us For Availability

61

CLIP WPL 602161 Contact Us For Availability

62

BRACKET, ADJUSTING WHEEL WPL 591001 Contact Us For Availability

63

TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability

64

SCREW WPL 4020131 Contact Us For Availability

64

BOLT WPL 4060871 Contact Us For Availability

67

NUT WPL 658181 Contact Us For Availability
