Model Whirlpool NT21K9 REFRIGERATOR – Common Parts & Diagrams

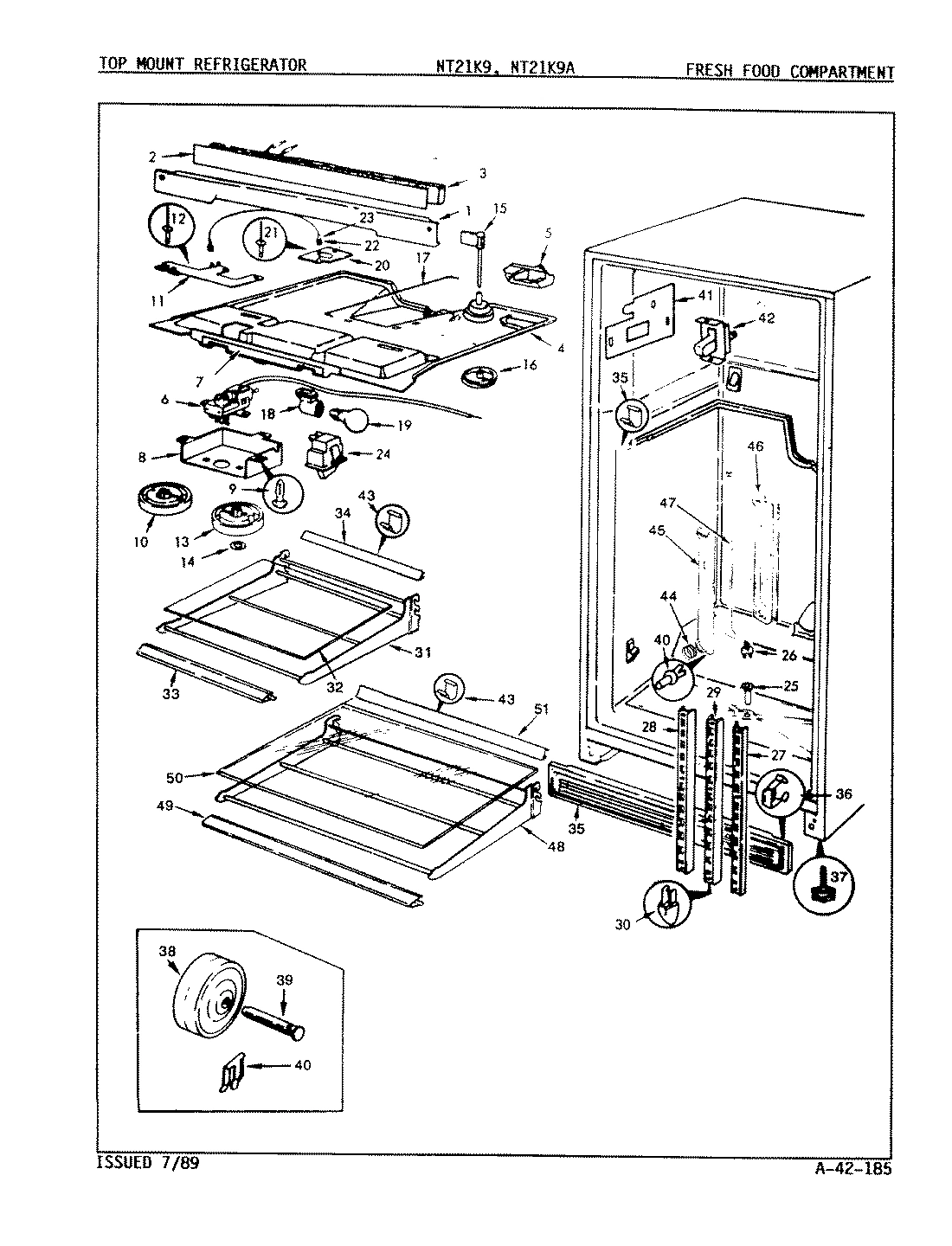

04 - FRESH FOOD COMPARTMENT

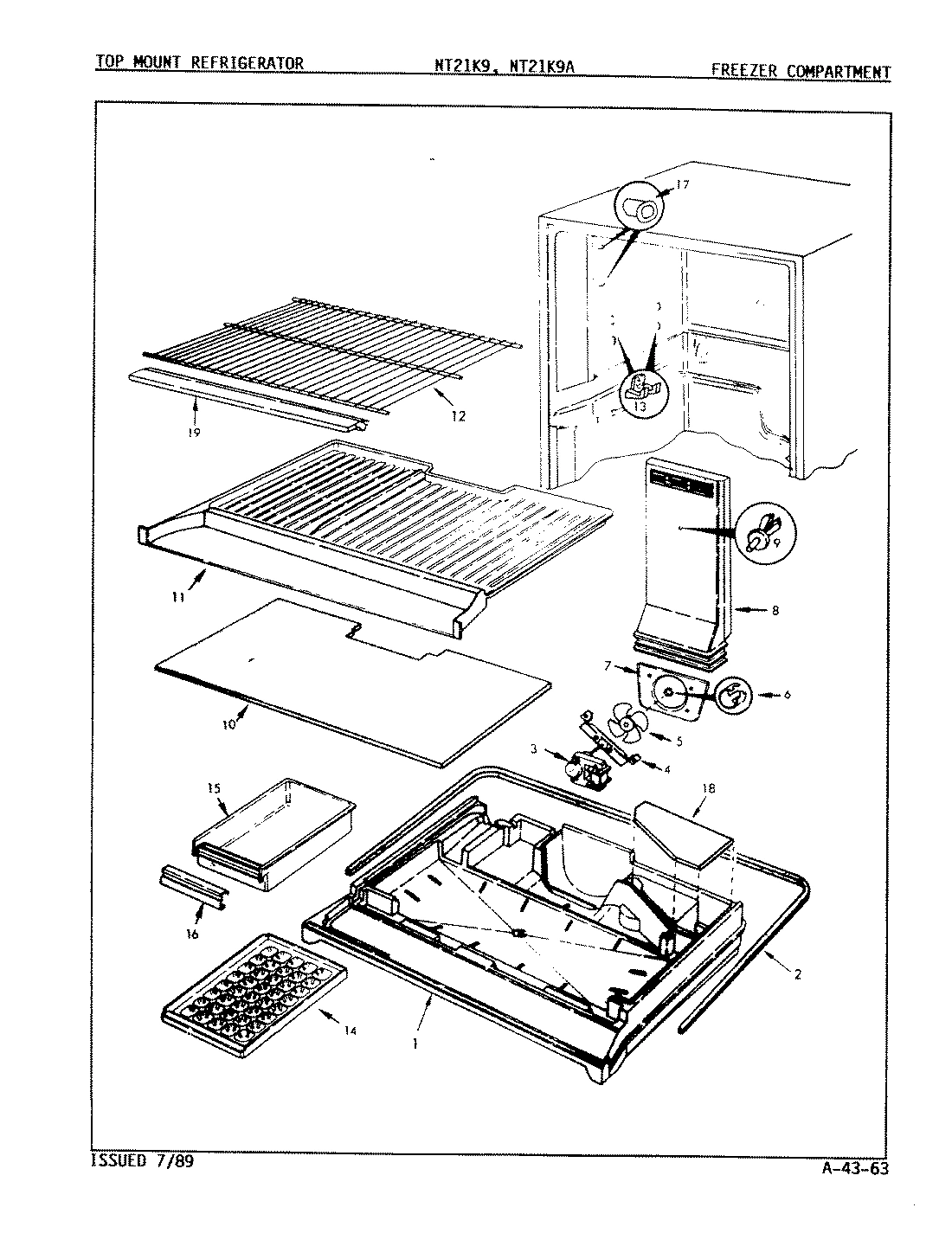

03 - FREEZER COMPARTMENT

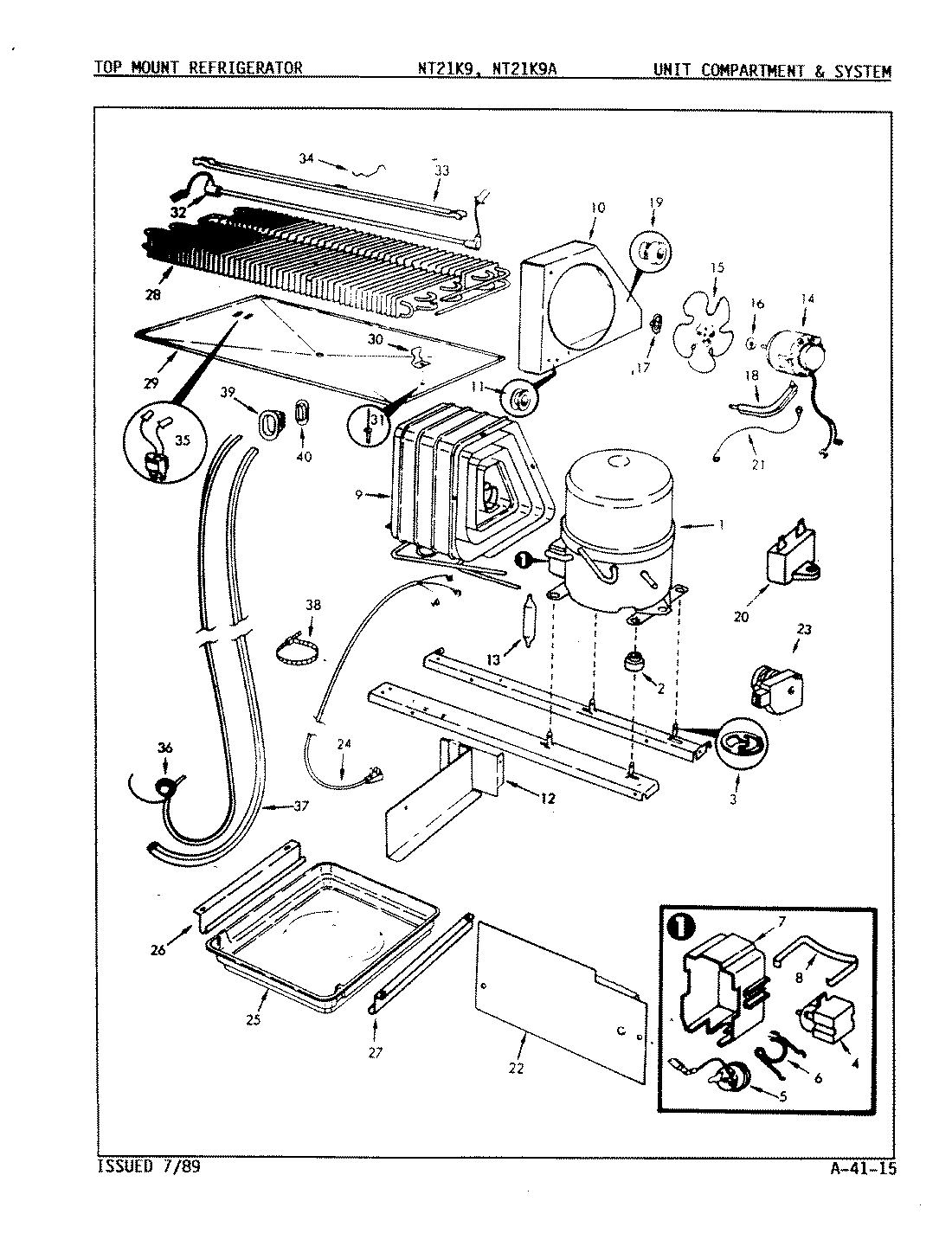

05 - UNIT COMPARTMENT & SYSTEM

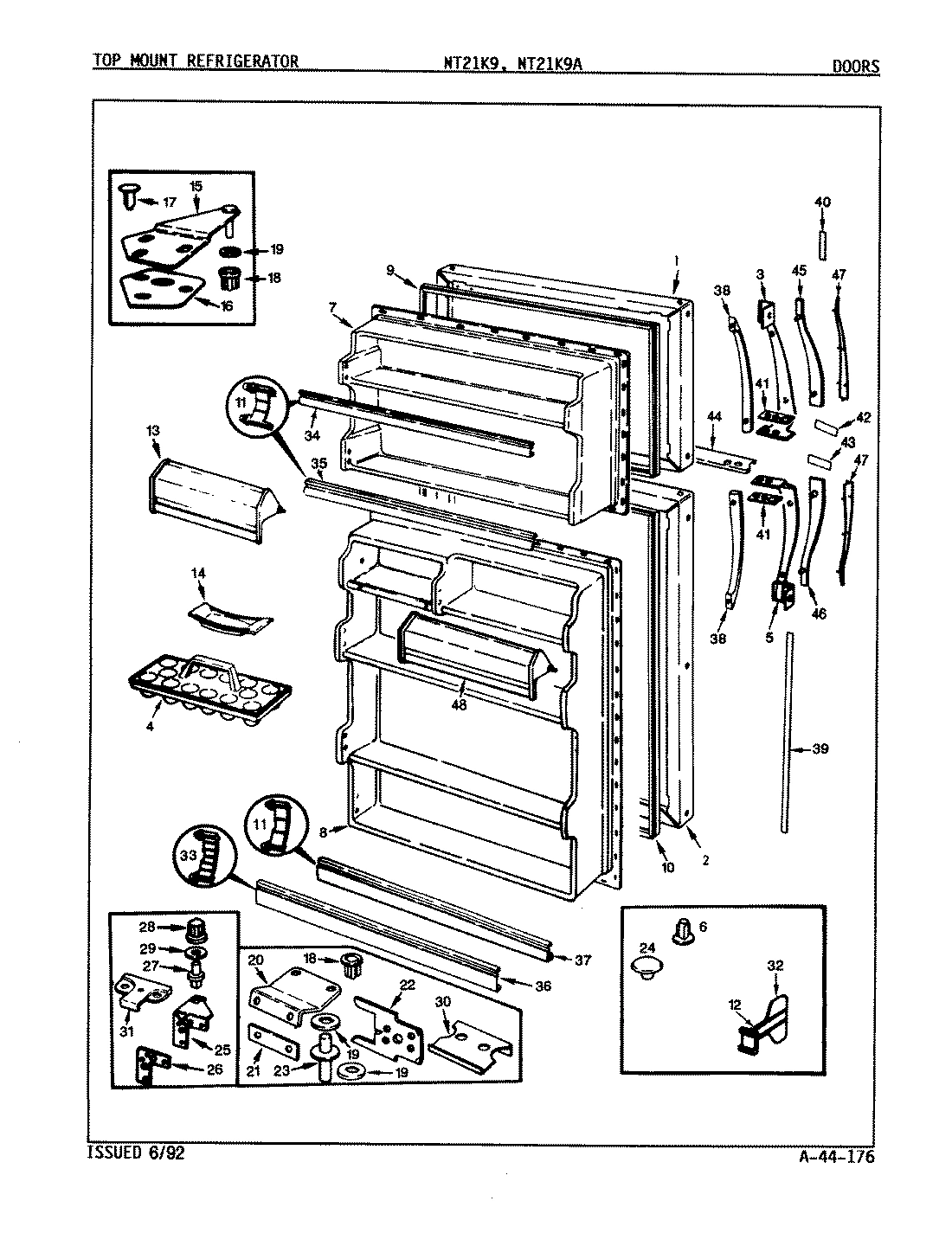

02 - DOORS

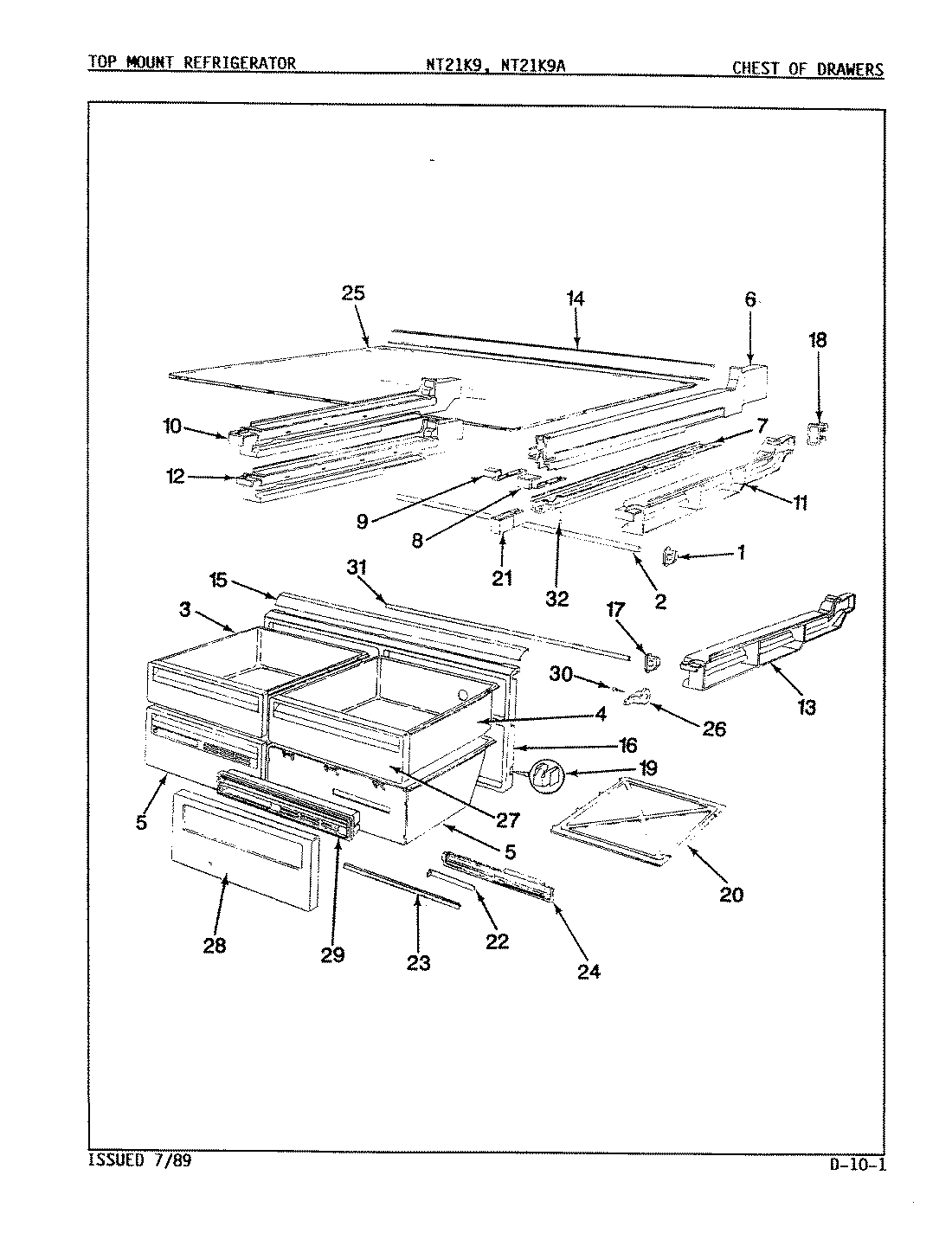

01 - CHEST OF DRAWERS
Common parts from model Whirlpool NT21K9 REFRIGERATOR
1
DIVIDER, MULLION (WHT) WPL 657972WW Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 666071 Contact Us For Availability
1
OUTER PANEL WPL 6003316WW Contact Us For Availability
1
CUP SHELF SUPPORT WPL 672051 Contact Us For Availability
2
HEATER WIRE WPL 601058 Contact Us For Availability
2
SEAL WPL 663257 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
OUTER PANEL WPL 6003254WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
ROD, CRISPER SHELF WPL 677823 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 605602 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DOOR HANDLE WPL 662553 Contact Us For Availability
3
PAN, MEAT----NA WPL 685132 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008544 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
TRAY, EGG WPL 600661 Contact Us For Availability
4
PAN, MEAT WPL 685135 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329411 Contact Us For Availability
5
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
5
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
5
DOOR HANDLE WPL 662554 Contact Us For Availability
5
SCREW WPL 9986122 Contact Us For Availability
5
PAN, CRISPER WPL 685142 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 665452 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
PLUG BUTTON WPL 669202 Contact Us For Availability
6
RAIL, UPPER CENTER WPL 685151 Contact Us For Availability
7
INSERT, TRIM ESCUTCHEON WPL 6057159 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
LINER, FRZ. DOOR WPL 659285 Contact Us For Availability
7
RAIL WPL 682681 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 652755 Contact Us For Availability
8
INNER PANEL WPL 666019 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
10
KNOB, CONTROL WPL 683033 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
10
RAIL, SIDE (LT-UPPER) WPL 685161 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664781 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
11
RAIL, SIDE (RT-UPPER) WPL 685162 Contact Us For Availability
12
SHELF, WIRE WPL 6043816 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
ORGANIZER, SHELF WPL 665223 Contact Us For Availability
12
RAIL, SIDE (LH LOWER) WPL 685165 Contact Us For Availability
13
KNOB, CONTROL FRZ WPL 683034 Contact Us For Availability
13
DOOR, DAIRY WPL 66184365 Contact Us For Availability
13
RAIL, SIDE (RT-LOWER) WPL 685166 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
TRAY, BUTTER WPL 299362 Contact Us For Availability
14
TRIM, REAR SHELF WPL 682712 Contact Us For Availability
15
DAMPER WPL 681581 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
15
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
15
FRONT SHELF TRIM WPL 687878 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
16
TRIM, HANDLE PAN WPL 60132100 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
16
FRONT, FOUR DRAWER WPL 682734 Contact Us For Availability
17
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
PLUG WPL 603211 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
17
CUP, SUPPORT ROD WPL 682741 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
18
COVER, PLENUM WPL 664802 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682751 Contact Us For Availability
19
TRIM, FRZ. SHELF WPL 6813623 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
WASHER WPL 521851 Contact Us For Availability
19
SCREW WPL 998687 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
20
COVER, PAN WPL 682782 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
TAPPING PLATE WPL 606221 Contact Us For Availability
22
SCREW WPL 9986107 Contact Us For Availability
22
CONTROL, CRISPER SLIDE WPL 685824 Contact Us For Availability
23
GROUND WIRE WPL 2967522 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
23
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
23
HANDLE INSERT TRIM WPL 6858310 Contact Us For Availability
23
HANDLE INSERT TRIM WPL 6858312 Contact Us For Availability
23
TRIM, HANDLE INSERT WPL 685838 Contact Us For Availability
24
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
24
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
PLUG BUTTON WPL 561861 Contact Us For Availability
24
RETAINER, SLIDE CONTROL WPL 682884 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
25
SCREW WPL 4031001 Contact Us For Availability
25
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
25
COVER, GLASS WPL 682925 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
27
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
27
INSERT, MEAT PAN HANDLE WPL 682864 Contact Us For Availability
27
FRONT ASSY. WPL 683734 Contact Us For Availability
28
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
28
CRISPER FRONT WPL 683744 Contact Us For Availability
29
SCREW WPL 40003728 Contact Us For Availability
29
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
WASHER WPL 542332 Contact Us For Availability
29
INSERT, CRISPER PAN HANDLE WPL 682874 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
30
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
DOOR STOP WPL 600301 Contact Us For Availability
30
SCREW, ANCHOR WPL 683981 Contact Us For Availability
31
FRAME, SHELF WPL 6057022 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
DOOR STOP WPL 604191 Contact Us For Availability
31
SCREW WPL 9986108 Contact Us For Availability
31
SCREW WPL 4000161 Contact Us For Availability
31
ROD, FRONT SUPPORT WPL 696031 Contact Us For Availability
32
GLASS, CANTILEVER SHELF WPL 6660425 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
32
SCREW WPL 4050031 Contact Us For Availability
32
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
32
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
33
TRIM WPL 6813621 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
RETAINER WPL 652461 Contact Us For Availability
34
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
KICKPLATE WPL 601387 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
TRIM, FRZ DR SHELF WPL 683751 Contact Us For Availability
36
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
TRIM, DOOR WPL 6837612 Contact Us For Availability
37
LEG, LEVELING WPL 60128 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
TRIM, FREEZER SHELF WPL 683754 Contact Us For Availability
38
WHEEL WPL 298342 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
INSERT WPL 604451 Contact Us For Availability
39
PIN, WHEEL WPL 298352 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
TRIM WPL 667023 Contact Us For Availability
40
GROUND WIRE WPL 2967532 Contact Us For Availability
40
CLIP WPL 602161 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
WIRE HARNESS WPL 663312 Contact Us For Availability
40
TRIM WPL 667024 Contact Us For Availability
41
BRACKET, SWITCH WPL 605831 Contact Us For Availability
41
SHIM WPL 604561 Contact Us For Availability
42
SCREW WPL 4020131 Contact Us For Availability
42
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
42
INSERT, HANDLE WPL 6060312 Contact Us For Availability
43
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
43
INSERT, HANDLE WPL 6060311 Contact Us For Availability
44
COVER, AIR TUNNEL WPL 682853 Contact Us For Availability
44
TRIM, DOOR WPL 666512 Contact Us For Availability
45
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
45
INSERT, HANDLE WPL 680161 Contact Us For Availability
46
INSULATION, AIR TUNNEL WPL 682892 Contact Us For Availability
46
INSERT, HANDLE----NA WPL 680162 Contact Us For Availability
47
SCREW WPL 40001528 Contact Us For Availability
47
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
47
INSERT, VINYL WPL 680171 Contact Us For Availability
48
FRAME, SHELF WPL 6057031 Contact Us For Availability
48
DOOR, DAIRY WPL 66184366 Contact Us For Availability
49
TRIM, SHELF (FULL REAR) WPL 6527621 Contact Us For Availability
50
GLASS, CANTILEVER SHELF WPL 6660424 Contact Us For Availability
51
TRIM, CANTILEVER SHELF WPL 6813635 Contact Us For Availability
× ![]()
Login and Registration Form
