Model Whirlpool NT19L9 REFRIGERATOR – Common Parts & Diagrams
01 - CHEST OF DRAWERS

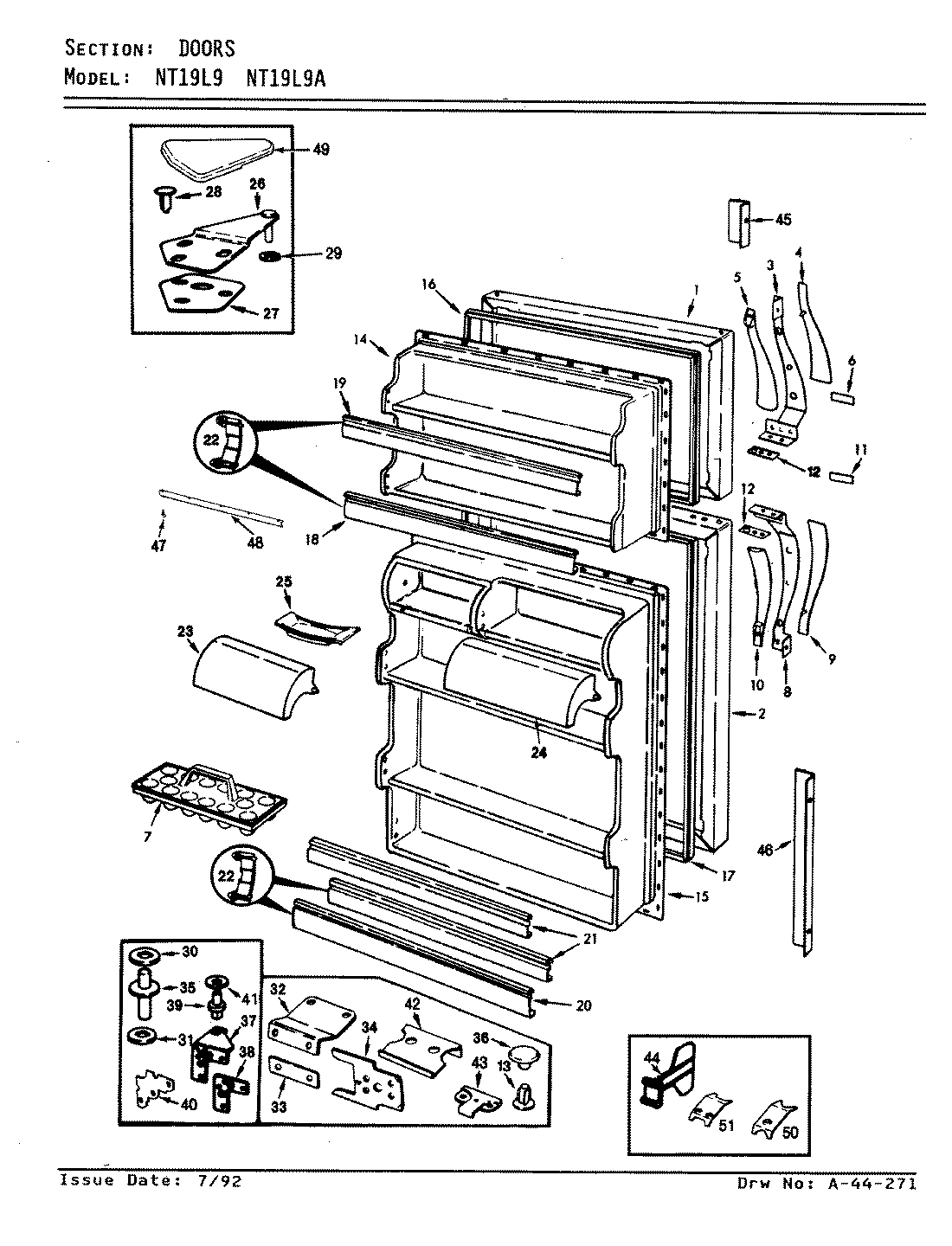

02 - DOORS

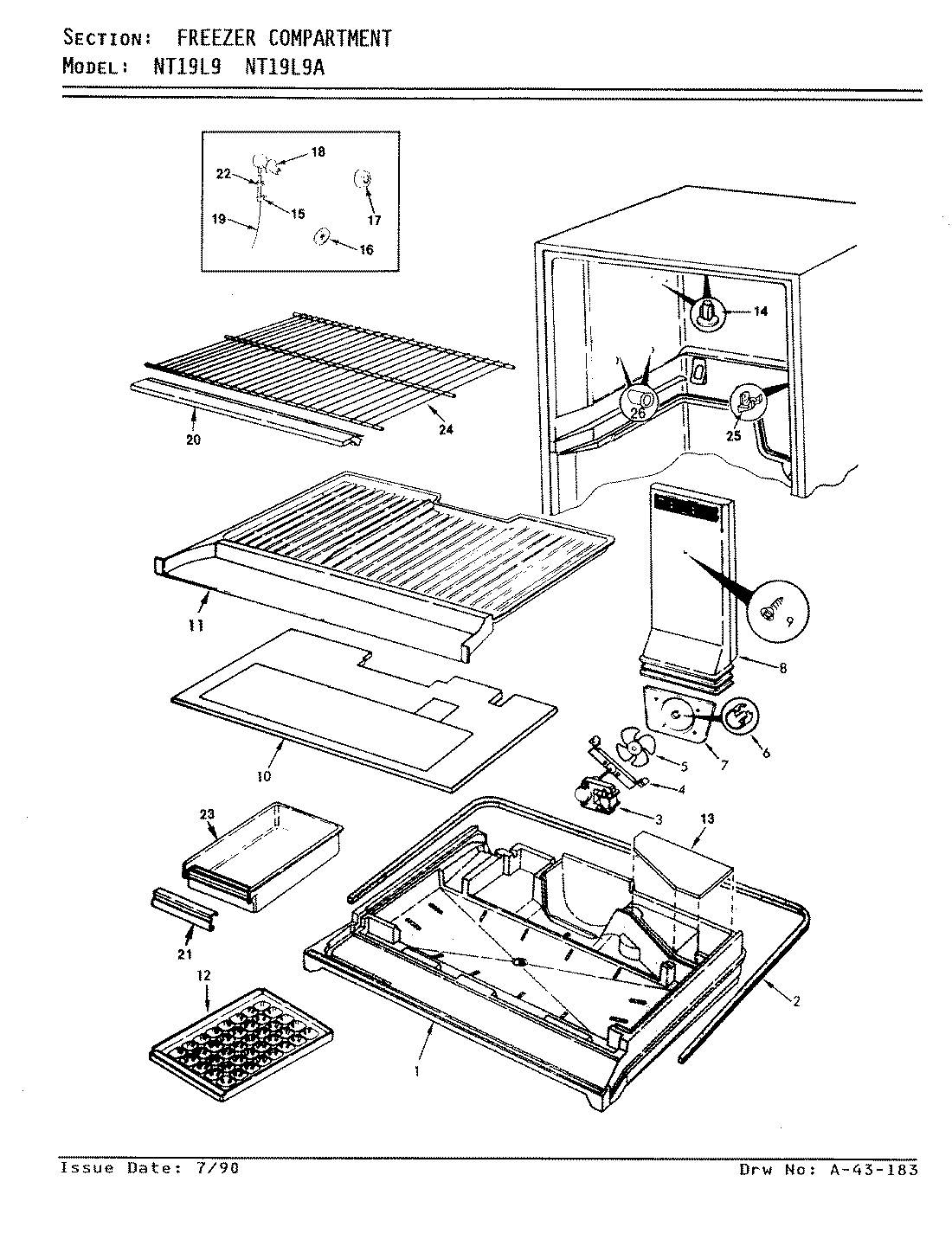

03 - FREEZER COMPARTMENT

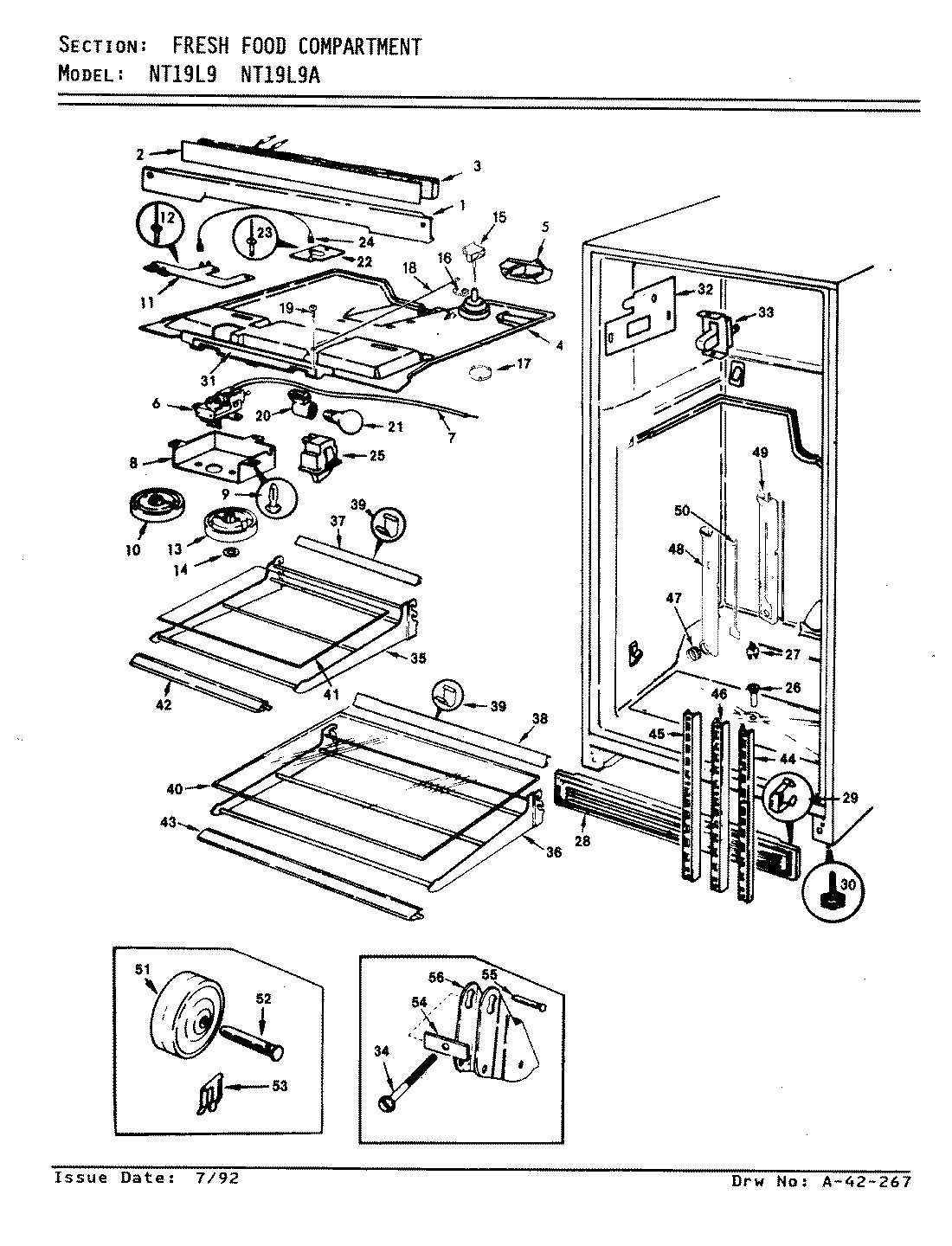

04 - FRESH FOOD COMPARTMENT

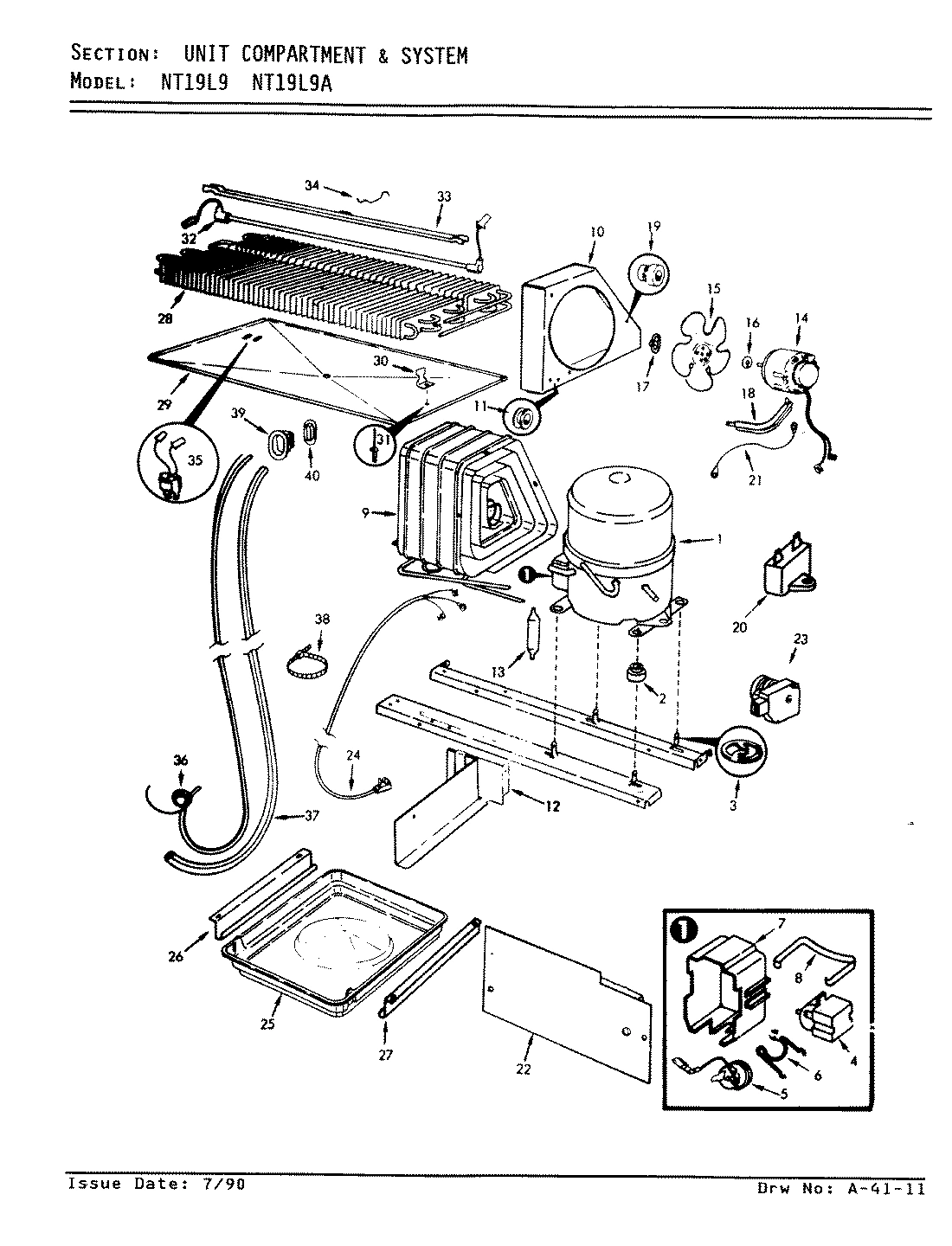

05 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool NT19L9 REFRIGERATOR
1
PANEL, FRZ. DOOR (WHT) WPL 720453WW Contact Us For Availability
1
FOAM TRAY WPL 675193 Contact Us For Availability
1
SCREW WPL 6527554 Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 684342WW Contact Us For Availability
1
COMPRESSOR WPL YRA1010 Contact Us For Availability
2
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
2
PANEL, F.F. DOOR (WHT) WPL 684733WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688666 Contact Us For Availability
2
INSULATION WPL 685772 Contact Us For Availability
2
HEATER WIRE WPL 688311 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
PAN, CRISPER WPL 685133 Contact Us For Availability
3
DOOR HANDLE WPL 662553 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
3
SCREW WPL 4010111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
PAN, MEAT WPL 685136 Contact Us For Availability
4
HANDLE INSERT, FRONT WPL 680163 Contact Us For Availability
4
INSERT, VINYL CLAD WPL 680172 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685312 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
PAN, CRISPER WPL 685144 Contact Us For Availability
5
SCREW WPL 9986112 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 6329417 Contact Us For Availability
6
RAIL UPPER CENTER WPL 685154 Contact Us For Availability
6
INSERT, HANDLE WPL 6060313 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681192 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
RAIL, BOTTOM CENTER WPL 682682 Contact Us For Availability
7
TRAY, EGG WPL 600661 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
BRACKET, CENTER RAIL WPL 682691 Contact Us For Availability
8
DOOR HANDLE WPL 662554 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
BRACKET, CENTER RAIL WPL 682692 Contact Us For Availability
9
INSERT WPL 680164 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
RAIL, SIDE WPL 685163 Contact Us For Availability
10
INSERT, HANDLE (BACK) WPL 604453 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
KNOB, TEMP. CONTROL WPL 686003 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
RAIL, SIDE WPL 685164 Contact Us For Availability
11
INSERT, HANDLE WPL 6060314 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
RAIL, SIDE WPL 685167 Contact Us For Availability
12
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
13
RAIL, SIDE WPL 685168 Contact Us For Availability
13
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
13
COVER, PLENUM WPL 664805 Contact Us For Availability
13
PLUG BUTTON WPL 669202 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
13
KNOB WPL 686004 Contact Us For Availability
14
TRIM, REAR SHELF WPL 682712 Contact Us For Availability
14
LINER, DOOR WPL 6592818 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
PLUG BUTTON WPL 675571 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684812 Contact Us For Availability
15
GASKET WPL 675582 Contact Us For Availability
15
FRONT SHELF TRIM WPL 687878 Contact Us For Availability
15
SCREW WPL 652755 Contact Us For Availability
15
LINER, F.F. DOOR WPL 687191 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
FRONT, FOUR DRAWER WPL 682734 Contact Us For Availability
16
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
16
CAP, CONNECTOR WPL 681871 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
WASHER WPL 604861 Contact Us For Availability
17
SUPPORT ROD CUP WPL 687581 Contact Us For Availability
17
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
17
CAP, GROMMET WPL 683871 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
18
CUP, REAR RAIL SUPPORT WPL 682752 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
18
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
19
CLIP, FRONT BOTTOM WPL 682771 Contact Us For Availability
19
TRIM, SHELF WPL 6837517 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
COVER, PAN WPL 682783 Contact Us For Availability
20
TRIM, FRESH FOOD SHELF WPL 6837512 Contact Us For Availability
20
SHELF TRIM WPL 6813647 Contact Us For Availability
20
SOCKET, LIGHT WPL 605772 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
21
GUIDE, CENTER RAIL WPL 682802 Contact Us For Availability
21
TRIM, SHELF WPL 6837511 Contact Us For Availability
21
TRIM, HANDLE PAN WPL 60132100 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
CONTROL, CRISPER SLIDE WPL 685824 Contact Us For Availability
22
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
HANDLE INSERT TRIM WPL 6858310 Contact Us For Availability
23
HANDLE INSERT TRIM WPL 6858312 Contact Us For Availability
23
TRIM, HANDLE INSERT WPL 685838 Contact Us For Availability
23
DOOR, DAIRY WPL 66184365 Contact Us For Availability
23
PAN, ICE WPL 606531 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
24
RETAINER, SLIDE CONTROL WPL 682884 Contact Us For Availability
24
DOOR, DAIRY WPL 66184366 Contact Us For Availability
24
SHELF WPL 6043817 Contact Us For Availability
24
GROUND WIRE WPL 2967528 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
COVER, GLASS WPL 682926 Contact Us For Availability
25
TRAY, BUTTER WPL 299362 Contact Us For Availability
25
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
25
SWITCH, LIGHT WPL 557321 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
STUD, FRONT CLIP WPL 683391 Contact Us For Availability
26
HINGE, UPPER WPL 5370920 Contact Us For Availability
26
SCREW WPL 998687 Contact Us For Availability
26
SCREW WPL 4000191 Contact Us For Availability
26
CUP, SHELF WPL 603131 Contact Us For Availability
26
GROMMET WPL 545318 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
27
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
FRONT ASSY. WPL 686394 Contact Us For Availability
28
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
28
KICKPLATE WPL 601387 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
COVER, AIR INLET WPL 683911 Contact Us For Availability
29
SCREW, ANCHOR WPL 683981 Contact Us For Availability
29
CRISPER ASSEMBLY FRONT WPL 686404 Contact Us For Availability
29
WASHER WPL 542331 Contact Us For Availability
29
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
SCREW WPL 4000161 Contact Us For Availability
30
CRISPER SHELF ROD WPL 687561 Contact Us For Availability
30
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
30
LEG, LEVELING WPL 686641 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
SCREW WPL 4050031 Contact Us For Availability
31
PIN, FRAME GUIDE WPL 683931 Contact Us For Availability
31
CUP, FRAME MOUNT WPL 683941 Contact Us For Availability
31
WASHER WPL 542332 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
INSERT TEMP CONTROL WPL 6057178 Contact Us For Availability
32
SCREW WPL 6527524 Contact Us For Availability
32
HINGE, CENTER WPL 688112 Contact Us For Availability
32
SCREW WPL 4020131 Contact Us For Availability
32
BRACKET, SWITCH WPL 605831 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
33
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
34
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
35
FRAME, SHELF WPL 6057013 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
36
FRAME, SHELF WPL 6057025 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
HINGE, LOWER WPL 677146 Contact Us For Availability
37
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
38
TRIM, SHELF (FULL REAR) WPL 6527621 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
HINGE PIN WPL 687881 Contact Us For Availability
39
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
SCREW WPL 4031001 Contact Us For Availability
40
TAPPING PLATE WPL 657903 Contact Us For Availability
40
GLASS, CANTILEVER SHELF WPL 6660422 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
41
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
41
SCREW WPL 4000171 Contact Us For Availability
41
GLASS, CANTILEVER SPLIT SHELF WPL 6660423 Contact Us For Availability
41
CAPACITOR, RUN WPL 658891 Contact Us For Availability
41
WIRE HARNESS WPL 688391 Contact Us For Availability
42
DOOR STOP WPL 600301 Contact Us For Availability
42
SHELF TRIM WPL 6813645 Contact Us For Availability
43
DOOR STOP WPL 6041910 Contact Us For Availability
43
SCREW WPL 9986108 Contact Us For Availability
43
TRIM, SHELF WPL 6813652 Contact Us For Availability
44
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
44
RAIL, CANTILEVER SHELF WPL 682382 Contact Us For Availability
45
TRIM, HANDLE EXTENSION WPL 6045320 Contact Us For Availability
45
RAIL, CANTILEVER SHELF WPL 682381 Contact Us For Availability
46
TRIM EXTENSION WPL 6045319 Contact Us For Availability
46
HANDLE TRIM EXTENSION WPL 6045321 Contact Us For Availability
46
SCREW WPL 40003728 Contact Us For Availability
46
RAIL, CANTILEVER SHELF WPL 682383 Contact Us For Availability
47
CLIP WPL 524474 Contact Us For Availability
47
BELLOWS, AIR TUNNEL WPL 682821 Contact Us For Availability
48
GASKET, SECONDARY WPL 685442 Contact Us For Availability
48
COVER, AIR TUNNEL WPL 682853 Contact Us For Availability
49
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
49
INSULATION, AIR TUNNEL WPL 682892 Contact Us For Availability
50
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
50
SCREW WPL 40001531 Contact Us For Availability
50
DAMPER, AIR TUNNEL WPL 682903 Contact Us For Availability
51
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
51
WHEEL WPL 298342 Contact Us For Availability
52
PIN, WHEEL WPL 298352 Contact Us For Availability
53
CLIP WPL 602161 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
55
PIN, WHEEL WPL 649651 Contact Us For Availability
56
BRACKET, WHEEL WPL 675301 Contact Us For Availability
× ![]()
Login and Registration Form
