Model Whirlpool NT17H63I REFRIGERATOR – Common Parts & Diagrams

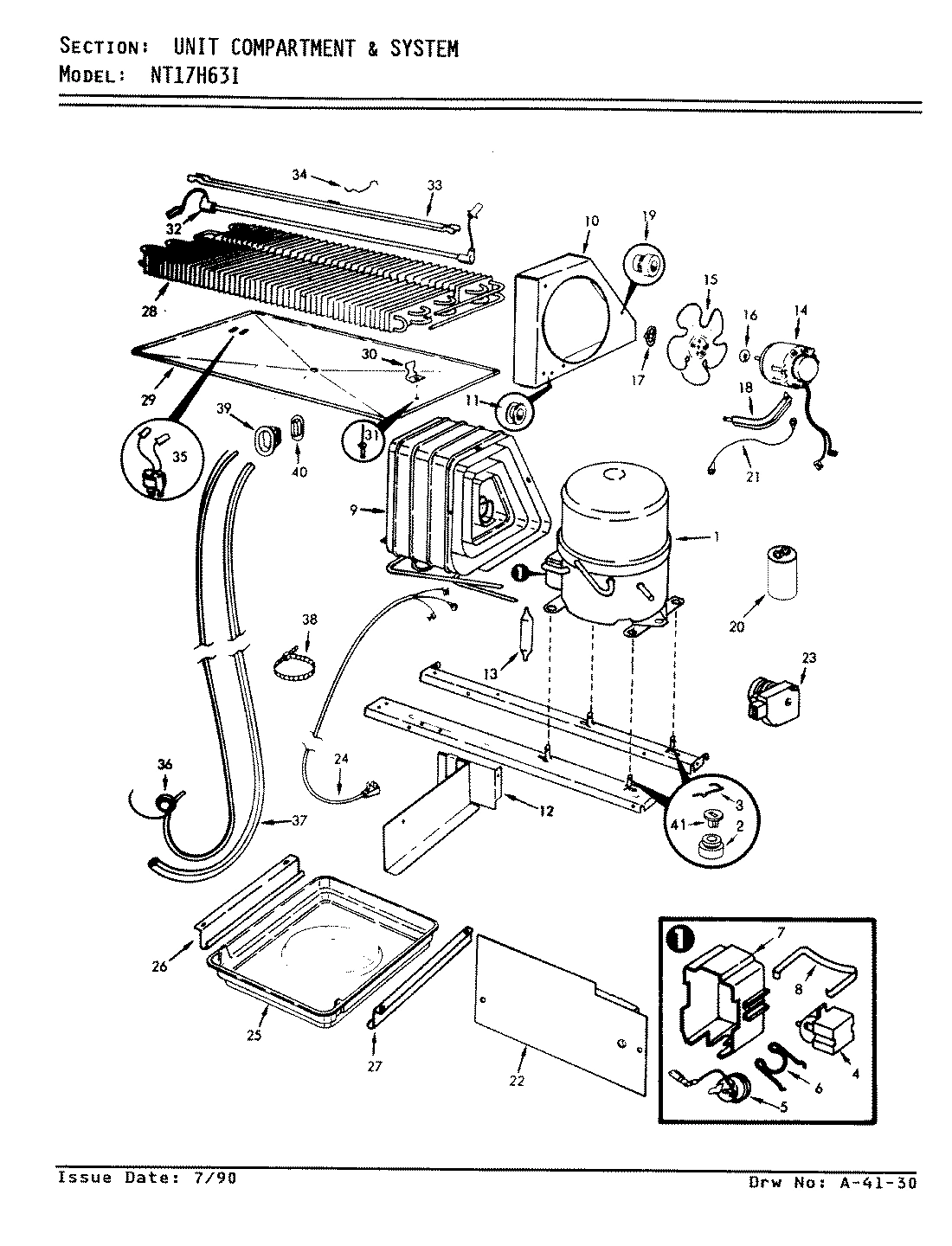

04 - UNIT COMPARTMENT & SYSTEM
01 - DOORS

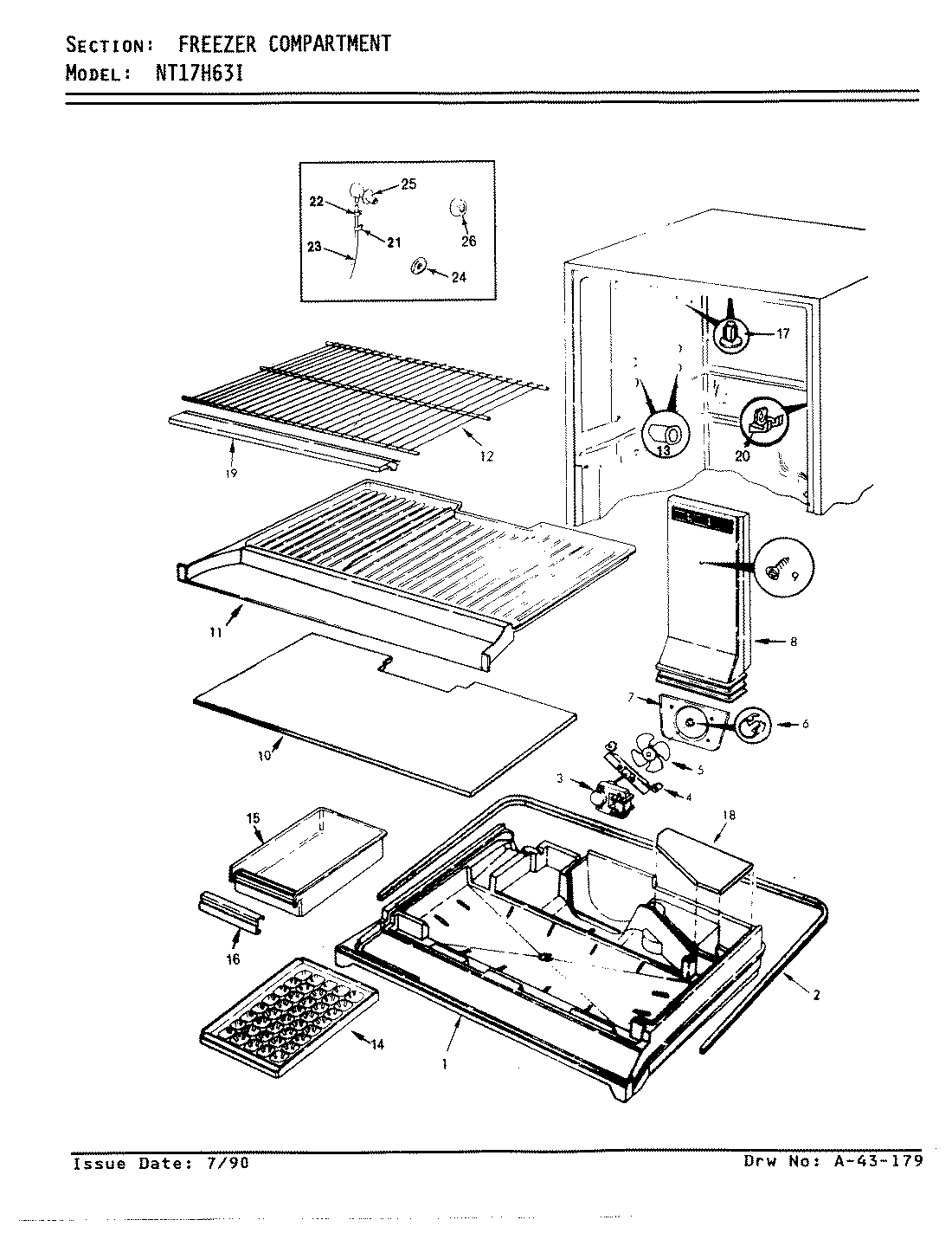

02 - FREEZER COMPARTMENT

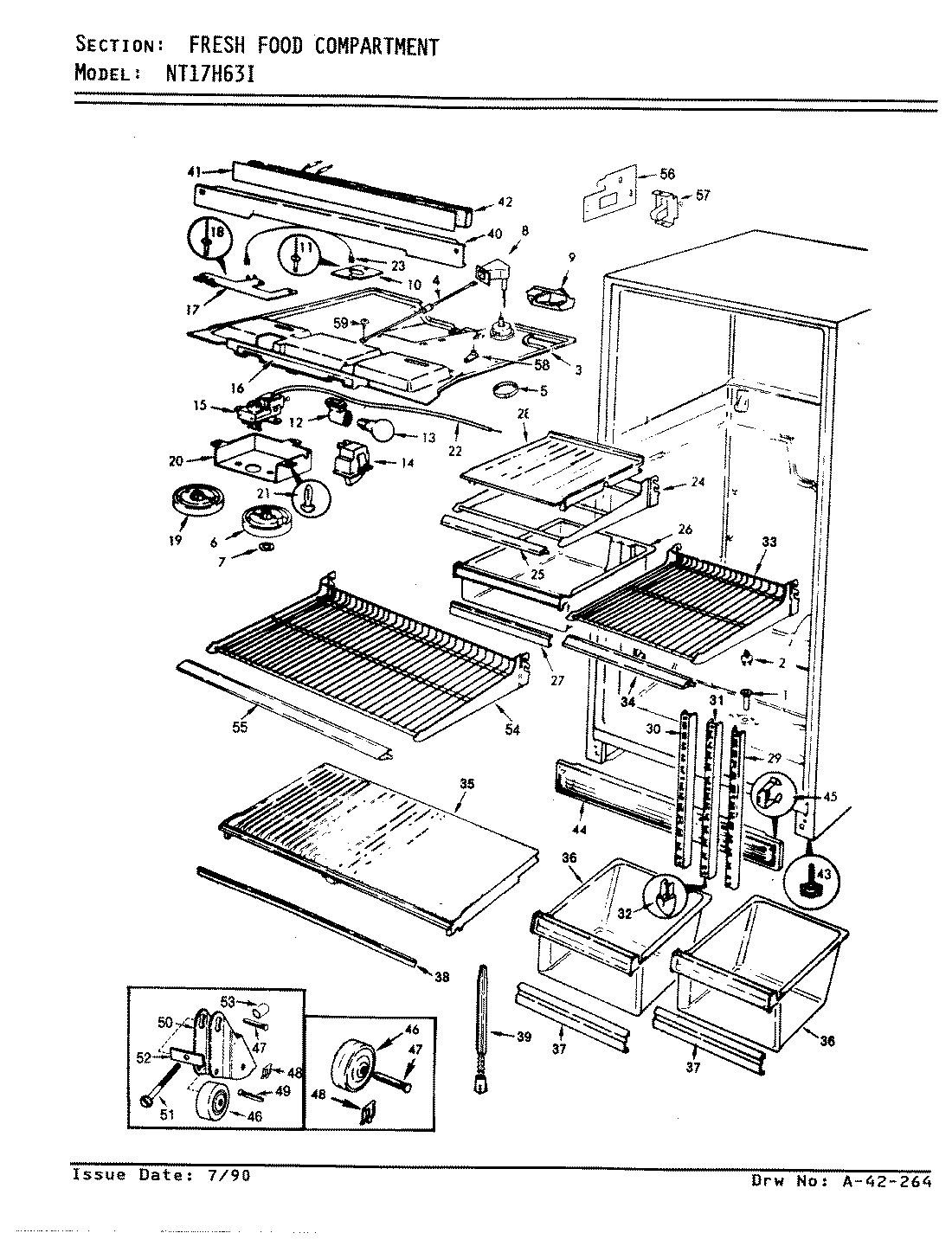

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool NT17H63I REFRIGERATOR
1
PANEL, FRZ. DOOR (WHT) WPL 720441WW Contact Us For Availability
1
MULLION DIVIDER TRAY WPL 675182 Contact Us For Availability
1
GROMMET WPL 545318 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
PANEL, F.F. DOOR (WHT) WPL 684711WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688661 Contact Us For Availability
2
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
DOOR HANDLE WPL 662553 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR WPL 5448211 Contact Us For Availability
3
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
4
RELAY WPL 9286107 Contact Us For Availability
4
INSERT, HANDLE WPL 606025 Contact Us For Availability
4
INSERT, VINYL WPL 680171 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
5
OVERLOAD WPL 5306790 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 537071 Contact Us For Availability
5
COVER, CRANK WPL 674931 Contact Us For Availability
6
CLIP WPL 595971 Contact Us For Availability
6
INSERT WPL 6060323 Contact Us For Availability
6
SCREW WPL 405016103 Contact Us For Availability
6
KNOB, FRZ. WPL 686002 Contact Us For Availability
7
COVER WPL 594961 Contact Us For Availability
7
TRAY, EGG WPL 600661 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
DOOR HANDLE WPL 662554 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
8
TUNNEL, AIR WPL 685922 Contact Us For Availability
8
DAMPER WPL 675586 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
INSERT, HANDLE----NA WPL 680162 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
DEFLECTOR WPL 601202 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
INSERT WPL 604451 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
INSERT WPL 6060324 Contact Us For Availability
11
SCREW WPL 9986112 Contact Us For Availability
11
SEAL, FOAM TRAY WPL 663259 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
12
SHELF WPL 6043824 Contact Us For Availability
12
SOCKET, LIGHT WPL 605771 Contact Us For Availability
13
LINER, DOOR WPL 6592913 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
13
PLUG BUTTON WPL 669202 Contact Us For Availability
13
BULB, LIGHT (40W-230V) WPL 240821 Contact Us For Availability
14
FAN MOTOR WPL 2805610 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
LINER, F.F. DOOR WPL 659345 Contact Us For Availability
14
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
14
SWITCH, LIGHT WPL 557321 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
GASKET, DOOR WPL 661993 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
SCREW WPL 4060131 Contact Us For Availability
15
CONTROL, TEMPERATURE WPL 665451 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
GASKET, DOOR WPL 661994 Contact Us For Availability
16
HANDLE, ICE CUBE PAN WPL 60132101 Contact Us For Availability
16
INSERT TEMP CONTROL WPL 6057178 Contact Us For Availability
17
SHELF TRIM WPL 6663636 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
17
BRACKET, CONTROL WPL 601471 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
COVER, PLENUM WPL 664801 Contact Us For Availability
18
RIVET WPL 263979 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRIM WPL 688323 Contact Us For Availability
19
TRIM WPL 6041436 Contact Us For Availability
19
KNOB, CONTROL WPL 686001 Contact Us For Availability
20
CAPACITOR, RUN WPL 684471 Contact Us For Availability
20
CLAMP WPL 689531 Contact Us For Availability
20
TRIM WPL 688325 Contact Us For Availability
20
SCREW WPL 4000191 Contact Us For Availability
20
SCREW WPL 4050121 Contact Us For Availability
20
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM WPL 688326 Contact Us For Availability
21
CLAMP, TUBING WPL 535168 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
SHELF TRIM WPL 6663635 Contact Us For Availability
22
CLAMP, SPRING WPL 603334 Contact Us For Availability
22
PLASTIC TUBE WPL 400812 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
AUTOMATIC TIMER WPL 5411312 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
GROUND WIRE WPL 2967528 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
DOOR STOP WPL 6041910 Contact Us For Availability
24
CAP, CONNECTOR WPL 681871 Contact Us For Availability
24
CANTILEVER SHELF (MEAT) WPL 604169 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
DOOR, DAIRY WPL 604065 Contact Us For Availability
25
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
25
TRIM WPL 6041462 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
TRIM WPL 6812825 Contact Us For Availability
26
CLIP WPL 655171 Contact Us For Availability
26
CAP, GROMMET WPL 683871 Contact Us For Availability
26
PAN, MEAT WPL 6663637 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
BUMPER, DOOR WPL 282726 Contact Us For Availability
27
HANDLE, MEAT KEEPER WPL 60132102 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
28
TRAY, BUTTER WPL 299362 Contact Us For Availability
28
COVER WPL 600751 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
HINGE, UPPER WPL 5370920 Contact Us For Availability
29
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
30
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
31
RIVET WPL 263972 Contact Us For Availability
31
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
31
SCREW WPL 40003728 Contact Us For Availability
31
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
32
HEATER, DEFROST WPL 6010637 Contact Us For Availability
32
WASHER WPL 542331 Contact Us For Availability
32
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
CANTILEVER SHELF (SPLIT) WPL 6041713 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
WASHER WPL 542332 Contact Us For Availability
34
SCREW WPL 998687 Contact Us For Availability
34
TRIM WPL 6041428 Contact Us For Availability
35
HINGE, CENTER WPL 688112 Contact Us For Availability
35
SHELF, CRISPER WPL 666442 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
36
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
36
PAN, CRISPER WPL 68221122 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
SCREW WPL 6527524 Contact Us For Availability
37
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
37
HANDLE CRISPER PAN WPL 60132103 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
38
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
38
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
39
SUPPORT, CRISPER SHELF WPL 661054 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
HINGE, LOWER WPL 677146 Contact Us For Availability
40
WIRE HARNESS WPL 605601 Contact Us For Availability
40
SCREW WPL 6527554 Contact Us For Availability
40
DIVIDER, MULLION (WHT) WPL 684341WW Contact Us For Availability
41
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
41
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
41
HEATER WIRE WPL 688294 Contact Us For Availability
42
HINGE PIN WPL 687881 Contact Us For Availability
42
INSULATION WPL 601401 Contact Us For Availability
43
SCREW WPL 4031001 Contact Us For Availability
43
TAPPING PLATE WPL 657903 Contact Us For Availability
43
LEG, LEVELING WPL 60128 Contact Us For Availability
44
WASHER WPL 674834 Contact Us For Availability
44
KICKPLATE WPL 6023737 Contact Us For Availability
45
SCREW WPL 4000171 Contact Us For Availability
45
DOOR STOP WPL 600301 Contact Us For Availability
45
SCREW WPL 9986108 Contact Us For Availability
45
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
46
WHEEL WPL 298342 Contact Us For Availability
47
CLIP WPL 524474 Contact Us For Availability
47
PIN, WHEEL WPL 298352 Contact Us For Availability
48
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
48
CLIP WPL 602161 Contact Us For Availability
49
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
49
PIN, WHEEL WPL 649651 Contact Us For Availability
50
BRACKET, WHEEL WPL 675301 Contact Us For Availability
51
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
52
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
53
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
54
SHELF WPL 6041714 Contact Us For Availability
55
TRIM WPL 6041439 Contact Us For Availability
56
SCREW WPL 4020131 Contact Us For Availability
56
BRACKET, SWITCH WPL 605831 Contact Us For Availability
57
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
58
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
59
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
59
SCREW WPL 6527513 Contact Us For Availability
× ![]()
Login and Registration Form
