Model Whirlpool NT17E53GL REFRIGERATOR – Common Parts & Diagrams
02 - UNIT COMPARTMENT & SYSTEM

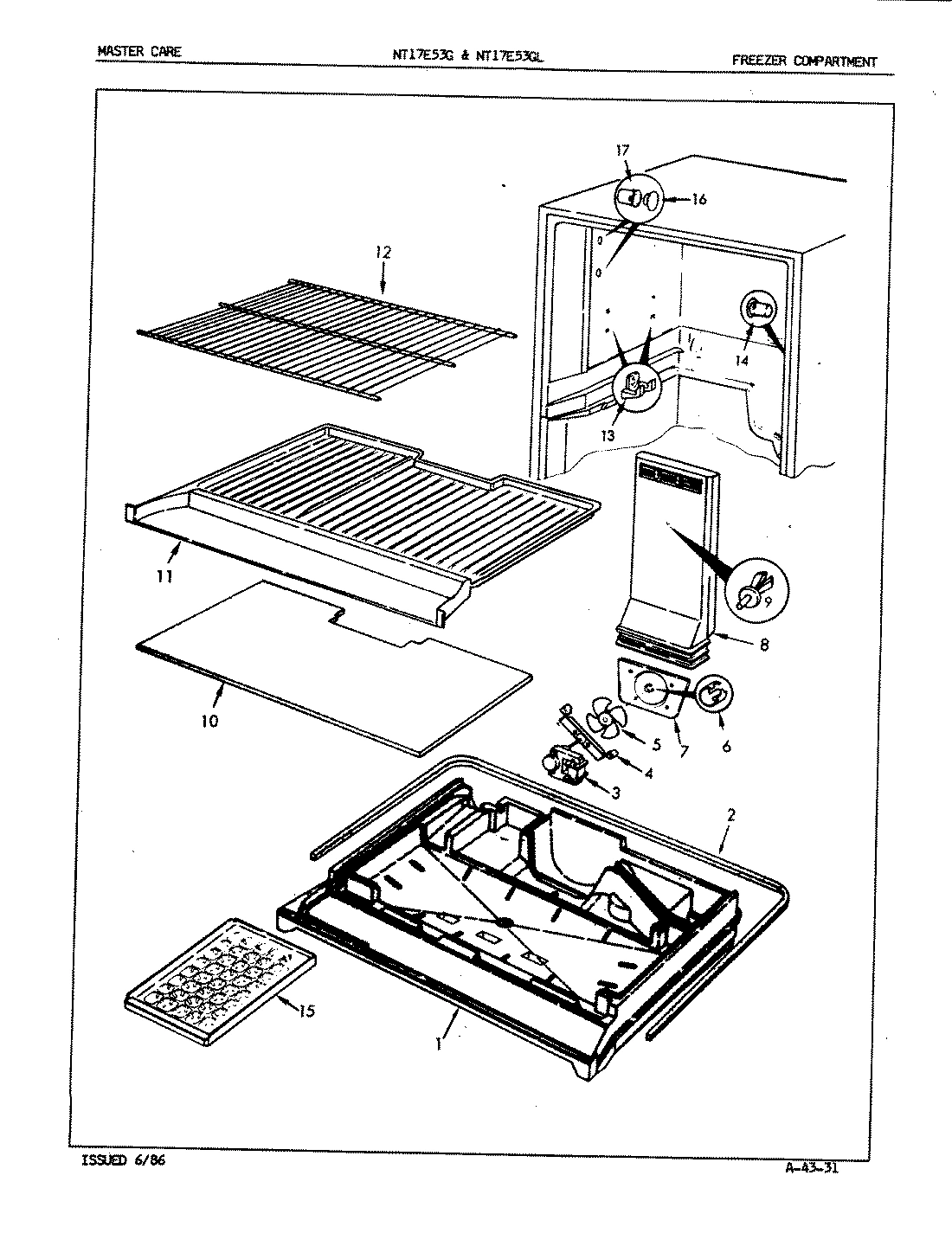

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool NT17E53GL REFRIGERATOR
1
COMPRESSOR WPL RA993 Contact Us For Availability
1
TRAY, DIVIDER WPL 605761 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL WPL 663251 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR WPL 5448211 Contact Us For Availability
4
RELAY WPL 9286107 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
OVERLOAD WPL 5306783 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 537071 Contact Us For Availability
6
CLIP WPL 595971 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
COVER WPL 594961 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
TUNNEL, AIR WPL 660442 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
10
CONDENSER SHROUD WPL 600212 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
12
AIR DIVIDER WPL 606391 Contact Us For Availability
12
SHELF WPL 6043813 Contact Us For Availability
13
SCREW WPL 402017103 Contact Us For Availability
14
FAN MOTOR WPL 2805610 Contact Us For Availability
14
SCREW WPL 4030141 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
ICE CUBE TRAY WPL 601121 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
PLUG WPL 603211 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
18
BRACKET WPL 600361 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
23
TIMER WPL 541135 Contact Us For Availability
24
SCREW WPL 4050071 Contact Us For Availability
24
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
HEATER, DEFROST WPL 6010637 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208525 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
WIRE TIE WPL 575763 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 658951 Contact Us For Availability
41
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
× ![]()
