Model Whirlpool NT15L4 REFRIGERATOR – Common Parts & Diagrams

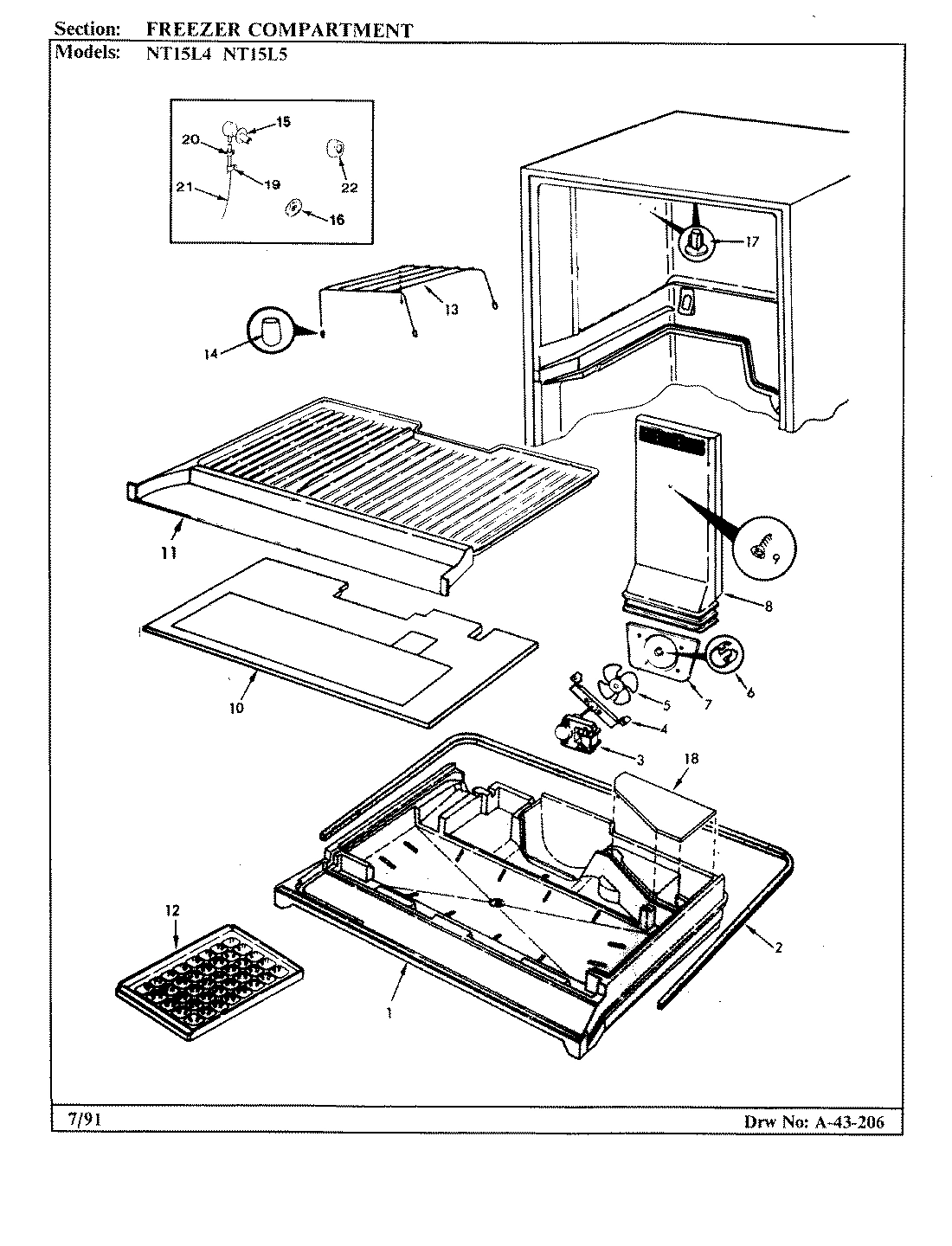

01 - FREEZER COMPARTMENT

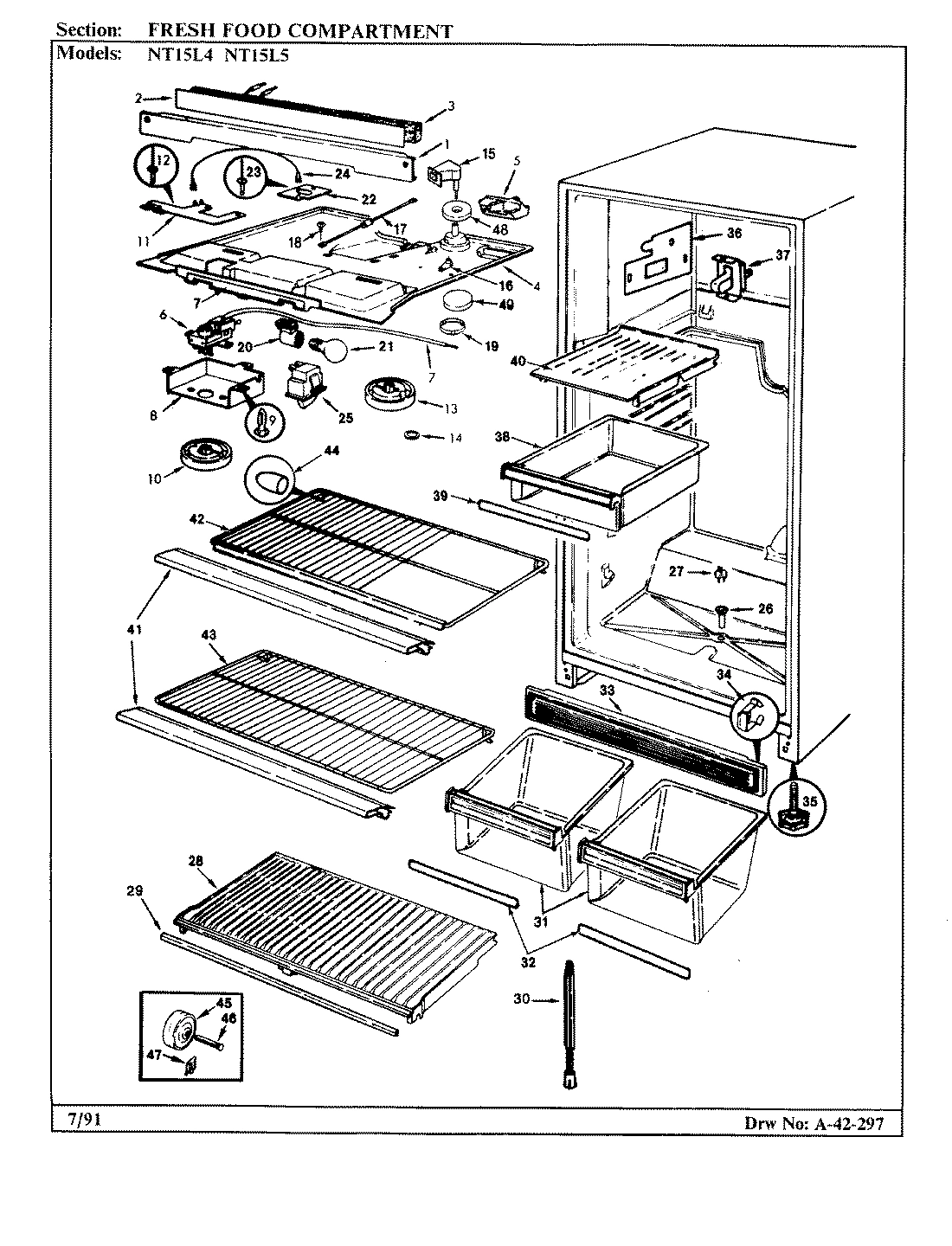

02 - FRESH FOOD COMPARTMENT

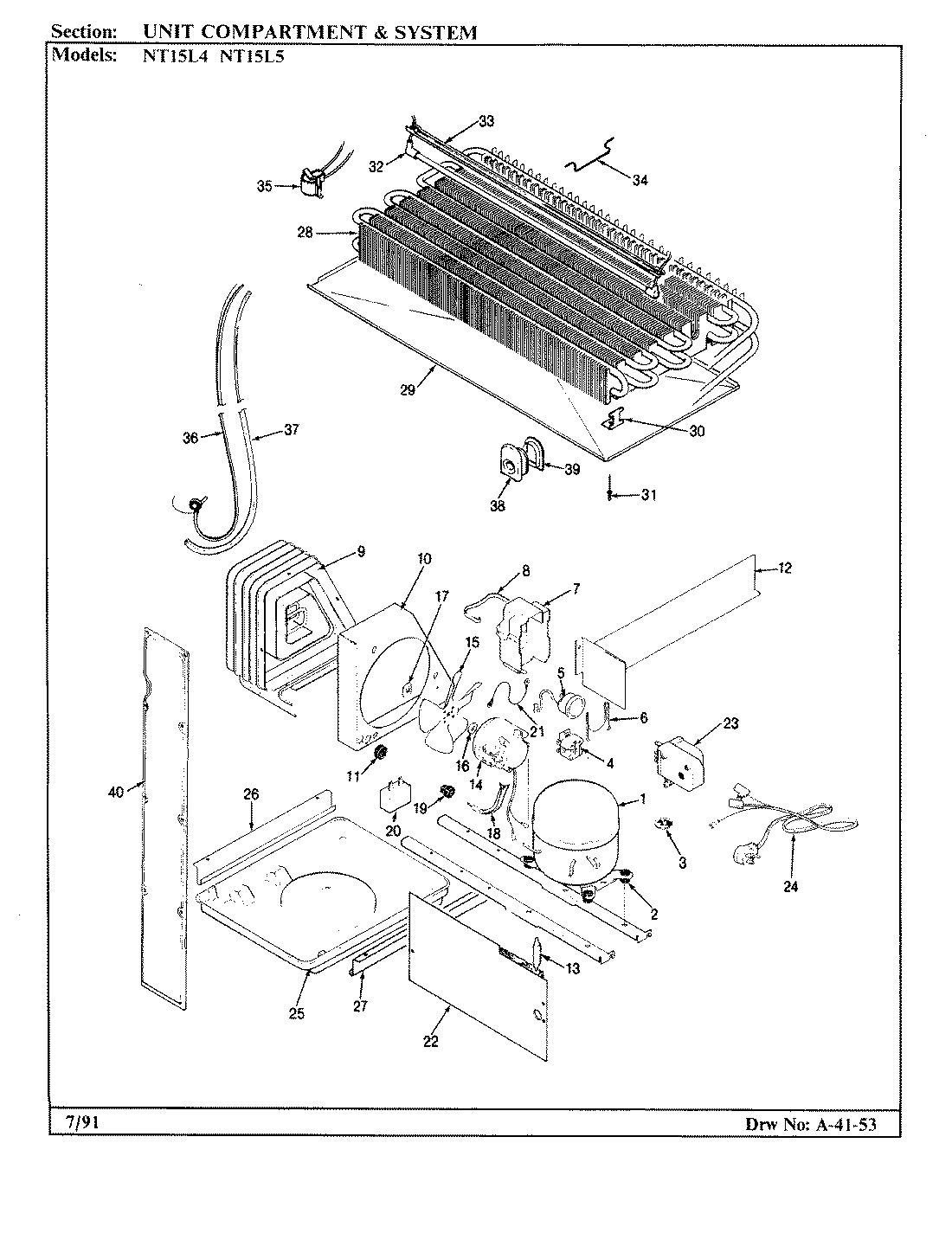

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool NT15L4 REFRIGERATOR
1
SCREW WPL 6527523 Contact Us For Availability
1
DIVIDER, MULLION (WHT) WPL 684341WW Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688661 Contact Us For Availability
2
HEATER WPL 688291 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
INSERT TEMP CONTROL WPL 6057178 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
AIR TUNNEL WPL 685924 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
KNOB, CONTROL WPL 686001 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
SEAL WPL 689461 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
TRIVET WPL 682597 Contact Us For Availability
13
KNOB, FRZ. WPL 686002 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
15
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
15
ORIFICE, DAMPER WPL 679151 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
16
CAP, CONNECTOR WPL 681871 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
PLUG BUTTON WPL 669202 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
17
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
18
COVER, PLENUM WPL 664804 Contact Us For Availability
18
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
18
SCREW WPL 6527513 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
CLAMP, SPRING WPL 603334 Contact Us For Availability
19
COVER, CRANK WPL 674931 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
21
TUBING WPL 675798 Contact Us For Availability
21
BULB, LIGHT WPL 681231 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
CAP, GROMMET WPL 683871 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
RIVET WPL 263972 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 657021 Contact Us For Availability
24
GROUND WIRE WPL 2967528 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
25
SWITCH, LIGHT WPL 669871 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
GROMMET WPL 545318 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
SHELF, CRISPER WPL 668341 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
29
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
PAN, CRISPER WPL 68221122 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
INSERT, CRISPER PAN WPL 6812924 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
KICKPLATE WPL 601386 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
LEG, LEVELING WPL 60128 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
SCREW WPL 4020131 Contact Us For Availability
36
BRACKET, SWITCH WPL 605831 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
PAN, MEAT WPL 6663637 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
INSERT WPL 6812925 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS WPL 688391 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
COVER WPL 6007510 Contact Us For Availability
40
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
40
WIRE COVER WPL 601101 Contact Us For Availability
41
TRIM, MEAT SHELF WPL 6041475 Contact Us For Availability
42
SHELF WPL 6022314 Contact Us For Availability
43
SHELF WPL 6022010 Contact Us For Availability
43
SHELF, SLIDE OUT WPL 6022011 Contact Us For Availability
43
SHELF WPL 6022313 Contact Us For Availability
44
TIP WPL 245803 Contact Us For Availability
45
WHEEL WPL 298342 Contact Us For Availability
46
PIN, WHEEL WPL 298352 Contact Us For Availability
47
CLIP WPL 602161 Contact Us For Availability
48
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
49
DISC, CRANK COVER WPL 690371 Contact Us For Availability
× ![]()
