Model GE NS22H24MA451A Room Air Conditioner Built In – Common Parts & Diagrams
MOTOR & CHASSIS PARTS

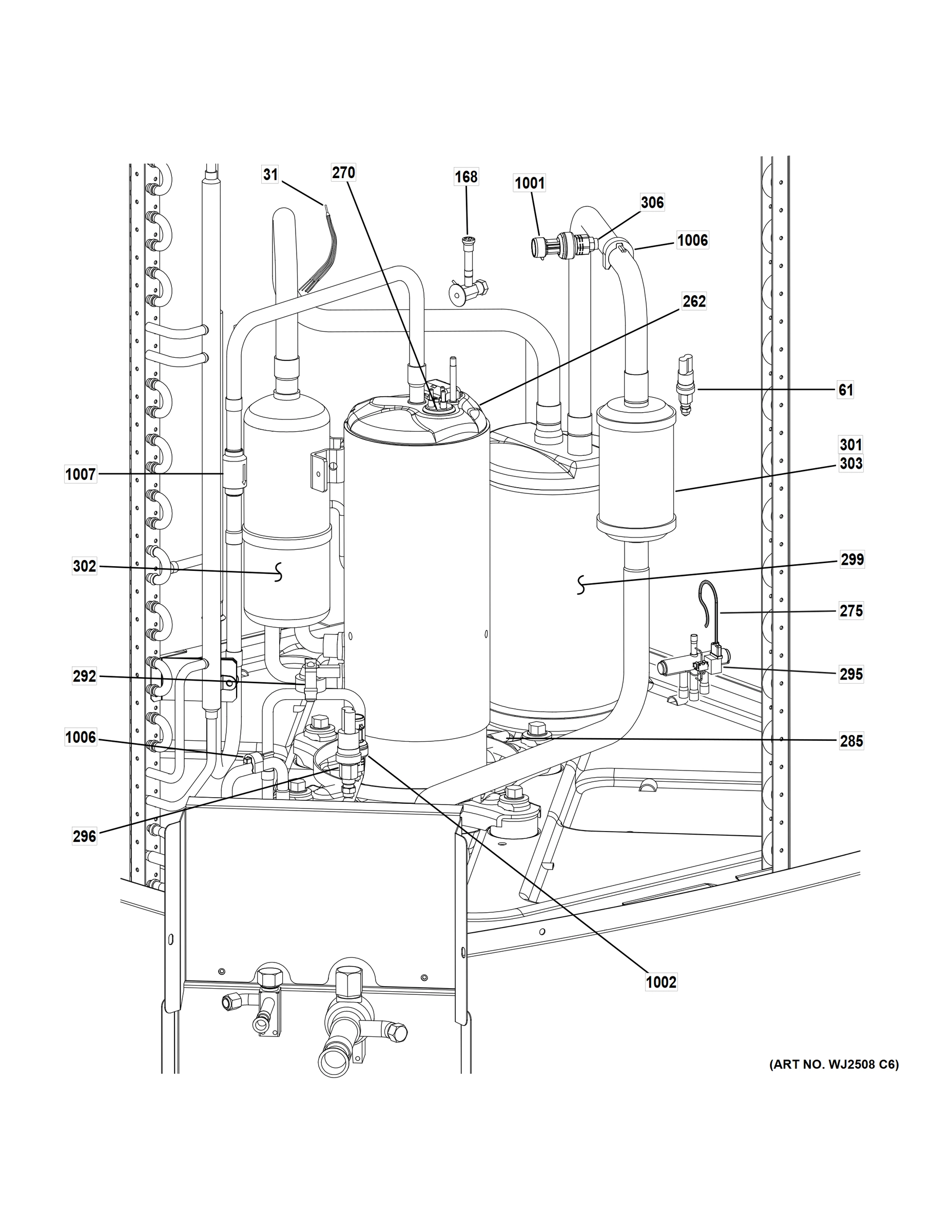

SEALED SYSTEM
Common parts from model GE NS22H24MA451A Room Air Conditioner Built In
31
DISTRIBUTOR ASSEMBLY - SLEEVED-(CTO) GEN R101081-37 Contact Us For Availability
61
Switch - Low Pressure (40psi) GEN 23W26 Contact Us For Availability
130
LABEL WIRING DIAGRAM-(CTO) GEN 538306-01 Contact Us For Availability
168
VALVE-EXP/CK-R410A-(CTO) GEN 24Y80 Contact Us For Availability
250
ASSY-COIL COND 36 X 84, 2R 5/16, 22FPI-( GEN R624396-01 Contact Us For Availability
262
619015-04 COMP VAR SPD ROTARY GJT240 GEN 19U48 Contact Us For Availability
267
MOTOR-FAN 1/3HP 208/230V 60HZ 1PH PWM GEN R103687-06 Contact Us For Availability
268
FAN ASSY GEN 93M97 Contact Us For Availability
269
CONTROL BOARD GEN 25B73 Contact Us For Availability
270
HARN-COMP VARIABLE SPEED ROTARY-(CTO) GEN R105382-02 Contact Us For Availability
275
HARNESS - REVERSING VALVE-(CTO) GEN 42W60 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
285
100499-24 CC HEATER 40W 240V GEN 12U71 Contact Us For Availability
286
HARN # FIELD (614076-04 + 614073-05)-(CT GEN 19X71 Contact Us For Availability
292
100503-13 THERMOSTAT-CC Heater GEN 12U74 Contact Us For Availability
295
100145-10 VALVE-REVERSING 1/2 X3/4 GEN 73W83 Contact Us For Availability
296
Switch-High Pressure (590PSI) GEN 55W64 Contact Us For Availability
297
SENSOR-DEFROST (HARNESS) GEN 15P86 Contact Us For Availability
299
ACCUMULATOR:156 oz, 5"dia, 7/8"conn-(CTO GEN 80M87 Contact Us For Availability
301
SUCTION FILTER - 3/4" DRIER-(CTO) GEN 17A19 Contact Us For Availability
302
CHARGE COMPENSATOR-(CTO) GEN 24Y79 Contact Us For Availability
304
VALVE-BALL 3/4 X 3/4 GEN R104519-01 Contact Us For Availability
306
Valve Core GEN 95M48 Contact Us For Availability
310
ORIFICE RING (26x6 DEEP) GEN 15Z67 Contact Us For Availability
951
MULLION RIGHT-(CTO) GEN 624707-01E Contact Us For Availability
952
PNL ACCESS-(CTO) GEN 624454-01E Contact Us For Availability
953
BRKT SVC VLV(ARM GRAY)-(CTO) GEN 622069-01E Contact Us For Availability
960
PNL CONTROL COVER-(CTO) GEN R613292-02E Contact Us For Availability
970
POST CORNER-(CTO) GEN 602300-02E Contact Us For Availability
977
RAIN SHIELD-(CTO) GEN 12Y63 Contact Us For Availability
978
COVER SOUND -ROTARY COMP-(CTO) GEN R105397-07 Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA-(CTO) GEN R100305-09 Contact Us For Availability
990
MULLION LEFT-(CTO) GEN 624398-01E Contact Us For Availability
991
PNL LUVR -CURVED RT/LF-(CTO) GEN 623481-15E Contact Us For Availability
992
PNL LUVR -CURVED RT/LF-(CTO) GEN 623481-16E Contact Us For Availability
997
ASSY PNL TOP (DRAWN)-(CTO) GEN 614257-03G Contact Us For Availability
1001
TRANSDUCER SUCTION PRESSURE (EEV) GEN R104123-05 Contact Us For Availability
1002
TRANSDUCER DISCHARGE PRESSURE GEN R104123-06 Contact Us For Availability
1004
INVERTER 4KW - GJT240 - 2TON GEN 24C73 Contact Us For Availability
1006
106202-02 SENSOR TEMPERATURE 7/8 GEN 19V56 Contact Us For Availability
1007
VALVE-CHECK 1/2" GEN 19V45 Contact Us For Availability
9997
SIDE GE BADGE GEN 107213-03 Contact Us For Availability
9998
TOP GEA BADGE GEN 107213-08 Contact Us For Availability
9999
PM PRODUCT SPECIFICATION GEN 31-5000743 Contact Us For Availability
9999
PM INSTALL INSTRUCTIONS GEN 31-5000754 Contact Us For Availability
× ![]()
