Model GE NS19H36MA500A Room Air Conditioner Built In – Common Parts & Diagrams

Common parts from model GE NS19H36MA500A Room Air Conditioner Built In

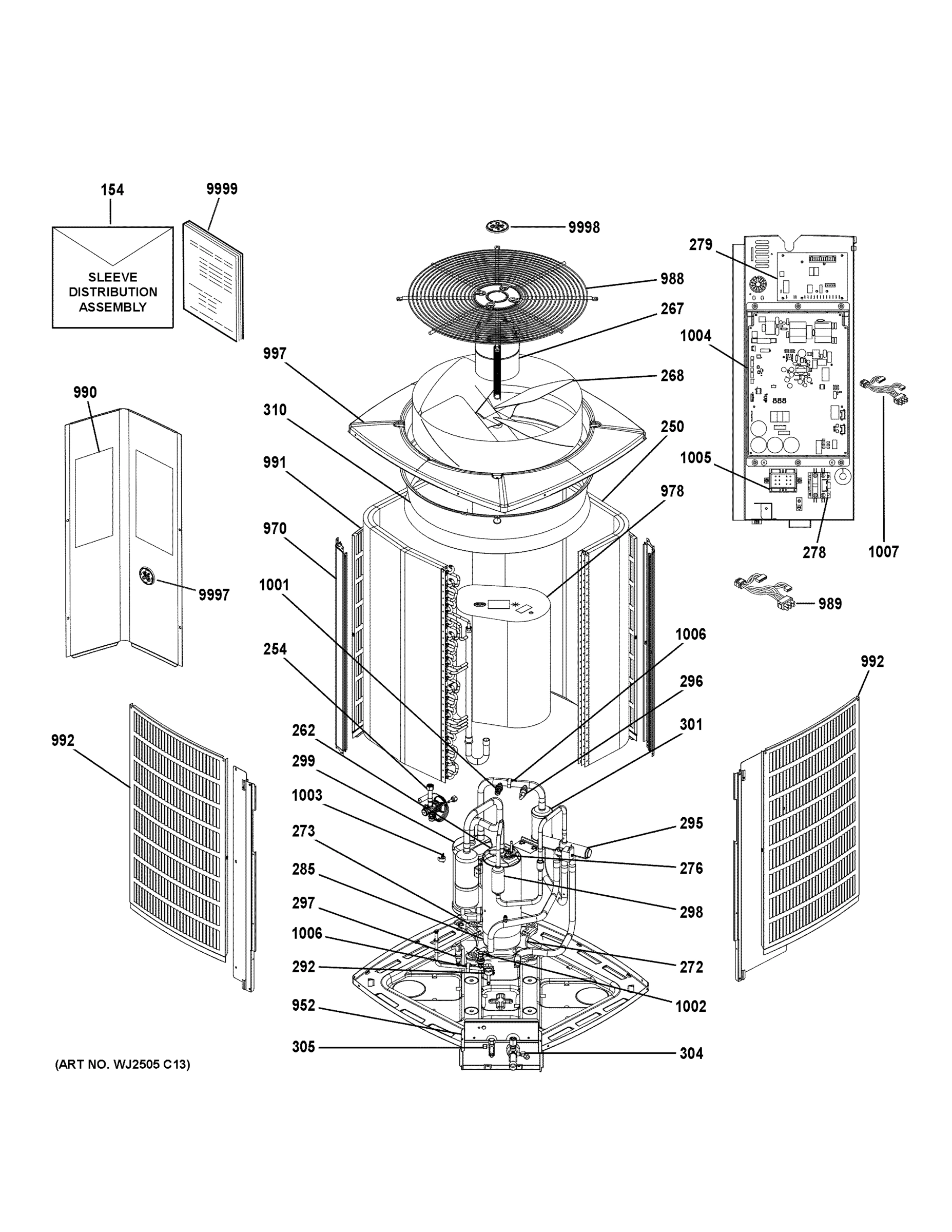

ROOM AIR CONDITIONER

Print

• This Diagram
• All Diagrams

154

DISTRIBUTOR ASSEMBLY - SLEEVED-(CTO) GEN R10108137 Contact Us For Availability

View on Model

250

ASSY-COIL COND 32 X 73.5, 2R 5/16, 22FPI GEN R62207901 Contact Us For Availability

View on Model

254

VALVE-EXPANSION CHECK Backorder GEN 27P54 View Details $110.82

View on Model

262

COMPRESSOR ROTARY VARI SPEED, KJT240MCA GEN 28F97 Contact Us For Availability

View on Model

267

MOTOR-FAN 1/3HP 208/230V 60HZ 1PH PWM GEN R10368706 Contact Us For Availability

View on Model

268

FAN 22 INCH - 4 BLADE 30 PITCH CCW (CTO) GEN 28P69 Contact Us For Availability

View on Model

272

GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability

View on Model

273

BOLT-SLEEVE COMBINATION-(CTO) GEN R10030101 Contact Us For Availability

View on Model

276

HARNESS-COMPR VARI SPD ROTARY-(CTO) GEN 15T35 Contact Us For Availability

View on Model

278

CONTACTOR 1PST 25A GEN 27P51 Contact Us For Availability

View on Model

279

ASSY-P.C.BOARD OMEGA- ST MICRO Backorder GEN 28C08 View Details $105.14

View on Model

285

100499-24 CC HEATER 40W 240V GEN 12U71 Contact Us For Availability

View on Model

292

100503-13 THERMOSTAT-CC Heater GEN 12U74 Contact Us For Availability

View on Model

295

VALVE-REVERSING R454B REVERSIN Backorder GEN 25F64 View Details $242.16

View on Model

296

SWITCH-HI PRESS AUTO RESET GEN 27V88 Contact Us For Availability

View on Model

297

Switch - Low Pressure (40psi) GEN 23W26 Contact Us For Availability

View on Model

298

MUFFLER Backorder GEN 17W04 View Details $61.78

View on Model

299

SUCTION ACCUMULATOR 3/4"CONN-(CTO) GEN 19V42 Contact Us For Availability

View on Model

301

SUCTION FILTER - 3/4" DRIER-(CTO) GEN 17A19 Contact Us For Availability

View on Model

304

VALVE-BALL 7/8 X 3/4 Backorder GEN 28F83 View Details $40.04

View on Model

305

VALVE-BALL 3/4 X 3/4 GEN R10451901 Contact Us For Availability

View on Model

310

ORIFICE RING (22 I.D. X 6 DEEP) - BLACK GEN 98M16 Contact Us For Availability

View on Model

952

PNL ACCESS-(CTO) GEN R62199502E Contact Us For Availability

View on Model

970

POST-CORNER-(CTO) GEN R48023003E Contact Us For Availability

View on Model

978

COVER SOUND - ROTARY COMPRESS-(CTO) GEN 17A16 Contact Us For Availability

View on Model

988

GUARD-FAN WIRE BLACK DIA 25.86-CTO GEN R10696502 Contact Us For Availability

View on Model

989

WRNG HARNS REVRSNG VALVE 50 IN-(CTO) GEN 10027315 Contact Us For Availability

View on Model

990

CNTRL PANEL AC/HP (CTO) GEN 27U46 Contact Us For Availability

View on Model

991

PNL LOUVERED (CURVED) WIDE-(CTO) GEN R62348107E Contact Us For Availability

View on Model

992

PNL LOUVERED (CURVED) NARROW-(CTO) GEN R62348108E Contact Us For Availability

View on Model

997

PNL-TOP DRAWN-(CTO) GEN R48025002U Contact Us For Availability

View on Model

1001

TRANSDUCER SUCTION PRESSURE Backorder GEN 27V91 View Details $34.67

View on Model

1002

TRANSDUCER DISCHARGE PRESSURE Backorder GEN 27V74 View Details $78.99

View on Model

1003

SENSOR-DEFROST (HARNESS) GEN 15P86 Contact Us For Availability

View on Model

1004

INVERTER 230V 4KW 3 TON FOR KJT240MAA GEN R10601010 Contact Us For Availability

View on Model

1005

105582-01 REACTOR FOR 4KW INVE Backorder GEN 17G86 View Details $173.90

View on Model

1006

106202-01 SENSOR TEMPERATURE 3/4 GEN 19V55 Contact Us For Availability

View on Model

1007

HARNESS-WIRING INVERTER HARNESS GEN 28P68 Contact Us For Availability

View on Model

9997

SIDE GE BADGE GEN 10721303 Contact Us For Availability

View on Model

9998

TOP GE BADGE GEN 10721302 Contact Us For Availability

View on Model

9999

PM SERVICE INSTRUCTIONS GEN 315000644 Contact Us For Availability

View on Model

×
