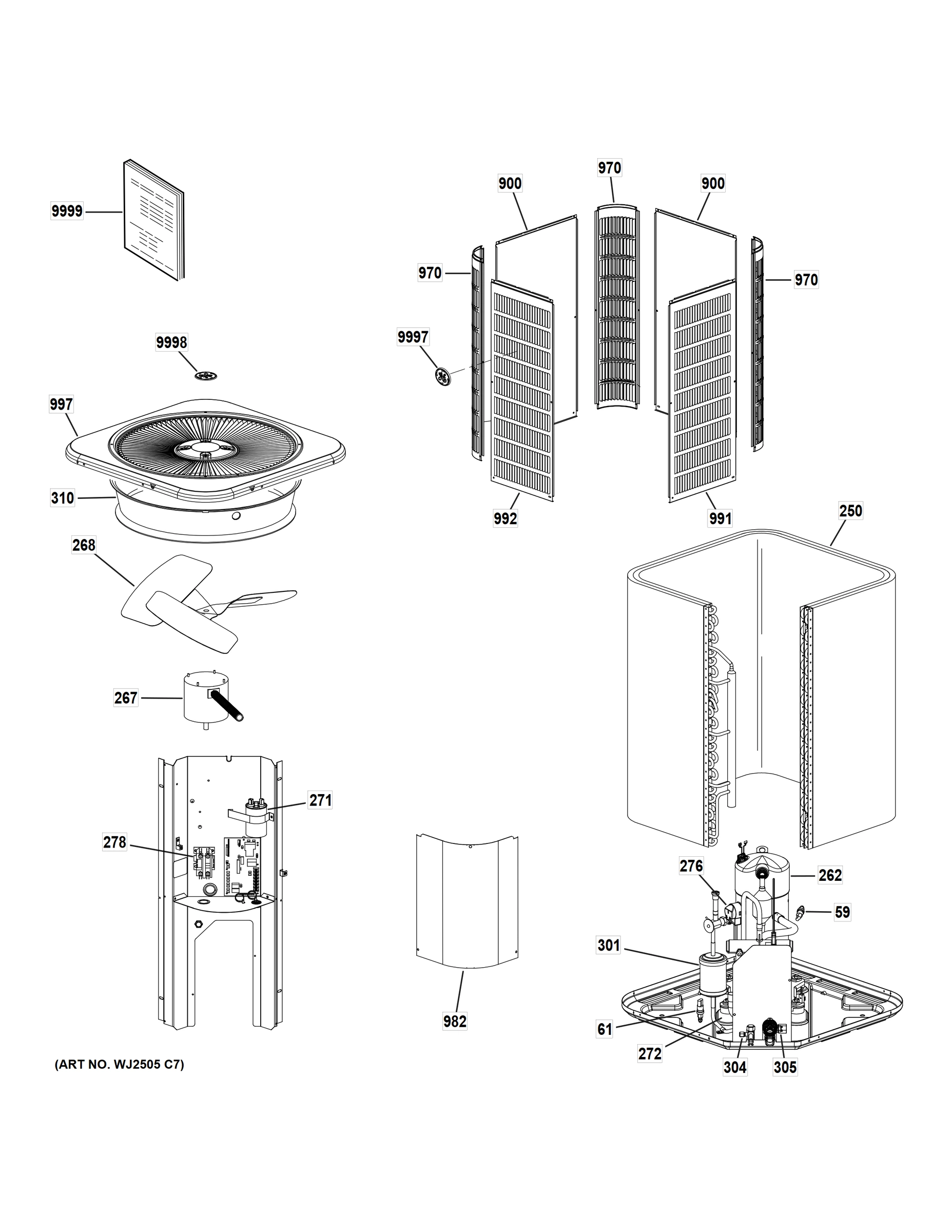

Model GE NS16A30SA503A Room Air Conditioner Built In – Common Parts & Diagrams

5

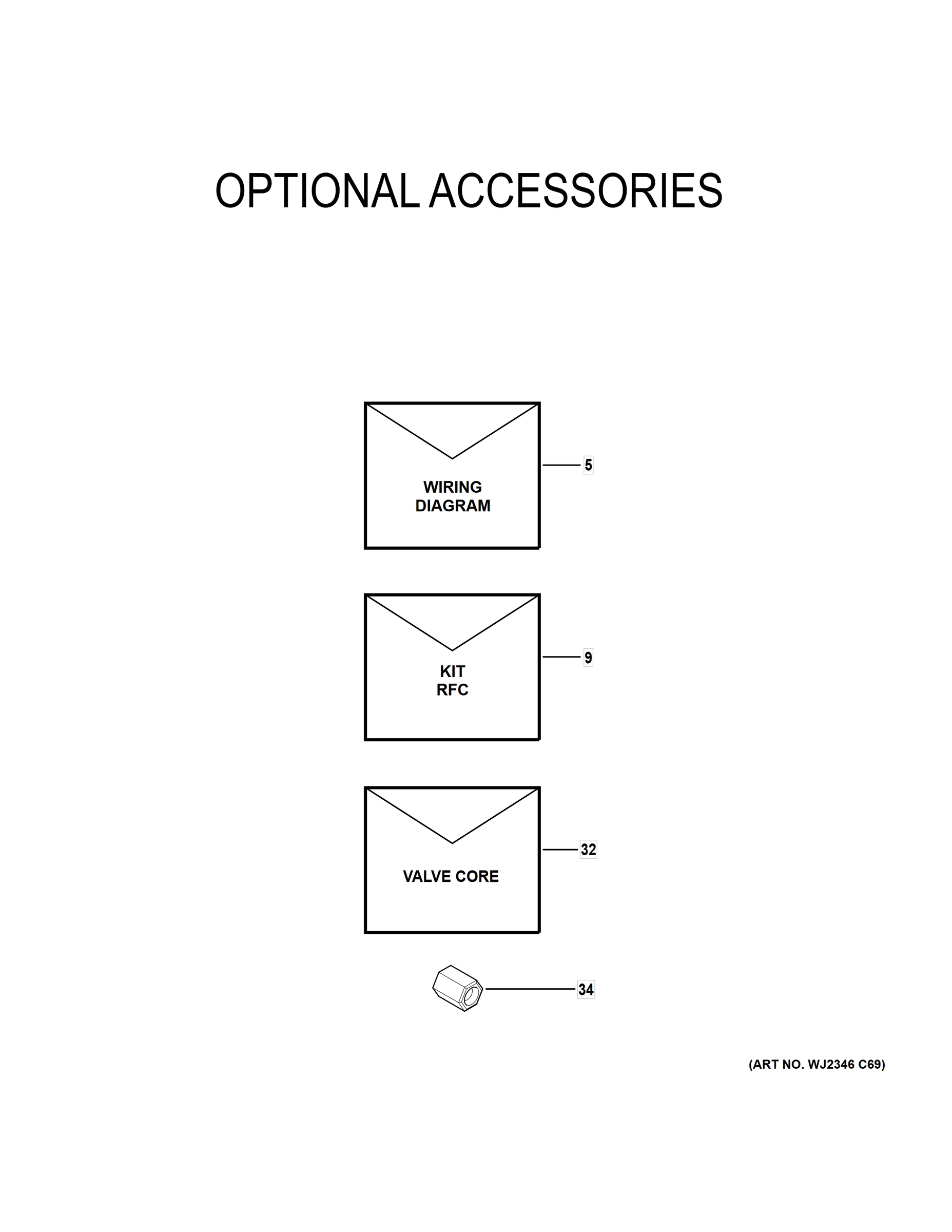

STICKER - WIRING DIAGRAM
STICKER - WIRING DIAGRAM GEN 538261-01 Contact Us For Availability
View on Model
9
100484-04 Kit-RFC (.051)
100484-04 Kit-RFC (.051) GEN 10W93 Contact Us For Availability
View on Model
32
Valve Core
Valve Core GEN 95M48 Contact Us For Availability
View on Model
34
Nut - Acorn (8-32)-(CTO)
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
View on Model
59
614285-06 KIT - HI PRESSURE SWITCH
614285-06 KIT - HI PRESSURE SWITCH GEN 13R81 Contact Us For Availability
View on Model
250
REPAIR COIL PACKAGE ASSY (CTO)
REPAIR COIL PACKAGE ASSY (CTO) GEN 27X22 Contact Us For Availability
View on Model
267
MTR-FAN 1/8HP 230V 60HZ 825RPM
MTR-FAN 1/8HP 230V 60HZ 825RPM GEN 23C07 Contact Us For Availability
View on Model
268
100060-23 Fan Assy
100060-23 Fan Assy GEN 43W37 Contact Us For Availability
View on Model
271
CAPACITOR 40+5 @ 440V ROUND
CAPACITOR 40+5 @ 440V ROUND GEN 89M77 Contact Us For Availability
View on Model
272
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
View on Model
276
HARNESS - COMPRESSOR: MOLDED PLUG
HARNESS - COMPRESSOR: MOLDED PLUG GEN 27P50 Contact Us For Availability
View on Model
278
CONTACTOR 1PST 25A
CONTACTOR 1PST 25A GEN 27P51 Contact Us For Availability
View on Model
304
VALVE SERVICE 3/4
VALVE SERVICE 3/4 GEN 27U15 Contact Us For Availability
View on Model
305
VALVE SERVICE 3/8
VALVE SERVICE 3/8 GEN 27P56 Contact Us For Availability
View on Model
310
ORIFICE RING (22 I.D. X 6)
ORIFICE RING (22 I.D. X 6) GEN 15Z66 Contact Us For Availability
View on Model
900
PNL LOUVER CTR 28 X 28-(CTO)
PNL LOUVER CTR 28 X 28-(CTO) GEN 623451-25E Contact Us For Availability
View on Model
970
POST CORNER 28H-(CTO)
POST CORNER 28H-(CTO) GEN 608868-02E Contact Us For Availability
View on Model
982
COVER, CTRL PNL(ARMSTRONG)-(CTO)
COVER, CTRL PNL(ARMSTRONG)-(CTO) GEN 622354-02E Contact Us For Availability
View on Model
991
PNL LOUVER RT -28B X 28H-(CTO)
PNL LOUVER RT -28B X 28H-(CTO) GEN 623451-16E Contact Us For Availability
View on Model
992
PNL LOUVER LT 28 X 28-(CTO)
PNL LOUVER LT 28 X 28-(CTO) GEN 623451-08E Contact Us For Availability
View on Model
997
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO) GEN 623499-01 Contact Us For Availability
View on Model
9997
SIDE GE BADGE
SIDE GE BADGE GEN 107213-03 Contact Us For Availability
View on Model
9998
TOP GE BADGE
TOP GE BADGE GEN 107213-02 Contact Us For Availability
View on Model
9999
PM OTHER
PM OTHER GEN 31-5000644 Contact Us For Availability
View on Model
