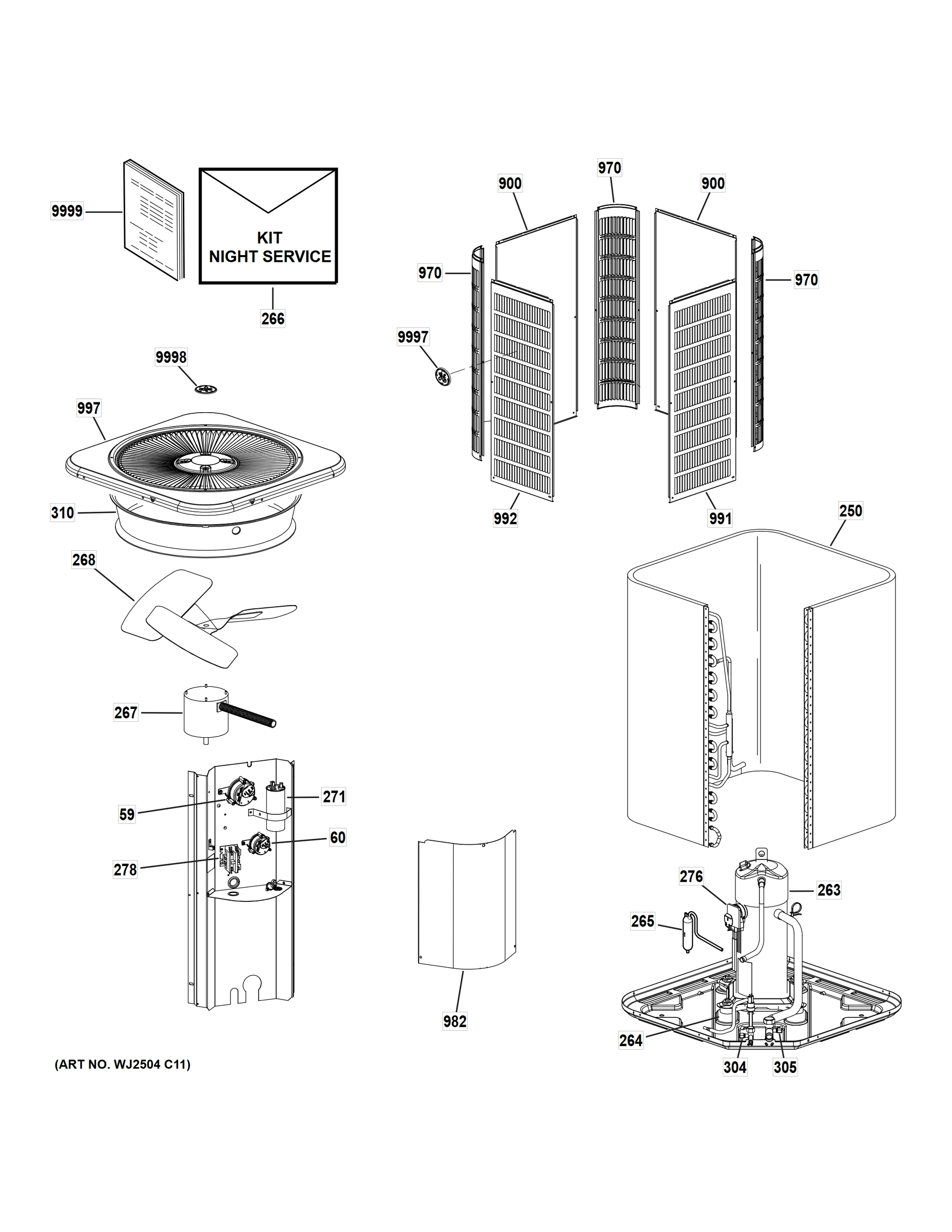

Model GE NS15A36SA503A Room Air Conditioner Built In – Common Parts & Diagrams

59
614285-06 KIT - HI PRESSURE SWITCH
614285-06 KIT - HI PRESSURE SWITCH GEN 13R81 Contact Us For Availability
View on Model
250
REPAIR COIL PACKAGE ASSY (CTO)
REPAIR COIL PACKAGE ASSY (CTO) GEN 27P40 Contact Us For Availability
View on Model
263
COMPRESSOR YPH029KAA (LG)
COMPRESSOR YPH029KAA (LG) GEN 27U11 Contact Us For Availability
View on Model
264
GROMMET-COMPRESSOR-(CTO)
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
View on Model
266
100484-05 Kit-RFC (.052)
100484-05 Kit-RFC (.052) GEN 10W94 Contact Us For Availability
View on Model
267
100483-33 Cond Fan MTR 1/6HP 208-230-1
100483-33 Cond Fan MTR 1/6HP 208-230-1 GEN 92W51 Contact Us For Availability
View on Model
268
100060-23 Fan Assy
100060-23 Fan Assy GEN 43W37 Contact Us For Availability
View on Model
271
100335-12 Dual Run Cap 45+5 @ 440V ROUND
100335-12 Dual Run Cap 45+5 @ 440V ROUND GEN 89M80 Contact Us For Availability
View on Model
276
HARNESS - COMPRESSOR: MOLDED PLUG
HARNESS - COMPRESSOR: MOLDED PLUG GEN 27P50 Contact Us For Availability
View on Model
278
CONTACTOR 1PST 25A
CONTACTOR 1PST 25A GEN 27P51 Contact Us For Availability
View on Model
304
VALVE SERVICE 7/8
VALVE SERVICE 7/8 GEN 27P57 Contact Us For Availability
View on Model
305
VALVE SERVICE 3/8
VALVE SERVICE 3/8 GEN 27P56 Contact Us For Availability
View on Model
310
ORIFICE RING (22 I.D. X 6)
ORIFICE RING (22 I.D. X 6) GEN 15Z66 Contact Us For Availability
View on Model
900
PNL LOUVER CENTER 28 X 32 (GE)-(CTO)
PNL LOUVER CENTER 28 X 32 (GE)-(CTO) GEN 623451-26E Contact Us For Availability
View on Model
970
POST CORNER 32H (ARMSTRONG)-(CTO)
POST CORNER 32H (ARMSTRONG)-(CTO) GEN 608868-03E Contact Us For Availability
View on Model
991
PNL LOUVER RIGHT 28 X 32 (GE)-(CTO)
PNL LOUVER RIGHT 28 X 32 (GE)-(CTO) GEN 623451-17E Contact Us For Availability
View on Model
992
PNL LOUVER LEFT 28 X 32 (GE)-(CTO)
PNL LOUVER LEFT 28 X 32 (GE)-(CTO) GEN 623451-09E Contact Us For Availability
View on Model
997
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO)
PNL-TOP MED 28.25X28.25 BLK UMBR-(CTO) GEN 623499-01 Contact Us For Availability
View on Model
9997
SIDE GE BADGE
SIDE GE BADGE GEN 107213-03 Contact Us For Availability
View on Model
9998
TOP GE BADGE
TOP GE BADGE GEN 107213-02 Contact Us For Availability
View on Model
9999
LABEL - WIRING DIAGRAM
LABEL - WIRING DIAGRAM GEN 538476-01 Contact Us For Availability
View on Model
9999
PM OTHER
PM OTHER GEN 31-5000644 Contact Us For Availability
View on Model
