Model LG NS-PDP42-09 – Common Parts & Diagrams

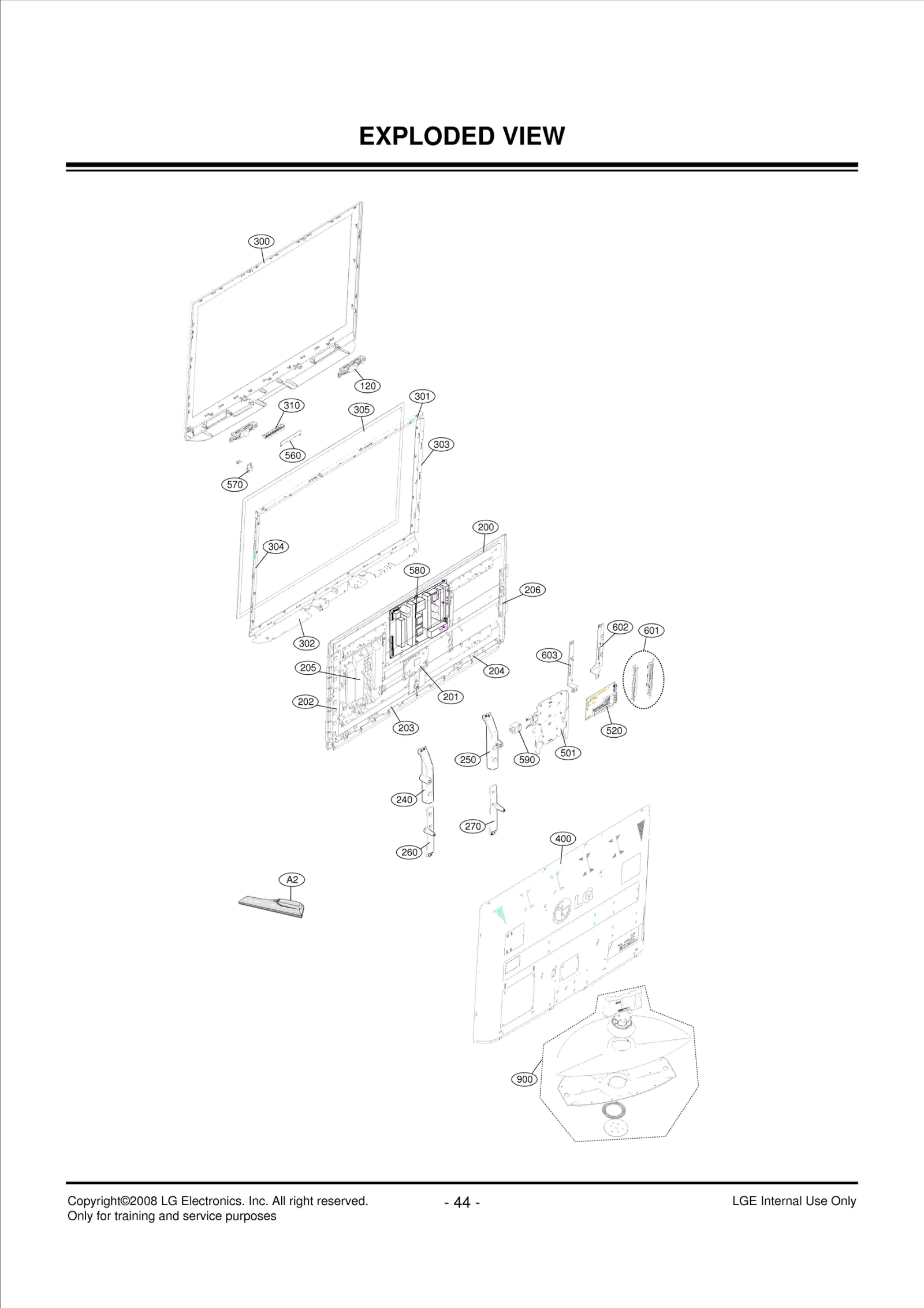

Diagram 0
Diagram 1
Common parts from model LG NS-PDP42-09
2
Gasket LGE MDS41482308 Contact Us For Availability
5
Gasket LGE MDS41482310 Contact Us For Availability
120
Speaker,Full Range LGE EAB33775101 Contact Us For Availability
200
PDP,Module-XGA LGE EAJ41970734 Contact Us For Availability
201
PCB Assembly LGE EBR43395202 Contact Us For Availability
202
PCB Assembly LGE EBR43395206 Contact Us For Availability
203
PCB Assembly LGE EBR43395203 Contact Us For Availability
204
PCB Assembly LGE EBR43395204 Contact Us For Availability
205
PCB Assembly LGE EBR43395201 Contact Us For Availability
206
PCB Assembly LGE EBR43395205 Contact Us For Availability
240
Supporter Assembly LGE AJJ35680103 Contact Us For Availability
250
Supporter Assembly LGE AJJ35680104 Contact Us For Availability
260
Supporter Assembly LGE AJJ35680203 Contact Us For Availability
270
Supporter Assembly LGE AJJ35680204 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35121915 Contact Us For Availability
301
Supporter Assembly LGE AJJ35122405 Contact Us For Availability
302
Supporter Assembly LGE AJJ35122506 Contact Us For Availability
303
Supporter Assembly LGE AJJ35122605 Contact Us For Availability
304
Supporter Assembly LGE AJJ35122705 Contact Us For Availability
305
Filter LGE MDJ42350903 Contact Us For Availability
310
Button,Control LGE MBG41117202 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35123229 Contact Us For Availability
501
Supporter LGE MJH40272402 Contact Us For Availability
520
Chassis Assembly LGE EBT50509501 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR48934001 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR48935101 Contact Us For Availability
580
SMPS,AC/DC LGE EAY43533901 Contact Us For Availability
590
Filter,AC Line LGE EAM35012711 Contact Us For Availability
601
Bracket Assembly LGE ABA35619217 Contact Us For Availability
602
Plate,Shield LGE MGJ40268206 Contact Us For Availability
900
Base Assembly LGE AAN36825105 Contact Us For Availability
A1
Manual,Owners LGE MFL42539504 Contact Us For Availability
A1
Manual,Owners LGE MFL42539505 Contact Us For Availability
A2
Remote Controller LGE MKJ39170826 Contact Us For Availability
A4
Cover LGE MCK40402803 Contact Us For Availability
A5
Bracket LGE MAZ40753702 Contact Us For Availability
AR205
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR401
Resistor,Array LGE EBC32260601 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C103
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C133
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C142
Capacitor,Ceramic,Chip LGE 0CH3224K946 Contact Us For Availability
C143
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C220
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE 0CH5240K416 Contact Us For Availability
C422
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C442
CAPACITOR,FIXED CERA LGE 0CK271CK46A Contact Us For Availability
C443
CAPACITOR,FIXED CERA LGE 0CC820CK41A Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C510
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C523
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C525
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C532
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C540
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C548
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C630
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C632
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C634
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C641
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C647
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C701
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C716
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C728
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C769
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C778
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C805
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C815
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C839
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C936
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C992
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
CA1
Harness,Single LGE EAD36549101 Contact Us For Availability
CA2
Harness,Single LGE EAD39295721 Contact Us For Availability
CA4
Harness,Single LGE EAD42465504 Contact Us For Availability
D401
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D605
Diode,TVS LGE EAH33945901 Contact Us For Availability
D636
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D801
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC100
IC,Video Processors LGE EAN37156404 Contact Us For Availability
IC102
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC104
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC105
IC,Serial Flash Memory LGE EAN42961201 Contact Us For Availability
IC201
IC,DDR SDRAM LGE EAN31729202 Contact Us For Availability
IC400
IC,Data Controller LGE 0ICTMLG019C Contact Us For Availability
IC502
IC,Audio Amplifier LGE EAN41584001 Contact Us For Availability
IC602
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC701
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC702
IC,POWER MANAGEMENT LGE 0IPMG00027A Contact Us For Availability
IC703
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC706
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
IC715
IC,MITSUBISHI LGE 0IMI623200B Contact Us For Availability
IC803
IC,Analog Switch LGE EAN41347201 Contact Us For Availability
IC804
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
JK501
WAFER LGE 6602T25009C Contact Us For Availability
JK601
Jack,Complex LGE EAG35541101 Contact Us For Availability
JK606
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK607
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK608
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK802
Jack,DIN LGE EAG39789401 Contact Us For Availability
L304
Filter,Bead LGE EAM38769501 Contact Us For Availability
L402
INDUCTOR,CHIP LGE 0LCML00020B Contact Us For Availability
L407
Inductor,Multilayer, LGE EAP39314701 Contact Us For Availability
L409
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L504
Filter,Bead LGE EAM38769505 Contact Us For Availability
L711
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L723
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L931
Filter,Bead LGE EAM38769502 Contact Us For Availability
LD1
LED,Chip LGE EAV44273501 Contact Us For Availability
LD400
LED,Chip LGE 0DL210009GC Contact Us For Availability
LD703
LED LGE 0DL233309AC Contact Us For Availability
LV1
Harness,Single LGE EAD42635003 Contact Us For Availability
P100
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P303
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P701
Connector,Wafer LGE EAG42057301 Contact Us For Availability
Q400
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q706
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
Q801
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q814
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R101
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R102
Resistor,Metal Film LGE 0RN3001F409 Contact Us For Availability
R105
Resistor,Metal Film LGE 0RN1302F409 Contact Us For Availability
R106
Resistor,Metal Film LGE 0RN5601F409 Contact Us For Availability
R108
Resistor,Metal Film LGE 0RN6200F409 Contact Us For Availability
R110
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R135
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R142
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R147
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R170
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R175
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R176
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R210
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R216
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R402
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R423
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R528
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R542
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R608
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R683
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R692
Resistor,Chip LGE 0RJ6803D677 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R709
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R737
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R742
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R747
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R756
Resistor,Chip LGE 0RJ4320D477 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R861
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R876
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R6001
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R6054
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R6150
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R6151
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R6152
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R6154
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
SW106
Switch,Tact LGE 6600R00001B Contact Us For Availability
TU400
Tuner,Analog/Digital LGE EBL37676801 Contact Us For Availability
VR803
VARISTOR LGE 6102W5V016A Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
Login and Registration Form
