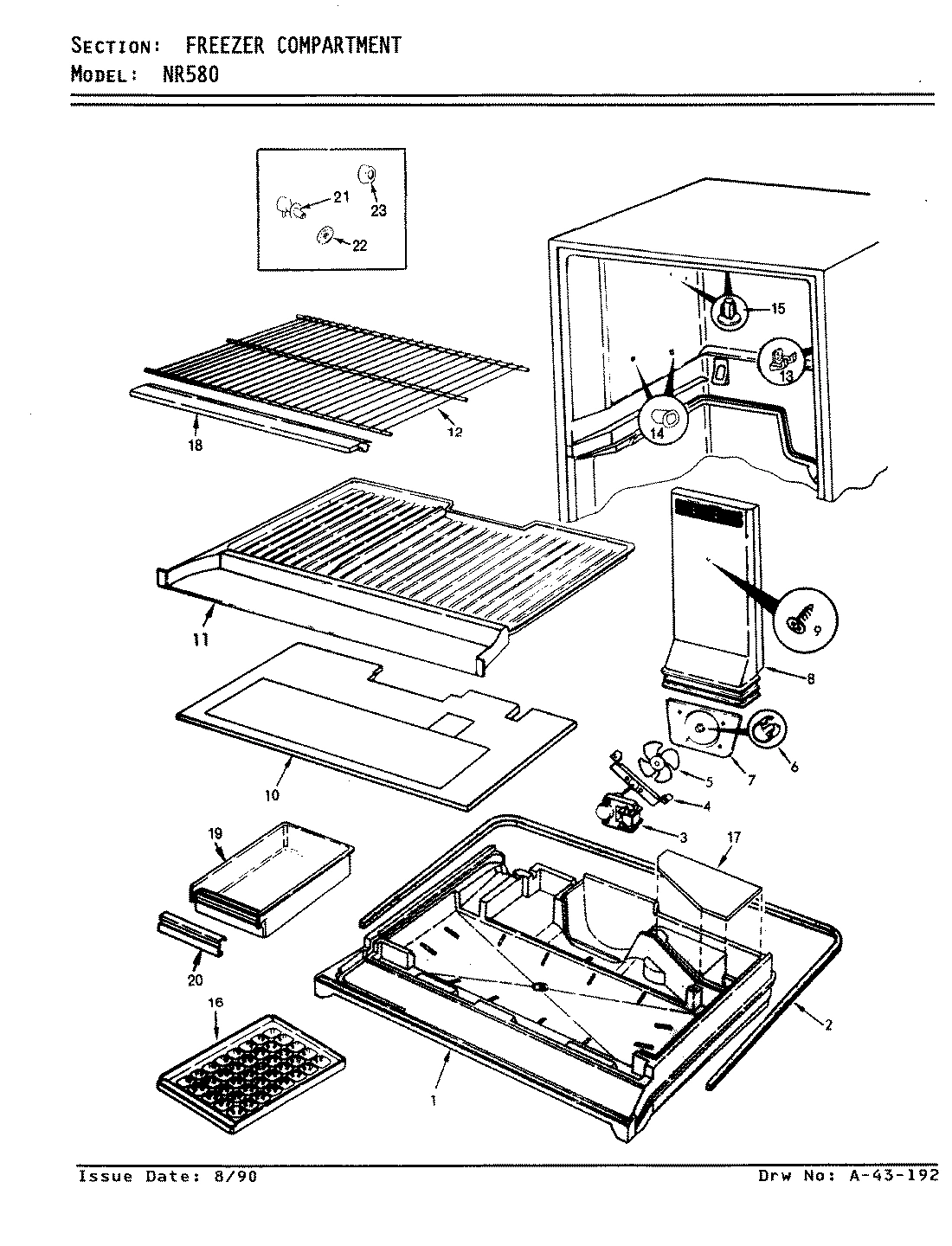

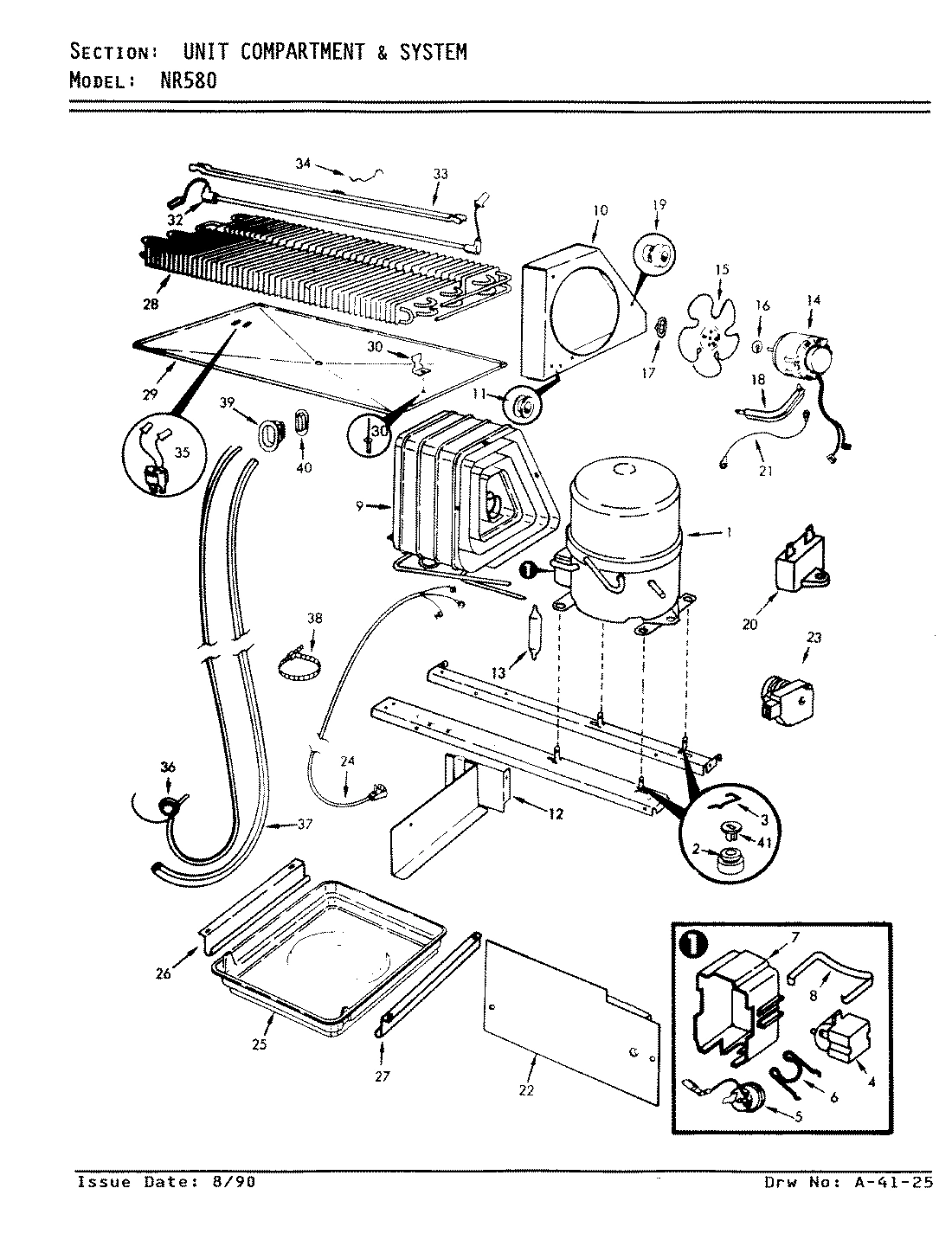

Model Whirlpool NR580 REFRIGERATOR – Common Parts &amp; Diagrams

1

FOAM TRAY WPL 675193 Contact Us For Availability

2

SEAL, FRONT CORNER WPL 677301 Contact Us For Availability

2

SEAL WPL 688666 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability

3

SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability

3

CLIP WPL 527782 Contact Us For Availability

4

SCREW WPL 40001512 Contact Us For Availability

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

RELAY, START WPL 665881 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability

5

OVERLOAD WPL 6329417 Contact Us For Availability

6

WASHER, SPRING WPL 420092900 Contact Us For Availability

6

CLIP, OVERLOAD WPL 658871 Contact Us For Availability

7

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

7

COVER, TERMINAL WPL 665891 Contact Us For Availability

8

SEAL, TUNNEL WPL 6632529 Contact Us For Availability

8

TUNNEL, AIR WPL 685923 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

9

SCREW WPL 40001531 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604082 Contact Us For Availability

9

CONDENSER WPL RA438711 Contact Us For Availability

10

COVER, EVAPORATOR WPL 664032 Contact Us For Availability

10

SHROUD, CONDENSER WPL 662281 Contact Us For Availability

11

BOTTOM, FRZ. WPL 664791 Contact Us For Availability

11

SEAL WPL 689462 Contact Us For Availability

11

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

12

SHELF WPL 6043810 Contact Us For Availability

12

BAFFLE WPL 664932 Contact Us For Availability

13

SP12MA Chromalox 6" Burner Unit In Stock CHR SP12MA $10.41

13

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

13

SCREW WPL 4000191 Contact Us For Availability

14

CUP, SHELF WPL 603131 Contact Us For Availability

14

SCREW WPL 6527533 Contact Us For Availability

14

MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability

15

PLUG BUTTON WPL 669202 Contact Us For Availability

15

PLUG BUTTON WPL 675571 Contact Us For Availability

15

BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability

16

ICE CUBE TRAY WPL 601121 Contact Us For Availability

16

WASHER WPL 199134 Contact Us For Availability

17

COVER, PLENUM WPL 664805 Contact Us For Availability

17

CLIP WPL 199140 Contact Us For Availability

18

TRIM WPL 6041432 Contact Us For Availability

18

BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability

19

PAN, ICE WPL 606531 Contact Us For Availability

19

GROMMET, BRACKET WPL 569331 Contact Us For Availability

20

TRIM, STORAGE PAN WPL 6036558 Contact Us For Availability

20

CAPACITOR, RUN WPL 658892 Contact Us For Availability

21

GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability

21

GROUND WIRE WPL 296753 Contact Us For Availability

22

CAP, CONNECTOR WPL 681871 Contact Us For Availability

22

COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability

22

SCREW WPL 998645 Contact Us For Availability

CLIP WPL 655171 Contact Us For Availability

CAP, GROMMET WPL 683871 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 665565 Contact Us For Availability

24

CORD, POWER WPL 528902 Contact Us For Availability

25

PAN, DRAIN WPL 682361 Contact Us For Availability

26

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

27

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

28

EVAPORATOR WPL RA4362011 Contact Us For Availability

29

TRAY, DRIP WPL 601018 Contact Us For Availability

30

BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability

31

RIVET WPL 263979 Contact Us For Availability

32

HEATER, DEFROST WPL 6010635 Contact Us For Availability

33

SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability

34

CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability

35

THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability

36

HEAT EXCHANGER WPL RA4364514 Contact Us For Availability

37

COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability

38

WIRE TIE WPL 662231 Contact Us For Availability

39

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

COVER, WIRE HARNESS WPL 601102 Contact Us For Availability

WIRE HARNESS WPL 687111 Contact Us For Availability

WIRE HARNESS WPL 688391 Contact Us For Availability

41

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
