Model LG NP8740 – Common Parts & Diagrams
Diagram 0

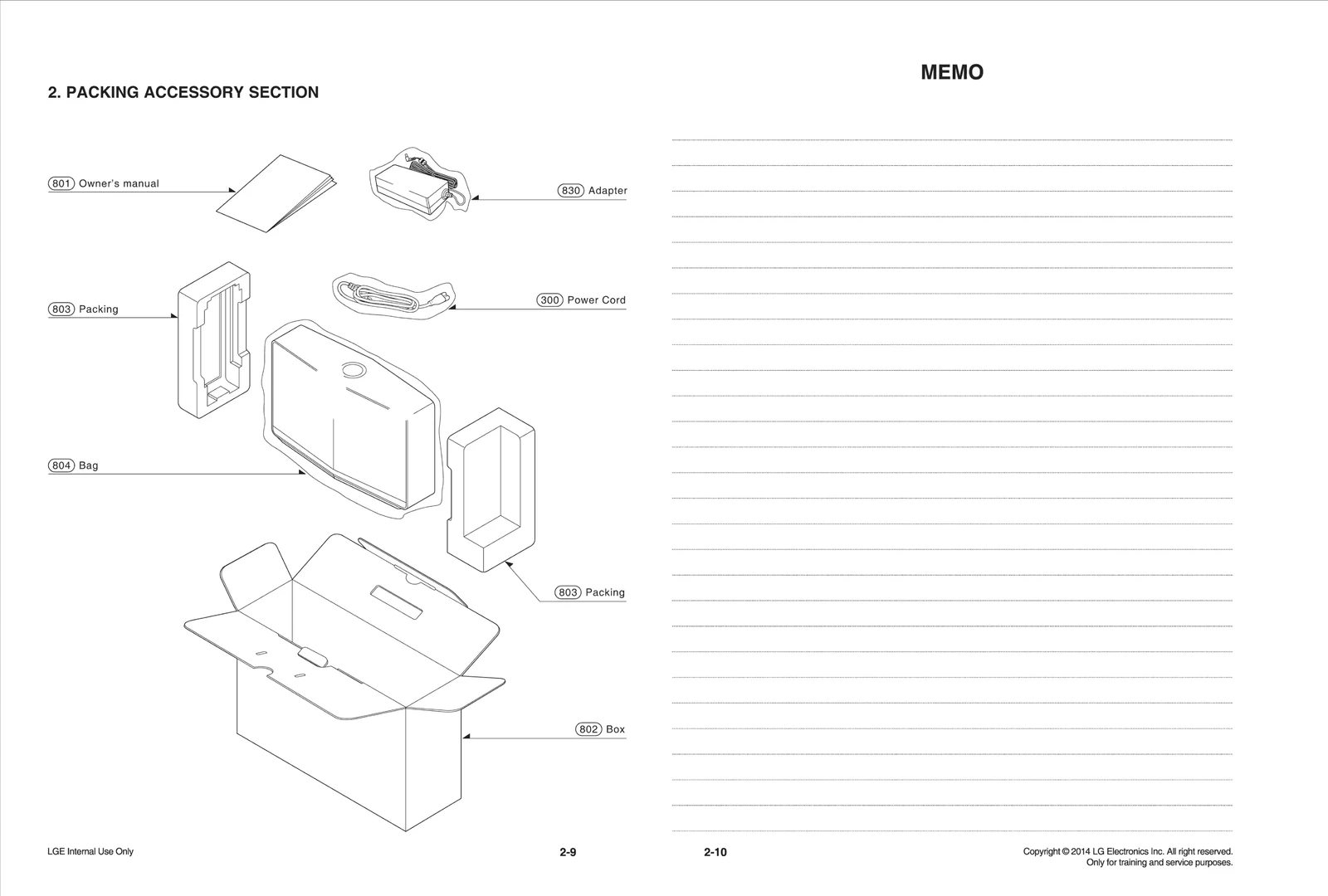

Diagram 1
Diagram 2
Common parts from model LG NP8740
250
Knob LGE MEY62973903 Contact Us For Availability
251
Holder LGE MEG63539301 Contact Us For Availability
252
Module,Assembly LGE EAT61873301 Contact Us For Availability
253
Sheet LGE MHK64307002 Contact Us For Availability
254
Speaker,Woofer LGE EAB63068701 Contact Us For Availability
255
Speaker,Tweeter LGE EAB62812801 Contact Us For Availability
255
Speaker,Tweeter LGE EAB63029301 Contact Us For Availability
260
Duct LGE MCZ63171802 Contact Us For Availability
261
Holder LGE MEG64059201 Contact Us For Availability
262
PIFA Antenna,WiFi LGE EAA63744801 Contact Us For Availability
263
Cover Assembly LGE ACQ87000402 Contact Us For Availability
264
Frame LGE MDQ63716401 Contact Us For Availability
265
Frame LGE MDQ63676801 Contact Us For Availability
266
Damper LGE MCQ62096445 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76692516 Contact Us For Availability
802
Box,Master LGE MAY66828802 Contact Us For Availability
803
Packing LGE MFZ63331479 Contact Us For Availability
804
Bag LGE MAF61903705 Contact Us For Availability
830
Adapters LGE EAY62771602 Contact Us For Availability
A41
Case Assembly LGE ABQ74481905 Contact Us For Availability
A42
Case Assembly LGE ABQ74482002 Contact Us For Availability
A43
Auto SMT PCB Assembly LGE EBR78706601 Contact Us For Availability
A45
Auto SMT PCB Assembly LGE EBR78706701 Contact Us For Availability
A46
Auto SMT PCB Assembly LGE EBR78706501 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
A54
Module,WLAN LGE EAT62573102 Contact Us For Availability
C5A8
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C5B2
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C5D4
Capacitor,Ceramic,Chip LGE 0CC3R9BKF1A Contact Us For Availability
C5D7
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CK331BK56A Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C125
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C562
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C585
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C709
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C710
Capacitor,AL,Chip LGE EAE52354701 Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE 0CK222DN56A Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C729
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C731
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C900
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
C906
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C911
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C922
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C923
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C933
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C935
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C943
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
CABLE1
Harness,Single LGE EAD33638853 Contact Us For Availability
CABLE2
Harness,Single LGE EAD35863024 Contact Us For Availability
CABLE3
Harness,Single LGE EAD33638852 Contact Us For Availability
CABLE4
PCB Assembly,Sub LGE EBR78019701 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD62130019 Contact Us For Availability
CN102
Connector,Wafer LGE 6602T12005J Contact Us For Availability
CN301
Connector,Wafer LGE 6630V90135D Contact Us For Availability
CN400
Connector,Wafer LGE 6602T12004E Contact Us For Availability
CN501
Connector,FFC/FPC/PIC LGE EAG34295601 Contact Us For Availability
CN700
Connector,Wafer LGE 6630VK20704 Contact Us For Availability
D101
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D901
Diode,TVS LGE EAH61853401 Contact Us For Availability
F900
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
IC100
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC103A
S/W,System Program LGE SAA36940401 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63027301 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61859502 Contact Us For Availability
IC505A
S/W,System Program LGE SAA36940301 Contact Us For Availability
IC506
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN62994901 Contact Us For Availability
IC902
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC903
IC,DC,DC Converter LGE EAN62794401 Contact Us For Availability
IC904
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
JK101
Jack,Phone LGE 6612F00091C Contact Us For Availability
JK500
Jack,Modular LGE EAG32089105 Contact Us For Availability
JK900
Jack,DC Power LGE 6612TAH003B Contact Us For Availability
L100
Filter,Bead LGE EAM60887203 Contact Us For Availability
L701
Coil,Choke LGE EAP62526301 Contact Us For Availability
L901
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L907
Filter,Bead LGE EAM62155401 Contact Us For Availability
LD400
LED,Chip LGE EAV62672001 Contact Us For Availability
LD404
LED,Chip LGE EAV60697201 Contact Us For Availability
MICOM
Option Code Assembly LGE EBR78664201 Contact Us For Availability
Q103
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
R5C2
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R5D2
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R5G4
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R141
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R143
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R149
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R154
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R156
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
R502
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R534
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R574
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R592
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R712
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R901
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R908
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R913
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R915
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R916
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R919
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R922
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R923
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R924
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R925
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R927
RESISTOR,METAL GLAZE LGE 0RJ3000C678 Contact Us For Availability
R928
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R929
Resistor,Chip LGE 0RJ0202C678 Contact Us For Availability
R933
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R935
Resistor,Chip LGE 0RJ7502C678 Contact Us For Availability
R938
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R939
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R944
Resistor,Chip LGE 0RJ0000C672 Contact Us For Availability
SW101
Switch,Tact LGE EBF61874701 Contact Us For Availability
VR300
Switch,Encoder LGE EBF62294901 Contact Us For Availability
X501
Crystal LGE EAW61645503 Contact Us For Availability
× ![]()
