Model LG NP8350B – Common Parts & Diagrams

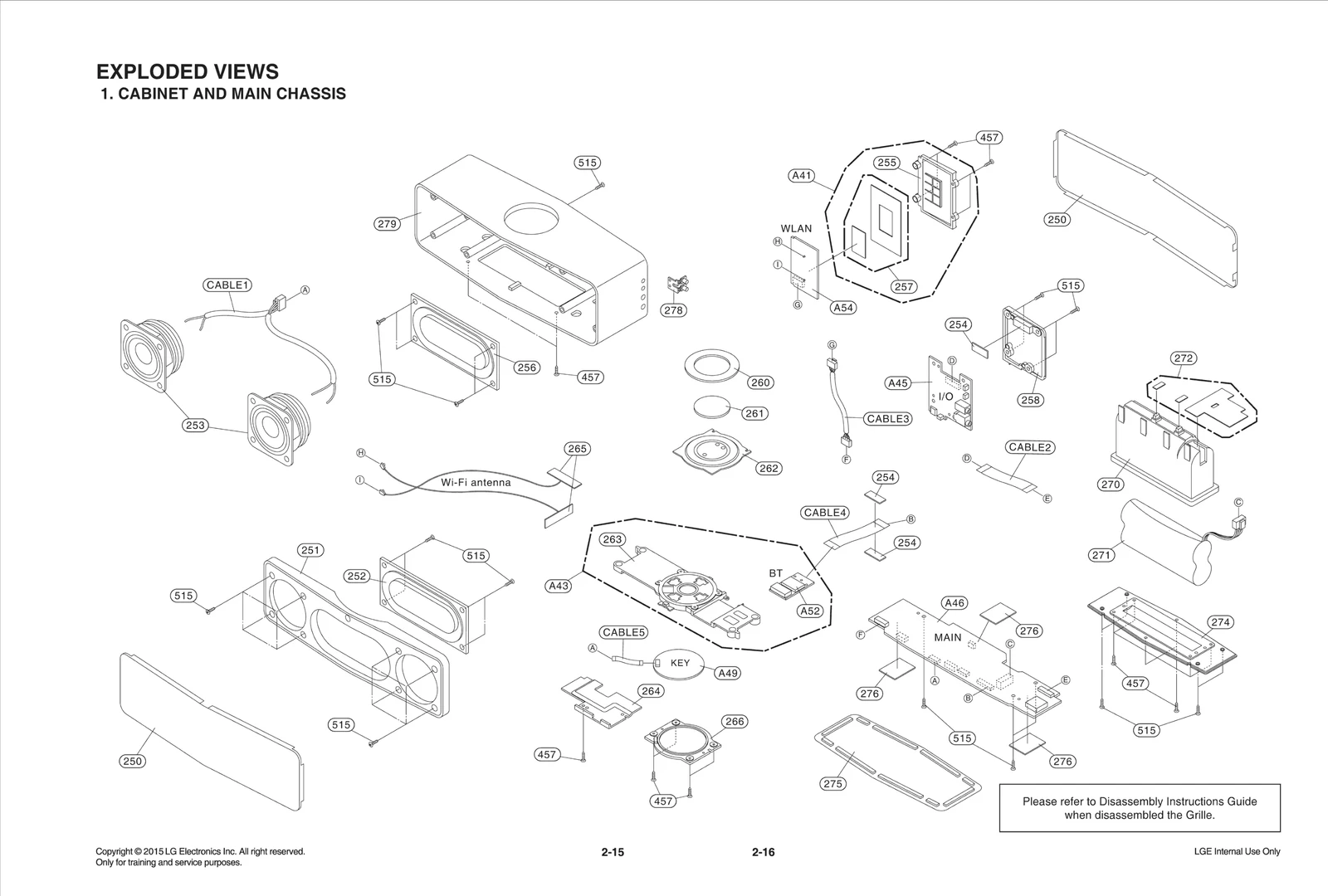

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG NP8350B
250
Grille LGE MDX63631903 Contact Us For Availability
251
Cover LGE MCK68724801 Contact Us For Availability
252
Speaker,Passive Radiator LGE EAB63649801 Contact Us For Availability
253
Speaker,Woofer LGE EAB63649701 Contact Us For Availability
254
Damper LGE MCQ68364603 Contact Us For Availability
255
Cover LGE MCK68706101 Contact Us For Availability
257
Damper LGE MCQ68364601 Contact Us For Availability
258
Cover LGE MCK68685001 Contact Us For Availability
260
Button LGE MBG65502612 Contact Us For Availability
261
Button LGE MBG65502703 Contact Us For Availability
262
Button LGE MBG65623101 Contact Us For Availability
263
Holder LGE MEG64338601 Contact Us For Availability
264
Bracket LGE MAZ64783601 Contact Us For Availability
265
PIFA Antenna,WiFi LGE EAA63744802 Contact Us For Availability
266
Cover LGE MCK68706001 Contact Us For Availability
270
Case LGE MBN64002701 Contact Us For Availability
271
Rechargeable Battery,Lithium Ion LGE EAC62898301 Contact Us For Availability
272
Damper LGE MCQ68286101 Contact Us For Availability
274
Case LGE MBN64042501 Contact Us For Availability
275
Foot LGE MDP63246702 Contact Us For Availability
276
Damper LGE MCQ68504601 Contact Us For Availability
278
Button LGE MBG65642803 Contact Us For Availability
279
Cover LGE MCK68705903 Contact Us For Availability
457
SCREW, LGE 1SZZH-1007B Contact Us For Availability
515
Screw,Customized LGE FAB32758801 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76993430 Contact Us For Availability
802A
Box LGE MAY65499461 Contact Us For Availability
802B
Box,Master LGE MAY66927992 Contact Us For Availability
802C
Box,Master LGE MAY66927993 Contact Us For Availability
803
Packing LGE MFZ64733102 Contact Us For Availability
804
Bag,Vinyl LGE MAF62487618 Contact Us For Availability
826
FILTER(CIRC),EMC LGE 6200J000034 Contact Us For Availability
833
Adapters LGE EAY62851502 Contact Us For Availability
A41
Cover Assembly LGE ACQ88349701 Contact Us For Availability
A43
Holder Assembly LGE AEJ74459404 Contact Us For Availability
A45
Auto SMT PCB Assembly LGE EBR80473601 Contact Us For Availability
A46
Auto SMT PCB Assembly LGE EBR80532001 Contact Us For Availability
A49
Auto SMT PCB Assembly LGE EBR80512401 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A54
Module,WLAN LGE EAT62573102 Contact Us For Availability
C101
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C102
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C105
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C304
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C400
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C403
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C544
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C570
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C571
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C704
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C714
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C732
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C909
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C914
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C920
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C922
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C930
Capacitor,Ceramic,Chip LGE 0CH1183K562 Contact Us For Availability
C934
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C935
Capacitor,Ceramic,Chip LGE 0CC105CH5BA Contact Us For Availability
C942
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C952
Capacitor,Ceramic,Chip LGE EAE58399101 Contact Us For Availability
C970
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
CABLE1
Harness,Single LGE EAD63429301 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63425601 Contact Us For Availability
CABLE3
Harness,Single LGE EAD35863032 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62130022 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63126702 Contact Us For Availability
CN101
Connector,Wafer LGE 6602T12004E Contact Us For Availability
CN300
Connector,FFC/FPC/PIC LGE EAG61090207 Contact Us For Availability
CN400
Connector,I/O LGE EAG63149901 Contact Us For Availability
CN401
Connector,BtoB LGE EAG62710401 Contact Us For Availability
CN501
Connector,Wafer LGE 6630V90135D Contact Us For Availability
CN502
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN700
Connector,Wafer LGE 6630V90141B Contact Us For Availability
CN901
Connector,Wafer LGE EAG63270203 Contact Us For Availability
D400
Diode,TVS LGE EAH61853401 Contact Us For Availability
D900
Diode,Schottky LGE EAH61114901 Contact Us For Availability
D902
Diode,Rectifier LGE EAH61233501 Contact Us For Availability
F400
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
IC100A
S/W,System Program LGE SAA37787001 Contact Us For Availability
IC102
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC103A
S/W,System Program LGE SAA37786901 Contact Us For Availability
IC300A
S/W,System Program LGE SAA37787101 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63728601 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61829204 Contact Us For Availability
IC503A
S/W,System Program LGE SAA37786801 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN62494901 Contact Us For Availability
IC901
IC,DC,DC Converter LGE EAN63530001 Contact Us For Availability
IC902
IC,Charger LGE EAN62701801 Contact Us For Availability
IC903
IC,DC,DC Converter LGE EAN62167401 Contact Us For Availability
IC904
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC905
IC,DC,DC Converter LGE EAN63530601 Contact Us For Availability
JK400
Jack,DC Power LGE EAG63709902 Contact Us For Availability
JK401
Jack,Phone LGE EAG61030002 Contact Us For Availability
L401
Filter,Bead LGE EAM60887203 Contact Us For Availability
L702
Inductor,Wire Wound,Chip LGE EAP63026902 Contact Us For Availability
L802
Filter,Bead LGE EAM62151101 Contact Us For Availability
L902
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L903
Filter,Bead LGE EAM62155401 Contact Us For Availability
L908
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L909
Inductor,Wire Wound,Chip LGE EAP63026903 Contact Us For Availability
L910
Filter,Bead LGE EAM38769505 Contact Us For Availability
LD304
LED,Chip LGE EAV62832701 Contact Us For Availability
LD305
LED,Chip LGE EAV62094001 Contact Us For Availability
LD307
LED,Chip LGE EAV63052001 Contact Us For Availability
Q900
FET LGE EBK61491901 Contact Us For Availability
Q902
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q903
FET LGE EBK61913702 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R304
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R305
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R306
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R309
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R310
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R400
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R406
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R408
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R510
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ0482C477 Contact Us For Availability
R527
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R552
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R562
Resistor,Array LGE EBC32260404 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R567
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R568
Resistor,Chip LGE 0RJ0000C477 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R701
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R720
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R909
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R913
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R915
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R917
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R918
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R919
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R929
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R930
Resistor,Chip LGE EBC61155501 Contact Us For Availability
R937
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R938
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R939
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R942
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R943
RESISTOR,METAL GLAZE LGE 0RJ9101C478 Contact Us For Availability
R944
Resistor,Chip LGE 0RJ4700C478 Contact Us For Availability
R945
Resistor,Chip LGE EBC62657101 Contact Us For Availability
R946
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R950
Resistor,Chip LGE EBC37118603 Contact Us For Availability
R952
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R953
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R954
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R955
Resistor,Chip LGE 0RJ1803D477 Contact Us For Availability
R959
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R960
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R964
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R965
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R967
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R970
Resistor,Chip LGE 0RJ5103C478 Contact Us For Availability
SW300
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW401
Switch,Tact LGE EBF61254501 Contact Us For Availability
X501
Crystal LGE EAW62583501 Contact Us For Availability
× ![]()
Login and Registration Form
