Model LG NP8340 – Common Parts & Diagrams

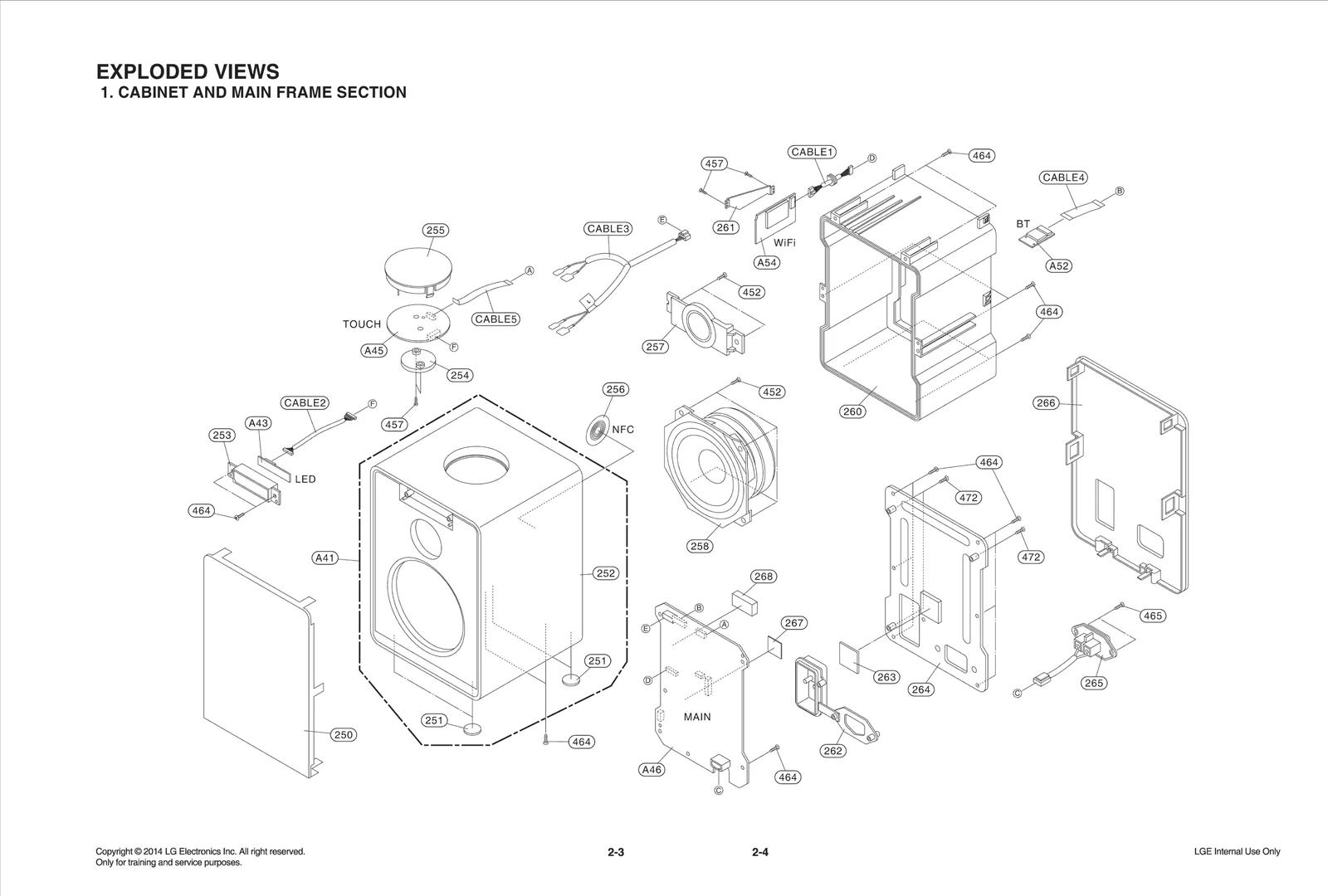

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG NP8340
250
Grille LGE MDX63392101 Contact Us For Availability
251
Foot LGE MDP62527302 Contact Us For Availability
252
Case LGE MBN63704805 Contact Us For Availability
253
Holder Assembly LGE AEJ74259401 Contact Us For Availability
254
Holder LGE MEG64059601 Contact Us For Availability
255
Cover LGE MCK68352403 Contact Us For Availability
256
Module,Assembly LGE EAT61873301 Contact Us For Availability
256
Module,Assembly LGE EAT61873302 Contact Us For Availability
257
Speaker,Tweeter LGE EAB63509001 Contact Us For Availability
258
Speaker,Woofer LGE EAB63609202 Contact Us For Availability
260
Case LGE MBN63724401 Contact Us For Availability
261
Holder LGE MEG64039701 Contact Us For Availability
262
Cover Assembly LGE ACQ87832902 Contact Us For Availability
263
Heat Sink LGE MED63231204 Contact Us For Availability
264
Plate Assembly LGE AGU74948101 Contact Us For Availability
265
Socket,Power LGE EAG63233203 Contact Us For Availability
266
Cover Assembly LGE ACQ87681504 Contact Us For Availability
267
Damper LGE MCQ62096430 Contact Us For Availability
268
Damper LGE MCQ62096448 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
457
SCREW, LGE 1SZZH-1007B Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
472
SCREW,DRAWING LGE 1SZZR-0098X Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76693409 Contact Us For Availability
802
Box,Master LGE MAY66927905 Contact Us For Availability
803
Packing LGE MFZ63331482 Contact Us For Availability
804
Bag,Vinyl LGE MAF62487616 Contact Us For Availability
A41
Case Assembly LGE ABQ75020405 Contact Us For Availability
A43
Auto SMT PCB Assembly LGE EBR79965901 Contact Us For Availability
A45
Auto SMT PCB Assembly LGE EBR79905501 Contact Us For Availability
A46
Auto SMT PCB Assembly LGE EBR79965801 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
A54
Module,Wifi Module LGE EAT61813901 Contact Us For Availability
BC902
Filter,Bead LGE EAM38769505 Contact Us For Availability
BD901
Diode,Bridge LGE EAH31952001 Contact Us For Availability
BU301
Buzzer,Magnetic LGE EAB43049401 Contact Us For Availability
C5B0
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C5B2
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C5D8
Capacitor,Ceramic,Chip LGE 0CC3R9BKF1A Contact Us For Availability
C5E5
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C306
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C567
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C591
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C705
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C710
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE 0CK222BK56A Contact Us For Availability
C718
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C722
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C764
Capacitor,Ceramic,Chip LGE GCK331BK56A Contact Us For Availability
C806
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C810
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C824
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C835
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C848
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C870
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C901
Capacitor,Film,Box,X-CAP LGE EAE62524901 Contact Us For Availability
C902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
C904
Capacitor,AL,Radial LGE EAE63203306 Contact Us For Availability
C911
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C913
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C917
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C924
Capacitor,AL,Radial LGE EAE62784911 Contact Us For Availability
C928
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C930
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C931
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
CABLE1
Harness,Single LGE EAD35863026 Contact Us For Availability
CABLE2
Harness,Single LGE EAD35863027 Contact Us For Availability
CABLE3
Harness,Single LGE EAD56816020 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62130022 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63205401 Contact Us For Availability
CN101
Connector,Wafer LGE EAG62611101 Contact Us For Availability
CN300
Connector,FFC/FPC/PIC LGE 6630XE00106 Contact Us For Availability
CN400
Connector,Wafer LGE 6602T12004E Contact Us For Availability
CN501
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN502
Connector,Wafer LGE 6630V90135D Contact Us For Availability
CN701
Connector,Wafer LGE EAG63270202 Contact Us For Availability
D300
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D901
Diode,Rectifier LGE EAH61433501 Contact Us For Availability
D902
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D933
Diode,Rectifier LGE EAH61233501 Contact Us For Availability
D934
Diode,Schottky LGE EAH62095801 Contact Us For Availability
F901
Fuse,Time Delay LGE EAF62010001 Contact Us For Availability
FL901
Filter,Line Noise LGE EAM62450505 Contact Us For Availability
IC100
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC101
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC103A
S/W,System Program LGE SAA37489601 Contact Us For Availability
IC300A
S/W,System Program LGE SAA37489602 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63027301 Contact Us For Availability
IC504
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC505A
S/W,System Program LGE SAA37489501 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62494901 Contact Us For Availability
IC800
IC,DC,DC Converter LGE EAN62794401 Contact Us For Availability
IC802
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC804
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC902
Photo,Coupler LGE EAV61253101 Contact Us For Availability
IC904
IC,Voltage Reference LGE EAN42695601 Contact Us For Availability
JK500
Jack,Modular LGE EAG35781012 Contact Us For Availability
L501
Filter,Bead LGE EAM62155401 Contact Us For Availability
L709
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
LD401
LED,Chip LGE EAV62672001 Contact Us For Availability
LD402
LED,Chip LGE EAV60697201 Contact Us For Availability
MICOM
Option Code Assembly LGE EBR79728902 Contact Us For Availability
PW901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q301
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q911
TR,Bipolar LGE 0TR222209IB Contact Us For Availability
Q912
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
R5D1
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R100
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ0000C672 Contact Us For Availability
R149
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R181
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R314
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R402
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R403
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R405
Resistor,Chip LGE 0RH0822C622 Contact Us For Availability
R406
Resistor,Chip LGE 0RJ0000C477 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R533
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R572
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R712
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R729
Resistor,Chip LGE 0RH4700B622 Contact Us For Availability
R732
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R738
Resistor,Chip LGE 0RH0182C622 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R808
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R816
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R827
RESISTOR,METAL GLAZE LGE 0RJ3000C678 Contact Us For Availability
R828
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R829
Resistor,Chip LGE 0RJ0202C678 Contact Us For Availability
R831
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R832
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R833
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R838
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R839
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R844
Resistor,Chip LGE 0RJ7502C678 Contact Us For Availability
R845
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R846
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R901
Resistor,Chip LGE 0RH4703E622 Contact Us For Availability
R907
Resistor,Chip LGE 0RH0101G622 Contact Us For Availability
R912
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R913
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R914
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R915
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R917
Resistor,Chip LGE 0RH3303E622 Contact Us For Availability
R920
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R921
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
R943
Resistor,Chip LGE 0RJ5601C477 Contact Us For Availability
R944
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
SW101
Switch,Tact LGE 6600R000005 Contact Us For Availability
T901
Transformer,Switching LGE EBJ62390901 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH911
Thermistor,PTC LGE EBG61206101 Contact Us For Availability
V901
Varistor LGE EAF43134201 Contact Us For Availability
X501
Crystal LGE EAW62583501 Contact Us For Availability
ZD901
DIODE,ZENERS LGE 0DZRM00448A Contact Us For Availability
ZD903
Diode,TVS LGE EAH61192501 Contact Us For Availability
× ![]()
Login and Registration Form
