Model LG NP6630 – Common Parts & Diagrams

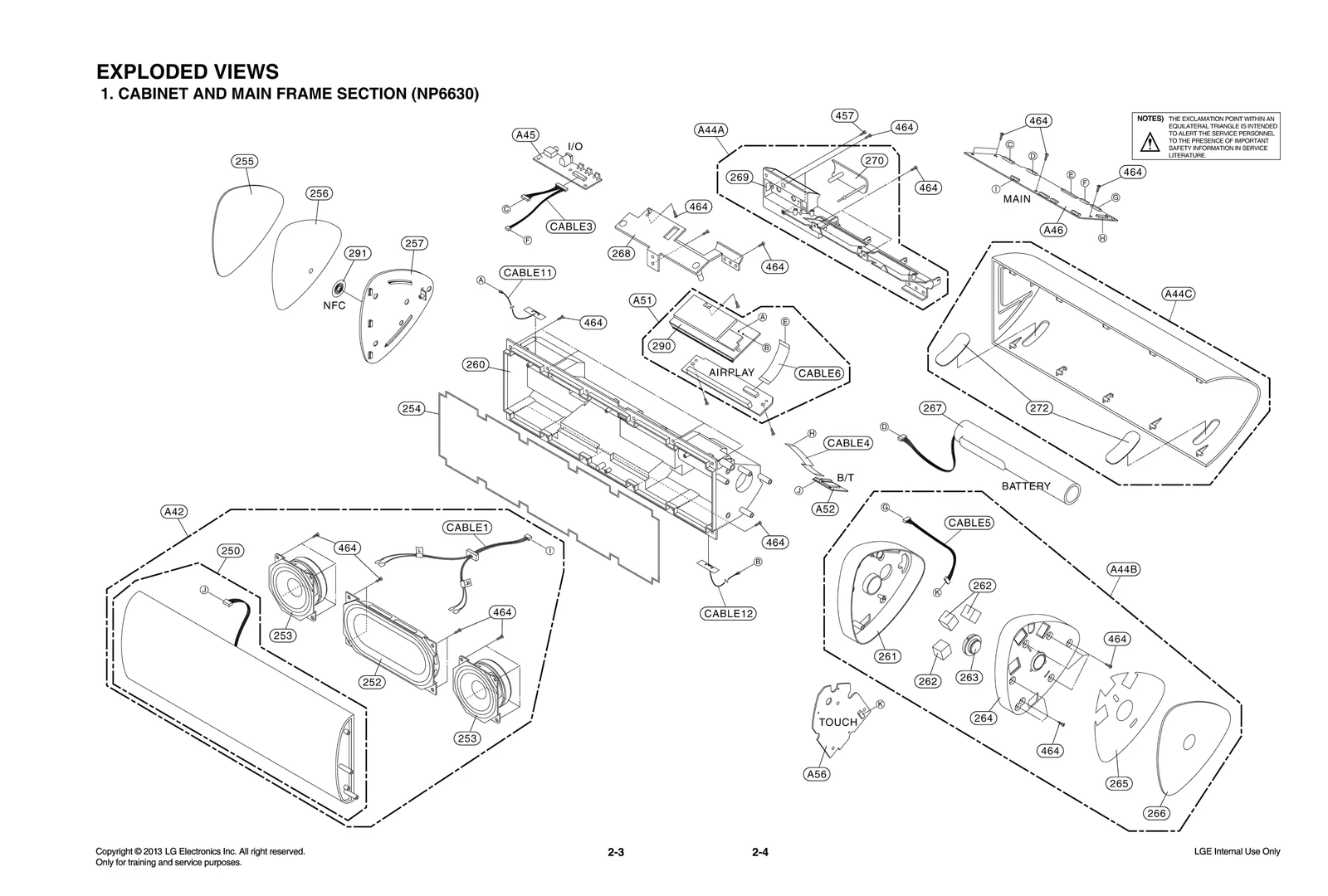

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG NP6630
00000
Option Code Assembly LGE EBR77122102 Contact Us For Availability
250
Case Assembly LGE ABQ74282102 Contact Us For Availability
252
Speaker,Passive Radiator LGE EAB62949401 Contact Us For Availability
253
Speaker,Full Range LGE EAB62969101 Contact Us For Availability
254
Ring LGE MGZ62866901 Contact Us For Availability
255
Cover LGE MCK67644701 Contact Us For Availability
256
Cover LGE MCK67689101 Contact Us For Availability
257
Cover LGE MCK67605001 Contact Us For Availability
260
Cover LGE MCK67605101 Contact Us For Availability
261
Cover LGE MCK67644601 Contact Us For Availability
262
Gasket LGE MDS63255906 Contact Us For Availability
263
Button Assembly LGE ABH74739601 Contact Us For Availability
264
Cover LGE MCK67604801 Contact Us For Availability
265
Cover LGE MCK67689201 Contact Us For Availability
266
Cover LGE MCK67604901 Contact Us For Availability
267
Rechargeable Battery,Lithium Ion LGE EAC62078201 Contact Us For Availability
268
Holder LGE MEG63358801 Contact Us For Availability
269
Holder LGE MEG63358701 Contact Us For Availability
270
Cover LGE MCK67644501 Contact Us For Availability
272
Foot LGE MDP62726701 Contact Us For Availability
290
Module,WLAN LGE EAT61795501 Contact Us For Availability
290A
S/W,System Program LGE SAA36491701 Contact Us For Availability
291
Module,Assembly LGE EAT61873301 Contact Us For Availability
300
Power Cord LGE EAD62425702 Contact Us For Availability
457
SCREW, LGE 1SZZH-1007B Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76013842 Contact Us For Availability
802
Box,Master LGE MAY65611863 Contact Us For Availability
802A
Box LGE MAY41408943 Contact Us For Availability
803
Packing LGE MFZ63331446 Contact Us For Availability
804
Bag,Vinyl LGE MAF62487611 Contact Us For Availability
818
Cable,Assembly LGE EAD38884537 Contact Us For Availability
826
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
833
Adapters LGE EAY62409305 Contact Us For Availability
A42
Board Assembly LGE AAX74088101 Contact Us For Availability
A44A
Holder Assembly LGE AEJ73879401 Contact Us For Availability
A44B
Decor Assembly LGE ACW74137101 Contact Us For Availability
A44C
Case Assembly LGE ABQ74282201 Contact Us For Availability
A45
Auto SMT PCB Assembly,Jack LGE EBR76847309 Contact Us For Availability
A46
Auto SMT PCB Assembly,Main LGE EBR76774409 Contact Us For Availability
A51
PCB Assembly LGE EBR77169102 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61795403 Contact Us For Availability
A52A
S/W,System Program LGE SAA36476303 Contact Us For Availability
A56
Auto SMT PCB Assembly,Keypad LGE EBR76848609 Contact Us For Availability
C101
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
C102
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C200
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C316
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C509
Capacitor,Ceramic,Chip LGE EAE60665301 Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C542
Capacitor,Ceramic,Chip LGE 0CC271BK4AA Contact Us For Availability
C544
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C710
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE 0CK222DN56A Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C722
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C723
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C727
Capacitor,AL,Chip LGE 0CE107WH6D8 Contact Us For Availability
C811
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C813
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C819
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C918
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C919
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C920
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C925
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C930
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C933
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C939
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C944
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CABLE1
Harness,Single LGE EAD56816017 Contact Us For Availability
CABLE3
Harness,Single LGE EAD33638838 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62466302 Contact Us For Availability
CABLE5
Harness,Single LGE EAD33638837 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD62246307 Contact Us For Availability
CABLE11
Antenna,Loop LGE EAA62908503 Contact Us For Availability
CABLE12
Antenna,Loop LGE EAA62908504 Contact Us For Availability
CN100
Connector,FFC/FPC/PIC LGE 6630R-FB06D Contact Us For Availability
CN200
Connector,Wafer LGE 6630V90135M Contact Us For Availability
CN300
Connector,Wafer LGE 6630V90135D Contact Us For Availability
CN500
Connector,BtoB LGE EAG62710401 Contact Us For Availability
CN501
Connector,Wafer LGE 6630V90135B Contact Us For Availability
CN503
Connector,FFC/FPC/PIC LGE 6630R-FB11H Contact Us For Availability
CN800
Connector,Wafer LGE EAG62611105 Contact Us For Availability
CN802
Connector,Wafer LGE EAG60696902 Contact Us For Availability
CN903
Connector,Wafer LGE 6630V90135F Contact Us For Availability
D801
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D900
Diode,TVS LGE EAH61853401 Contact Us For Availability
D901
Diode,TVS LGE EAH61192501 Contact Us For Availability
D903
Diode,Schottky LGE EAH60993301 Contact Us For Availability
F900
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
IC100
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC101
IC,CMOS LGE EAN60070301 Contact Us For Availability
IC102A
S/W,System Program LGE SAA36494001 Contact Us For Availability
IC103
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC104
IC,Line Driver LGE EAN60900101 Contact Us For Availability
IC300A
S/W,System Program LGE SAA36493901 Contact Us For Availability
IC501A
S/W,System Program LGE SAA36581501 Contact Us For Availability
IC502
IC,I/O Support Chip LGE EAN42565610 Contact Us For Availability
IC504
IC,Digital Signal Processors LGE EAN61018501 Contact Us For Availability
IC506
IC,SDRAM LGE EAN60700802 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN62668201 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN62349601 Contact Us For Availability
IC802
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC902
IC,Charger LGE EAN62767001 Contact Us For Availability
IC903
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
JK200
Jack,Phone LGE EAG63270601 Contact Us For Availability
JK202
Jack,DC Power LGE EAG61490901 Contact Us For Availability
L201
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L802
Filter,Bead LGE EAM62155401 Contact Us For Availability
L906
Filter,Bead LGE EAM38769505 Contact Us For Availability
L907
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
LD325
LED,Chip LGE 0DLLP0058AC Contact Us For Availability
LD327
LED,Chip LGE EAV30476901 Contact Us For Availability
LD328
LED,Chip LGE EAV61492201 Contact Us For Availability
Q100
FET LGE EBK37179301 Contact Us For Availability
Q327
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q900
FET LGE EBK61271401 Contact Us For Availability
Q903
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
R119
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R134
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R139
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R204
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R205
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R500
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R512
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R536
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R710
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R711
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R800
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R912
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R915
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R917
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R923
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R924
Resistor,Chip LGE 0RJ0100J688 Contact Us For Availability
R926
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R928
Resistor,Chip LGE 0RH7501C422 Contact Us For Availability
R930
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R931
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R934
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R935
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R937
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
SW200
Switch,Tact LGE EBF52268801 Contact Us For Availability
SW203
Switch,Tact LGE EBF61254501 Contact Us For Availability
SW301
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X100
Crystal LGE EAW61645504 Contact Us For Availability
X500
Crystal LGE EAW62003401 Contact Us For Availability
× ![]()
