Model LG NP5550W – Common Parts & Diagrams

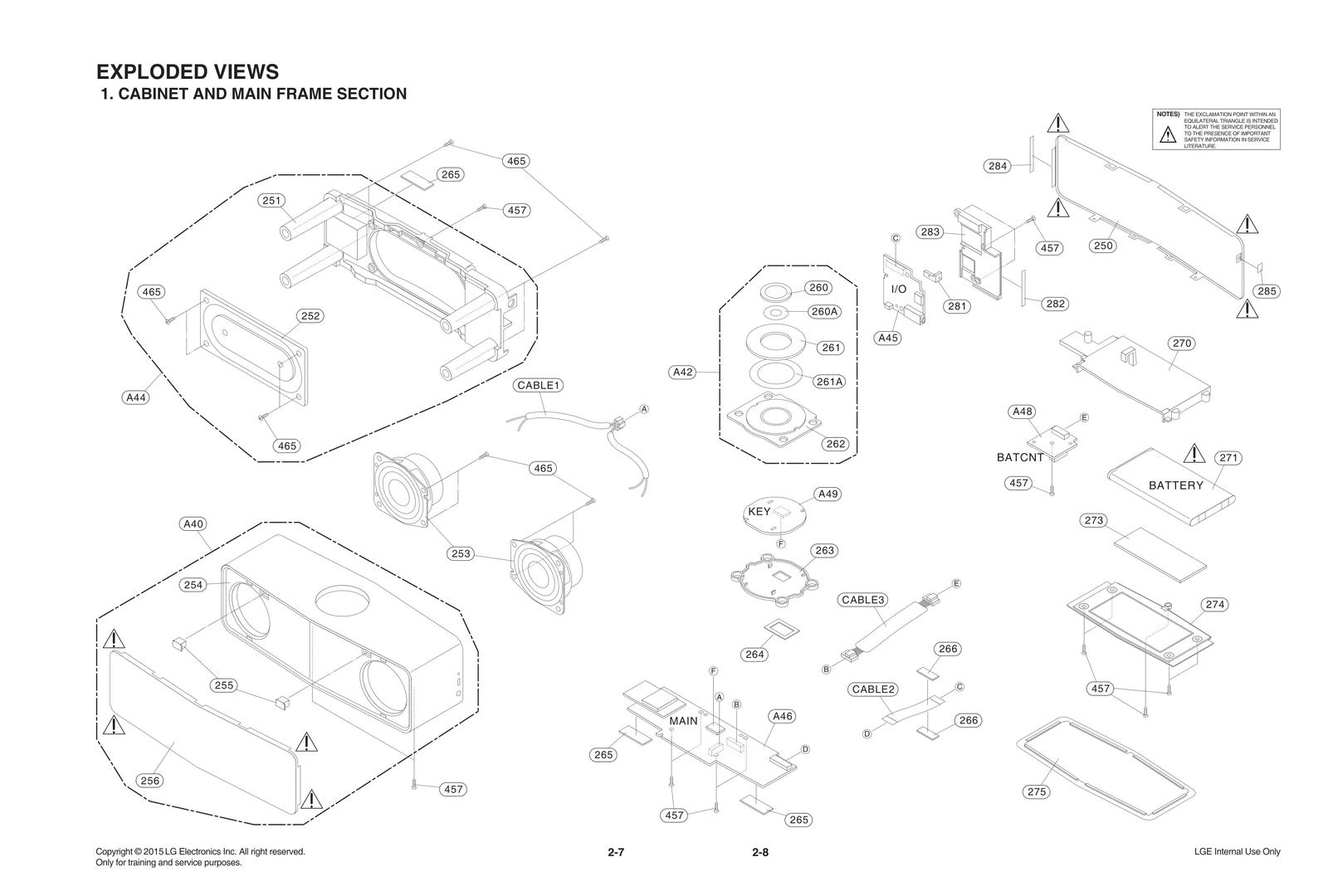

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG NP5550W
250
Grille LGE MDX63911901 Contact Us For Availability
251
Cover LGE MCK69009101 Contact Us For Availability
252
Speaker,Passive Radiator LGE EAB64129001 Contact Us For Availability
253
Speaker,Woofer LGE EAB64128901 Contact Us For Availability
254
Case LGE MBN64323301 Contact Us For Availability
255
Cap LGE MBL66738201 Contact Us For Availability
256
Grille LGE MDX63872001 Contact Us For Availability
260
Button LGE MBG65963801 Contact Us For Availability
260A
Sheet LGE MHK65349102 Contact Us For Availability
261
Button LGE MBG65982701 Contact Us For Availability
261A
Sheet LGE MHK65349101 Contact Us For Availability
262
Button LGE MBG65943001 Contact Us For Availability
263
Holder LGE MEG64679301 Contact Us For Availability
264
Sheet LGE MHK65391201 Contact Us For Availability
265
Sheet LGE MHK65425501 Contact Us For Availability
266
Damper LGE MCQ68744401 Contact Us For Availability
270
Cover LGE MCK69027501 Contact Us For Availability
271
Rechargeable Battery,Lithium Ion LGE EAC63100301 Contact Us For Availability
273
Damper LGE MCQ62096457 Contact Us For Availability
274
Cover Assembly LGE ACQ88394201 Contact Us For Availability
275
Foot LGE MDP63426701 Contact Us For Availability
281
Lens LGE MFB64132901 Contact Us For Availability
282
Sheet LGE MHK65446001 Contact Us For Availability
283
Cover LGE MCK69027401 Contact Us For Availability
284
Sheet LGE MHK65425901 Contact Us For Availability
285
Sheet LGE MHK65426701 Contact Us For Availability
457
SCREW, LGE 1SZZH-1007B Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77294801 Contact Us For Availability
802
Box,Master LGE MAY67348744 Contact Us For Availability
802A
Box LGE MAY65499474 Contact Us For Availability
802B
Box LGE MAY65499475 Contact Us For Availability
803
Packing LGE MFZ63551618 Contact Us For Availability
803A
Packing LGE MFZ63551619 Contact Us For Availability
820
Cable,Assembly LGE EAD62651505 Contact Us For Availability
A40
Case Assembly LGE ABQ75503601 Contact Us For Availability
A42
Button Assembly LGE ABH75660001 Contact Us For Availability
A44
Cover Assembly LGE ACQ88414001 Contact Us For Availability
A45
PCB Assembly LGE EBR81446801 Contact Us For Availability
A46
PCB Assembly LGE EBR81433501 Contact Us For Availability
A48
PCB Assembly LGE EBR81465601 Contact Us For Availability
A49
PCB Assembly LGE EBR81433601 Contact Us For Availability
C300
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C303
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C308
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C700
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C724
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C726
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C729
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C913
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C914
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C926
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C930
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C950
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C952
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C959
Capacitor,Ceramic,Ch LGE 0CK333BFG6A Contact Us For Availability
CABLE1
Harness,Single LGE EAD63429302 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63425601 Contact Us For Availability
CABLE3
Harness,Single LGE EAD63710801 Contact Us For Availability
CE702
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
CE901
Capacitor,AL,Chip LGE EAE60658901 Contact Us For Availability
CN102
Connector,Terminal Block LGE EAG63189901 Contact Us For Availability
CN200
Connector,BtoB LGE EAG64673501 Contact Us For Availability
CN300
Connector,I/O LGE EAG63149901 Contact Us For Availability
CN301
Connector,BtoB LGE EAG62710401 Contact Us For Availability
CN500
Connector,BtoB LGE EAG64673601 Contact Us For Availability
CN901
Connector,Wafer LGE EAG58732906 Contact Us For Availability
D300
Diode,Schottky LGE EAH62095801 Contact Us For Availability
D502
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
F300
Fuse,Non Time Delay LGE EAF61670101 Contact Us For Availability
FB300
Filter,Bead LGE EAM62151001 Contact Us For Availability
FB302
Filter,Bead LGE EAM62151101 Contact Us For Availability
FB705
Filter,Bead LGE EAM62091201 Contact Us For Availability
IC500
Module,Bluetooth LGE EAT63117501 Contact Us For Availability
IC501
IC,I/O Support Chip LGE EAN42565610 Contact Us For Availability
IC502A
S/W,System Program LGE SAA38113901 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN64072401 Contact Us For Availability
IC901
IC,Charger LGE EAN64009601 Contact Us For Availability
IC902
IC,DC,DC Converter LGE EAN64049301 Contact Us For Availability
IC903
IC,DC,DC Converter LGE EAN64049401 Contact Us For Availability
JK300
Jack,Phone LGE EAG63270602 Contact Us For Availability
L900
Inductor,Wire Wound,Chip LGE EAP62267101 Contact Us For Availability
L901
Inductor,Wire Wound,Chip,Metal LGE 0LCTD00058A Contact Us For Availability
L902
Inductor,Wire Wound,Chip LGE EAP61746501 Contact Us For Availability
LED202
LED,Chip LGE EAV62094001 Contact Us For Availability
LED205
LED,Chip LGE EAV62832701 Contact Us For Availability
LED300
LED,Chip LGE EAV63352201 Contact Us For Availability
Q902
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q903
FET LGE EBK61913702 Contact Us For Availability
R203
RESISTOR,METAL GLAZE LGE 0RJ3000C678 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ1200C478 Contact Us For Availability
R303
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R307
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RH6200C622 Contact Us For Availability
R309
Resistor,Chip LGE 0RH3000C622 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R544
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R700
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R701
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R707
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R904
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R908
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R909
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R913
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R917
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R920
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R939
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R974
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R977
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R981
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
SW204
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW300
Switch,Tact LGE EBF61254501 Contact Us For Availability
ZD500
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
× ![]()
