Model GE NP16G36V09003 HVAC – Packaged – Common Parts & Diagrams

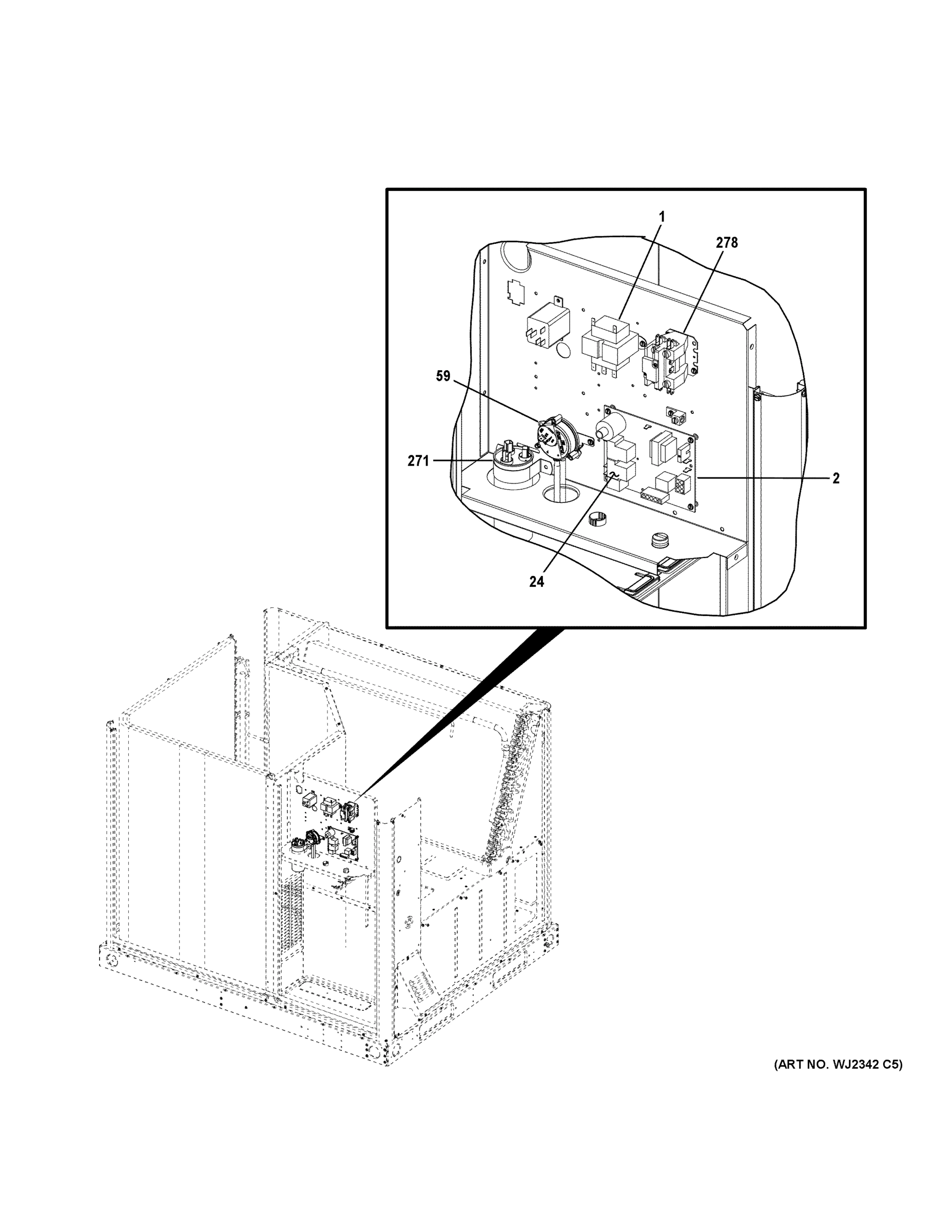

CONTROL PARTS

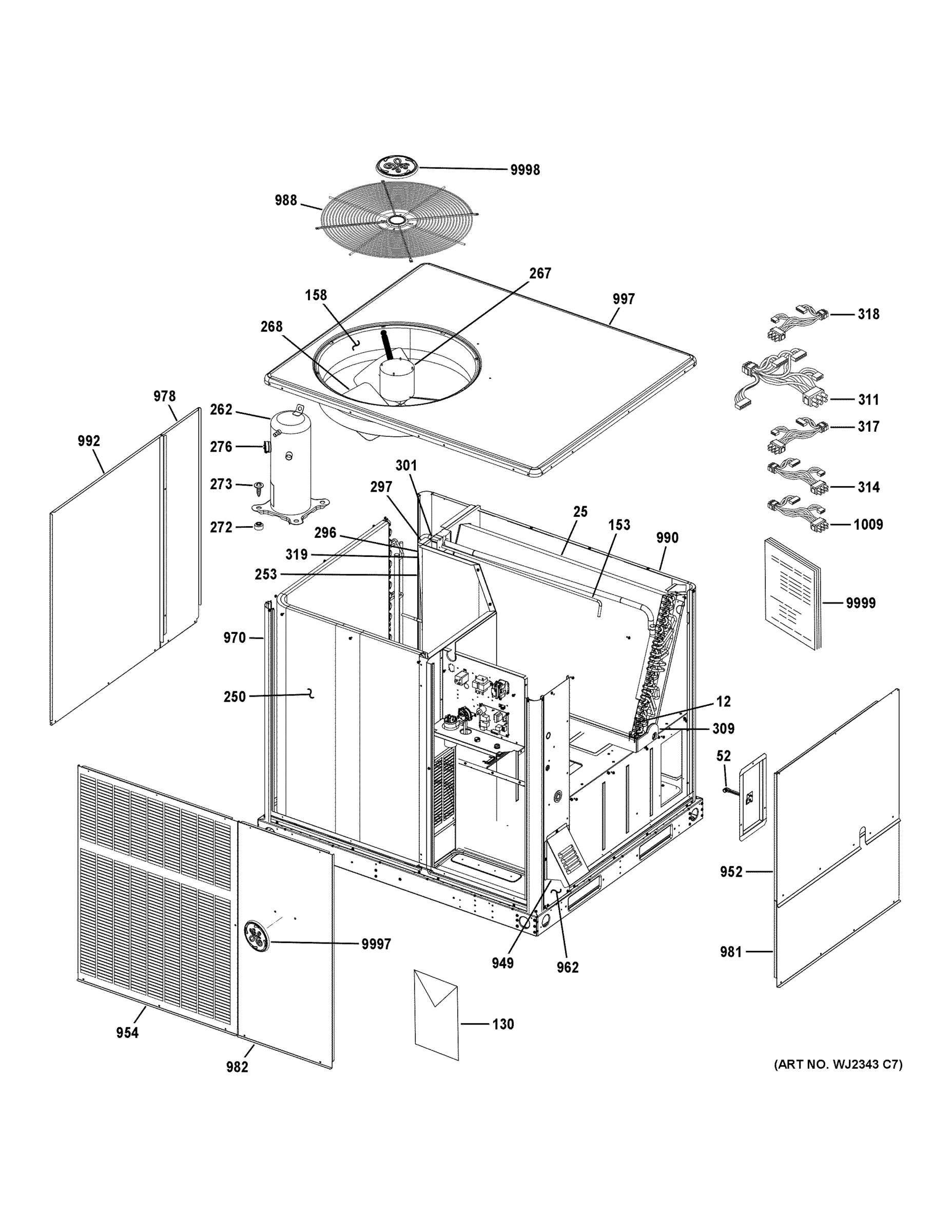

BODY PARTS

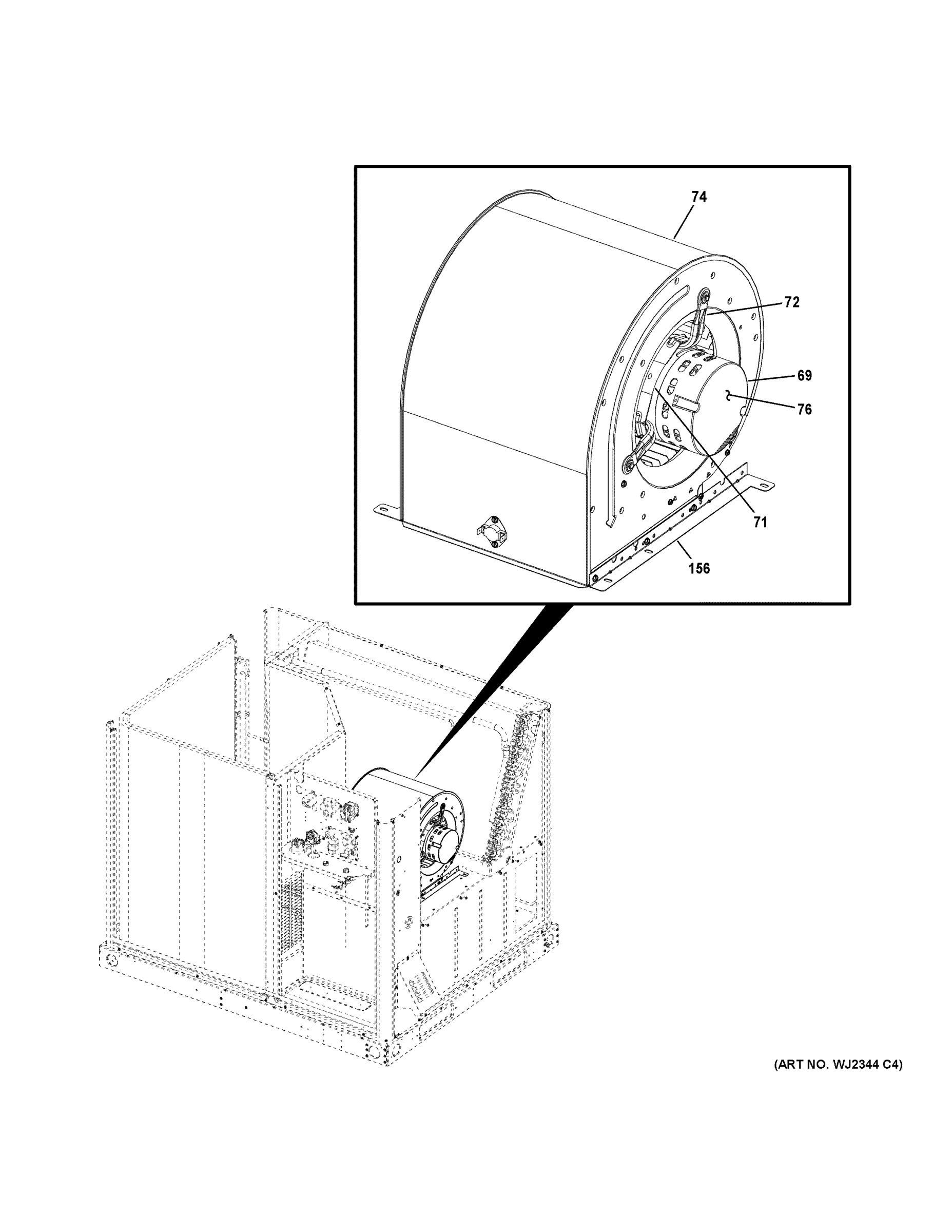

BLOWER & MOTOR

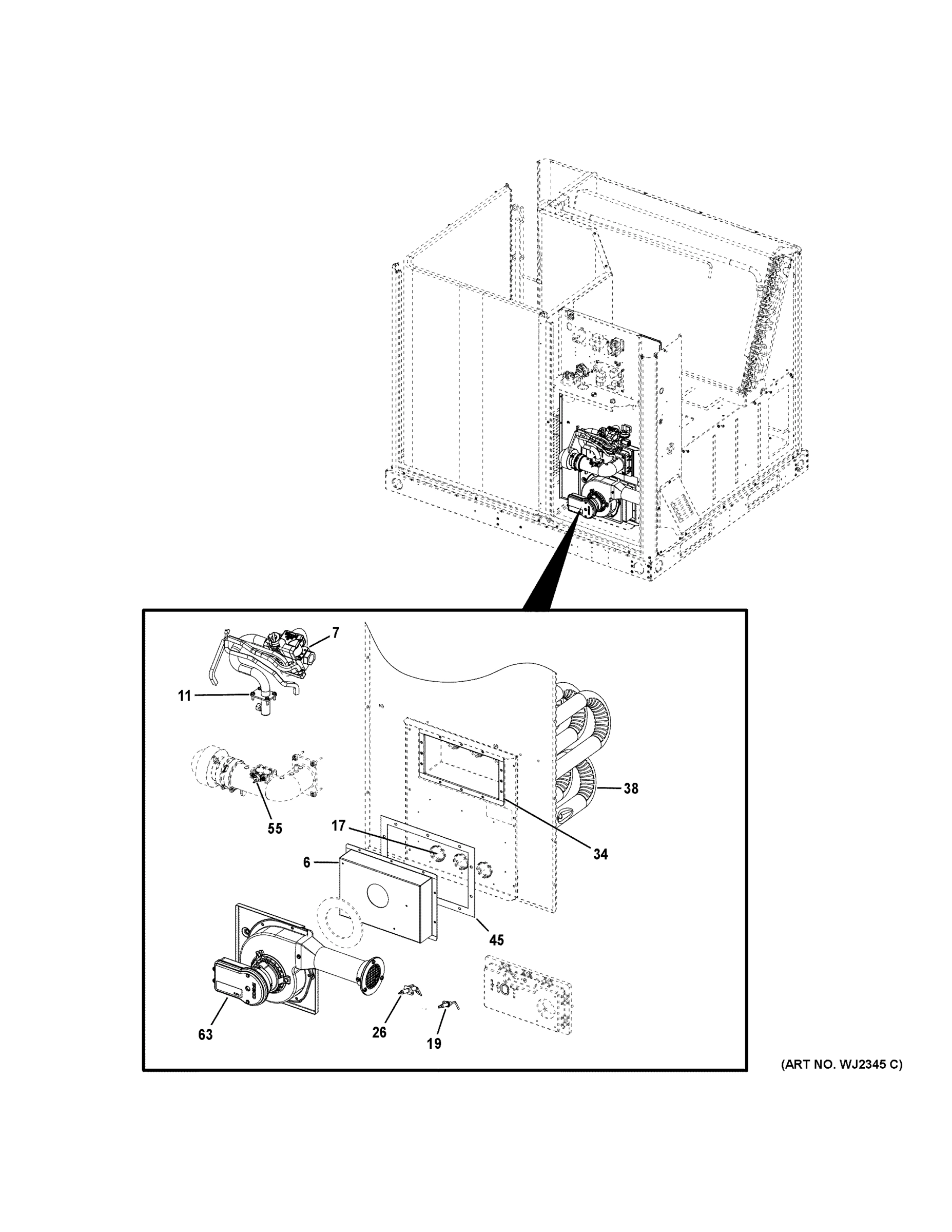

GAS VALVE & BURNER ASSEMBLY
Common parts from model GE NP16G36V09003 HVAC – Packaged
2
R45632-001 BOARD-CIRCUIT GEN 10W57 Contact Us For Availability
6
BOX-COLLECTOR-(CTO) GEN 12L02 Contact Us For Availability
11
ASSY-MANIFOLD GAS 5 BURNER-(CTO) GEN 12L05 Contact Us For Availability
12
SWITCH-INTERLOCK LEVEL SENSOR NC GEN R10432602 Contact Us For Availability
17
ORIFICE #47 -(CTO) GEN 12L08 Contact Us For Availability
19
104160-01 SENSOR FLAME GEN 12L09 Contact Us For Availability
25
ASSY COIL EVAP 20X32 3-ROW-(CTO) GEN 14Y60 Contact Us For Availability
26
IGNITOR GEN 49M85 Contact Us For Availability
34
BURNER, INSHOT-(CTO) GEN 60M56 Contact Us For Availability
38
622625-03 HEAT EXCH SM 5TU W/VEST-(CTO) GEN 22C78 Contact Us For Availability
45
COLL BOX GASKET 3-5 BURNER-(CTO) GEN 12K80 Contact Us For Availability
52
102857-28 LIMIT CONTROL (STILT) 200F GEN 22B75 Contact Us For Availability
59
100684-07 SWITCH-PRESSURE Orange 0.1" wc GEN 65W63 Contact Us For Availability
63
BLWR COMUSTION 2-STAGE-(CTO) GEN 14Y59 Contact Us For Availability
69
MTR-BLR 5.0(Mod sold separate)-(CTO) GEN 10B66 Contact Us For Availability
71
P-8-9501 BAND-MOTOR-(CTO) GEN 32866 Contact Us For Availability
72
MOUNT-MTR ARM BRACKET-(CTO) GEN 12X33 Contact Us For Availability
74
BLOWER HOUSING & WHEEL 10 X 8 -(CTO) GEN 12L16 Contact Us For Availability
76
610587-40 MODULE KIT GEN 15C91 Contact Us For Availability
130
LABEL-WIRING DIAGRAM 16 GE-(CTO) GEN 53784603 Contact Us For Availability
153
ASSY-DISTRIBUTOR 5-TUBE-(CTO) GEN 14Y57 Contact Us For Availability
156
RAIL BLOWER-(CTO) GEN 12B76 Contact Us For Availability
158
ORIFICE RING 22 I.D. X 6 -(CTO) GEN 12J47 Contact Us For Availability
250
ASSY-COIL 1 ROW COND-(CTO) GEN 12J52 Contact Us For Availability
253
103366-07 VALVE-EXP NXT INDOOR 3-3.5T GEN 12J35 Contact Us For Availability
267
100483-33 Cond Fan MTR 1/6HP 208-230-1 GEN 92W51 Contact Us For Availability
268
Fan Assy-(CTO) GEN 27W58 Contact Us For Availability
271
CAPACITOR 40+5 @ 440V ROUND GEN 89M77 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R10030301 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R10030101 Contact Us For Availability
276
HARNESS-COMP MOLDED PLUG-(CTO) GEN 14N17 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLASTIC INSUL SM-(CTO) GEN 22C74 Contact Us For Availability
311
W/H SECONDARY ELEC-(CTO) GEN 14Y58 Contact Us For Availability
314
HARNESS-MTR (CONTROL)-(CTO) GEN 10W54 Contact Us For Availability
317
HARNESS-WIRING-(CTO) GEN 15V52 Contact Us For Availability
318
HARNESS (MOLDED PLUG)-(CTO) GEN 49M73 Contact Us For Availability
319
Valve Core GEN 95M48 Contact Us For Availability
949
VENT HOOD-(CTO) GEN 12B75 Contact Us For Availability
952
PANEL-BLOWER ACCESS SM-(CTO) GEN R62228502E Contact Us For Availability
954
R621890-02E, GEN R62189002E Contact Us For Availability
962
PANEL -UTILITY G/E SM-(CTO) GEN R62228801E Contact Us For Availability
970
POST-CORNER SMALL-(CTO) GEN R62189401E Contact Us For Availability
978
PANEL -COMPRESSOR ACCESS SM-(CTO) GEN R62188802E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R62189201E Contact Us For Availability
982
PANEL -CONTROL ACCESS SM-(CTO) GEN R62188902E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J45 Contact Us For Availability
990
PANEL -REAR SM 3DR ARM TXT GRAY-(CTO) GEN R62263503 Contact Us For Availability
992
PANEL-LOUVER FRONT SMALL-(CTO) GEN R62199601E Contact Us For Availability
997
PANEL TOP SM ARMSTRONG TXT GRAY-(CT GEN R61126702E Contact Us For Availability
1009
GEN 22C75 GEN 22C75 Contact Us For Availability
9997
GEN 10721304 GEN 10721304 Contact Us For Availability
9998
GEN 10721306 GEN 10721306 Contact Us For Availability
9999
GEN 315000644 GEN 315000644 Contact Us For Availability
× ![]()
