Model GE NP14G60S12604 HVAC – Packaged – Common Parts & Diagrams

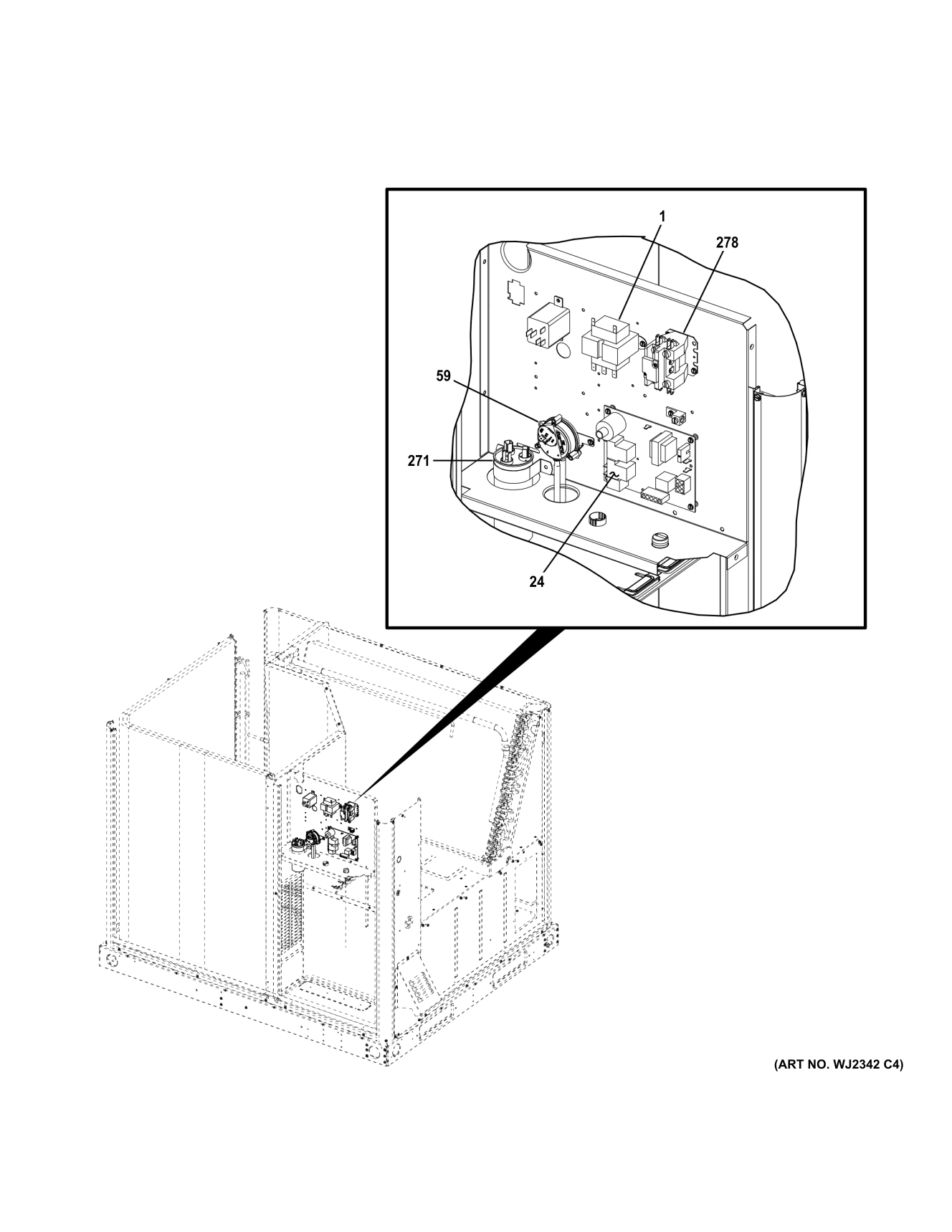

CONTROL PARTS

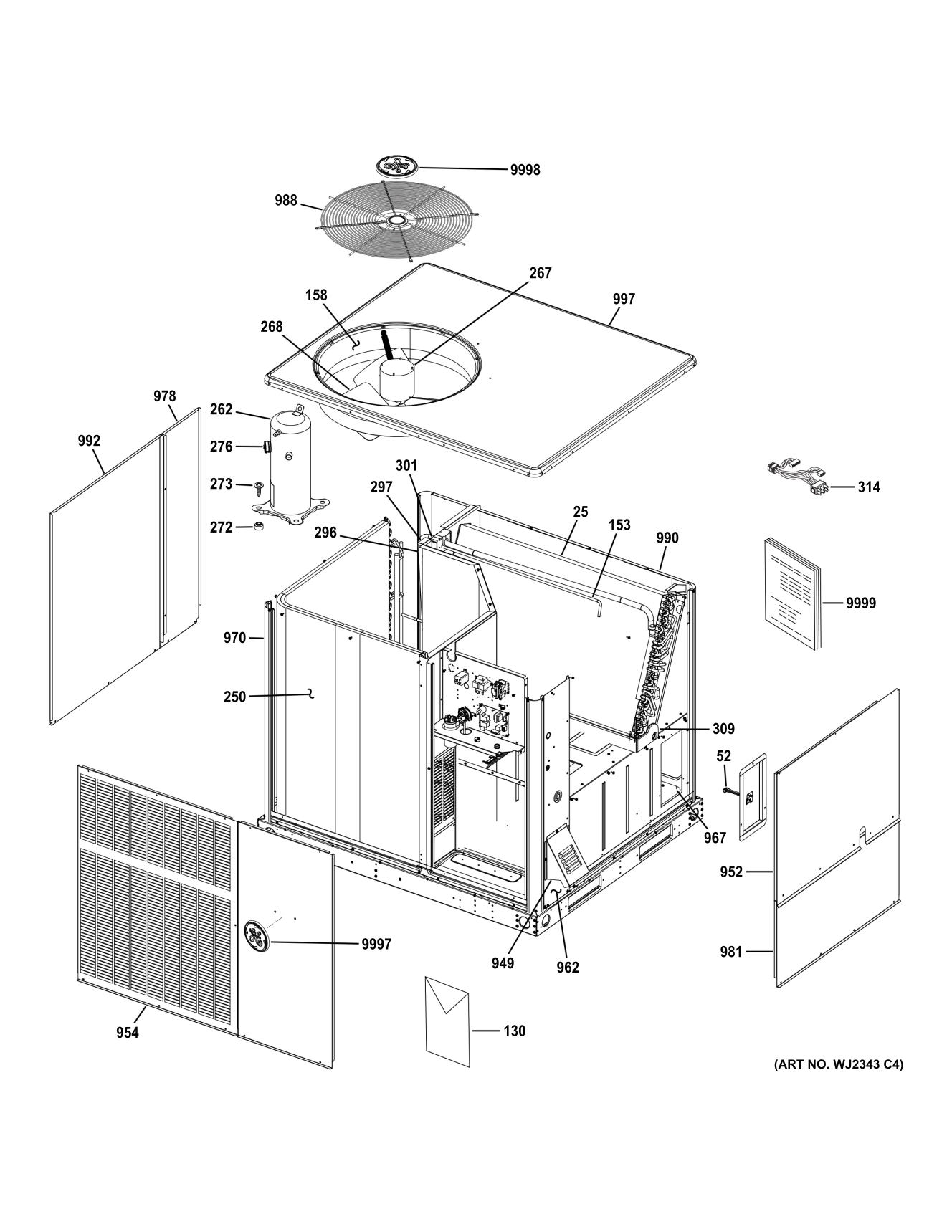

BODY PARTS

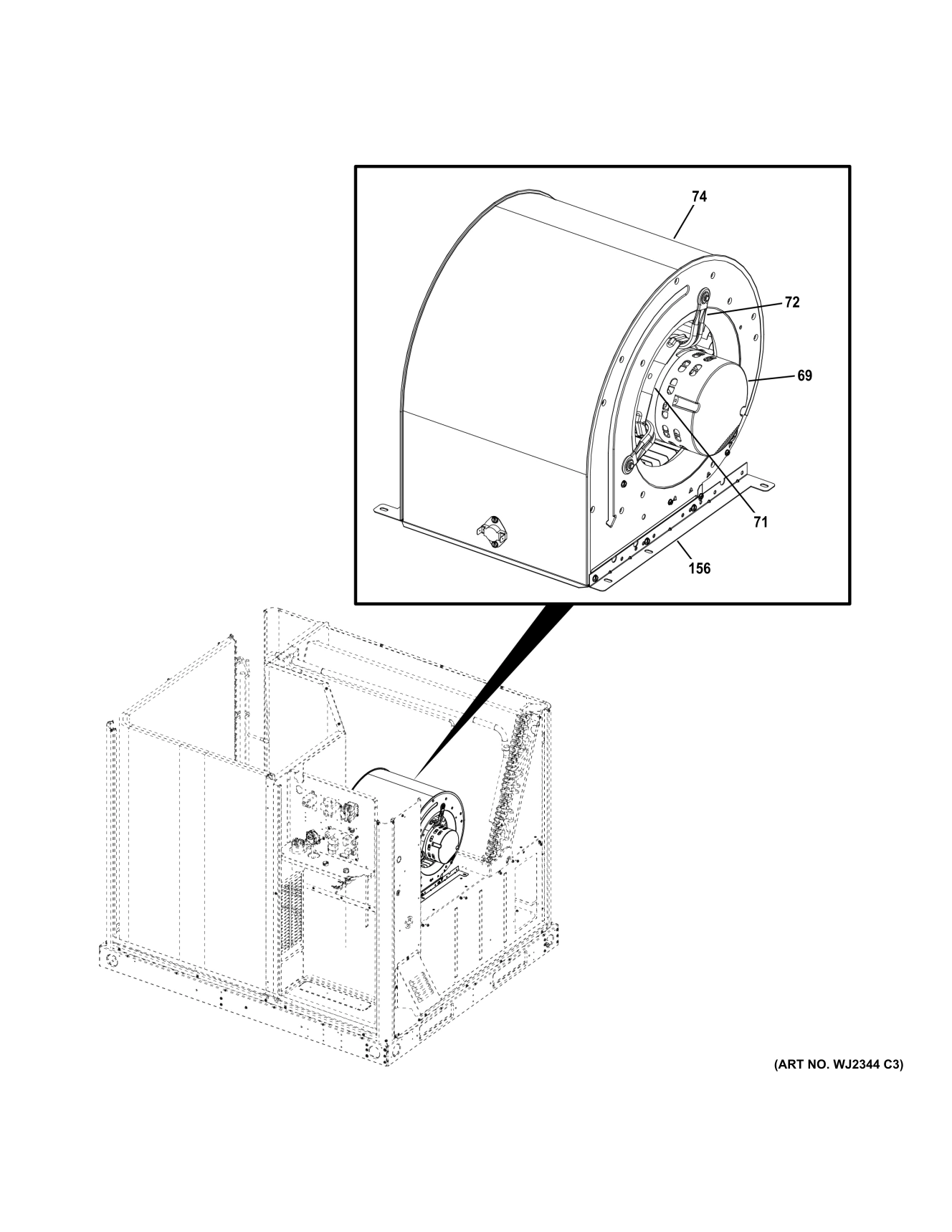

BLOWER & MOTOR

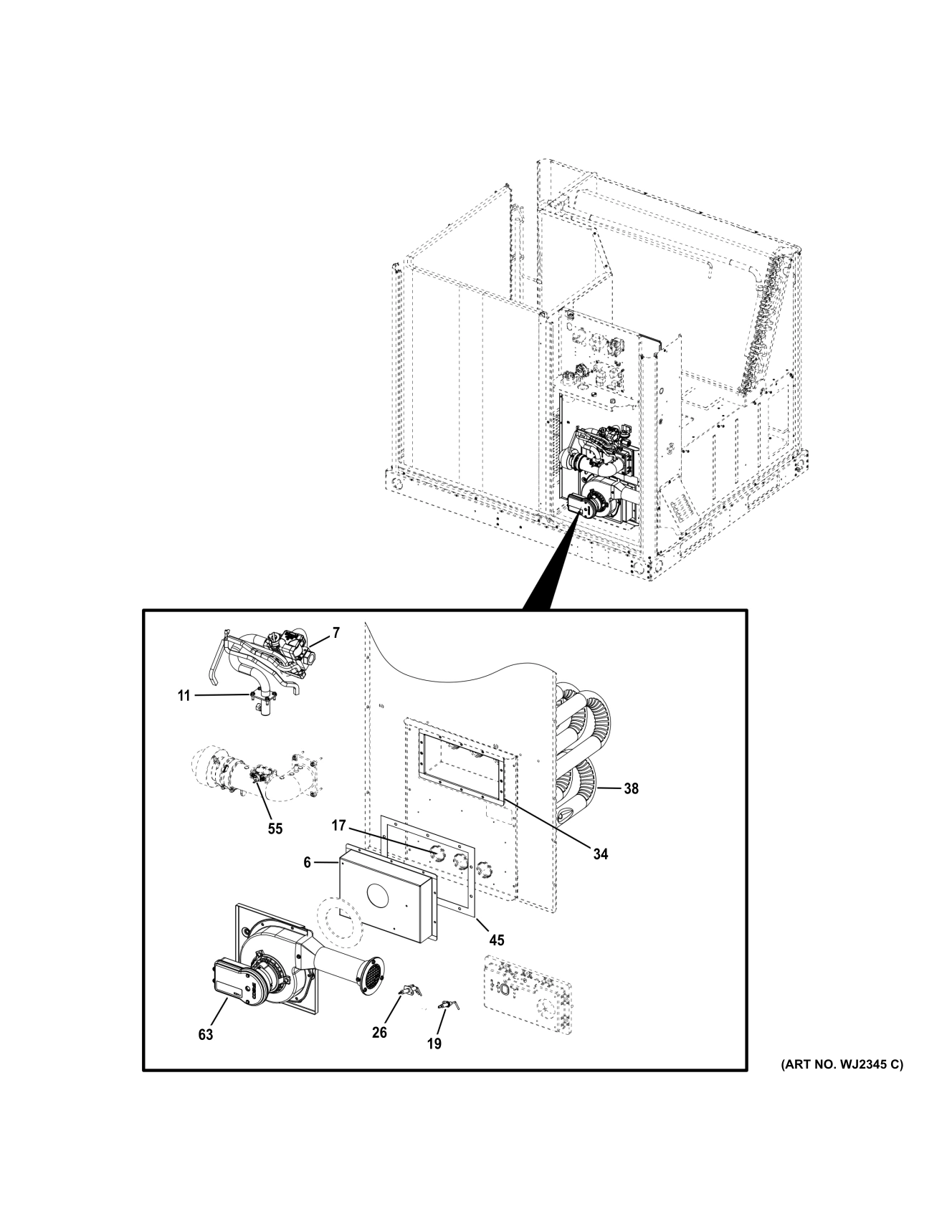

GAS VALVE & BURNER ASSEMBLY
Common parts from model GE NP14G60S12604 HVAC – Packaged
6
BOX-COLLECTOR-(CTO) GEN 12L02 Contact Us For Availability
11
ASSY-MANIFOLD GAS 7 BURN-(CTO) GEN 12L07 Contact Us For Availability
17
ORIFICE #47 -(CTO) GEN 12L08 Contact Us For Availability
19
104160-01 SENSOR FLAME GEN 12L09 Contact Us For Availability
24
104278-01 CONTROL-IGNITION GEN 12J99 Contact Us For Availability
25
ASSY-COIL COND 2 ROW-(CTO) GEN 12J92 Contact Us For Availability
26
IGNITOR GEN 49M85 Contact Us For Availability
34
BURNER, INSHOT-(CTO) GEN 60M56 Contact Us For Availability
38
HEAT EXCH LG 7TU W/VEST-(CTO) GEN 22B51 Contact Us For Availability
45
GASKET FLUE COVER 6-7 BURNER-(CTO) GEN 12K82 Contact Us For Availability
52
102857-27 LIMIT CONTROL (195F) GEN 22B74 Contact Us For Availability
59
100684-07 SWITCH-PRESSURE Orange 0.1" wc GEN 65W63 Contact Us For Availability
71
BAND MOTOR MTG - 4 ARM-(CTO) GEN 104610-04 Contact Us For Availability
72
ARM MOTOR MTG BRKT-(CTO) GEN 12X34 Contact Us For Availability
74
BLWR HOUSING & WHEEL 12 X 9-(CTO) GEN 12L18 Contact Us For Availability
130
LABEL - WIRING DIAGRAM 14 GE-(CTO) GEN 537659-02 Contact Us For Availability
153
ASSY-DISTRIBUTOR 9 TUBE-(CTO) GEN 12J62 Contact Us For Availability
156
RAIL BLOWER-(CTO) GEN 12B76 Contact Us For Availability
158
ORIFICE RING 24.596 I.D. X 6-(CTO) GEN 12J46 Contact Us For Availability
250
COIL EVAP 24X40.5 3/8 3R15FPI-(CTO) GEN 12J31 Contact Us For Availability
262
104112-13 ZP49K6E-PFV-830 Comp 230V-1 GEN 12J58 Contact Us For Availability
267
100483-43 Cond Fan MTR 1/4HP 208/230-1 GEN 12Y65 Contact Us For Availability
268
Fan Assy 4 BLD 24 PITCH CCW-(CTO) GEN 10W78 Contact Us For Availability
271
100335-22 Dual Run Cap 70+10@370V ROUND GEN 89M90 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
273
BOLT-SLEEVE COMBINATION-(CTO) GEN R100301-01 Contact Us For Availability
276
HARNESS-COMP MOLDED PLUG-(CTO) GEN 14N17 Contact Us For Availability
278
CONTACTOR-SPST 35FLA/40RES GEN 10F74 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLST INSUL LG-(CTO) GEN 21V30 Contact Us For Availability
314
WIRE HARN PRI 230/460 3P GE-(CTO) GEN 21V36 Contact Us For Availability
949
VENT HOOD-(CTO) GEN 12B75 Contact Us For Availability
952
PNL BLOWER ACCESS LG-(CTO) GEN R622285-01E Contact Us For Availability
954
PNL-LOUVER FRONT LARGE-(CTO) GEN R621891-01E Contact Us For Availability
962
PNL -UTILITY G/E LG-(CTO) GEN R622288-02E Contact Us For Availability
967
COVER-DUCT, HORIZONTAL LG-(CTO) GEN R622313-01E Contact Us For Availability
970
POST-CORNER LARGE-(CTO) GEN R621894-02E Contact Us For Availability
978
PNL -COMPRESSOR ACCESS LG-(CTO) GEN R621888-01E Contact Us For Availability
981
PNL -CONTROL ACCESS LG-(CTO)-(CTO) GEN R621889-01E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J44 Contact Us For Availability
990
PNL REAR LG 3DR ARM TXT GRAY-(CTO) GEN R622635-02 Contact Us For Availability
992
PNL -LOUVER LEFT SIDE LG-(CTO) GEN R621890-01E Contact Us For Availability
997
PNL TOP LG ARM TXT GRAY-(CTO) GEN R611802-02E Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-04 Contact Us For Availability
9998
TOP GEA BADGE GEN 107213-01 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
