Model GE NP14G36S09002 HVAC – Packaged – Common Parts & Diagrams

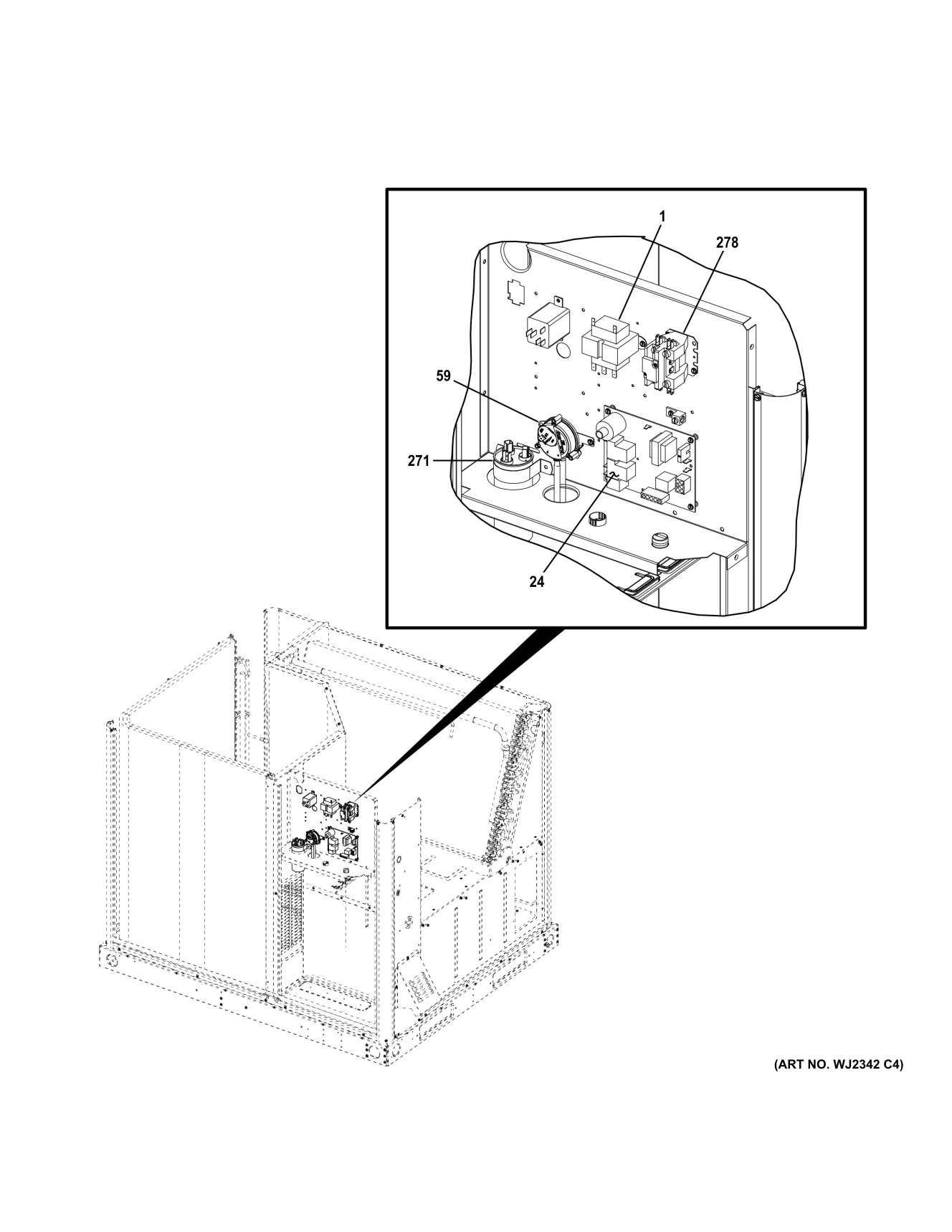

CONTROL PANEL
BODY PARTS

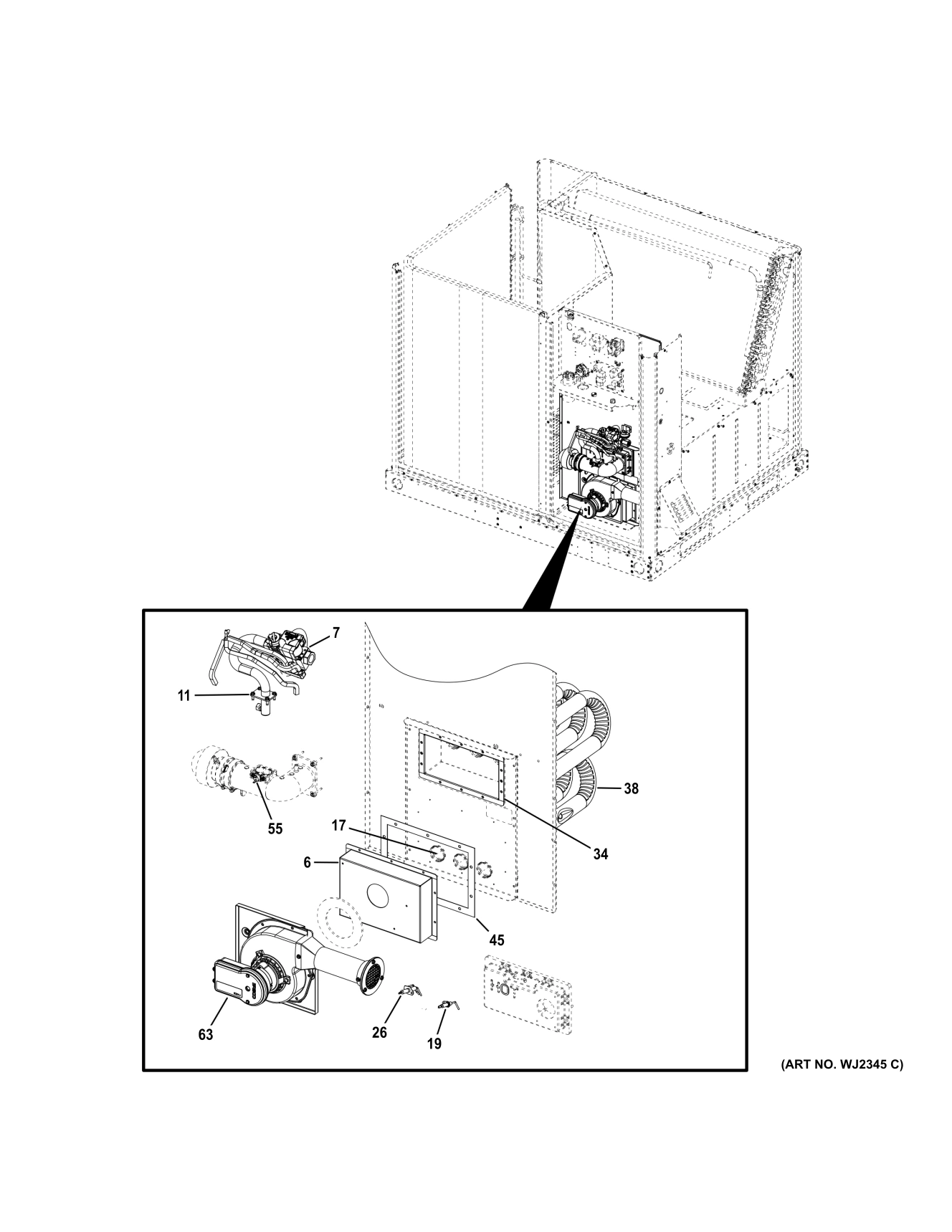

GAS VALVE & BURNER ASSEMBLY
Common parts from model GE NP14G36S09002 HVAC – Packaged
6
BOX-COLLECTOR-(CTO) GEN 12L02 Contact Us For Availability
11
ASSY-MANIFOLD GAS 5 BURNER-(CTO) GEN 12L05 Contact Us For Availability
17
ORIFICE #47 -(CTO) GEN 12L08 Contact Us For Availability
19
104160-01 SENSOR FLAME GEN 12L09 Contact Us For Availability
24
104278-01 CONTROL-IGNITION GEN 12J99 Contact Us For Availability
25
ASSY-COIL EVAP 20 x 32, 3R-(CTO) GEN 18Y06 Contact Us For Availability
26
IGNITOR GEN 49M85 Contact Us For Availability
34
BURNER, INSHOT-(CTO) GEN 60M56 Contact Us For Availability
38
622625-03 HEAT EXCH SM 5TU W/VEST-(CTO) GEN 22C78 Contact Us For Availability
45
COLL BOX GASKET 3-5 BURNER-(CTO) GEN 12K80 Contact Us For Availability
59
100684-07 SWITCH-PRESSURE Orange 0.1" wc GEN 65W63 Contact Us For Availability
130
LABEL - WIRING DIAGRAM 14 GE-(CTO) GEN 537659-02 Contact Us For Availability
153
DIST ASSY 6TUBE W/PISTON .064-(CTO) GEN 18Y26 Contact Us For Availability
158
ORIFICE RING 22 I.D. X 6 -(CTO) GEN 12J47 Contact Us For Availability
250
ASSY-COIL 1 ROW COND-(CTO) GEN 12J52 Contact Us For Availability
267
100483-33 Cond Fan MTR 1/6HP 208-230-1 GEN 92W51 Contact Us For Availability
268
Fan Assy 4 BLD 24 PITCH CCW-(CTO) GEN 10W78 Contact Us For Availability
271
100335-43 CAPACITOR 45+5 @ 370V ROUND GEN 41W15 Contact Us For Availability
272
GROMMET-COMPRESSOR-(CTO) GEN R100303-01 Contact Us For Availability
273
BOLT & SLEEVE COMBINATION-(CTO) GEN R100301-04 Contact Us For Availability
276
HARNESS-COMP MOLDED PLUG-(CTO) GEN 14N17 Contact Us For Availability
278
CONTACTOR-SPST 25FLA/35RES GEN 10F73 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
309
PAN-DRAIN PLASTIC INSUL SM-(CTO) GEN 22C74 Contact Us For Availability
314
WIRE HARN PRI 230/460 3P GE-(CTO) GEN 21V36 Contact Us For Availability
949
VENT HOOD-(CTO) GEN 12B75 Contact Us For Availability
952
PANEL-BLOWER ACCESS SM-(CTO) GEN R622285-02E Contact Us For Availability
954
PANEL-LOUVER FRONT SMALL-(CTO) GEN R621996-01E Contact Us For Availability
962
PANEL -UTILITY G/E SM-(CTO) GEN R622288-01E Contact Us For Availability
967
COVER DUCT HORIZONTAL SM-(CTO) GEN R622313-02E Contact Us For Availability
970
POST-CORNER SMALL-(CTO) GEN R621894-01E Contact Us For Availability
978
PANEL -COMPRESSOR ACCESS SM-(CTO) GEN R621888-02E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J45 Contact Us For Availability
990
PANEL -REAR SM 3DR ARM TXT GRAY-(CTO) GEN R622635-03 Contact Us For Availability
992
PANEL-LOUVER LEFT SIDE SMALL GEN R621890-02E Contact Us For Availability
997
PANEL TOP SM ARMSTRONG TXT GRAY-(CTO) GEN R611267-02E Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-04 Contact Us For Availability
9998
TOP GEA BADGE GEN 107213-01 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
