Model GE NP13G36SR0900 Room Air Conditioner Built In – Common Parts & Diagrams

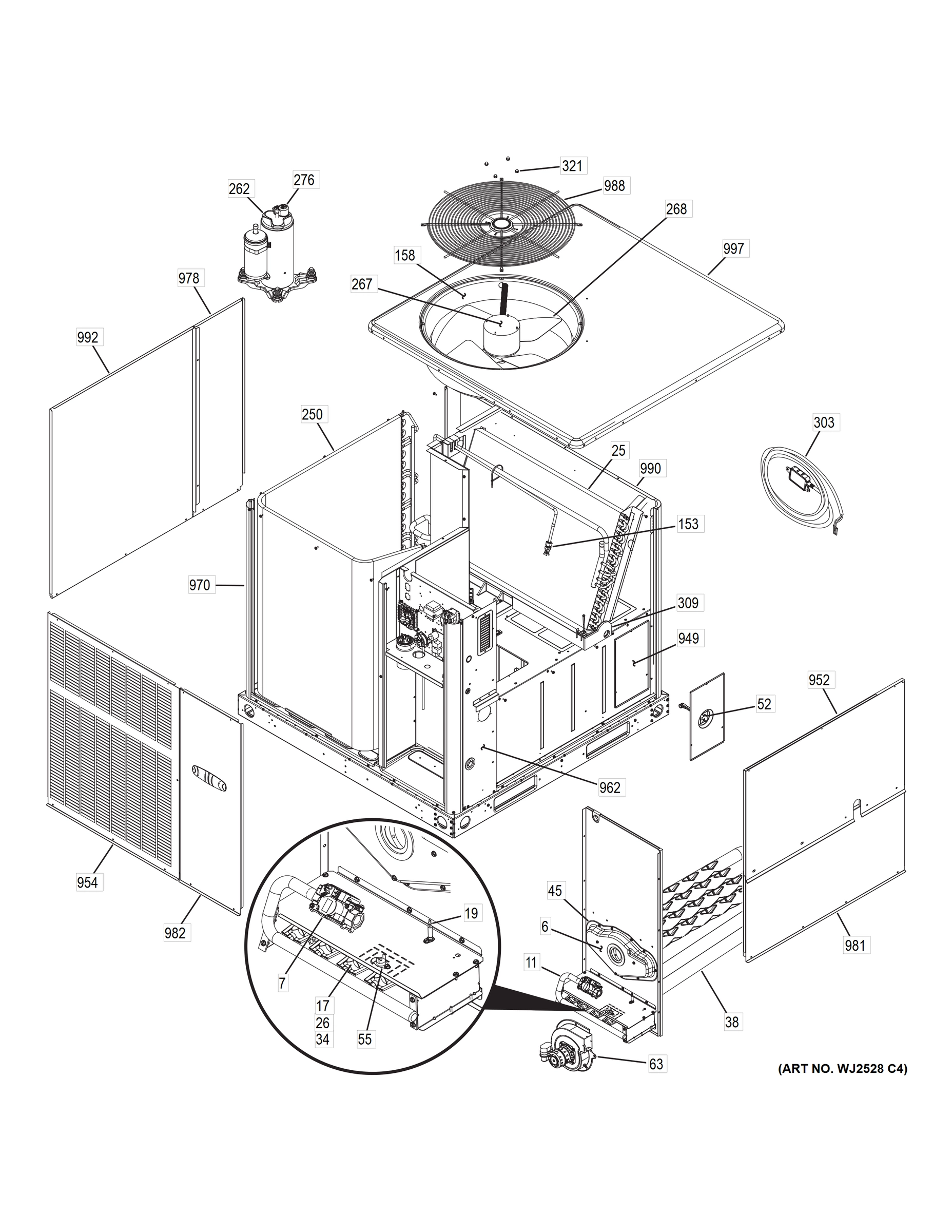

CABINET (1)
CABINET (2)
Common parts from model GE NP13G36SR0900 Room Air Conditioner Built In
1
104824-02 TRANSFORMER 208/240V SEC 24V 6 GEN 24Z05 Contact Us For Availability
4
ASSY-P.C.BOARD REFRIGERENT CONTROLLER-AL GEN 108271-01 Contact Us For Availability
6
BOX-COLLECTOR-(CTO) GEN 12L02 Contact Us For Availability
11
ASSY-MANIFOLD GAS 5 BURNER-(CTO) GEN 12L05 Contact Us For Availability
17
ORIFICE #47 -(CTO) GEN 12L08 Contact Us For Availability
19
104160-01 SENSOR FLAME GEN 12L09 Contact Us For Availability
24
104278-01 CONTROL-IGNITION GEN 12J99 Contact Us For Availability
25
ASSY-COIL EVAP 20 x 32, 3R-(CTO) GEN 18Y06 Contact Us For Availability
26
IGNITOR GEN 49M85 Contact Us For Availability
34
BURNER, INSHOT-(CTO) GEN 60M56 Contact Us For Availability
38
622625-03 HEAT EXCH SM 5TU W/VEST-(CTO) GEN 22C78 Contact Us For Availability
45
COLL BOX GASKET 3-5 BURNER-(CTO) GEN 12K80 Contact Us For Availability
59
100684-07 SWITCH-PRESSURE Orange 0.1" wc GEN 65W63 Contact Us For Availability
70
HARNESS-WIRING CT G/E GEN 108084-01 Contact Us For Availability
71
MOTOR MOUNT BAND KIT-(CTO) GEN 50W89 Contact Us For Availability
72
622523-02 KIT ARM-MOTOR MTG 3 LEGS (CTO) GEN 21A89 Contact Us For Availability
74
BLOWER HOUSING & WHEEL 10 X 8 -(CTO) GEN 12L16 Contact Us For Availability
153
DISTR 6 TUBE PSTN SZ 58 (INDOOR) (CTO) GEN 100579-120 Contact Us For Availability
156
RAIL BLOWER-(CTO) GEN 12B76 Contact Us For Availability
158
ORIFICE RING 22 I.D. X 6 -(CTO) GEN 12J47 Contact Us For Availability
250
ASSY-COIL 1 ROW COND-(CTO) GEN 12J52 Contact Us For Availability
262
107710-65 COMP YA29K1E-PFV 2.5 R454 230/ GEN 27U02 Contact Us For Availability
267
100483-33 Cond Fan MTR 1/6HP 208-230-1 GEN 92W51 Contact Us For Availability
268
Fan Assy 4 BLD 24 PITCH CCW-(CTO) GEN 10W78 Contact Us For Availability
271
100335-08 Dual Run Cap 40+5 @ 370V ROUND GEN 89M76 Contact Us For Availability
276
HARNESS-COMP MOLDED PLUG-(CTO) GEN 14N17 Contact Us For Availability
278
107638-04 CONTACTOR SPST 24V 35A GEN 28G86 Contact Us For Availability
297
100087-15 SWITCH-LO PRESS GEN 12L21 Contact Us For Availability
301
DRIER R410A - ONE WAY - 55G-(CTO) GEN 12K40 Contact Us For Availability
303
627693-01 COIL SENSOR REPAIR KIT (CTO) GEN 27V53 Contact Us For Availability
309
PAN-DRAIN PLASTIC INSUL SM-(CTO) GEN 22C74 Contact Us For Availability
314
RDS INTEGRATED BOARD (CTO) GEN 29B47 Contact Us For Availability
316
HARNESS-WIRING OD FAN-(CTO) GEN 13K20 Contact Us For Availability
317
106908-01 HARNESS-WIRING HARNESS GEN 22B76 Contact Us For Availability
321
Nut - Acorn (8-32)-(CTO) GEN 85M56 Contact Us For Availability
949
COVER DUCT HORIZONTAL - (CTO) GEN R621895-02E Contact Us For Availability
952
PANEL-BLOWER ACCESS SM-(CTO) GEN R622285-02E Contact Us For Availability
954
PANEL-LOUVER FRONT SMALL-(CTO) GEN R621996-01E Contact Us For Availability
962
627757-01LITY G/E SM (CTO) GEN 627727-01E Contact Us For Availability
970
POST-CORNER SMALL-(CTO) GEN R621894-01E Contact Us For Availability
978
PANEL -COMPRESSOR ACCESS SM-(CTO) GEN R621888-02E Contact Us For Availability
981
PANEL -HEAT EXCHANGER ACCESS-(CTO) GEN R621892-01E Contact Us For Availability
982
CNTRL PANEL AC/HP (CTO) GEN 27U46 Contact Us For Availability
988
GUARD-FAN WIRE BLK DIA 27.134-(CTO) GEN 12J45 Contact Us For Availability
990
PANEL -REAR SM 3DR ARM TXT GRAY-(CTO) GEN R622635-03 Contact Us For Availability
992
PANEL-LOUVER LEFT SIDE SMALL GEN R621890-02E Contact Us For Availability
997
PANEL TOP SM ARMSTRONG TXT GRAY-(CTO) GEN R611267-02E Contact Us For Availability
× ![]()
