Model GE NF96U135S5DR02 – Common Parts & Diagrams

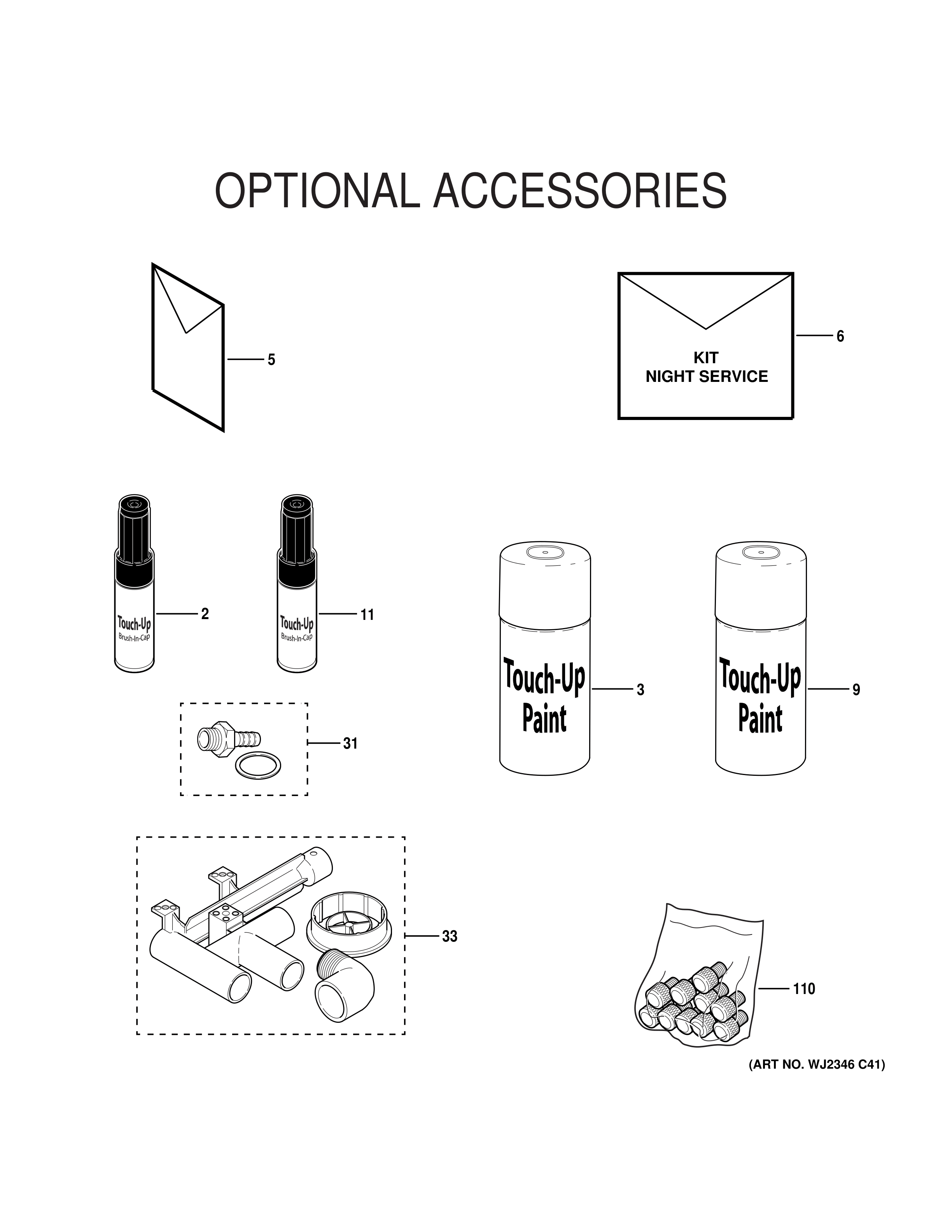

OPTIONAL ACCESSORIES
CABINET (1)
CABINET (2)
Common parts from model GE NF96U135S5DR02
2
TOUCH UP PAINT -BLACK UMBRA-(CTO) GEN 91M33 Contact Us For Availability
3
ARMSTRONG TEXT PLT GRAY (TOP&CAB)-(CTO) GEN R00419B165 Contact Us For Availability
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
KIT - NAT TO LPG CONV GEN 28G61 Contact Us For Availability
6
NIGHT SVCKIT-A95UH/DF2,95G2-(CTO) GEN 84W50 Contact Us For Availability
9
Aerosol - ALT - Black Umbra 12oz (CTO) GEN 25C82 Contact Us For Availability
11
PEN ALT - BLACK UMBRA GEN 25F19 Contact Us For Availability
13
HOSE DRAIN-(CTO) GEN 98W72 Contact Us For Availability
20
104371-09 Pressure Switch Kit 0.90" GEN 10U94 Contact Us For Availability
30
IGNITION CONTROL GEN 27P19 Contact Us For Availability
33
DRAIN TRAP BAG ASSY-(CTO) GEN 95W17 Contact Us For Availability
40
GAS VALVE W/BARB GEN 31F87 Contact Us For Availability
50
LB-94724AE Assy-Blower (Replacemt-Comb) GEN 93W13 Contact Us For Availability
60
102907-01 Roll Out Switch (210F) GEN 71W49 Contact Us For Availability
70
MOUNT-MOTOR-(CTO) GEN 32M17 Contact Us For Availability
72
MOTOR-BLOWER ONLY (module sold separate) GEN 10B67 Contact Us For Availability
73
SLEEVE-(CTO) GEN 42W05 Contact Us For Availability
74
GROMMET-(CTO) GEN 43H81 Contact Us For Availability
75
ARM-MOTOR MTG-(CTO) GEN 49L97 Contact Us For Availability
76
KIT, MOTOR MODULE GEN 24K48 Contact Us For Availability
90
WHEEL-BLOWER-(CTO) GEN 36M22 Contact Us For Availability
110
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
120
LB-112237B IGNITOR ASSY-(CTO) GEN 70W16 Contact Us For Availability
130
Flue-Exhaust-(CTO) GEN 71W26 Contact Us For Availability
140
MANIFOLD-GAS-(CTO) GEN 71W25 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
181
TRANSFORMER POWER CHOKE-(CTO) GEN 10Y66 Contact Us For Availability
210
LB-74940B Flame Sensor Kit (102431-02) GEN 69W43 Contact Us For Availability
250
SIGHT GLASS-(CTO) GEN 49L04 Contact Us For Availability
251
SIGHT GLASS-(CTO) GEN 73W21 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
501
KIT -COLLECTOR BOX 105672-13-(CTO) GEN 16U08 Contact Us For Availability
700
Collar-Air Inlet-(CTO) GEN 71W27 Contact Us For Availability
720
HOSE DRAIN (UH)-(CTO) GEN 71W36 Contact Us For Availability
820
Flue Coupling Service Kit-(CTO) GEN 14K09 Contact Us For Availability
1050
WIRING DIAGRAM-(CTO) GEN 537437-01 Contact Us For Availability
2070
HEAT EXCH ASSY (612216-45)-(CTO) GEN 13X35 Contact Us For Availability
2110
HOUSING-BLOWER-(CTO) GEN 70W42 Contact Us For Availability
2120
PLATE-CUTOFF-(CTO) GEN 69W08 Contact Us For Availability
2225
ASSY BURNER (12)-(CTO) GEN 69W91 Contact Us For Availability
2226
BRACKET-BURNER MTG-L-(CTO) GEN 69W93 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2330
PANEL-UPPER-(CTO) GEN 73W62 Contact Us For Availability
2340
PANEL-LOWER-(CTO) GEN 73W63 Contact Us For Availability
3020
107585-03 HARNESS, WIRING - CTO GEN 24M63 Contact Us For Availability
3110
HARN-WIRE-(CTO) GEN 27M25 Contact Us For Availability
3400
MOTOR HARNESS-(CTO) GEN 20A21 Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-05 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
