Model GE NF80L070S3AR0 Room Air Conditioner Built In – Common Parts & Diagrams

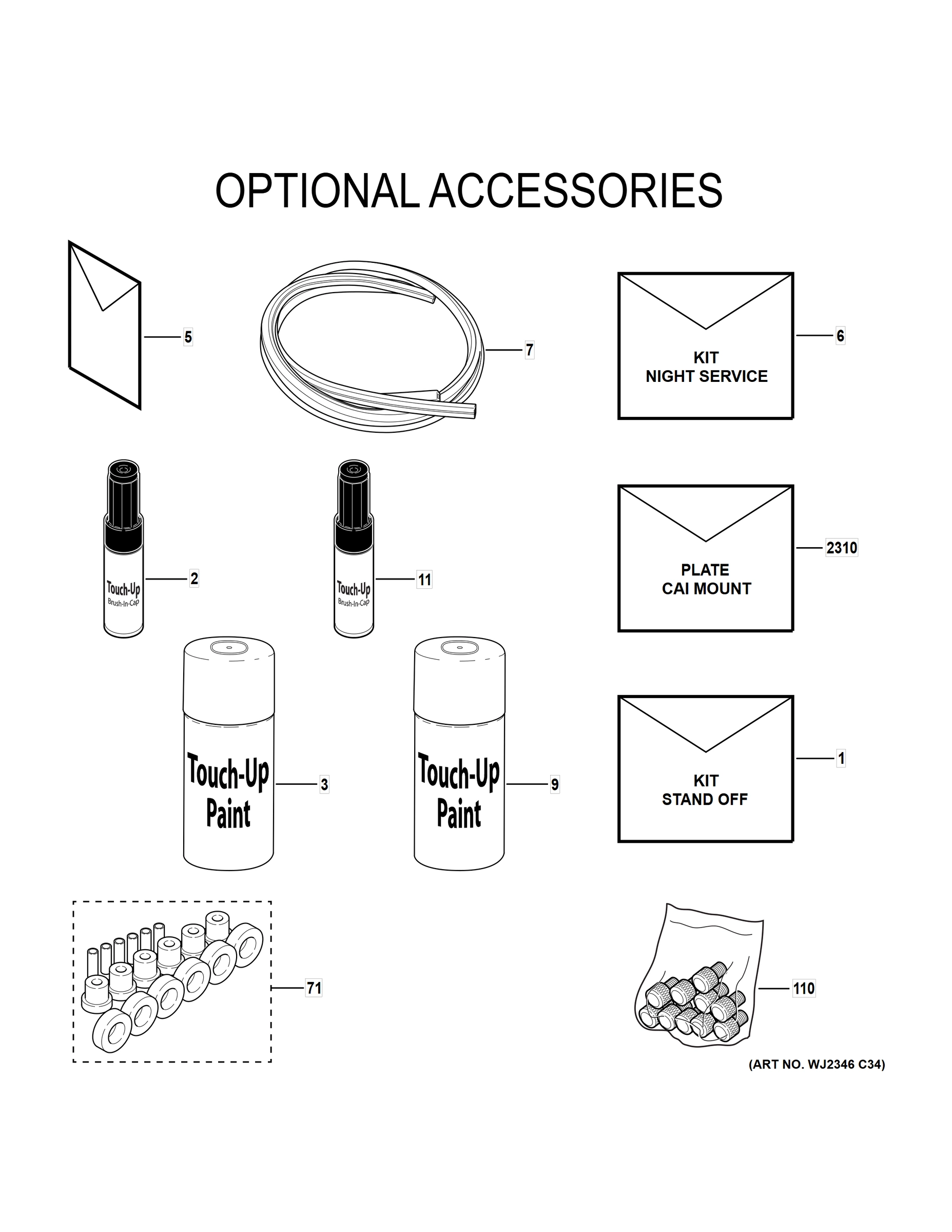

OPTIONAL ACCESSORIES

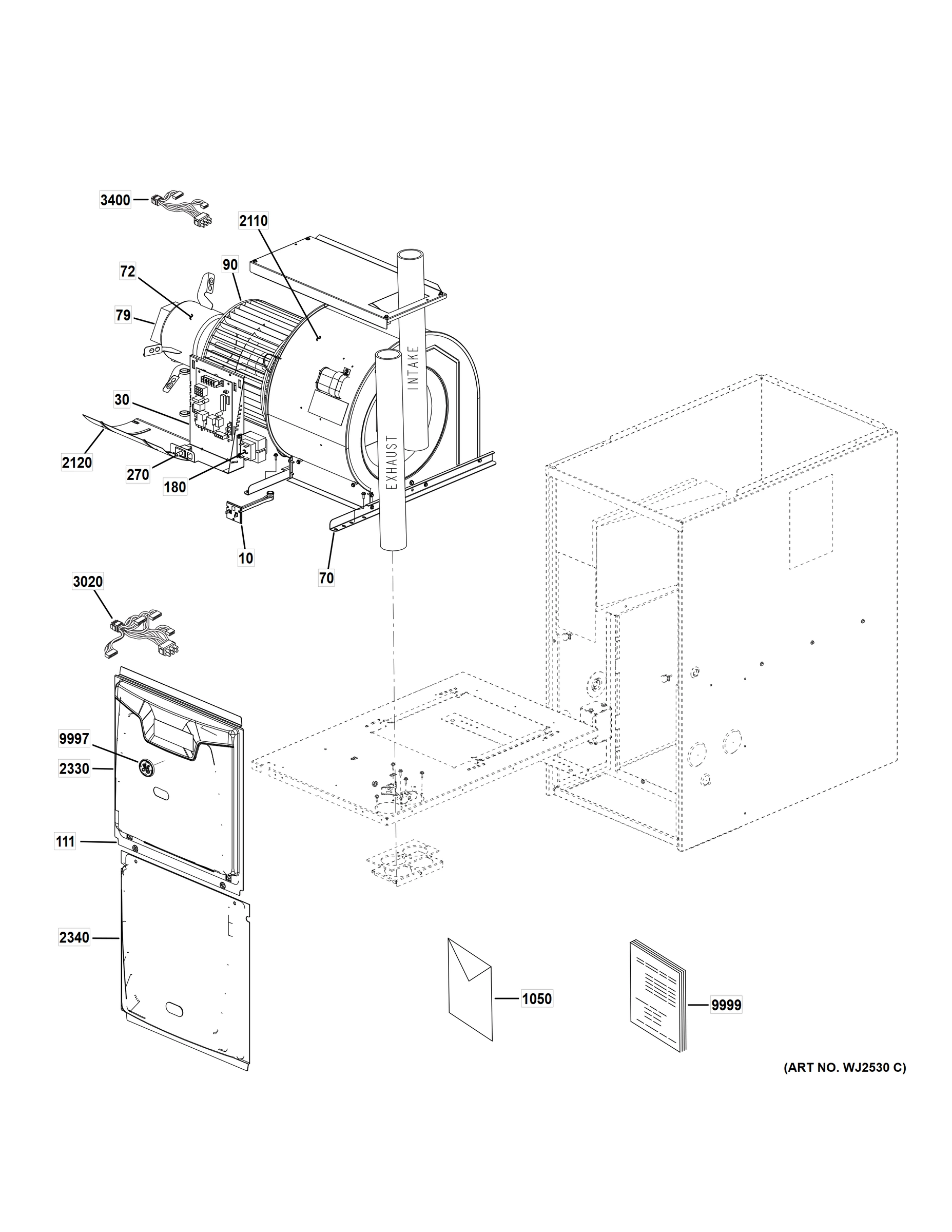

CABINET (1)

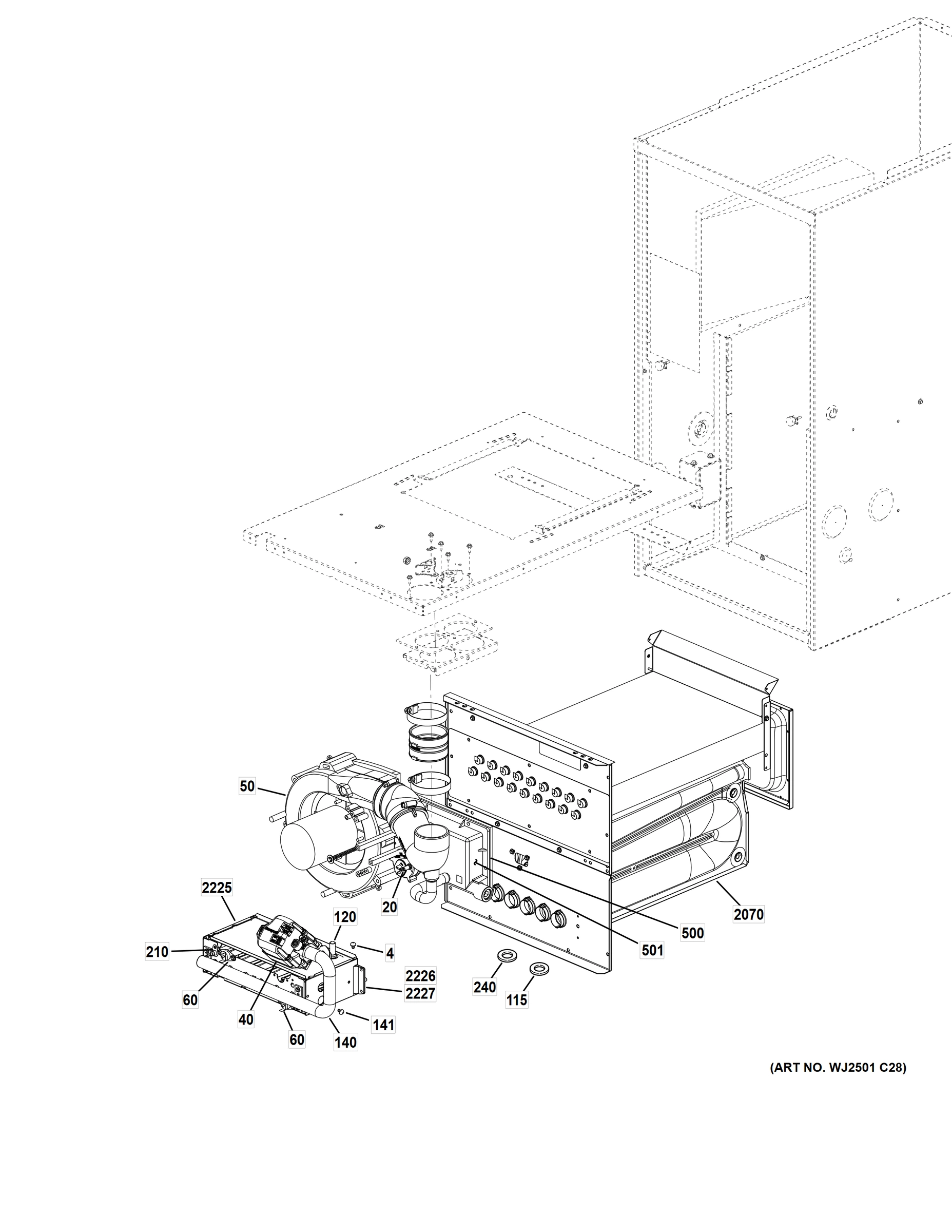

CABINET (2)
Common parts from model GE NF80L070S3AR0 Room Air Conditioner Built In
1
KIT-SSSTAND OFF-(CTO) GEN 48M39 Contact Us For Availability
2
TOUCH UP PAINT -BLACK UMBRA-(CTO) GEN 91M33 Contact Us For Availability
3
ARMSTRONG TEXT PLT GRAY (TOP&CAB)-(CTO) GEN R00419B165 Contact Us For Availability
4
Orifice-LP .034 GEN 71W48 Contact Us For Availability
5
KIT - NAT TO LPG CONV GEN 28G61 Contact Us For Availability
6
NIGHT SERVICE KIT-(CTO) GEN 86W57 Contact Us For Availability
7
LB-97803A TUBING-PRESSURE SWITCH GEN 98L78 Contact Us For Availability
9
Aerosol - ALT - Black Umbra 12 oz can GEN 25C82 Contact Us For Availability
11
PEN ALT - BLACK UMBRA GEN 25F19 Contact Us For Availability
20
103247-05 Switch-Pressure .68 GEN 80W53 Contact Us For Availability
30
IGNITION CONTROL GEN 27P19 Contact Us For Availability
40
102837-01 VALVE-GAS (NAT) GEN 73W17 Contact Us For Availability
50
BLOWER-COMB AIR S/A-(CTO) GEN 74W55 Contact Us For Availability
60
102907-01 Roll Out Switch (210F) GEN 71W49 Contact Us For Availability
70
MOUNT MOTOR-(CTO) GEN 18M68 Contact Us For Availability
71
BLWR HARDWARE KIT-(CTO) GEN 71M48 Contact Us For Availability
72
624623-01 MOTOR REPL 1/2HP 115V CT GEN 23V71 Contact Us For Availability
79
607363-12 MODULE ONLY (PROGRAMMED) GEN 10B05 Contact Us For Availability
90
WHEEL-BLOWER-(CTO) GEN 89J10 Contact Us For Availability
110
HARDWARE KIT(Pkg 10)-(CTO) GEN 97M37 Contact Us For Availability
111
PNL FILLER DOOR TRIM-(CTO) GEN 74W13 Contact Us For Availability
115
INSERT NOX (2 HOLES)-(CTO) GEN 97W28 Contact Us For Availability
120
LB-112237B IGNITOR ASSY-(CTO) GEN 70W16 Contact Us For Availability
140
MANIFOLD-GAS-(CTO) GEN 74W71 Contact Us For Availability
141
ORIFICE-NAT-1/16-(CTO) GEN 69W27 Contact Us For Availability
180
42J3201 TRANSFORMER GEN 42J32 Contact Us For Availability
210
LB-74940B Flame Sensor Kit (102431-02) GEN 69W43 Contact Us For Availability
240
GASKET-ORIFICE PLATE-(CTO) GEN 69W51 Contact Us For Availability
270
SWITCH-INTERLOCK-(CTO) GEN 51W15 Contact Us For Availability
500
GASKET-COLL BOX-(CTO) GEN 69W45 Contact Us For Availability
501
BOX-COLLECTOR-(CTO) GEN 68W90 Contact Us For Availability
1050
STICKER - WIRING DIAGRAM-(CTO) GEN 537573-01 Contact Us For Availability
2070
ASSY HEAT EXCH (610280-16)-(CTO) GEN 14D73 Contact Us For Availability
2110
HSG-BLWR 10X8 612256-02-(CTO) GEN 57M87 Contact Us For Availability
2120
BLWR HSG CUTOFF PLATE-(CTO) GEN 68W48 Contact Us For Availability
2225
BURNER ASSY (070)-(CTO) GEN 69W88 Contact Us For Availability
2226
BURNER BRKT MTG-LEFT-(CTO) GEN 13U07 Contact Us For Availability
2227
104595-01 BURNER BRKT MTG-RT-(CTO) GEN 13U06 Contact Us For Availability
2310
PLATE-CAI MOUNT (1.063)-(CTO) GEN 74W32 Contact Us For Availability
2330
PANEL-UPPER-(CTO) GEN 73W62 Contact Us For Availability
2340
PANEL-LOWER-(CTO) GEN 73W63 Contact Us For Availability
3020
HARNESS-WIRING-(CTO) GEN 82W06 Contact Us For Availability
9997
SIDE GEA BADGE GEN 107213-05 Contact Us For Availability
9999
PM OTHER GEN 31-5000644 Contact Us For Availability
× ![]()
