Model Maytag NEC3240FW0 ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

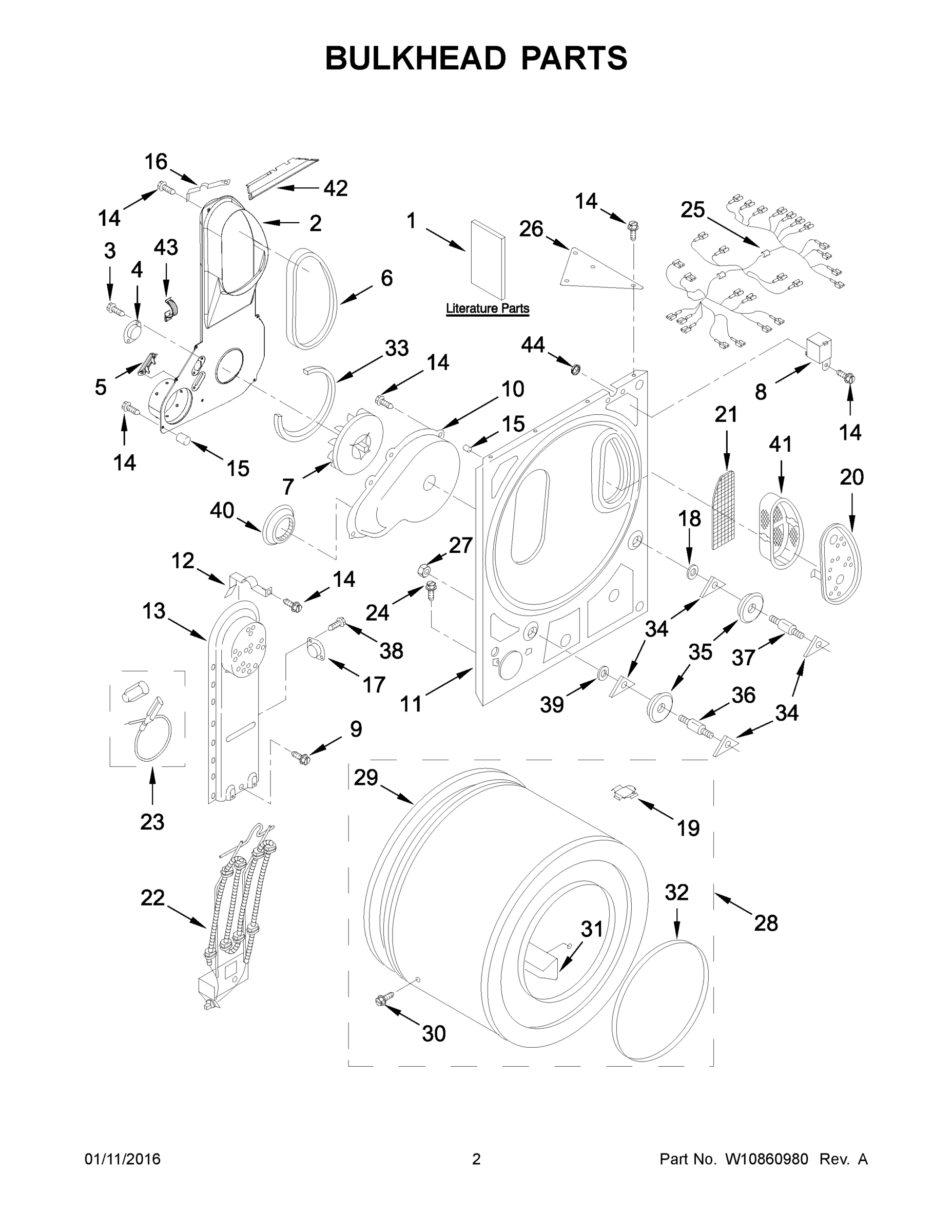

02 - BULKHEAD PARTS

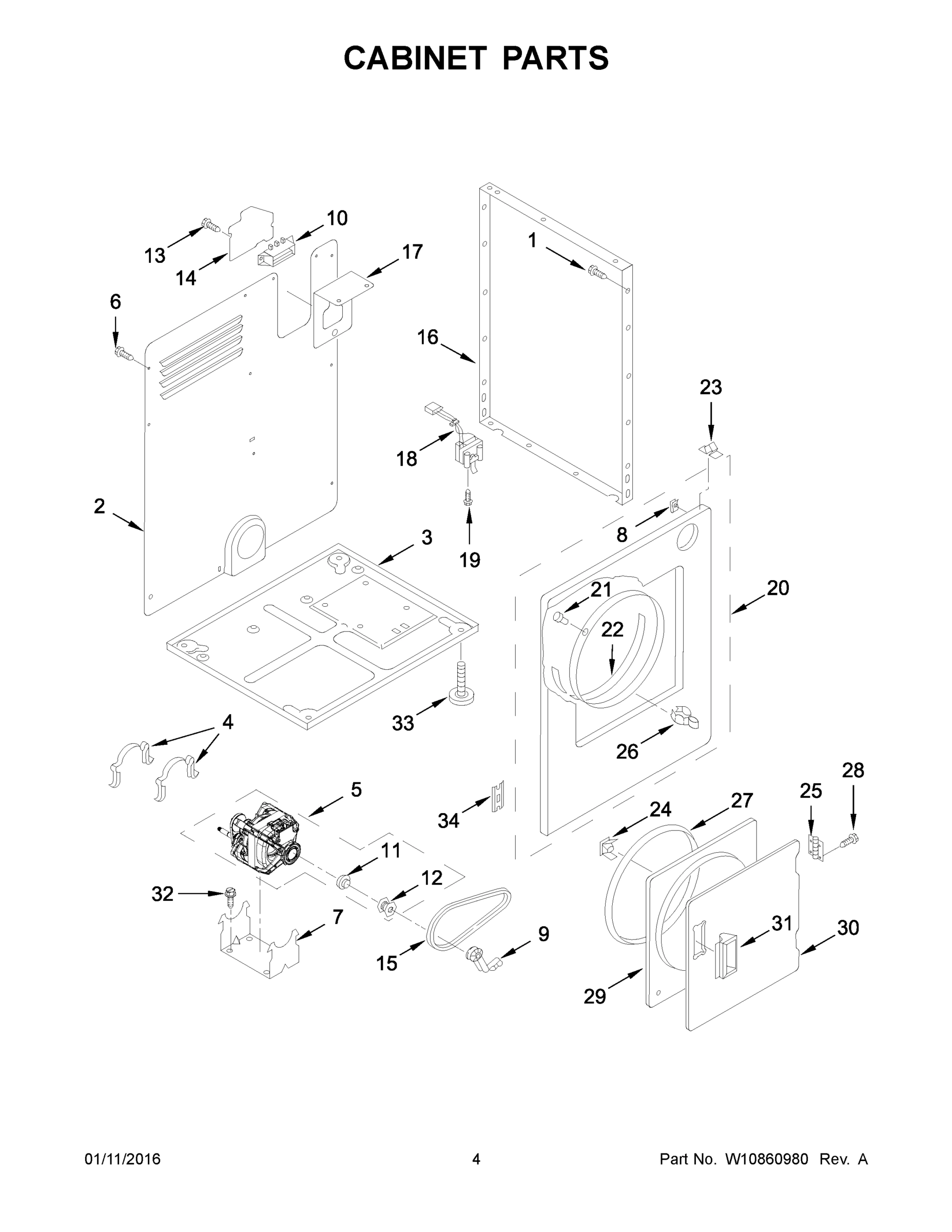

03 - CABINET PARTS

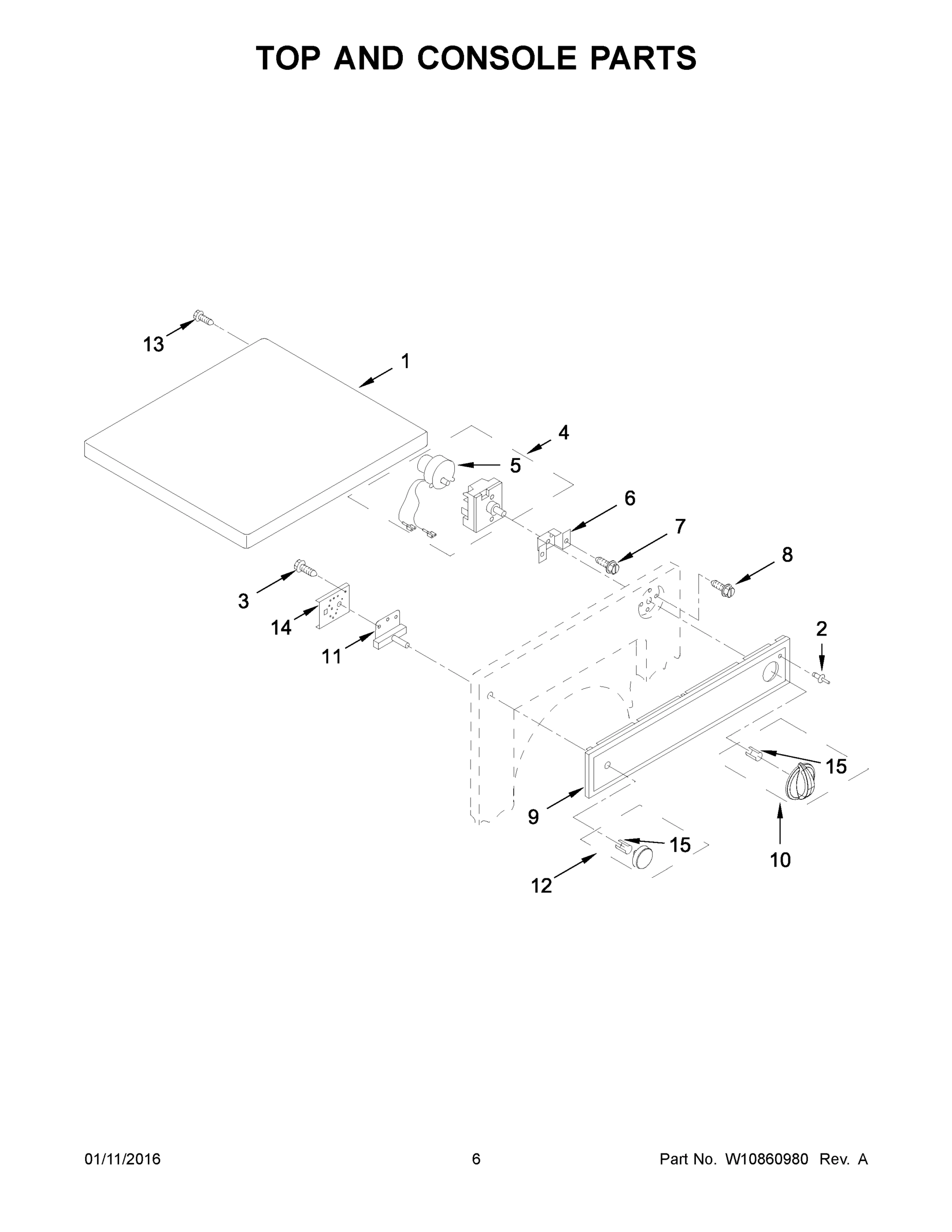

04 - TOP AND CONSOLE PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag NEC3240FW0 ELECTRIC DRYER
1
MAY W10773360 MAY W10773360 Contact Us For Availability
1
MAY 345703 MAY 345703 Contact Us For Availability
1A
MAY W10488815 MAY W10488815 Contact Us For Availability
2
MAY 696545 MAY 696545 Contact Us For Availability
2
MAY 695201 MAY 695201 Contact Us For Availability
2
RIVET, POP MAY 307563 Contact Us For Availability
3
MAY 348726 MAY 348726 Contact Us For Availability
3
SCREW MAY 3390631 Contact Us For Availability
4
MAY 3398128 MAY 3398128 Contact Us For Availability
4
MAY 660658 MAY 660658 Contact Us For Availability
4
MAY 8563882 MAY 8563882 Contact Us For Availability
5
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
5
TIMER MOTOR (NOT SERVICEABLE) MAY N/P Contact Us For Availability
5
MOTOR, MAIN DRIVE (60 HZ) MAY W10396037 Contact Us For Availability
6
MAY 339956 MAY 339956 Contact Us For Availability
6
MAY 8533974 MAY 8533974 Contact Us For Availability
6
MAY 348171 MAY 348171 Contact Us For Availability
7
MAY 696426 MAY 696426 Contact Us For Availability
7
BASE, MOTOR MAY 696541 Contact Us For Availability
7
MAY 3400882 MAY 3400882 Contact Us For Availability
8
SCREW MAY 8533971 Contact Us For Availability
8
MAY W10503559 MAY W10503559 Contact Us For Availability
8
CLIP, GROUND MAY 98234 Contact Us For Availability
9
SCREW MAY 489463 Contact Us For Availability
9
IDLER ASSEMBLY MAY 691366 Contact Us For Availability
9
MAY W10772596 MAY W10772596 Contact Us For Availability
10
MAY 696419 MAY 696419 Contact Us For Availability
10
MAY 3397659 MAY 3397659 Contact Us For Availability
10
ASSEMBLY, TIMER KNOB (WHITE) MAY 8544955 Contact Us For Availability
11
MAY 695931 MAY 695931 Contact Us For Availability
11
MAY 3393657 MAY 3393657 Contact Us For Availability
11
MAY W10503561 MAY W10503561 Contact Us For Availability
12
MAY 3398161 MAY 3398161 Contact Us For Availability
12
MAY 8066051 MAY 8066051 Contact Us For Availability
12
ASSEMBLY, PUSH-TO-START KNOB (WHITE) MAY 8544939 Contact Us For Availability
13
MAY 3401380 MAY 3401380 Contact Us For Availability
13
SCREW MAY 343641 Contact Us For Availability
13
MAY 3393008 MAY 3393008 Contact Us For Availability
14
MAY W10509545 MAY W10509545 Contact Us For Availability
14
MAY 3406860 MAY 3406860 Contact Us For Availability
15
MAY 359702 MAY 359702 Contact Us For Availability
15
MAY 8066064 MAY 8066064 Contact Us For Availability
15
CLIP, SPRING MAY 8536939 Contact Us For Availability
16
MAY 9830393 MAY 9830393 Contact Us For Availability
16
MAY 348705 MAY 348705 Contact Us For Availability
17
THERMOSTAT, HIGH LIMIT (200~/160F) MAY 3404154 Contact Us For Availability
17
SUPPORT, TERMINAL BLOCK MAY 690259 Contact Us For Availability
18
WASHER MAY 348197 Contact Us For Availability
18
DOOR SWITCH ASSEMBLY MAY 3406104 Contact Us For Availability
19
PLUG, DRUM HOLE MAY 8066086 Contact Us For Availability
19
SCREW MAY 697773 Contact Us For Availability
20
COVER, LINT SCREEN OUTLET MAY 8531967 Contact Us For Availability
20
MAY 8066229 MAY 8066229 Contact Us For Availability
21
CLIP, FELT PAD MAY 685203 Contact Us For Availability
22
MAY 3403586 MAY 3403586 Contact Us For Availability
22
SEAL AND BEARING ASSEMBLY MAY 8066123 Contact Us For Availability
23
MAY 279457 MAY 279457 Contact Us For Availability
23
LOCK TOP MAY 345670 Contact Us For Availability
24
MAY 342202 MAY 342202 Contact Us For Availability
24
ASSEMBLY, DOOR CATCH MAY 3389441 Contact Us For Availability
25
WIRING HARNESS (INCLUDES FUSE) MAY W10488665 Contact Us For Availability
25
HINGE AND PIN ASSEMBLY MAY 348023 Contact Us For Availability
26
GUSSET MAY 345325 Contact Us For Availability
26
MAY 696144 MAY 696144 Contact Us For Availability
27
MAY W10298789 MAY W10298789 Contact Us For Availability
27
MAY W10823581 MAY W10823581 Contact Us For Availability
28
DRUM ASSEMBLY COMPLETE MAY 695943 Contact Us For Availability
28
MAY 342055 MAY 342055 Contact Us For Availability
29
SEAL, DRUM REAR MAY 345648 Contact Us For Availability
29
MAY 695656 MAY 695656 Contact Us For Availability
30
MAY W10219342 MAY W10219342 Contact Us For Availability
30
MAY 348205 MAY 348205 Contact Us For Availability
31
BAFFLE, DRUM MAY 685207 Contact Us For Availability
31
MAY 8562104 MAY 8562104 Contact Us For Availability
32
RING, BEARING MAY 3394508 Contact Us For Availability
33
SEAL, FAN SCROLL MAY 8066094 Contact Us For Availability
33
FOOT, FRONT MAY W10001130 Contact Us For Availability
34
MAY W10512946 MAY W10512946 Contact Us For Availability
34
MAY W10775448 MAY W10775448 Contact Us For Availability
35
MAY 3397590 MAY 3397590 Contact Us For Availability
36
MAY W10359269 MAY W10359269 Contact Us For Availability
37
MAY W10359270 MAY W10359270 Contact Us For Availability
38
SCREW MAY 90767 Contact Us For Availability
39
WASHER MAY 3388703 Contact Us For Availability
40
MAY W10389567 MAY W10389567 Contact Us For Availability
41
MAY 8531964 MAY 8531964 Contact Us For Availability
42
MAY W10524700 MAY W10524700 Contact Us For Availability
43
CLIP MAY 98997 Contact Us For Availability
44
MAY 8066084 MAY 8066084 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
