Model LG ND8630 – Common Parts & Diagrams

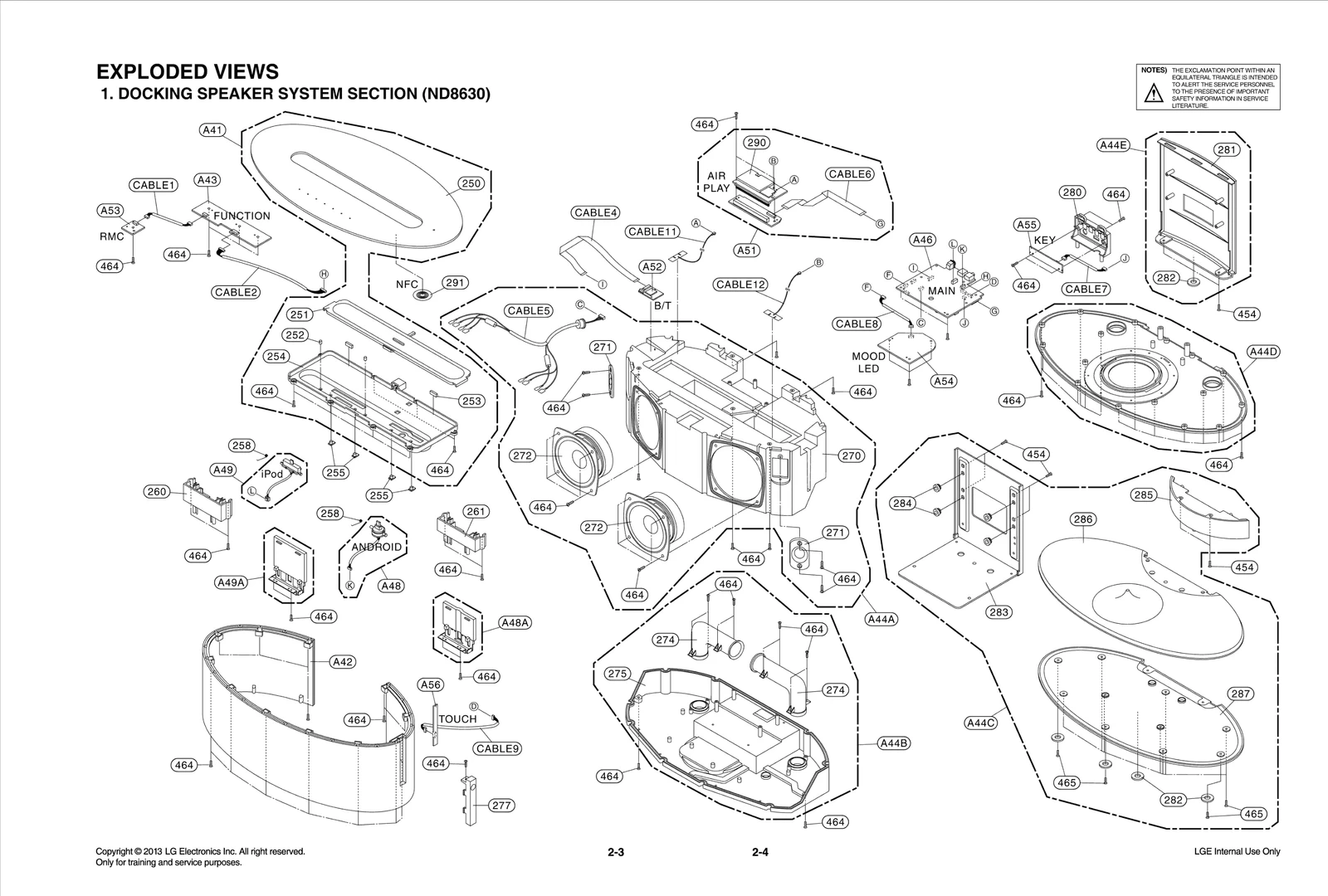

Diagram 0

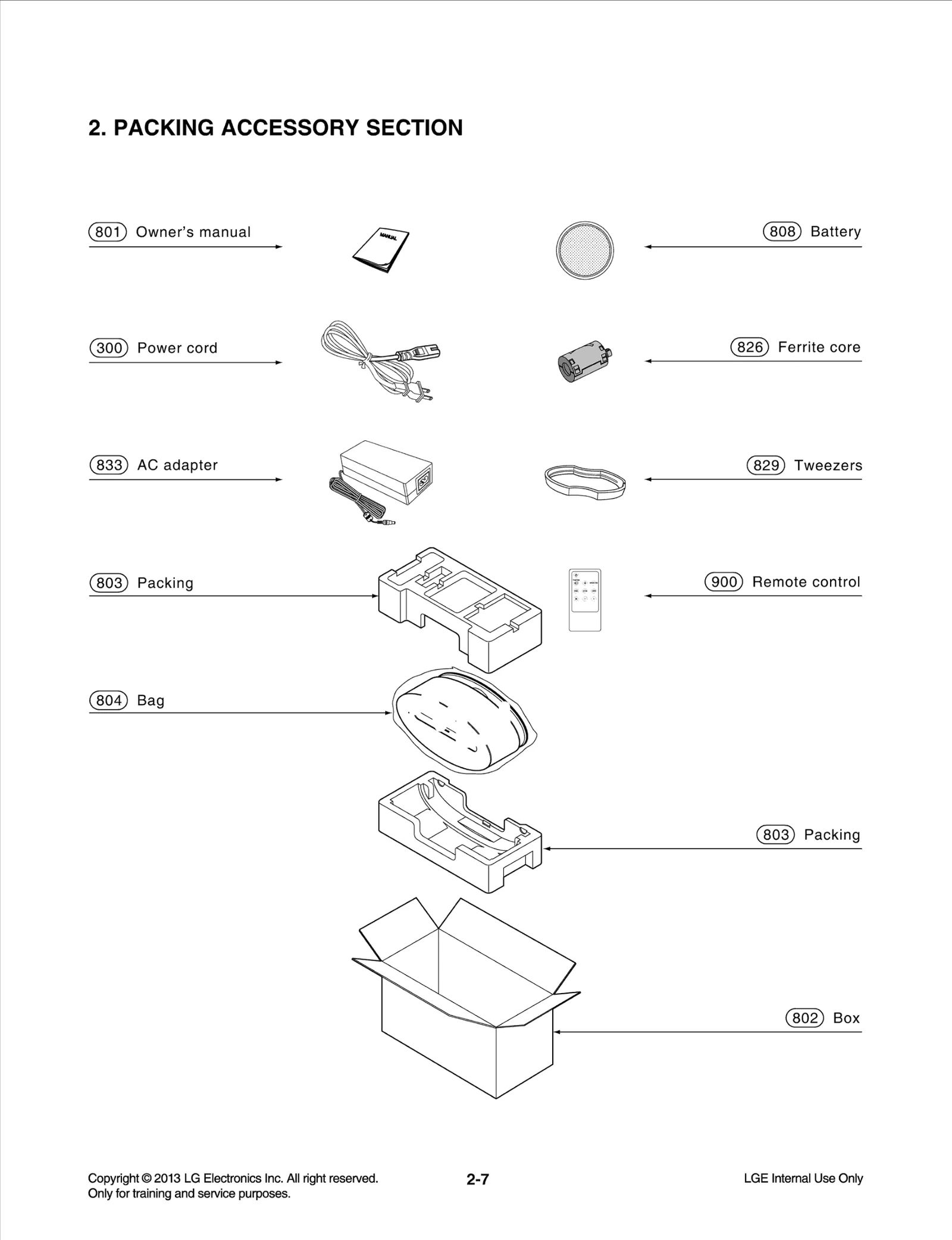

Diagram 1
Diagram 2
Common parts from model LG ND8630
250
Cover LGE MCK67648101 Contact Us For Availability
251
Door LGE MCV62873301 Contact Us For Availability
252
Damper LGE MCQ67064904 Contact Us For Availability
253
Damper LGE MCQ67348901 Contact Us For Availability
254
Holder LGE MEG63420001 Contact Us For Availability
255
Damper LGE MCQ67371101 Contact Us For Availability
258
Spring LGE MHY62905303 Contact Us For Availability
260
Holder LGE MEG63420201 Contact Us For Availability
261
Holder LGE MEG63420101 Contact Us For Availability
270
Case LGE MBN63103401 Contact Us For Availability
271
Speaker,Tweeter LGE EAB62909601 Contact Us For Availability
272
Speaker,Woofer LGE EAB62909501 Contact Us For Availability
274
Duct LGE MCZ62952201 Contact Us For Availability
275
Cover LGE MCK67648201 Contact Us For Availability
277
Holder Assembly LGE AEJ73839601 Contact Us For Availability
280
Cover Assembly LGE ACQ86473801 Contact Us For Availability
281
Cover LGE MCK67648701 Contact Us For Availability
282
Damper LGE MCQ67346201 Contact Us For Availability
283
Frame LGE MDQ63576501 Contact Us For Availability
284
Damper LGE MCQ67365101 Contact Us For Availability
285
Cover LGE MCK67626701 Contact Us For Availability
286
Cover LGE MCK67648501 Contact Us For Availability
287
Cover LGE MCK67648601 Contact Us For Availability
290
Module,WLAN LGE EAT61795501 Contact Us For Availability
291
Module,Assembly LGE EAT61873301 Contact Us For Availability
291A
S/W,System Program LGE SAA36491701 Contact Us For Availability
300
Power Cord LGE EAD62425702 Contact Us For Availability
454
Screw,Customized LGE 1SZZR-0098W Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75935042 Contact Us For Availability
802
Box LGE MAY65978011 Contact Us For Availability
803
Packing LGE MFZ63551607 Contact Us For Availability
804
Bag,Vinyl LGE MAF62487610 Contact Us For Availability
808
Battery,Manganese LGE 6910FV3509B Contact Us For Availability
829
Holder LGE MEG63420301 Contact Us For Availability
833
Adapters LGE EAY62771603 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73657621 Contact Us For Availability
A41
Cover Assembly LGE ACQ86552103 Contact Us For Availability
A42
Frame Assembly LGE ADV74586201 Contact Us For Availability
A43
Auto SMT PCB Assembly LGE EBR77514601 Contact Us For Availability
A44A
Case Assembly LGE ABQ74300601 Contact Us For Availability
A44B
Cover Assembly LGE ACQ86511501 Contact Us For Availability
A44C
Frame Assembly LGE ADV74545901 Contact Us For Availability
A44D
Cover Assembly LGE ACQ86473901 Contact Us For Availability
A44E
Cover Assembly LGE ACQ86511901 Contact Us For Availability
A46
Auto SMT PCB Assembly LGE EBR77352201 Contact Us For Availability
A48
Board Assembly LGE AAX74007902 Contact Us For Availability
A48A
Supporter Assembly LGE AJJ73898401 Contact Us For Availability
A49
Board Assembly LGE AAX74008302 Contact Us For Availability
A49A
Supporter Assembly LGE AJJ73898501 Contact Us For Availability
A51
PCB Assembly LGE EBR77169101 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61795402 Contact Us For Availability
A52A
S/W,System Program LGE SAA36476302 Contact Us For Availability
A53
Auto SMT PCB Assembly LGE EBR77564501 Contact Us For Availability
A54
Auto SMT PCB Assembly LGE EBR77564601 Contact Us For Availability
A55
Auto SMT PCB Assembly LGE EBR77514501 Contact Us For Availability
A56
Auto SMT PCB Assembly LGE EBR77351501 Contact Us For Availability
C30
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C100
Capacitor,Ceramic,Chip LGE 0CH1331K412 Contact Us For Availability
C101
Capacitor,AL,Chip LGE EAE35907101 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C126
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C316
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C401
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C566
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C568
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C571
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE 0CK222DN56A Contact Us For Availability
C710
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C721
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C738
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C739
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C745
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C752
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C815
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C820
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C902
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C906
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C907
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C910
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C912
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C922
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C923
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C924
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C926
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C931
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C933
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C935
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C936
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C943
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C955
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C958
Capacitor,Ceramic,Chip LGE 0CH1102K466 Contact Us For Availability
CABLE1
Harness,Single LGE EAD33638834 Contact Us For Availability
CABLE2
Harness,Single LGE EAD33638839 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62466303 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR77234801 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD62246310 Contact Us For Availability
CABLE7
Harness,Single LGE EAD33638843 Contact Us For Availability
CABLE8
Harness,Single LGE EAD33638842 Contact Us For Availability
CABLE9
Harness,Single LGE EAD33638841 Contact Us For Availability
CABLE11
Antenna,Loop LGE EAA62908504 Contact Us For Availability
CABLE12
Antenna,Loop LGE EAA62908503 Contact Us For Availability
CN30
Connector,Wafer LGE 6630V90135B Contact Us For Availability
CN102
Connector,Wafer LGE 6602T12004E Contact Us For Availability
CN103
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN106
Connector,Wafer LGE 6630V90078H Contact Us For Availability
CN400
Connector,Wafer LGE 6630V90135F Contact Us For Availability
CN501
Connector,Wafer LGE EAG63270203 Contact Us For Availability
CN502
Connector,Wafer LGE 6630V90078D Contact Us For Availability
CN504
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00115 Contact Us For Availability
CN505
Connector,FFC/FPC/PIC LGE 6630X60083A Contact Us For Availability
CN700
Connector,Wafer LGE EAG63270202 Contact Us For Availability
CN800
Connector,Wafer LGE EAG62611105 Contact Us For Availability
CN802
Connector,Wafer LGE EAG60696902 Contact Us For Availability
D101
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D500
Diode,TVS LGE EAH62055301 Contact Us For Availability
D801
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D900
Diode,TVS LGE EAH61853401 Contact Us For Availability
D901
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
F900
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
FL501
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
IC100
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC101
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC102
IC,Line Driver LGE EAN60900101 Contact Us For Availability
IC103A
S/W,System Program LGE SAA36540501 Contact Us For Availability
IC105
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC300A
S/W,System Program LGE SAA36540601 Contact Us For Availability
IC400
IC,ROHM LGE 0IRH209000A Contact Us For Availability
IC501A
S/W,System Program LGE SAA36540401 Contact Us For Availability
IC502
IC,I/O Support Chip LGE EAN42565610 Contact Us For Availability
IC503
IC,Charger LGE EAN62786101 Contact Us For Availability
IC504
IC,Digital Signal Processors LGE EAN61018501 Contact Us For Availability
IC506
IC,SDRAM LGE EAN60700802 Contact Us For Availability
IC508
IC,Analog Switch LGE EAN62767401 Contact Us For Availability
IC509
IC,CMOS LGE EAN60070301 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62668201 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62349601 Contact Us For Availability
IC802
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC901
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC902
IC,LDO Voltage Regulator LGE EAN60989401 Contact Us For Availability
IC903
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC904
IC,DC,DC Converter LGE EAN62766801 Contact Us For Availability
JK100
Jack,Phone LGE EAG63270601 Contact Us For Availability
JK500
Connector,USB LGE EAG63217801 Contact Us For Availability
L102
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L601
Filter,Bead LGE EAM62155401 Contact Us For Availability
L705
Filter,Bead LGE EAM38769505 Contact Us For Availability
L904
Inductor,Wire Wound,Chip LGE EAP62267601 Contact Us For Availability
L906
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
LD407
LED,Chip LGE 0DLLP0058AC Contact Us For Availability
LD609
LED,Chip LGE EAV30476901 Contact Us For Availability
Q500
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q506
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q602
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
R30
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R141
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R163
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R174
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R185
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ7500C477 Contact Us For Availability
R202
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R203
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R311
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R402
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R410
Resistor,Chip LGE 0RH0392C622 Contact Us For Availability
R500
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
R536
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R561
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R575
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R579
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R584
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R599
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R616
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R709
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R727
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R730
Resistor,Chip LGE 0RH0000E622 Contact Us For Availability
R800
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R901
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R903
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R905
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
R907
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R912
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R913
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R915
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
R916
RESISTOR,METAL GLAZE LGE 0RJ3000C678 Contact Us For Availability
R917
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R918
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R922
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R933
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R935
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R937
Resistor,Chip LGE 0RH7501C422 Contact Us For Availability
R941
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
RC30
Receiver Module LGE EAV62055001 Contact Us For Availability
SW204
Switch,Tact LGE 6600R000005 Contact Us For Availability
X100
Crystal LGE EAW61645504 Contact Us For Availability
X500
Crystal LGE EAW62003401 Contact Us For Availability
× ![]()
Login and Registration Form
