Model LG ND2530 – Common Parts & Diagrams
Diagram 0

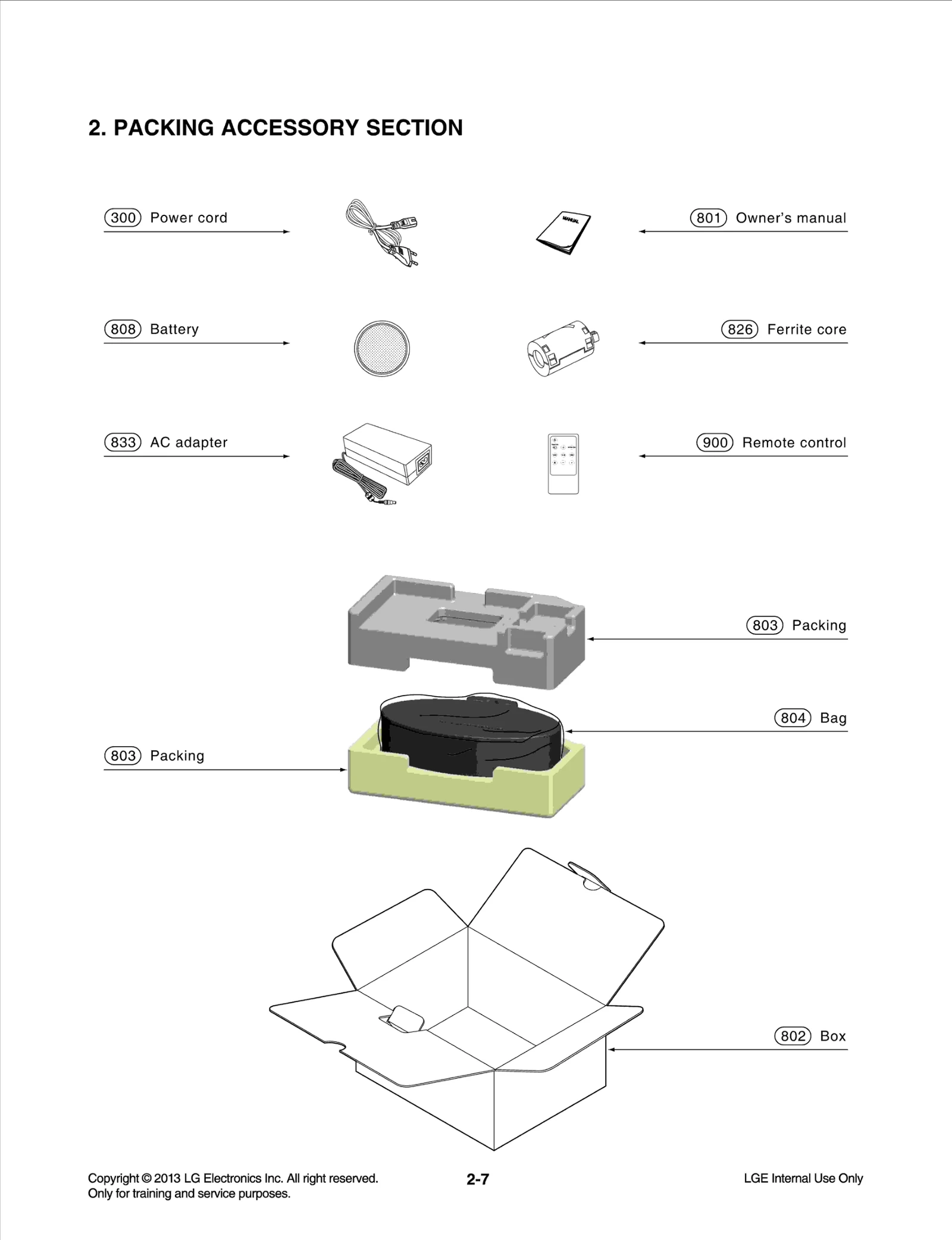

Diagram 1
Diagram 2
Common parts from model LG ND2530
252
Speaker,Woofer LGE EAB62888401 Contact Us For Availability
253
Damper LGE MCQ67284701 Contact Us For Availability
260
Case Assembly LGE ABQ74240901 Contact Us For Availability
261
Supporter Assembly LGE AJJ73878302 Contact Us For Availability
262
Cover Assembly LGE ACQ86471302 Contact Us For Availability
265
Decor Assembly LGE ACW74117001 Contact Us For Availability
271
Duct LGE MCZ62991701 Contact Us For Availability
272
Lens LGE MFB63112901 Contact Us For Availability
273
Button Assembly LGE ABH74699601 Contact Us For Availability
274
Damper LGE MCQ67200801 Contact Us For Availability
275
Case LGE MBN63032201 Contact Us For Availability
276
Spring LGE MHY62905305 Contact Us For Availability
277
Case LGE MBN63032302 Contact Us For Availability
278
Holder LGE MEG63266101 Contact Us For Availability
279
Damper LGE MCQ67239101 Contact Us For Availability
300
Power Cord LGE EAD62425702 Contact Us For Availability
457
SCREW, LGE 1SZZH-1007B Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76013815 Contact Us For Availability
802
Box LGE MAY65768197 Contact Us For Availability
803
Packing LGE MFZ63551605 Contact Us For Availability
804
Bag LGE 3880SCS001R Contact Us For Availability
808
Battery,Manganese LGE 6910FV3509B Contact Us For Availability
833
Adapters LGE EAY62509003 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73657621 Contact Us For Availability
A42
Case Assembly LGE ABQ74200401 Contact Us For Availability
A43
Auto SMT PCB Assembly LGE EBR77351301 Contact Us For Availability
A46
Option Code Assembly LGE EBR77004602 Contact Us For Availability
A48
Board Assembly LGE AAX74008301 Contact Us For Availability
A50
Auto SMT PCB Assembly LGE EBR77409801 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
C1P0
Capacitor,Ceramic,Chip LGE 0CH1331K412 Contact Us For Availability
C1R1
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C1R2
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C102
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C118
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C541
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE 0CK222DN56A Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C710
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C722
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C723
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C727
Capacitor,AL,Chip LGE 0CZZQE3009A Contact Us For Availability
C902
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C904
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C906
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C908
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C914
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C922
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C923
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C926
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C935
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C939
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C943
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C952
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CABLE2
Harness,Single LGE EAD61073417 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62246509 Contact Us For Availability
CABLE4
Harness,Single LGE EAD61073416 Contact Us For Availability
CABLE5
Harness,Single LGE EAD56816015 Contact Us For Availability
CN100
Connector,FFC/FPC/PIC LGE 6630R-FB02D Contact Us For Availability
CN101
Connector,Wafer LGE 6602T12004E Contact Us For Availability
CN106
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN500
Connector,Wafer LGE EAG62611104 Contact Us For Availability
CN501
Connector,Wafer LGE EAG63270203 Contact Us For Availability
CN503
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN700
Connector,Wafer LGE EAG63270202 Contact Us For Availability
D101
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D900
Diode,TVS LGE EAH61853401 Contact Us For Availability
D901
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
F900
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
FL501
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
IC100
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC101
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC103A
S/W,System Program LGE SAA36520601 Contact Us For Availability
IC105
IC,A/D Converter LGE EAN62688301 Contact Us For Availability
IC300A
S/W,System Program LGE SAA36520701 Contact Us For Availability
IC500
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC501A
S/W,System Program LGE SAA36520501 Contact Us For Availability
IC502
IC,I/O Support Chip LGE EAN42565610 Contact Us For Availability
IC504
IC,Digital Signal Processors LGE EAN61018501 Contact Us For Availability
IC506
IC,SDRAM LGE EAN60700802 Contact Us For Availability
IC508
IC,Analog Switch LGE EAN62767401 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN62668201 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN62349601 Contact Us For Availability
IC900
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC902
IC,LDO Voltage Regulator LGE EAN60989401 Contact Us For Availability
IC903
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
JK101
Jack,Phone LGE EAG63270601 Contact Us For Availability
JK500
Connector,USB LGE EAG35130503 Contact Us For Availability
JK901
Jack,DC Power LGE EAG61490901 Contact Us For Availability
L1P1
Filter,Bead LGE EAM60887203 Contact Us For Availability
L1P1
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
L507
Filter,Bead LGE EAM38769505 Contact Us For Availability
L509
Filter,Bead LGE EAM62155401 Contact Us For Availability
L901
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
LED402
LED,Chip LGE EAV30476901 Contact Us For Availability
Q502
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q506
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
R1L7
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R5A0
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R100
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R193
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R500
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
R536
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R555
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R557
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R575
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R710
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R714
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R900
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R901
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R907
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R909
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R912
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R913
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R917
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R918
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R923
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R934
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R936
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R937
Resistor,Chip LGE 0RH7501C422 Contact Us For Availability
RC100
Receiver Module LGE EAV62055001 Contact Us For Availability
SW100
Switch,Tact LGE EBF52268801 Contact Us For Availability
X100
Crystal LGE EAW61645504 Contact Us For Availability
X500
Crystal LGE EAW62003401 Contact Us For Availability
× ![]()
