Model LG NC1000-DABA – Common Parts & Diagrams

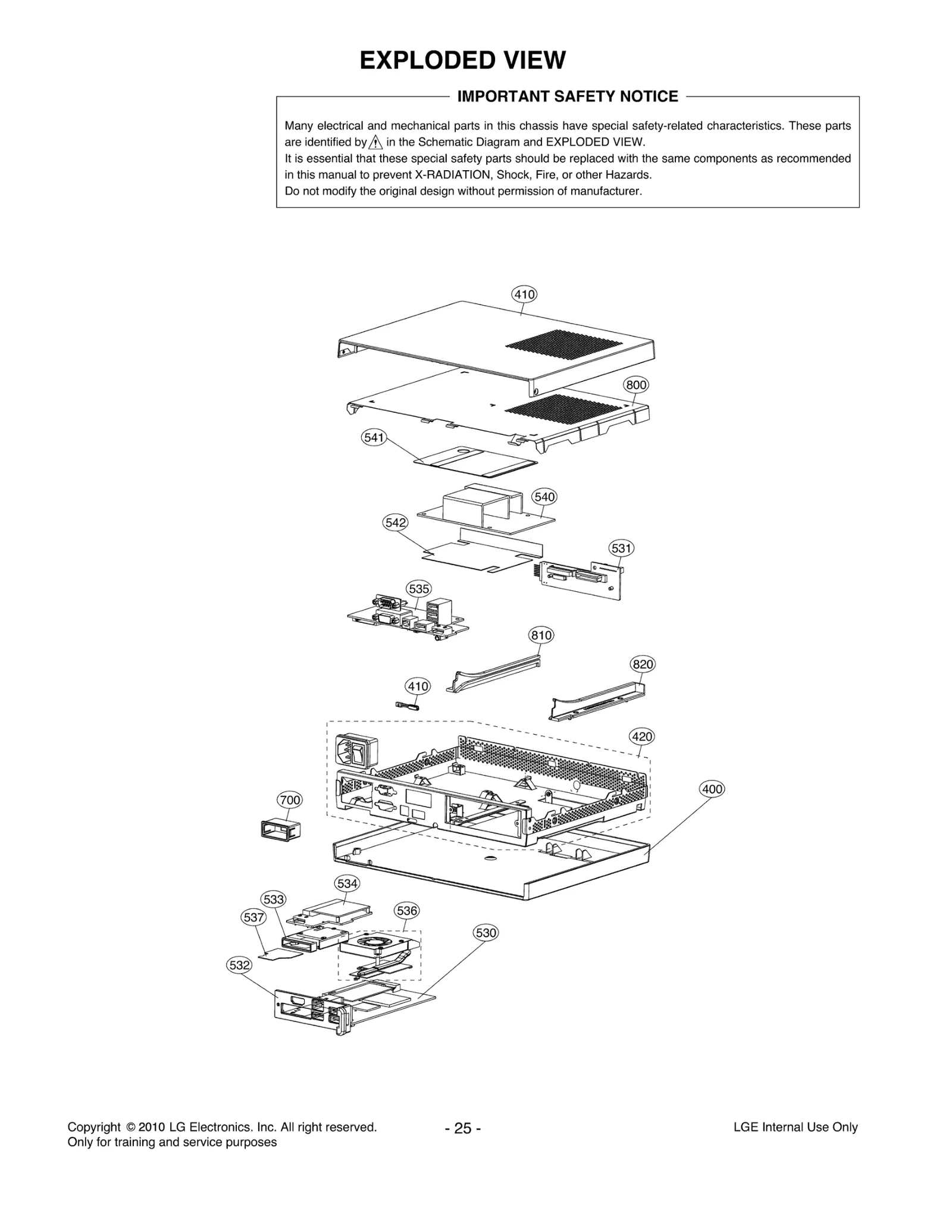

Diagram 0
Diagram 1
Common parts from model LG NC1000-DABA
410
Cover LGE MCK62683201 Contact Us For Availability
420
Cover LGE MCK62683401 Contact Us For Availability
530
PCB Assembly,Main LGE EBR64579401 Contact Us For Availability
531
PCB Assembly,Interface LGE EBR64579601 Contact Us For Availability
532
Cover LGE MCK62683901 Contact Us For Availability
533
Cover LGE MCK62683101 Contact Us For Availability
534
SSD LGE EAZ60680901 Contact Us For Availability
535
PCB Assembly LGE EBR64579701 Contact Us For Availability
536
Heat Sink LGE MED61891001 Contact Us For Availability
537
Insulator LGE MEV62391601 Contact Us For Availability
540
Power Supply Assembly LGE EAY60909701 Contact Us For Availability
541
Insulator LGE MEV62212901 Contact Us For Availability
542
Insulator LGE MEV62213001 Contact Us For Availability
545
Cover LGE MCK62683801 Contact Us For Availability
700
Cover LGE MCK62683701 Contact Us For Availability
800
Frame LGE MDQ61926101 Contact Us For Availability
810
Supporter LGE MJH59708301 Contact Us For Availability
820
Supporter LGE MJH59708302 Contact Us For Availability
A1
Title LGE SAC34373503 Contact Us For Availability
S1
IC,Analog Switch LGE 0IPRPTI059B Contact Us For Availability
S2
IC,Audio Codec LGE EAN36135103 Contact Us For Availability
S4
IC,PWM Controller LGE EAN44076001 Contact Us For Availability
S5
IC,PWM Controller LGE EAN44203102 Contact Us For Availability
S6
IC,Async SRAM LGE EAN60814601 Contact Us For Availability
S8
IC,Ethernet LGE EAN60672201 Contact Us For Availability
S9
IC,Microprocessors LGE EAN60814501 Contact Us For Availability
S10
IC,Microprocessors LGE EAN60817501 Contact Us For Availability
S11
Harness,Single LGE EAD60970701 Contact Us For Availability
S12
Harness,Single LGE EAD60970601 Contact Us For Availability
S13
PCB Assembly,Sub LGE EBR64579501 Contact Us For Availability
× ![]()
