Model LG NB5541 – Common Parts & Diagrams

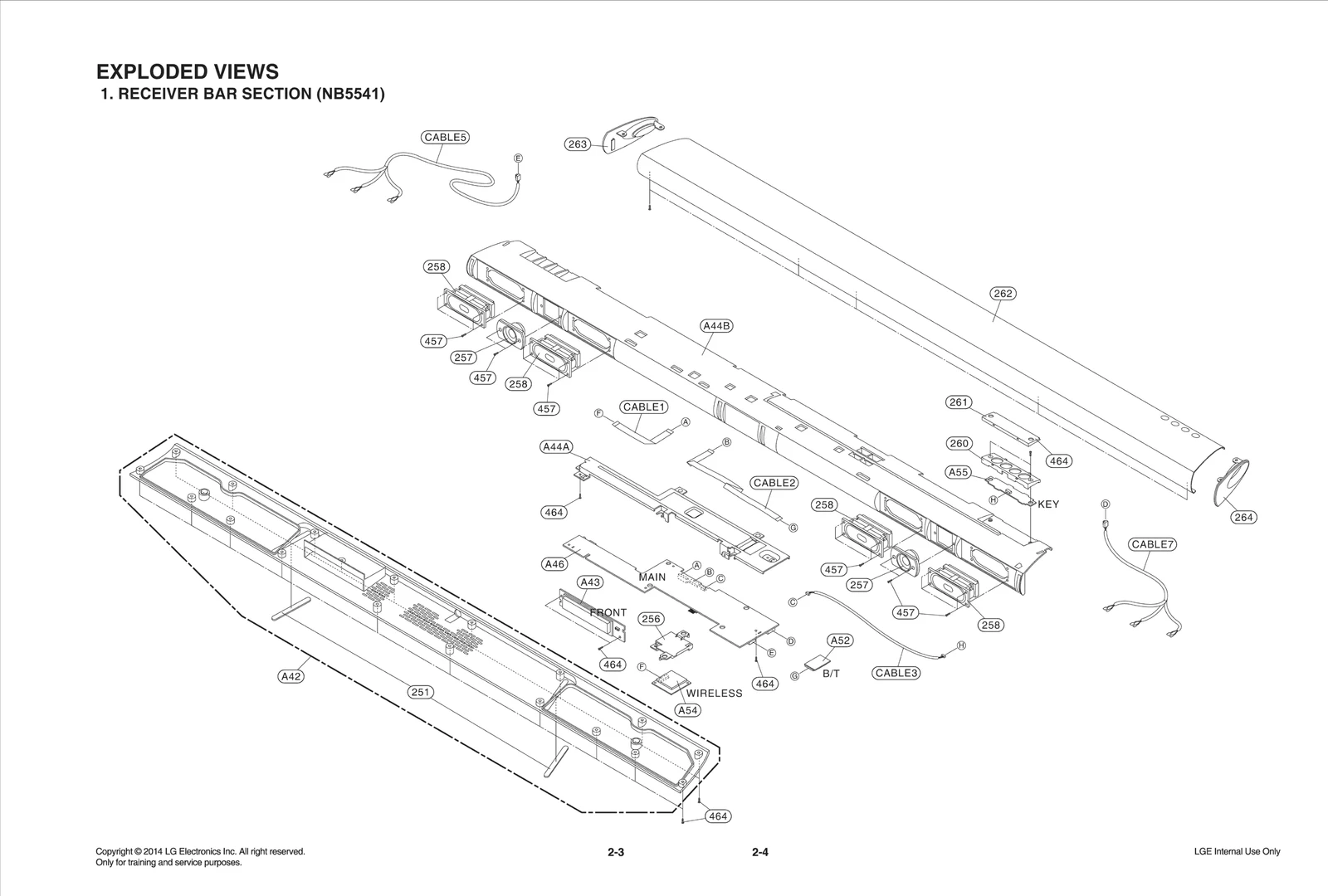

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG NB5541
251
Foot LGE MDP62846702 Contact Us For Availability
256
Holder LGE MEG63558801 Contact Us For Availability
257
Speaker,Tweeter LGE EAB62928601 Contact Us For Availability
258
Speaker,Full Range LGE EAB63088402 Contact Us For Availability
260
Holder LGE MEG63599201 Contact Us For Availability
261
Button Assembly LGE ABH74939602 Contact Us For Availability
262
Grille LGE MDX63012002 Contact Us For Availability
263
Decor Assembly LGE ACW74377101 Contact Us For Availability
264
Decor Assembly LGE ACW74377001 Contact Us For Availability
300
Power Cord LGE EAD60816745 Contact Us For Availability
381
Cable,FFC LGE EAD62131509 Contact Us For Availability
382
Holder LGE MEG63441301 Contact Us For Availability
383
Sheet LGE MHK64090701 Contact Us For Availability
384
Chassis LGE MBS62725601 Contact Us For Availability
385
Lens LGE MFB63153101 Contact Us For Availability
386
Harness,Single LGE EAD57600607 Contact Us For Availability
387
Base LGE MAM63025402 Contact Us For Availability
388
Foot LGE MDP41831701 Contact Us For Availability
389
Power Cord LGE EAD60816731 Contact Us For Availability
390
Harness,Single LGE EAD57600608 Contact Us For Availability
391
Screw,Customized LGE 353-025R Contact Us For Availability
392
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
393
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
395
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
457
SCREW, LGE 1SZZH-1007B Contact Us For Availability
511
Screw,Customized LGE FAB31058705 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76254174 Contact Us For Availability
802
Box,Master LGE MAY66770106 Contact Us For Availability
803
Packing LGE MFZ63918201 Contact Us For Availability
804
Bag LGE MAF58050929 Contact Us For Availability
806
Cable,Assembly LGE EAD61071206 Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
820A
Cable,Assembly LGE EAD62440501 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
835
Bracket LGE MAZ64023503 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73575421 Contact Us For Availability
A42
Case Assembly LGE ABQ74444302 Contact Us For Availability
A43
PCB Assembly LGE EBR78874801 Contact Us For Availability
A44A
Frame Assembly LGE ADV74647801 Contact Us For Availability
A44B
Case Assembly LGE ABQ74422801 Contact Us For Availability
A46
PCB Assembly LGE EBR78891711 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
A55
PCB Assembly LGE EBR78891901 Contact Us For Availability
A81A
PCB Assembly LGE EBR78369202 Contact Us For Availability
A81K
PCB Assembly LGE EBR77547901 Contact Us For Availability
A81L
PCB Assembly,Display LGE EBR64448603 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT62593101 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR76798401 Contact Us For Availability
A330
Speaker System Total LGE TCG35688027 Contact Us For Availability
A331
Case Assembly LGE ABQ74285803 Contact Us For Availability
A332
Board Assembly LGE AAX74089219 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C202
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C212
Capacitor,Ceramic,Chip LGE EAE35701401 Contact Us For Availability
C543
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C545
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C559
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C611
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C613
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C617
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C630
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
C632
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C642
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C714
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C717
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C753
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C756
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C762
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C787
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C789
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C795
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C865
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C882
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
C891
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
C892
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C900
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,AL,Radial LGE 0CE127JV640 Contact Us For Availability
C904
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C906
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C911
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C912
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C952
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA801
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
CA805
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131513 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62130009 Contact Us For Availability
CABLE3
Harness,Single LGE EAD35863021 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR77973201 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR77973301 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN201
Connector,BtoB LGE EAG63717501 Contact Us For Availability
CN302
Connector,Wafer LGE 6630V90135B Contact Us For Availability
CN405
CONNECTOR (CIRC),WAF LGE 561-712C Contact Us For Availability
CN502
Connector,BtoB LGE EAG63717502 Contact Us For Availability
CN504
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN506
Connector,FFC/FPC/PIC LGE EAG61090452 Contact Us For Availability
CN700
Connector,Wafer LGE 6630VK20704 Contact Us For Availability
CN701
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
CN901
WAFER LGE 6602T25008J Contact Us For Availability
D207
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D500
Diode,Zener LGE EAH39305801 Contact Us For Availability
D502
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D601
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D706
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D801
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D802
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D803
Diode,TVS LGE EAH56919501 Contact Us For Availability
D901
Diode,Switching LGE EAH61853601 Contact Us For Availability
D903
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D903
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D905
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
D951
Diode,Schottky LGE EAH62134501 Contact Us For Availability
DIG200
VFD LGE EAJ62667901 Contact Us For Availability
F600
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
F801
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB705
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
FB705
Filter,Line Noise LGE EAM62634203 Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL901
Filter,Line Noise LGE EAM60672506 Contact Us For Availability
HS901
Heat Sink LGE MED62471901 Contact Us For Availability
HS951
Heat Sink LGE MED61841613 Contact Us For Availability
IC500
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC502
IC,Digital Signal Processors LGE EAN62930801 Contact Us For Availability
IC503
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC504A
S/W,System Program LGE SAA36824902 Contact Us For Availability
IC601
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
IC606
IC,DC,DC Converter LGE EAN62766801 Contact Us For Availability
IC700
IC,LDO Voltage Regulator LGE EAN62780901 Contact Us For Availability
IC702
IC,D/A Converter LGE EAN62986201 Contact Us For Availability
IC704
IC,Audio Amplifier LGE EAN62910601 Contact Us For Availability
IC800
IC,Tx/Rx LGE EAN60923601 Contact Us For Availability
IC804
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC805
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62388901 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK401
CONNECTOR (CIRC),WAF LGE 561-712B Contact Us For Availability
JK500
Jack,Phone LGE EAG63411501 Contact Us For Availability
JK501
Connector,USB LGE EAG62571101 Contact Us For Availability
JK502
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK600
Jack,DC Power LGE EAG63410102 Contact Us For Availability
JK801
Connector,HDMI LGE EAG62611202 Contact Us For Availability
L707
Coil,Choke LGE EAP62367702 Contact Us For Availability
L707
Coil,Choke LGE EAP62367701 Contact Us For Availability
L809
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
L812
Filter,Bead LGE EAM62155402 Contact Us For Availability
LED401
LED,DIP LGE 0DLAU0148AA Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q200
TR,Bipolar LGE EBK33822201 Contact Us For Availability
Q202
TR,Bipolar LGE EBK52465101 Contact Us For Availability
Q501
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q701
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q901
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q951
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R201
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R210
RESISTOR CHIP 56 1/10W 5 D.R/ LGE 0RH0562D622 Contact Us For Availability
R222
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R226
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R236
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R303
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R304
RESISTOR CHIP 3.9K 1/10W 5 D. LGE 0RH3901D622 Contact Us For Availability
R305
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R306
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R307
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R349
Resistor,Chip LGE 0RH1803D622 Contact Us For Availability
R352
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R500
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R518
RESISTOR,METAL GLAZE LGE 0RJ5103C677 Contact Us For Availability
R519
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R589
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R596
Resistor,Chip LGE 0RJ3900C477 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R614
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R623
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R626
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R637
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R642
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R701
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R709
Resistor,Chip LGE 0RH4700B622 Contact Us For Availability
R718
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R719
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R731
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R733
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R734
Resistor,Chip LGE 0RH5102C422 Contact Us For Availability
R754
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R780
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R805
Resistor,Chip LGE EBC61057301 Contact Us For Availability
R835
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R837
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R839
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R843
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R846
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R848
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R851
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R852
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R856
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R867
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R868
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R869
Resistor,Chip LGE 0RH0512C622 Contact Us For Availability
R873
RESISTOR,METAL GLAZE LGE 0RH1201C422 Contact Us For Availability
R875
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R877
Resistor,Chip LGE EBC35243001 Contact Us For Availability
R892
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R897
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R904
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R907
Resistor,Metal Oxide Film LGE EBC62498201 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM SKN LGE 0RD6801F609 Contact Us For Availability
R953
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R954
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R956
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
RC200
Receiver Module LGE EAV62055002 Contact Us For Availability
SW303
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW401
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770107 Contact Us For Availability
TD804
Diode,TVS LGE EAH61515001 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC607
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
WC619
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
WC621
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
WC622
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
WC629
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
WC632
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC641
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
WC644
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WC649
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
WC655
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
WC671
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
WC675
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
WC679
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
WCA602
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
WCA606
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
WCA610
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
WCN601
Harness,Single LGE EAD62497601 Contact Us For Availability
WCN602
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
WCN603
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WCN604
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
WCN605
Connector,Wafer LGE 561-711C Contact Us For Availability
WFC601
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
WH601
Heat Sink LGE 4920S-ES01D Contact Us For Availability
WIC500A
S/W,System Program LGE SAA35932216 Contact Us For Availability
WIC601
IC,Sound/Audio Processor LGE EAN62335501 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62396101 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
WIC603A
S/W,System Program LGE SAA35932217 Contact Us For Availability
WIC604
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
WIC605
IC,Voltage Detector LGE EAN38061901 Contact Us For Availability
WIC606
IC,DC,DC Converter LGE EAN61127301 Contact Us For Availability
WL601
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
WL604
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
WL604
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
WL608
Filter,Bead LGE EAM42641607 Contact Us For Availability
WQ602
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
WQ609
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
WQ610
FET LGE EBK62033601 Contact Us For Availability
WR503
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
WR507
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
WR601
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
WR603
Resistor,Chip LGE ERHZ0000219 Contact Us For Availability
WR604
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
WR606
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
WR607
Resistor,Chip LGE EBC42830501 Contact Us For Availability
WR610
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
WR617
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
WR630
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
WR634
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
WR640
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
WR642
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
WR646
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
WR649
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
WR654
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
WR661
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
WR662
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
WR696
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
WX601
Crystal LGE 6212AB2192K Contact Us For Availability
WX601
Crystal LGE EAW61645210 Contact Us For Availability
WX602
Crystal LGE EAW61645204 Contact Us For Availability
WX602
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
WZD604
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
X500
Crystal LGE EAW61645208 Contact Us For Availability
X800
Crystal LGE EAW61645205 Contact Us For Availability
X800
RESONATOR,CRYSTAL LGE 6212AB2286K Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD906
Diode,Zener LGE 0DZSE00044B Contact Us For Availability
ZD908
Diode,Zener LGE 0DZSE00164A Contact Us For Availability
× ![]()
Login and Registration Form
