Model LG NB5530A – Common Parts & Diagrams

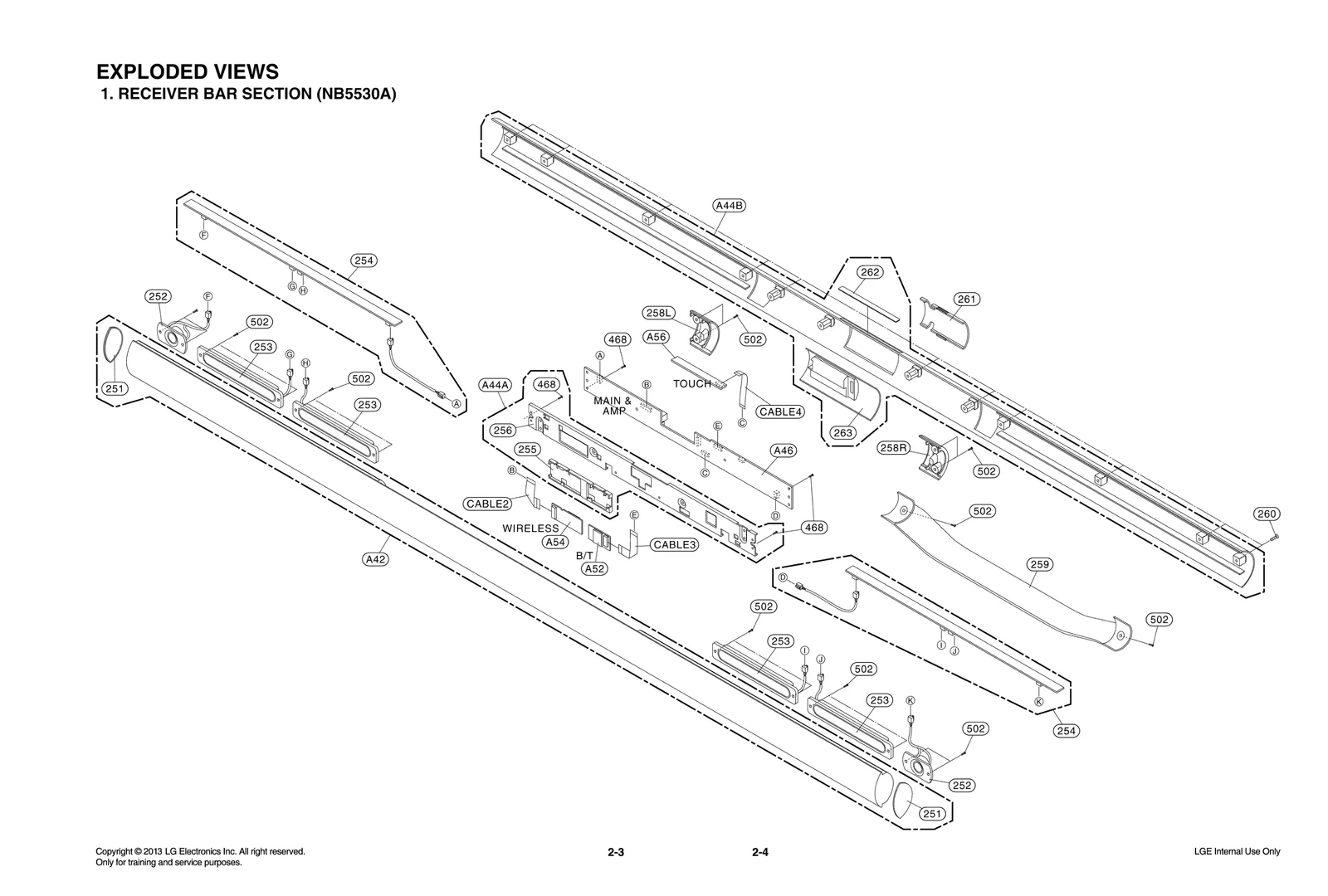

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG NB5530A
251
Cover LGE MCK67706601 Contact Us For Availability
252
Speaker,Tweeter LGE EAB62910201 Contact Us For Availability
253
Speaker,Woofer LGE EAB62910101 Contact Us For Availability
254
PCB Assembly,Sub LGE EBR77340201 Contact Us For Availability
255
Holder LGE MEG63380101 Contact Us For Availability
256
Chassis LGE MBS62705501 Contact Us For Availability
258L
Cover LGE MCK67705302 Contact Us For Availability
258R
Cover LGE MCK67705301 Contact Us For Availability
259
Cover Assembly LGE ACQ86604301 Contact Us For Availability
260
Cap LGE MBL65582101 Contact Us For Availability
261
Cover LGE MCK67632101 Contact Us For Availability
262
Window LGE MKC64582401 Contact Us For Availability
263
Cover LGE MCK67705501 Contact Us For Availability
300
Power Cord LGE EAD60816745 Contact Us For Availability
381
Cable,FFC LGE EAD62131509 Contact Us For Availability
382
Holder LGE MEG63441301 Contact Us For Availability
383
Sheet LGE MHK64090701 Contact Us For Availability
384
Chassis LGE MBS62725601 Contact Us For Availability
385
Lens LGE MFB63153101 Contact Us For Availability
386
Harness,Single LGE EAD57600607 Contact Us For Availability
387
Base LGE MAM63025401 Contact Us For Availability
388
Foot LGE MDP41831701 Contact Us For Availability
389
Power Cord LGE EAD60816731 Contact Us For Availability
390
Harness,Single LGE EAD57600608 Contact Us For Availability
391
Screw,Customized LGE 353-025R Contact Us For Availability
392
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
393
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
395
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
502
Screw,Customized LGE 1SZZR-0097D Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75934783 Contact Us For Availability
802
Box,Master LGE MAY65988553 Contact Us For Availability
803
Packing LGE MFZ63759101 Contact Us For Availability
804
Bag LGE MAF62209403 Contact Us For Availability
806
Cable,Assembly LGE EAD61071206 Contact Us For Availability
808
Primary Cell Battery,Lithium LGE EAC52293601 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
833
Adapters LGE EAY62909706 Contact Us For Availability
835
Bracket LGE MAZ63853601 Contact Us For Availability
836
Packing Assembly LGE AGG74269101 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73855901 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL74256002 Contact Us For Availability
A44A
Frame Assembly LGE ADV74568202 Contact Us For Availability
A44B
Panel Assembly,Rear LGE AGL74178801 Contact Us For Availability
A46
Auto SMT PCB Assembly LGE EBR77780401 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
A54
Module,RF Full Module(RxTx) LGE EAT61874901 Contact Us For Availability
A56
Auto SMT PCB Assembly LGE EBR77780501 Contact Us For Availability
A81A
PCB Assembly LGE EBR77517601 Contact Us For Availability
A81K
PCB Assembly LGE EBR77547901 Contact Us For Availability
A81L
PCB Assembly,Display LGE EBR64448603 Contact Us For Availability
A81M
Module,RF Full Module(RxTx) LGE EAT61653601 Contact Us For Availability
A81S
PCB Assembly,Power LGE EBR76798401 Contact Us For Availability
A330
Speaker System Total LGE TCG35490703 Contact Us For Availability
A331
Case Assembly LGE ABQ74285801 Contact Us For Availability
A332
Board Assembly LGE AAX74089202 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C120
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C125
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C302
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C347
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C368
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C506
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C601
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C612
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C613
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C622
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C623
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C624
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C637
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C657
Capacitor,Ceramic,Chip LGE ECZH0001120 Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C705
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C716
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C724
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C731
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C733
Capacitor,Ceramic,Chip LGE EAE61381601 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C900
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C902
Capacitor,AL,Radial LGE 0CE127JV640 Contact Us For Availability
C904
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C910
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C911
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C912
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C952
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA703
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62131508 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD61049022 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62228006 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE EAG61090203 Contact Us For Availability
CN103
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN104
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN105
Connector,Wafer LGE EAG62611101 Contact Us For Availability
CN302
Connector,Wafer LGE EAG62611104 Contact Us For Availability
CN405
CONNECTOR (CIRC),WAF LGE 561-712C Contact Us For Availability
CN702
Connector,Wafer LGE EAG62610601 Contact Us For Availability
CN901
WAFER LGE 6602T25008J Contact Us For Availability
D901
Diode,Switching LGE EAH61853601 Contact Us For Availability
D903
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D905
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
F601
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
FC602
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
FL901
Filter,Line Noise LGE EAM60672506 Contact Us For Availability
G502
Gasket LGE MDS63255101 Contact Us For Availability
HS901
Heat Sink LGE MED62471901 Contact Us For Availability
HS951
Heat Sink LGE MED61841613 Contact Us For Availability
IC100A
S/W,System Program LGE SAA36600801 Contact Us For Availability
IC101
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC102A
S/W,System Program LGE SAA35932206 Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN62408102 Contact Us For Availability
IC302
IC,SDRAM LGE 0IMMREO001E Contact Us For Availability
IC302
IC,SDRAM LGE EAN60700802 Contact Us For Availability
IC303A
S/W,System Program LGE SAA36600701 Contact Us For Availability
IC501A
S/W,System Program LGE SAA36600901 Contact Us For Availability
IC602
IC,DC,DC Converter LGE EAN62698701 Contact Us For Availability
IC603
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC608
IC,DC,DC Converter LGE EAN62766801 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62388901 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK301
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK401
CONNECTOR (CIRC),WAF LGE 561-712B Contact Us For Availability
JK601
Jack,DC Power LGE EAG63410102 Contact Us For Availability
L301
Filter,Bead LGE EAM42641607 Contact Us For Availability
L712
Coil,Choke LGE EAP62367701 Contact Us For Availability
LD102
LED,Chip LGE EAV30476901 Contact Us For Availability
LD103
LED,Chip LGE EAV62172301 Contact Us For Availability
LD104
LED,Chip LGE EAV61492301 Contact Us For Availability
LED401
LED,DIP LGE 0DLAU0148AA Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q110
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q113
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q115
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q901
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q951
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R125
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R150
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R331
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R333
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R341
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R344
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R375
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R602
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R604
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R610
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ4700C478 Contact Us For Availability
R619
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R634
Resistor,Chip LGE 0RJ2200C477 Contact Us For Availability
R635
Resistor,Chip LGE EBC33932801 Contact Us For Availability
R636
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R637
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R638
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R639
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R713
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R904
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R907
Resistor,Metal Oxide Film LGE EBC62498201 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM SKN LGE 0RD6801F609 Contact Us For Availability
R954
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R956
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R958
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
RC101
Receiver Module LGE EAV62055002 Contact Us For Availability
SW401
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770107 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC619
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
WC622
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
WC624
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
WC625
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC637
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
WC644
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WC648
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
WC680
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
WCA606
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
WCA607
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
WCA611
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
WCN601
Harness,Single LGE EAD62497601 Contact Us For Availability
WCN602
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
WCN603
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WCN604
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
WCN605
Connector,Wafer LGE 561-711C Contact Us For Availability
WD601
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
WH601
Heat Sink LGE 4920S-ES01D Contact Us For Availability
WIC601
IC,Sound/Audio Processor LGE EAN62335501 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62396101 Contact Us For Availability
WIC603A
S/W,System Program LGE SAA35932209 Contact Us For Availability
WIC604
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
WIC605
IC,Voltage Detector LGE EAN38061901 Contact Us For Availability
WIC606
IC,DC,DC Converter LGE EAN61127301 Contact Us For Availability
WIC609
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
WL601
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
WL602
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
WL604
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
WL627
Inductor,Multilayer,Chip LGE EAP60946212 Contact Us For Availability
WQ607
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
WQ610
FET LGE EBK62033601 Contact Us For Availability
WR6A3
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
WR601
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
WR602
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
WR603
Resistor,Chip LGE ERHZ0000219 Contact Us For Availability
WR604
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
WR606
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
WR607
Resistor,Chip LGE EBC42830501 Contact Us For Availability
WR610
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
WR614
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
WR617
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
WR634
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
WR646
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
WR649
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
WR659
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
WR686
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
WR696
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
WX601
Crystal LGE EAW61645210 Contact Us For Availability
WX601
Crystal LGE 6212AB2192K Contact Us For Availability
WX602
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
WX602
Crystal LGE EAW61645204 Contact Us For Availability
WZD604
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
X100
Crystal LGE EAW61645504 Contact Us For Availability
X300
Crystal LGE EAW32919201 Contact Us For Availability
X300
Crystal LGE EAW61645208 Contact Us For Availability
ZD107
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD109
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD703
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD906
Diode,Zener LGE 0DZSE00044B Contact Us For Availability
ZD908
Diode,Zener LGE 0DZSE00164A Contact Us For Availability
× ![]()
Login and Registration Form
