Model LG NB4543 – Common Parts & Diagrams

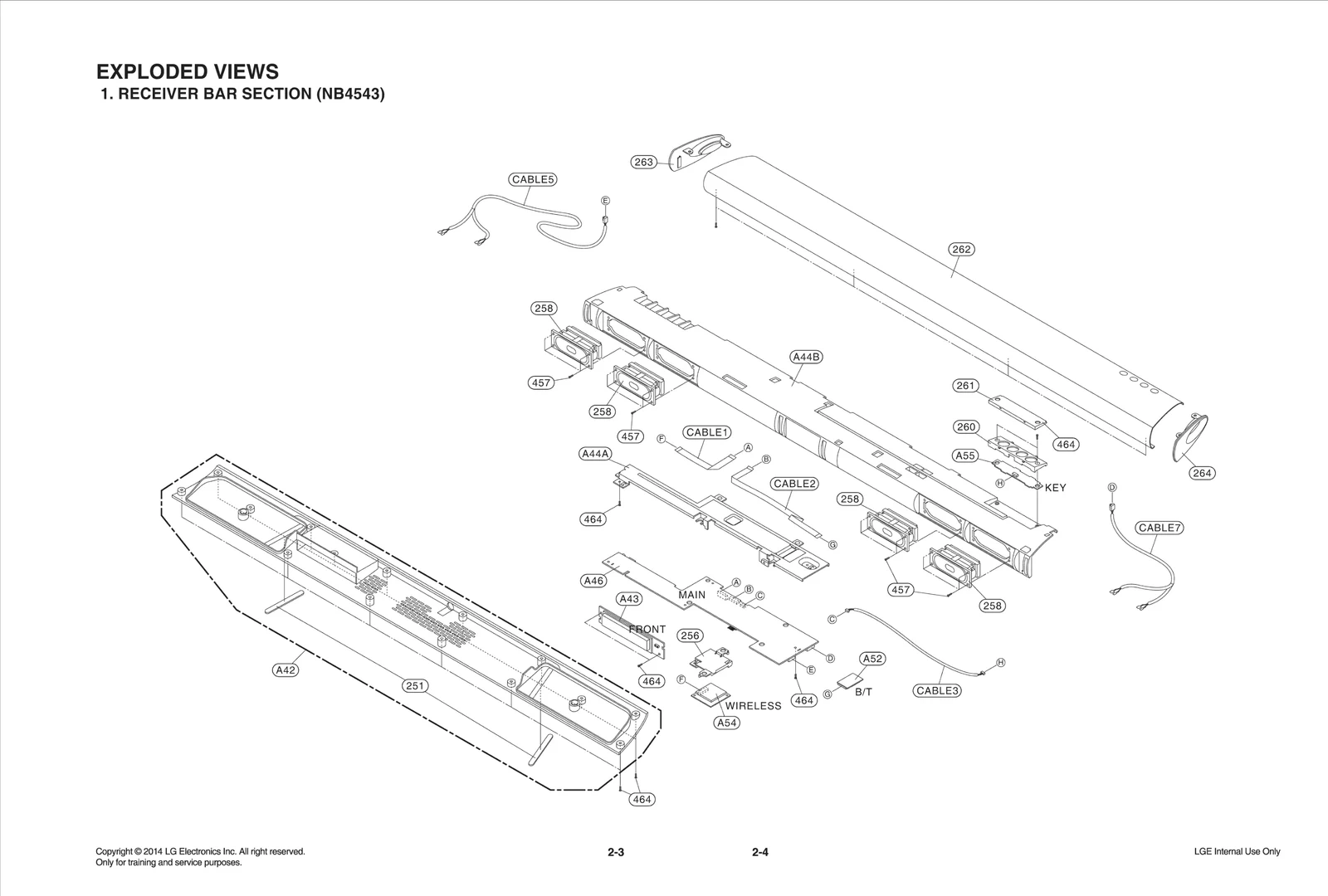

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG NB4543
251
Foot LGE MDP62846702 Contact Us For Availability
256
Holder LGE MEG63558801 Contact Us For Availability
258
Speaker,Full Range LGE EAB63088402 Contact Us For Availability
260
Holder LGE MEG63599201 Contact Us For Availability
261
Button Assembly LGE ABH74939602 Contact Us For Availability
262
Grille LGE MDX63052002 Contact Us For Availability
263
Decor Assembly LGE ACW74377101 Contact Us For Availability
264
Decor Assembly LGE ACW74377001 Contact Us For Availability
300W
Power Cord LGE EAD60816718 Contact Us For Availability
457
SCREW, LGE 1SZZH-1007B Contact Us For Availability
511
Screw,Customized LGE FAB31058705 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76254450 Contact Us For Availability
802
Box,Master LGE MAY66770140 Contact Us For Availability
803
Packing LGE MFZ64034601 Contact Us For Availability
804
Bag LGE MAF58050920 Contact Us For Availability
806
Cable,Assembly LGE EAD61071206 Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
835
Bracket LGE MAZ64023503 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73575421 Contact Us For Availability
950
Frame LGE MDQ63277102 Contact Us For Availability
951
Frame LGE MDQ63277201 Contact Us For Availability
952
Holder LGE MEG63119601 Contact Us For Availability
954
Sheet LGE MHK63766501 Contact Us For Availability
955
Cable,FFC LGE EAD62131501 Contact Us For Availability
956
Harness,Single LGE EAD60769203 Contact Us For Availability
957
Harness,Single LGE EAD57600605 Contact Us For Availability
958
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
959
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
960
Foot LGE MDP37298501 Contact Us For Availability
961
Lens LGE MFB62153702 Contact Us For Availability
A42
Case Assembly LGE ABQ74405704 Contact Us For Availability
A43
PCB Assembly LGE EBR78874801 Contact Us For Availability
A44A
Frame Assembly LGE ADV74647801 Contact Us For Availability
A44B
Case Assembly LGE ABQ74405603 Contact Us For Availability
A45W
PCB Assembly LGE EBR78369302 Contact Us For Availability
A46
PCB Assembly LGE EBR78891701 Contact Us For Availability
A47W
PCB Assembly,Power LGE EBR71113017 Contact Us For Availability
A49W
PCB Assembly LGE EBR78791901 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT62593101 Contact Us For Availability
A55
PCB Assembly LGE EBR78891901 Contact Us For Availability
A900
Speaker System Total LGE TCG35828241 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRTW00180B Contact Us For Availability
C202
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C211
Capacitor,Ceramic,Chip LGE EAE35701401 Contact Us For Availability
C214
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C539
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C552
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C559
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C567
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
C605
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C609
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C613
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C616
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C631
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C642
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C648
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C708
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C709
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C720
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C731
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C737
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C739
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C750
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C776
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C794
Capacitor,Ceramic,Chip LGE EAE58111701 Contact Us For Availability
C796
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
C865
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C872
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C879
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
C892
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE187RV640 Contact Us For Availability
C907
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ2221N409 Contact Us For Availability
C912
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C913
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C914
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C915
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C917
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C920
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C925
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C929
CAPACITOR LGE 624-087D Contact Us For Availability
C930
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C932
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C934
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C937
Capacitor,Ceramic,Radial,Disc LGE 624-087S Contact Us For Availability
CA801
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
CA804
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131513 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62130009 Contact Us For Availability
CABLE3
Harness,Single LGE EAD35863022 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR77973401 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR77973501 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN201
Connector,BtoB LGE EAG63717501 Contact Us For Availability
CN405
CONNECTOR (CIRC),WAF LGE 561-712C Contact Us For Availability
CN502
Connector,BtoB LGE EAG63717502 Contact Us For Availability
CN504
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN506
Connector,FFC/FPC/PIC LGE EAG61090452 Contact Us For Availability
CN508
Connector,Wafer LGE 6630V90135B Contact Us For Availability
CN601
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
CN602
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
CN603
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
CN605
Connector,Wafer LGE 561-711C Contact Us For Availability
CN606
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
CN700
Connector,Wafer LGE 6630VK20704 Contact Us For Availability
CN701
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
CN901
Harness,Single LGE EAD42218216 Contact Us For Availability
D202
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D207
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D500
Diode,Zener LGE EAH39305801 Contact Us For Availability
D602
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D706
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D801
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D802
Diode,Schottky LGE EAH61533501 Contact Us For Availability
D803
Diode,TVS LGE EAH56919501 Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D903
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D913
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D913
Diode,Switching LGE EAH32120501 Contact Us For Availability
D920
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D922
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D929
Diode,Switching LGE EAH30982402 Contact Us For Availability
D929
Diode,Schottky LGE EAH62095001 Contact Us For Availability
DIG200
VFD LGE EAJ62667901 Contact Us For Availability
F600
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB708
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
FB708
Filter,Line Noise LGE EAM62634203 Contact Us For Availability
FB901
Filter,Bead LGE 636-004C Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
HQ501
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
IC500
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC502
IC,Digital Signal Processors LGE EAN62930801 Contact Us For Availability
IC503
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC504A
S/W,System Program LGE SAA36880102 Contact Us For Availability
IC602
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
IC606
IC,DC,DC Converter LGE EAN62766801 Contact Us For Availability
IC608
IC,LDO Voltage Regulator LGE EAN62780901 Contact Us For Availability
IC702
IC,D/A Converter LGE EAN62986201 Contact Us For Availability
IC704
IC,Audio Amplifier LGE EAN62910601 Contact Us For Availability
IC800
IC,Tx/Rx LGE EAN60923601 Contact Us For Availability
IC805
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN60993301 Contact Us For Availability
IC904
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC904
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
JK500
Jack,Phone LGE EAG63411501 Contact Us For Availability
JK501
Connector,USB LGE EAG62571101 Contact Us For Availability
JK502
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK600
Jack,DC Power LGE EAG63410102 Contact Us For Availability
JK801
Connector,HDMI LGE EAG62611202 Contact Us For Availability
L613
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L709
Coil,Choke LGE EAP62367701 Contact Us For Availability
L709
Coil,Choke LGE EAP62367702 Contact Us For Availability
L711
Filter,Bead LGE EAM42641607 Contact Us For Availability
L811
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
L812
Filter,Bead LGE EAM62155402 Contact Us For Availability
L921
Coil,Choke LGE EAP60792101 Contact Us For Availability
L921
COIL,CHOKE LGE 633-088G Contact Us For Availability
LED401
LED,DIP LGE 0DLAU0148AA Contact Us For Availability
LF901
Line Noise Filter LGE 6200JB8009X Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61010401 Contact Us For Availability
PC903
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q200
TR,Bipolar LGE EBK33822201 Contact Us For Availability
Q202
TR,Bipolar LGE EBK52465101 Contact Us For Availability
Q501
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q701
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q702
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q902
FET LGE EBK60872301 Contact Us For Availability
Q910
TR,Bipolar LGE 0TR320200AD Contact Us For Availability
Q910
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q911
TR,Bipolar LGE 0TRKE90005B Contact Us For Availability
Q911
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q912
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q912
TR,Bipolar LGE 0TR320309AC Contact Us For Availability
Q913
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
R201
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R209
RESISTOR CHIP 56 1/10W 5 D.R/ LGE 0RH0562D622 Contact Us For Availability
R222
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R224
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R226
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R303
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R304
RESISTOR CHIP 3.9K 1/10W 5 D. LGE 0RH3901D622 Contact Us For Availability
R305
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R306
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R307
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R349
Resistor,Chip LGE 0RH1803D622 Contact Us For Availability
R353
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R500
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R513
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R518
RESISTOR,METAL GLAZE LGE 0RJ5103C677 Contact Us For Availability
R519
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R564
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R565
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R589
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R594
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R596
Resistor,Chip LGE 0RJ3900C477 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R614
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R623
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R625
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R637
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R642
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R705
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RH4700B622 Contact Us For Availability
R719
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R720
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R733
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R734
Resistor,Chip LGE 0RH5102C422 Contact Us For Availability
R776
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R808
Resistor,Chip LGE EBC61057301 Contact Us For Availability
R834
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R837
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R843
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R848
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R851
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R867
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R868
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R869
Resistor,Chip LGE 0RH0512C622 Contact Us For Availability
R871
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R872
RESISTOR,METAL GLAZE LGE 0RH1201C422 Contact Us For Availability
R875
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R877
Resistor,Chip LGE EBC35243001 Contact Us For Availability
R892
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R897
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R898
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R901
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0101K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R905
Resistor,Carbon Film LGE 0RD0332F609 Contact Us For Availability
R908
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R911
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R914
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R915
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R919
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R924
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R925
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R942
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R944
Resistor,Metal Film LGE 0RN2402F409 Contact Us For Availability
R946
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R947
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R948
Resistor,Carbon Film LGE 0RD0471F609 Contact Us For Availability
R949
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R950
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM R-E LGE 0RD3901F609 Contact Us For Availability
RC200
Receiver Module LGE EAV62055002 Contact Us For Availability
RIC304
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
RX303
Crystal LGE 6212AB2192K Contact Us For Availability
RX303
Crystal LGE EAW61645210 Contact Us For Availability
SW302
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW701
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770119 Contact Us For Availability
T903
Transformer,Switching LGE EBJ60770118 Contact Us For Availability
TD804
Diode,TVS LGE EAH61515001 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC612
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
WC620
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
WC631
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
WC660
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC665
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
WC668
Capacitor,Ceramic,Chip LGE 0CH1222K566 Contact Us For Availability
WC669
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
WC695
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
WCN701
CONNECTOR (CIRC),WAF LGE 561-712B Contact Us For Availability
WIC500A
S/W,System Program LGE SAA35932216 Contact Us For Availability
WIC601
IC,LDO Voltage Regulator LGE EAN60686001 Contact Us For Availability
WIC603A
S/W,System Program LGE SAA35932217 Contact Us For Availability
WIC604
IC,Voltage Detector LGE EAN38061901 Contact Us For Availability
WIC606
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
WIC607
IC,Sound/Audio Processor LGE EAN62335501 Contact Us For Availability
WIC608
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
WL686
Filter,Bead LGE EAM38769505 Contact Us For Availability
WL693
Coil,Choke LGE EAP62127101 Contact Us For Availability
WQ604
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
WQ605
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
WQ611
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
WR501
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
WR505
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
WR605
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
WR610
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
WR611
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
WR619
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
WR621
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
WR636
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
WR637
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
WR638
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
WR639
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
WR640
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
WR643
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
WR665
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
WR671
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
WR676
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
WR688
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
WR694
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
WZD601
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
X500
Crystal LGE EAW61645208 Contact Us For Availability
X800
RESONATOR,CRYSTAL LGE 6212AB2286K Contact Us For Availability
X800
Crystal LGE EAW61645205 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009AH Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD902
Diode,Zener LGE 0DZRM00554A Contact Us For Availability
ZD904
Diode,Zener LGE 0DZRM00484A Contact Us For Availability
ZD904
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD905
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
ZD905
Diode,Zener LGE EAH42768301 Contact Us For Availability
ZD906
Diode,Zener LGE 0DZSE00154A Contact Us For Availability
ZD906
Diode,Zener LGE EAH61194401 Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
× ![]()
Login and Registration Form
