Model LG NB4530B – Common Parts & Diagrams

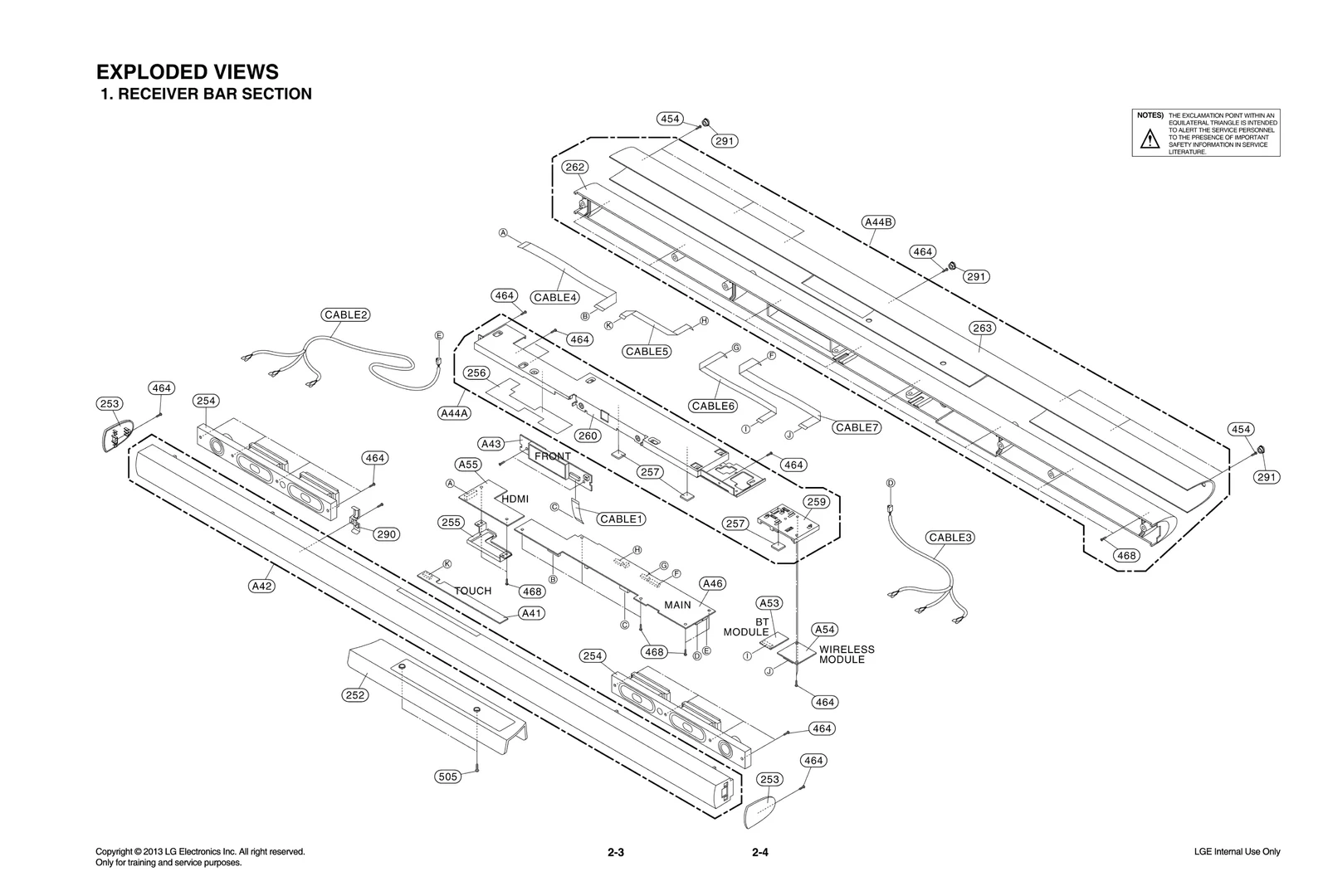

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG NB4530B
252
Base Assembly LGE AAN74250101 Contact Us For Availability
253
Cover Assembly LGE ACQ86346601 Contact Us For Availability
254
Frame Assembly LGE ADV74446801 Contact Us For Availability
255
Plate LGE MGJ63569801 Contact Us For Availability
256
Sheet LGE MHK63950901 Contact Us For Availability
257
Damper LGE MCQ32325001 Contact Us For Availability
259
Holder LGE MEG63298902 Contact Us For Availability
260
Chassis LGE MBS62586301 Contact Us For Availability
262
Panel Assembly,Audio LGE AGL74073702 Contact Us For Availability
263
Case LGE MBN62983102 Contact Us For Availability
290
Plate,Ground LGE MGJ63568301 Contact Us For Availability
291
Cover LGE MCK67470402 Contact Us For Availability
300W
Power Cord LGE EAD60816718 Contact Us For Availability
300W
Power Cord LGE EAD60816620 Contact Us For Availability
454
Screw,Customized LGE 1SZZR-0098W Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
505
Screw,Machine LGE FAB31459101 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75876625 Contact Us For Availability
802
Box,Master LGE MAY65988525 Contact Us For Availability
803
Packing LGE MFZ63321204 Contact Us For Availability
803A
Packing LGE MFZ62114338 Contact Us For Availability
804
Bag LGE MAF58050915 Contact Us For Availability
806
Cable,Assembly LGE EAD61071205 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
820
Cable,Assembly LGE EAD61077706 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
835
Bracket LGE MAZ63698102 Contact Us For Availability
836
Shaft LGE MHJ62915501 Contact Us For Availability
836A
Accessory Assembly LGE AAA73857606 Contact Us For Availability
837
Base Assembly LGE AAN74253101 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73575421 Contact Us For Availability
950
Frame LGE MDQ63277153 Contact Us For Availability
951
Frame LGE MDQ63277251 Contact Us For Availability
952
Holder LGE MEG63119551 Contact Us For Availability
953
Holder LGE MEG63119651 Contact Us For Availability
954
Sheet LGE MHK63766501 Contact Us For Availability
955
Cable,FFC LGE EAD62131501 Contact Us For Availability
956
Harness,Single LGE EAD60769203 Contact Us For Availability
957
Harness,Single LGE EAD57600605 Contact Us For Availability
958
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
959
Screw,Customized LGE 353M050N Contact Us For Availability
A41
PCB Assembly LGE EBR76467501 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL74073601 Contact Us For Availability
A43
PCB Assembly LGE EBR76410401 Contact Us For Availability
A44A
Frame Assembly LGE ADV74427402 Contact Us For Availability
A44B
Case Assembly LGE ABQ74141703 Contact Us For Availability
A45W
PCB Assembly LGE EBR76520201 Contact Us For Availability
A46
Option Code Assembly LGE EBR76481805 Contact Us For Availability
A47W
PCB Assembly,Power LGE EBR71113002 Contact Us For Availability
A49W
PCB Assembly LGE EBR75340601 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT61653601 Contact Us For Availability
A55
PCB Assembly LGE EBR76467401 Contact Us For Availability
A900
Speaker System Total LGE TCG35528701 Contact Us For Availability
A900A
Board Assembly LGE AAX73748909 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRTW00180B Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C8A4
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C123
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C129
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C132
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C318
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C360
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C368
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C373
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C376
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C503
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C604
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C605
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C610
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C612
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C613
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C619
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C623
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C624
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C625
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C630
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C631
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C650
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C705
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C717
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C727
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C731
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C732
Capacitor,Ceramic,Chip LGE EAE61381601 Contact Us For Availability
C864
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C866
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C874
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C892
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C897
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE187RV640 Contact Us For Availability
C907
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ2221N409 Contact Us For Availability
C912
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C913
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C914
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C915
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C917
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C920
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C925
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C928
Capacitor,Ceramic,Axial LGE 0CN4710K518 Contact Us For Availability
C929
CAPACITOR LGE 624-087D Contact Us For Availability
C930
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C932
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C934
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C937
Capacitor,Ceramic,Radial,Disc LGE 624-087S Contact Us For Availability
CA201
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
CA301
Capacitor,AL,Chip LGE 0CZZQE2018A Contact Us For Availability
CA603
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
CA618
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
CA703
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CA801
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
CA804
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CA806
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD39304209 Contact Us For Availability
CABLE2
PCB Assembly,Sub LGE EBR76401301 Contact Us For Availability
CABLE3
PCB Assembly,Sub LGE EBR76432601 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62185702 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD62246504 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD62246503 Contact Us For Availability
CABLE7
Cable,FFC LGE EAD62131503 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN101
CONNECTOR (CIRC),FFC LGE 6630XE00313 Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE EAG61090452 Contact Us For Availability
CN105
Connector,Wafer LGE EAG62611104 Contact Us For Availability
CN201
Connector,FFC/FPC/PIC LGE 6630R-FB11M Contact Us For Availability
CN202
Connector,FFC/FPC/PIC LGE EAG61090451 Contact Us For Availability
CN405
CONNECTOR (CIRC),WAF LGE 561-712C Contact Us For Availability
CN601
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
CN602
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
CN603
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
CN605
Connector,Wafer LGE 561-711C Contact Us For Availability
CN606
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
CN801
Connector,FFC/FPC/PI LGE 6630XE00116 Contact Us For Availability
CN901
Harness,Single LGE EAD42218216 Contact Us For Availability
D201
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
D605
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D607
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D609
Diode,TVS LGE EAH62033601 Contact Us For Availability
D801
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D903
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D906
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D913
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D913
DIODE,SWITCHING LGE 0DS141489BB Contact Us For Availability
D922
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D929
Diode,Switching LGE EAH30982402 Contact Us For Availability
F602
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB903
Filter,Bead LGE 636-004C Contact Us For Availability
FB903
Filter,Bead LGE EAM56488801 Contact Us For Availability
FC607
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
IC100A
S/W,System Program LGE SAA36342701 Contact Us For Availability
IC101
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC103A
S/W,System Program LGE SAA35932203 Contact Us For Availability
IC301A
S/W,System Program LGE SAA36342601 Contact Us For Availability
IC302
IC,SDRAM LGE EAN34123102 Contact Us For Availability
IC302
IC,SDRAM LGE EAN62355001 Contact Us For Availability
IC303
IC,Serial Flash Memory LGE EAN42836702 Contact Us For Availability
IC303
IC,Serial Flash Memory LGE EAN59369902 Contact Us For Availability
IC305
IC,A/D Converter LGE EAN30955301 Contact Us For Availability
IC501A
S/W,System Program LGE SAA36342801 Contact Us For Availability
IC602
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC607
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC800
IC,Tx/Rx LGE EAN60923601 Contact Us For Availability
IC803
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN60993301 Contact Us For Availability
IC903
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK301
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK302
Connector,USB LGE EAG35130503 Contact Us For Availability
JK303
Jack,Phone LGE EAG63411501 Contact Us For Availability
JK601
Jack,DC Power LGE EAG63410102 Contact Us For Availability
JK801
Connector,HDMI LGE EAG62611205 Contact Us For Availability
L607
Inductor,Wire Wound,Chip LGE EAP39307701 Contact Us For Availability
L625
Filter,Bead LGE EAM42641607 Contact Us For Availability
L712
Inductor,Wire Wound,Chip LGE EAP62267601 Contact Us For Availability
L807
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L809
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
L922
COIL,CHOKE LGE 633-088G Contact Us For Availability
L922
Coil,Choke LGE EAP60792101 Contact Us For Availability
LED401
LED,DIP LGE 0DLAU0148AA Contact Us For Availability
LF904
FILTER(CIRC),EMC LGE 6200JB8013T Contact Us For Availability
PC902
SENSOR LGE 6500RDB011B Contact Us For Availability
PC902
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q101
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q201
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q202
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q901
FET LGE 0TFFN10009A Contact Us For Availability
Q901
FET LGE 0TFST10008A Contact Us For Availability
Q910
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q910
TR,Bipolar LGE 0TR320200AD Contact Us For Availability
Q911
TR,Bipolar LGE 0TRKE90005B Contact Us For Availability
Q911
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q911
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q912
TR,Bipolar LGE 0TR320309AC Contact Us For Availability
Q912
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q913
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
R115
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R163
Resistor,Chip LGE 0RH2702C422 Contact Us For Availability
R201
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R204
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R343
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R365
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R368
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R369
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R602
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R603
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R604
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R606
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R608
Resistor,Chip LGE 0RH3001C422 Contact Us For Availability
R610
Resistor,Chip LGE 0RH9100C622 Contact Us For Availability
R611
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R614
Resistor,Chip LGE 0RH6801C422 Contact Us For Availability
R616
Resistor,Chip LGE 0RH1801C422 Contact Us For Availability
R618
Resistor,Chip LGE 0RH3902C422 Contact Us For Availability
R619
Resistor,Chip LGE 0RH1302C422 Contact Us For Availability
R620
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R621
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R631
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R632
Resistor,Chip LGE 0RH1600D622 Contact Us For Availability
R634
Resistor,Chip LGE 0RJ2200C477 Contact Us For Availability
R635
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R640
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R641
RESISTOR,METAL GLAZE LGE 0RJ1501C477 Contact Us For Availability
R642
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R645
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R646
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R709
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R807
Resistor,Chip LGE EBC61057301 Contact Us For Availability
R829
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R834
RESISTOR,METAL GLAZE LGE 0RH1201C422 Contact Us For Availability
R837
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R839
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R843
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R846
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R848
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R851
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R856
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R859
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R868
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R870
Resistor,Chip LGE 0RH0512C622 Contact Us For Availability
R871
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R873
Resistor,Chip LGE 0RH5100C422 Contact Us For Availability
R875
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R877
Resistor,Chip LGE EBC35243001 Contact Us For Availability
R885
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R892
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R895
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R901
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0101K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD0332F608 Contact Us For Availability
R908
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R909
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R911
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R914
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R918
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R924
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R925
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R926
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD1801F608 Contact Us For Availability
R942
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R944
Resistor,Metal Film LGE 0RN2402F408 Contact Us For Availability
R945
Resistor,Metal Film LGE 0RN2201F408 Contact Us For Availability
R947
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R948
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R949
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R950
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
RC201
Receiver Module LGE EAV61333201 Contact Us For Availability
RIC304
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
RX301
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
RX303
Crystal LGE 6212AB2192K Contact Us For Availability
SW701
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770119 Contact Us For Availability
T903
Transformer,Switching LGE EBJ60770118 Contact Us For Availability
TD801
Diode,TVS LGE EAH61515001 Contact Us For Availability
TH902
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TH902
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TM2
Connector,Wafer LGE 6602T25008B Contact Us For Availability
V803
Varistor LGE 6102R7E001A Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC602
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
WC611
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
WC620
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
WC631
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
WC635
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
WC646
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
WC660
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC663
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
WC665
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
WC668
Capacitor,Ceramic,Chip LGE 0CH1222K566 Contact Us For Availability
WC695
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
WC696
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
WCN701
CONNECTOR (CIRC),WAF LGE 561-712B Contact Us For Availability
WIC601
IC,LDO Voltage Regulator LGE EAN62406501 Contact Us For Availability
WIC603A
S/W,System Program LGE SAA35932201 Contact Us For Availability
WIC604
IC,Voltage Detector LGE EAN38061901 Contact Us For Availability
WIC607
IC,Sound/Audio Processor LGE EAN62335501 Contact Us For Availability
WIC608
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
WL681
Inductor,Multilayer,Chip LGE EAP60946212 Contact Us For Availability
WL688
Filter,Bead LGE EAM38769505 Contact Us For Availability
WL693
Coil,Choke LGE EAP62127101 Contact Us For Availability
WQ604
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
WQ605
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
WQ608
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
WQ612
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
WR602
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
WR606
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
WR611
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
WR619
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
WR637
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
WR638
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
WR640
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
WR642
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
WR643
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
WR651
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
WR654
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
WR665
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
WR666
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
WR671
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
WR694
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
WZD601
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
X100
Crystal LGE 6212AB2220C Contact Us For Availability
X300
Crystal LGE EAW32919201 Contact Us For Availability
X800
RESONATOR,CRYSTAL LGE 6212AB2286K Contact Us For Availability
ZD102
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD103
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD703
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009CA Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009CG Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009EA Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ622609AA Contact Us For Availability
ZD904
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD904
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD905
DIODE,ZENERS LGE 0DZGD00073A Contact Us For Availability
ZD905
DIODE,ZENERS LGE 0DZ200009BB Contact Us For Availability
ZD906
Diode,Zener LGE 0DZ470009BE Contact Us For Availability
ZD908
DIODE,ZENER LGE 0DZ220009ED Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
× ![]()
Login and Registration Form
