Model LG NB3740 – Common Parts & Diagrams

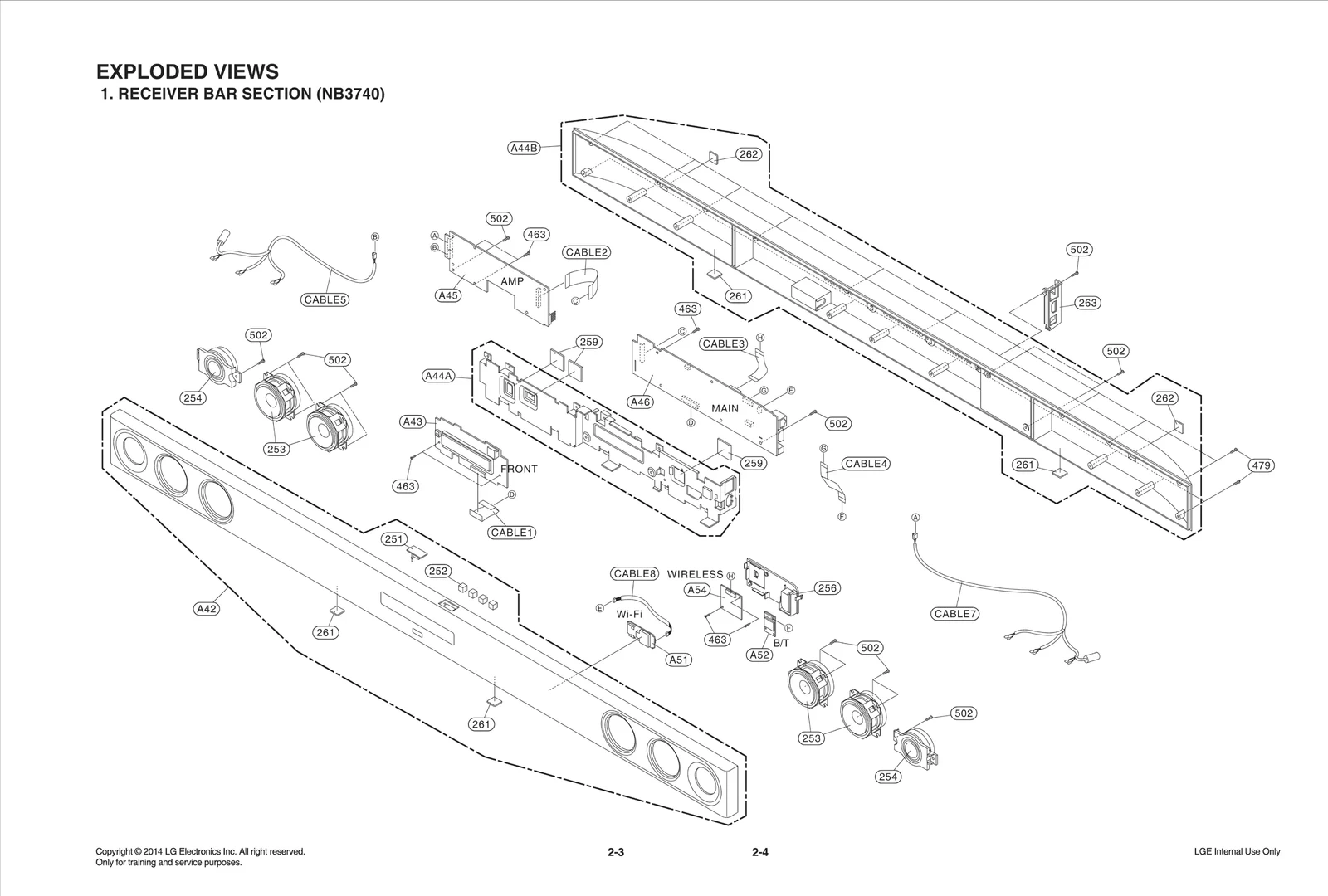

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG NB3740
251
Cover LGE MCK67867801 Contact Us For Availability
252
Gasket LGE MDS63870401 Contact Us For Availability
253
Speaker,Woofer LGE EAB62851801 Contact Us For Availability
254
Speaker,Tweeter LGE EAB62870201 Contact Us For Availability
256
Holder LGE MEG63559801 Contact Us For Availability
259
Damper LGE MCQ62096416 Contact Us For Availability
261
Damper LGE MCQ32325026 Contact Us For Availability
262
Damper LGE MCQ32325007 Contact Us For Availability
263
Cover LGE MCK67503301 Contact Us For Availability
300
Power Cord LGE EAD60816745 Contact Us For Availability
300W
Power Cord LGE EAD60816718 Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
479
SCREW,DRAWING LGE 1SZZR-0098D Contact Us For Availability
502
Screw,Customized LGE 1SZZR-0097D Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76193702 Contact Us For Availability
802
Box,Master LGE MAY65968821 Contact Us For Availability
803
Packing LGE MFZ63549201 Contact Us For Availability
804
Bag LGE MAF61906412 Contact Us For Availability
806
Cable,Assembly LGE EAD61071205 Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
820A
Cable,Assembly LGE EAD62440501 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
832
Title LGE SAC35713912 Contact Us For Availability
835
Bracket LGE MAZ63344001 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73775701 Contact Us For Availability
951
Cable,FFC LGE EAD62096301 Contact Us For Availability
952
Frame LGE MDQ63438802 Contact Us For Availability
953
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
954
Bracket LGE MAZ63675801 Contact Us For Availability
955
Chassis LGE MBS62586201 Contact Us For Availability
A42
Case Assembly LGE ABQ74401801 Contact Us For Availability
A43
PCB Assembly LGE EBR78893001 Contact Us For Availability
A44A
Frame LGE MDQ63457702 Contact Us For Availability
A44B
Case Assembly LGE ABQ74165101 Contact Us For Availability
A45
PCB Assembly LGE EBR78892901 Contact Us For Availability
A45W
PCB Assembly LGE EBR76470407 Contact Us For Availability
A46
PCB Assembly LGE EBR78892801 Contact Us For Availability
A47W
PCB Assembly,Power LGE EBR76798401 Contact Us For Availability
A51
Module,WLAN LGE EAT61613101 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT61875101 Contact Us For Availability
A900
Speaker System Total LGE TCG35748205 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C5B4
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C109
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C119
Capacitor,Ceramic,Ch LGE 0CK101BF4DA Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C308
Capacitor,Ceramic,Chip LGE EAE35701401 Contact Us For Availability
C313
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C317
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C502
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C551
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C566
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C579
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C607
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C716
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C726
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C732
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C736
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C745
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C765
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C823
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
C829
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C900
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C902
Capacitor,AL,Radial LGE 0CE127JV640 Contact Us For Availability
C903
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C903P
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C904
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C905
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C909
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C910
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C911
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C912
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C920P
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C939
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C942
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C950
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C952
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C963P
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C972
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CA702
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CA900P
Capacitor,AL,Chip LGE 0CZZR00035A Contact Us For Availability
CA902
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
CA908P
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62246403 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62097302 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62096302 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62130010 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR77975501 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR77975601 Contact Us For Availability
CABLE8
Harness,Single LGE EAD33638822 Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CN101
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN301
Connector,Wafer LGE EAG62611106 Contact Us For Availability
CN800
Connector,FFC/FPC/PI LGE 6630XE00124 Contact Us For Availability
CN801
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN802
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN900
CONNECTOR (CIRC),BOA LGE 6630R-BF03F Contact Us For Availability
CN900P
Connector,BtoB LGE EAG63270301 Contact Us For Availability
CN901
WAFER LGE 6602T25008J Contact Us For Availability
D303
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D801
Diode,TVS LGE EAH61515001 Contact Us For Availability
D802
Diode,TVS LGE EAH56919501 Contact Us For Availability
D901
Diode,Switching LGE EAH61853601 Contact Us For Availability
D902
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D902
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D904
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D905
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D909P
Diode,TVS LGE EAH62033601 Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
D951
Diode,Schottky LGE EAH62134501 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
F901P
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL802
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL901
Filter,Line Noise LGE EAM60672506 Contact Us For Availability
HS901
Heat Sink LGE MED62471901 Contact Us For Availability
HS951
Heat Sink LGE MED61841613 Contact Us For Availability
IC101A
S/W,System Program LGE SAA36772101 Contact Us For Availability
IC102
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC104A
S/W,System Program LGE SAA35932216 Contact Us For Availability
IC201
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC302A
S/W,System Program LGE SAA36772201 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62230602 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61859702 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61859502 Contact Us For Availability
IC504A
S/W,System Program LGE SAA36772001 Contact Us For Availability
IC602
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC802
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC900
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62388901 Contact Us For Availability
IC902
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC903
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK301
Connector,USB LGE EAG62571101 Contact Us For Availability
JK401
Harness,Single LGE EAD57600602 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611202 Contact Us For Availability
JK804
Jack,Modular LGE EAG32089104 Contact Us For Availability
JK805
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK900P
Jack,DC Power LGE EAG63410102 Contact Us For Availability
L503
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
L711
Coil,Choke LGE EAP62367701 Contact Us For Availability
L800
Filter,Bead LGE EAM62155402 Contact Us For Availability
L800
Filter,Bead LGE EAM62155401 Contact Us For Availability
L805
Filter,Bead LGE EAM60887204 Contact Us For Availability
L910P
Filter,Bead LGE EAM42641607 Contact Us For Availability
L915
Inductor,Wire Wound,Chip LGE EAP61827601 Contact Us For Availability
L916
Inductor,Wire Wound,Chip LGE EAP62286201 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q102
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q301
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q302
TR,Bipolar LGE EBK33822201 Contact Us For Availability
Q303
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q801
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q901
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q951
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R321
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R329
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R333
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R338
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R342
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R343
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R503F
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R520
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R566
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R626
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R711
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R713
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R815
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R904
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R905
Resistor,Chip LGE 0RH1802C422 Contact Us For Availability
R907
Resistor,Metal Oxide Film LGE EBC62498201 Contact Us For Availability
R908
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R909
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R911
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R915
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R916
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R919
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R929P
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R930
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R932
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R936
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R937
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R940
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R942
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R944
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R945
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R946P
RESISTOR,METAL GLAZE LGE 0RJ9100C478 Contact Us For Availability
R950
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM SKN LGE 0RD6801F609 Contact Us For Availability
R954
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R956
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R957
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
RC301
Receiver Module LGE EAV61333201 Contact Us For Availability
SW401
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770107 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TM2
Connector,Wafer LGE 6602T25008D Contact Us For Availability
VFD
VFD LGE EAJ62667902 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC607
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
WC618
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
WC622
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
WC624
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
WC632
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC634
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
WC643
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WC655
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
WC680
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
WCA603
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
WCA611
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
WCN601
Harness,Single LGE 6631R-F039Z Contact Us For Availability
WCN603
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WCN604
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
WCN605
Connector,Wafer LGE 561-711C Contact Us For Availability
WD602
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
WFC602
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
WH601
Heat Sink LGE 4920S-ES01D Contact Us For Availability
WIC601
IC,Sound/Audio Processor LGE EAN62335501 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62396101 Contact Us For Availability
WIC603A
S/W,System Program LGE SAA35932217 Contact Us For Availability
WIC604
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
WIC605
IC,Voltage Detector LGE EAN38061901 Contact Us For Availability
WIC607
IC,DC,DC Converter LGE EAN61127301 Contact Us For Availability
WIC608
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
WIC609
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
WL601
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
WL603
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
WL605
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
WL605
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
WQ604
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
WQ609
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
WQ610
FET LGE EBK62033601 Contact Us For Availability
WR603
Resistor,Chip LGE ERHZ0000219 Contact Us For Availability
WR605
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
WR606
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
WR607
Resistor,Chip LGE EBC42830501 Contact Us For Availability
WR611
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
WR612
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
WR616
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
WR617
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
WR626
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
WR633
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
WR646
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
WR648
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
WR695
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
WX601
Crystal LGE EAW61645210 Contact Us For Availability
WX601
Crystal LGE 6212AB2192K Contact Us For Availability
WZD604
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X201
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X501
Crystal LGE EAW32919201 Contact Us For Availability
ZD306
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD704
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD706
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD906
Diode,Zener LGE 0DZSE00044B Contact Us For Availability
ZD908
Diode,Zener LGE 0DZSE00164A Contact Us For Availability
× ![]()
Login and Registration Form
