Model LG NB3730A – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2
Diagram 3

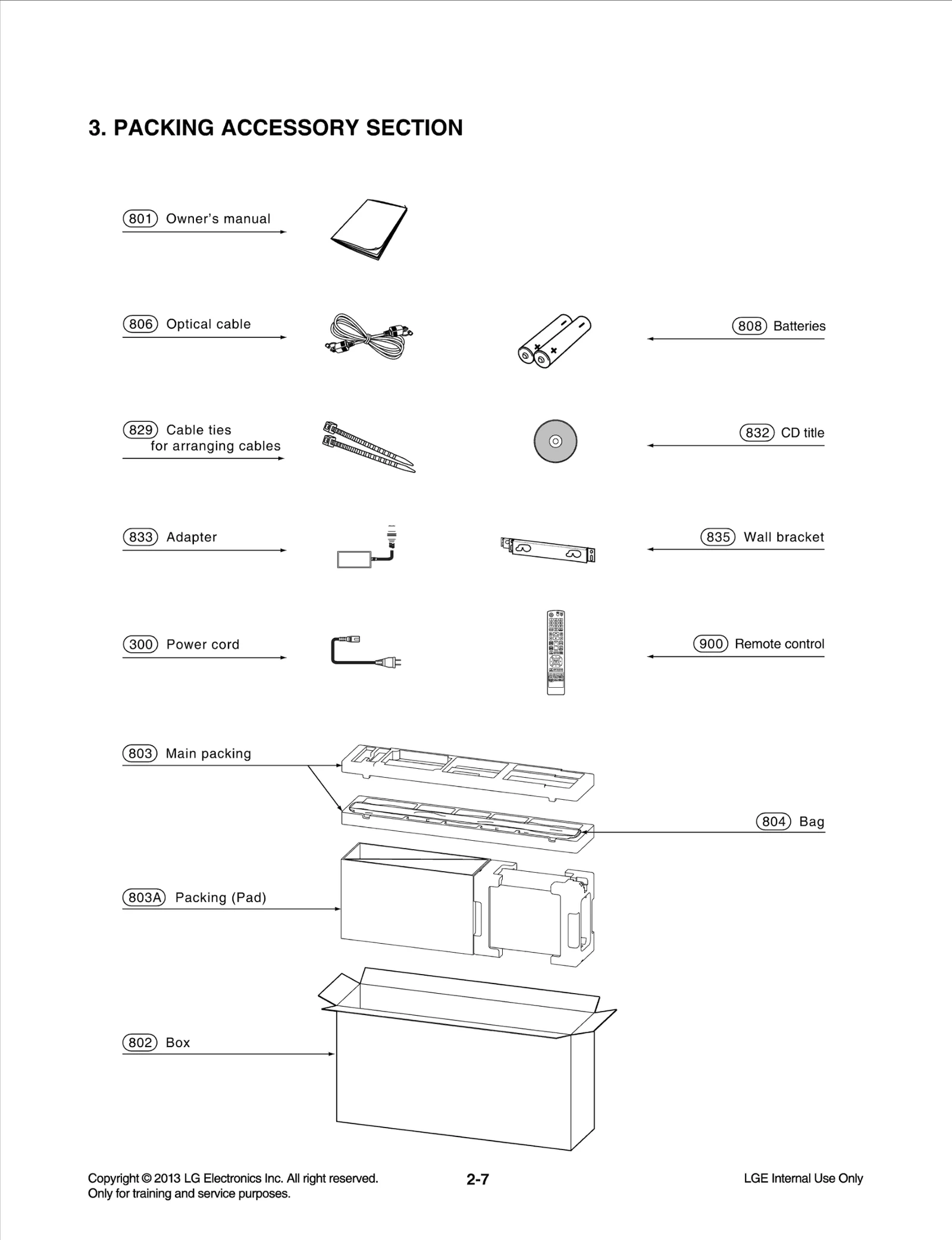

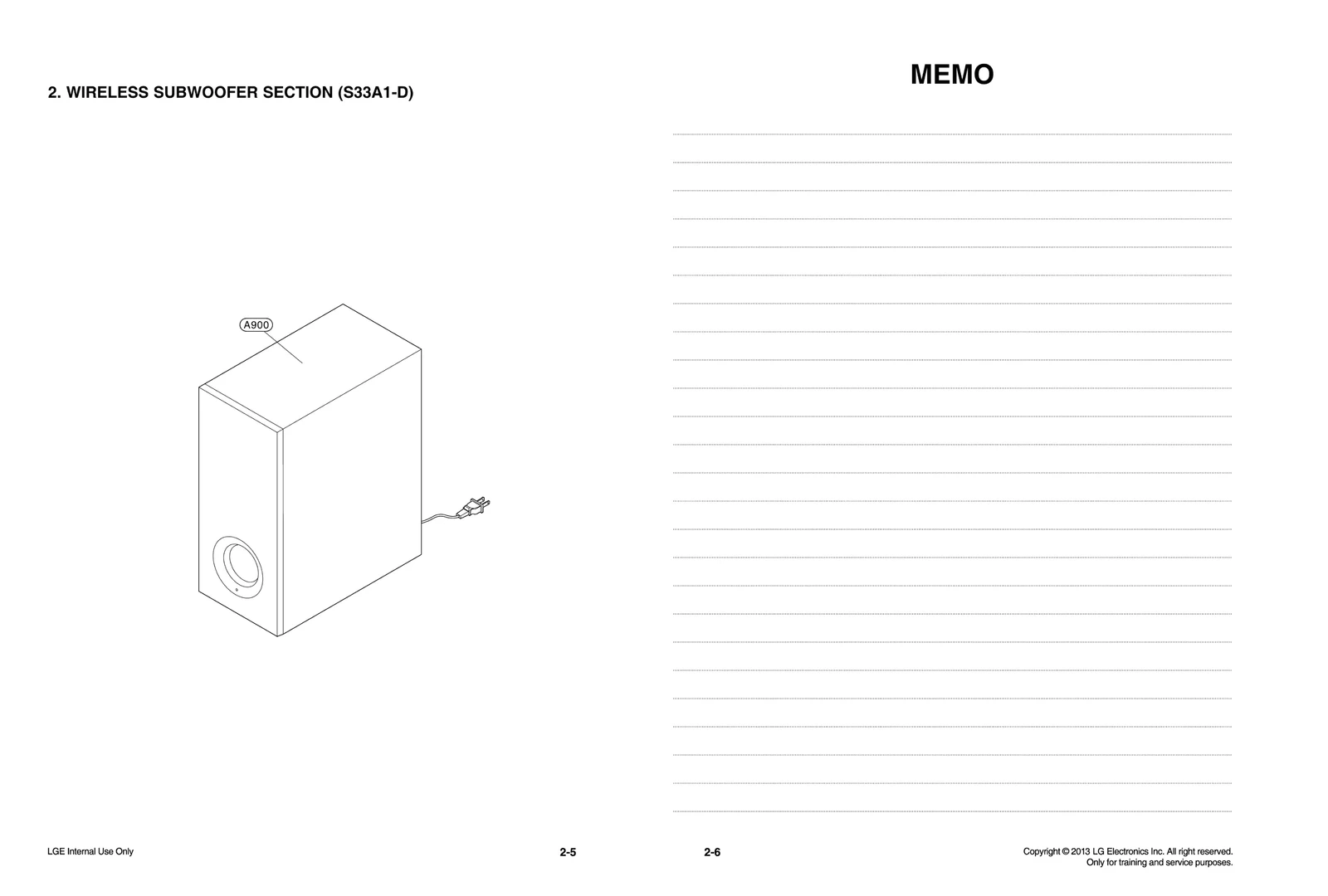

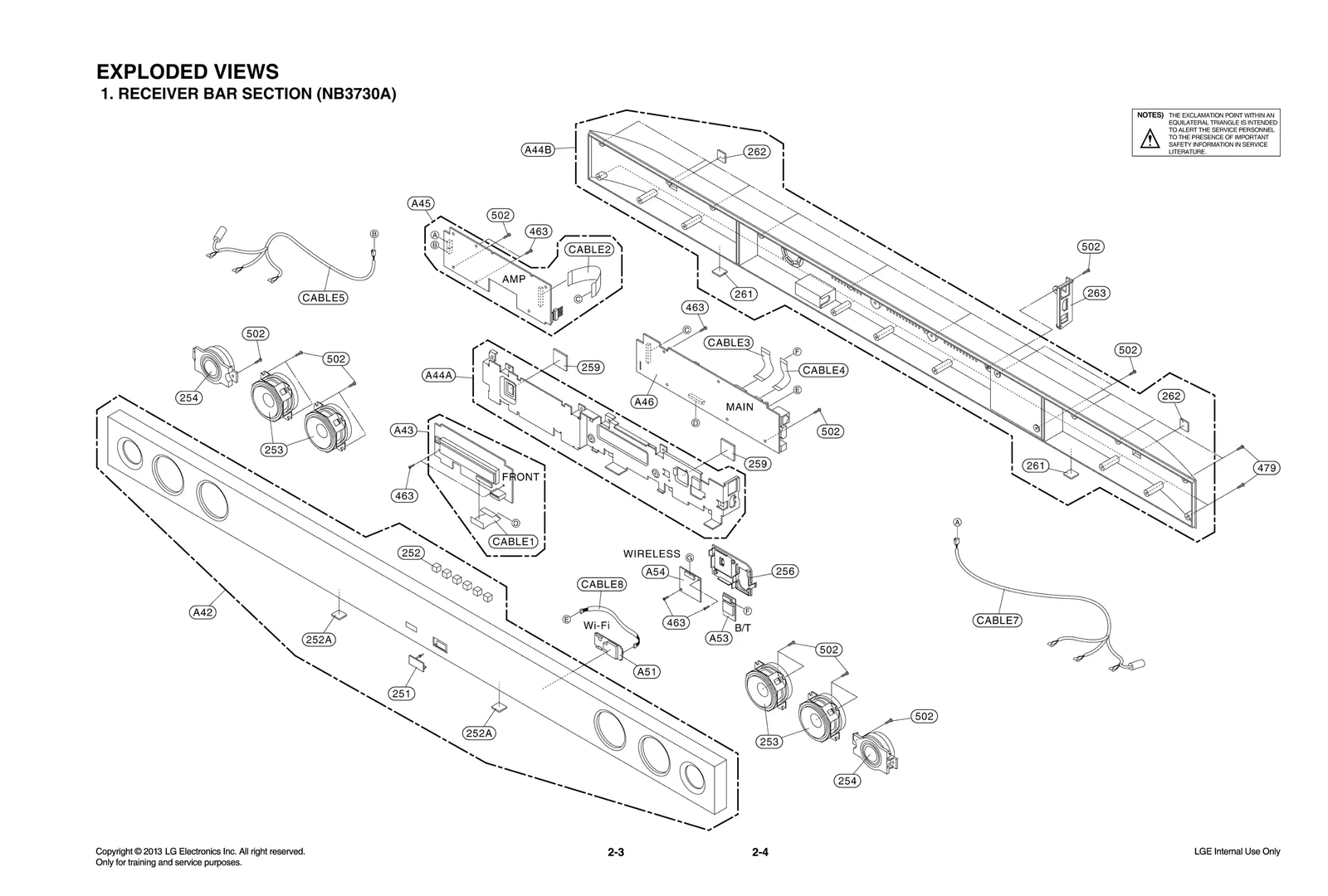

Common parts from model LG NB3730A
251
Cover LGE MCK67007901 Contact Us For Availability
252
Gasket LGE MDS63870401 Contact Us For Availability
252A
Damper LGE MCQ32325027 Contact Us For Availability
253
Speaker,Woofer LGE EAB62851801 Contact Us For Availability
254
Speaker,Tweeter LGE EAB62870201 Contact Us For Availability
256
Holder LGE MEG63260301 Contact Us For Availability
259
Damper LGE MCQ62096416 Contact Us For Availability
261
Damper LGE MCQ32325026 Contact Us For Availability
262
Damper LGE MCQ32325007 Contact Us For Availability
263
Cover LGE MCK67503301 Contact Us For Availability
300
Power Cord LGE EAD60816745 Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
479
SCREW,DRAWING LGE 1SZZR-0098D Contact Us For Availability
502
Screw,Customized LGE 1SZZR-0097D Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75876638 Contact Us For Availability
802
Box,Master LGE MAY65713668 Contact Us For Availability
803
Packing LGE MFZ63549201 Contact Us For Availability
803A
Packing LGE MFZ62114347 Contact Us For Availability
804
Bag LGE MAF61906412 Contact Us For Availability
806
Cable,Assembly LGE EAD61071205 Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
832
Title LGE SAC35713701 Contact Us For Availability
835
Bracket LGE MAZ63344001 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73775701 Contact Us For Availability
A42
Case Assembly LGE ABQ74165001 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR76705201 Contact Us For Availability
A44A
Frame Assembly LGE ADV74469402 Contact Us For Availability
A44B
Case Assembly LGE ABQ74165101 Contact Us For Availability
A45
PCB Assembly,Sub LGE EBR76717801 Contact Us For Availability
A46
Option Code Assembly LGE EBR76568003 Contact Us For Availability
A51
Module,WLAN LGE EAT61613101 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
A54
Module,RF Full Module(RxTx) LGE EAT61653601 Contact Us For Availability
A900
Speaker System Total LGE TCG35409001 Contact Us For Availability
C5A4
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C109
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C113
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C218
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C517
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C530
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C551
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C566
Capacitor,Ceramic,Ch LGE 0CK475CD64A Contact Us For Availability
C579
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C630
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C711
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C714
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C721
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C730
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C732
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C815
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C822
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C823
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
C836
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C903
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C904
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C909
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C926P
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C939
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C950
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C955
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C958
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C963P
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C971
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
CA100
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
CA703
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CA900
Capacitor,AL,Chip LGE 0CZZR00035A Contact Us For Availability
CA901
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
CA901P
Capacitor,AL,Chip LGE EAE60658901 Contact Us For Availability
CA904P
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62246403 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62097302 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62096302 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62096402 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR76792905 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR76792906 Contact Us For Availability
CABLE8
Harness,Single LGE EAD33638822 Contact Us For Availability
CN100
Connector,Wafer LGE EAG62611106 Contact Us For Availability
CN101
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
CN601
Connector,FFC/FPC/PI LGE 6630XE00124 Contact Us For Availability
CN801
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN802
Connector,Wafer LGE EAG62611104 Contact Us For Availability
CN900
CONNECTOR (CIRC),BOA LGE 6630R-BF03F Contact Us For Availability
CN900P
Connector,BtoB LGE EAG00743103 Contact Us For Availability
D501
Diode,TVS LGE EAH56919501 Contact Us For Availability
D801
Diode,TVS LGE EAH61515001 Contact Us For Availability
D902
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D903P
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D907
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
D908P
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
D909P
Diode,TVS LGE EAH62033601 Contact Us For Availability
D910P
Diode,Zener LGE EAH43050901 Contact Us For Availability
F901P
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
FL700
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
FL800
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
IC101A
S/W,System Program LGE SAA36399201 Contact Us For Availability
IC102
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC104A
S/W,System Program LGE SAA35932205 Contact Us For Availability
IC201
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC501
IC,Display Driver LGE EAN61508101 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62230602 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61859702 Contact Us For Availability
IC502
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC502A
S/W,System Program LGE SAA36372401 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC504A
S/W,System Program LGE SAA36297301 Contact Us For Availability
IC602
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC800
IC,I/O Support Chip LGE EAN62352301 Contact Us For Availability
IC801
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC900
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC901
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC902
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC903
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
JK501
Connector,USB LGE EAG40457701 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611202 Contact Us For Availability
JK804
Jack,Modular LGE EAG32089104 Contact Us For Availability
JK805
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK900P
Jack,DC Power LGE EAG63410102 Contact Us For Availability
L103
Filter,Bead LGE EAM42641607 Contact Us For Availability
L503
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
L714
Inductor,Wire Wound,Chip LGE EAP62267601 Contact Us For Availability
L805
Filter,Bead LGE EAM60887204 Contact Us For Availability
L912P
Filter,Bead LGE EAM62155401 Contact Us For Availability
L913
Inductor,Wire Wound,Chip LGE EAP62286201 Contact Us For Availability
L915
Inductor,Wire Wound,Chip LGE EAP61827601 Contact Us For Availability
Q101
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q900P
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q902P
TR,Bipolar LGE EBK36400001 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R503
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R503F
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R509
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R520
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R521
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R531
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R626
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R628
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R657
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R709
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R714
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R810
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ2001C478 Contact Us For Availability
R815
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R816
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R902P
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R903
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R903P
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R904
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R905
Resistor,Chip LGE 0RH1802C422 Contact Us For Availability
R907
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R908
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R909
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R910P
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R911
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R915
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R916
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R919
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R924P
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R926
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R930
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R932
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R937
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R940
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R942
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R944
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R945
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R946P
RESISTOR,METAL GLAZE LGE 0RJ9100C478 Contact Us For Availability
R948P
Resistor,Chip LGE EBC38990201 Contact Us For Availability
R950
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R953
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
RC501
Receiver Module LGE EAV61333201 Contact Us For Availability
T900P
Transformer,Switching LGE EBJ61651201 Contact Us For Availability
TM2
Connector,Wafer LGE 6602T25008B Contact Us For Availability
VFD
VFD LGE EAJ60868406 Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X201
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X501
Crystal LGE EAW32919201 Contact Us For Availability
ZD702
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD703
Diode,Zener LGE EAH39305801 Contact Us For Availability
× ![]()
Login and Registration Form
