Model LG NB3520A – Common Parts & Diagrams
Diagram 0

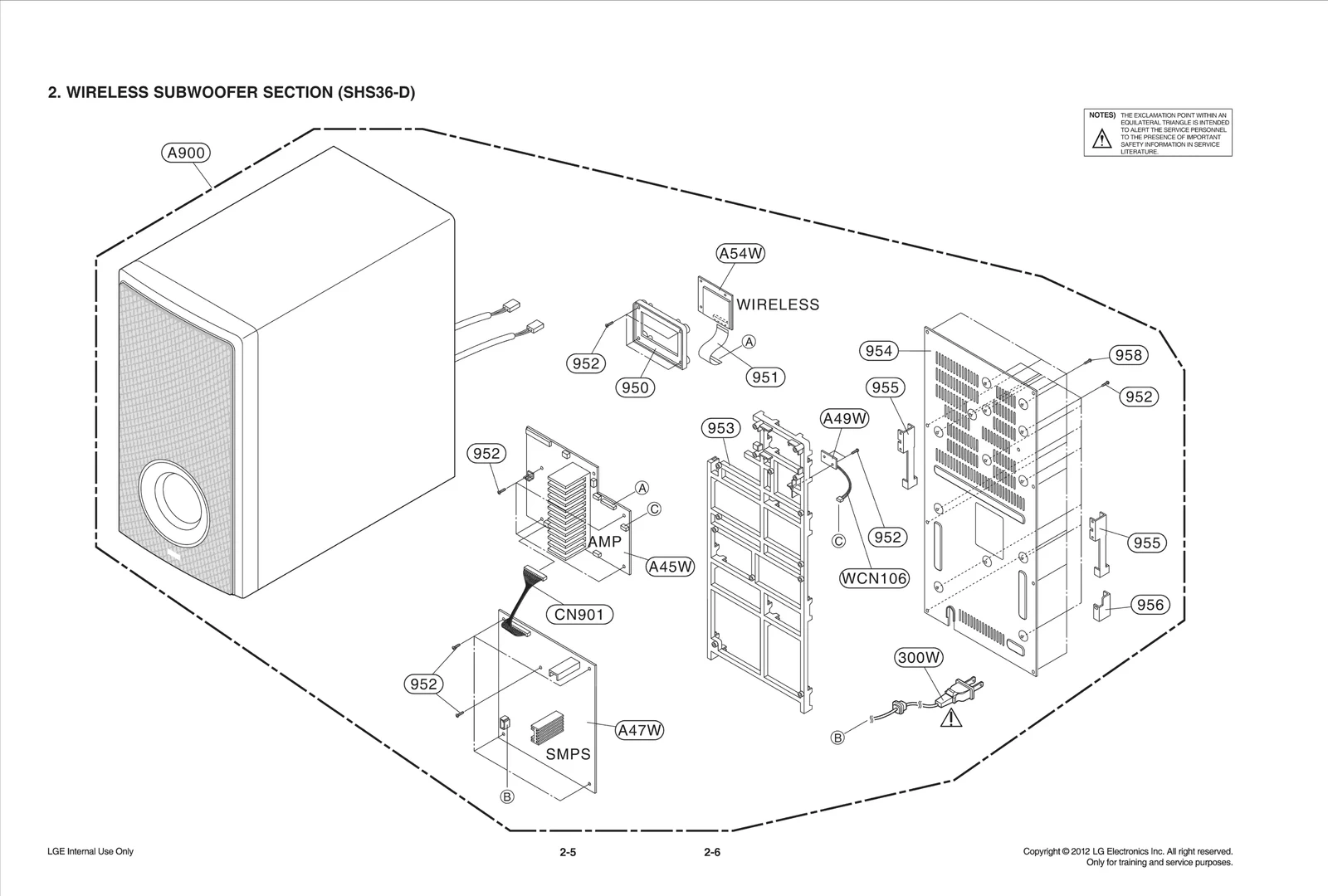

Diagram 1

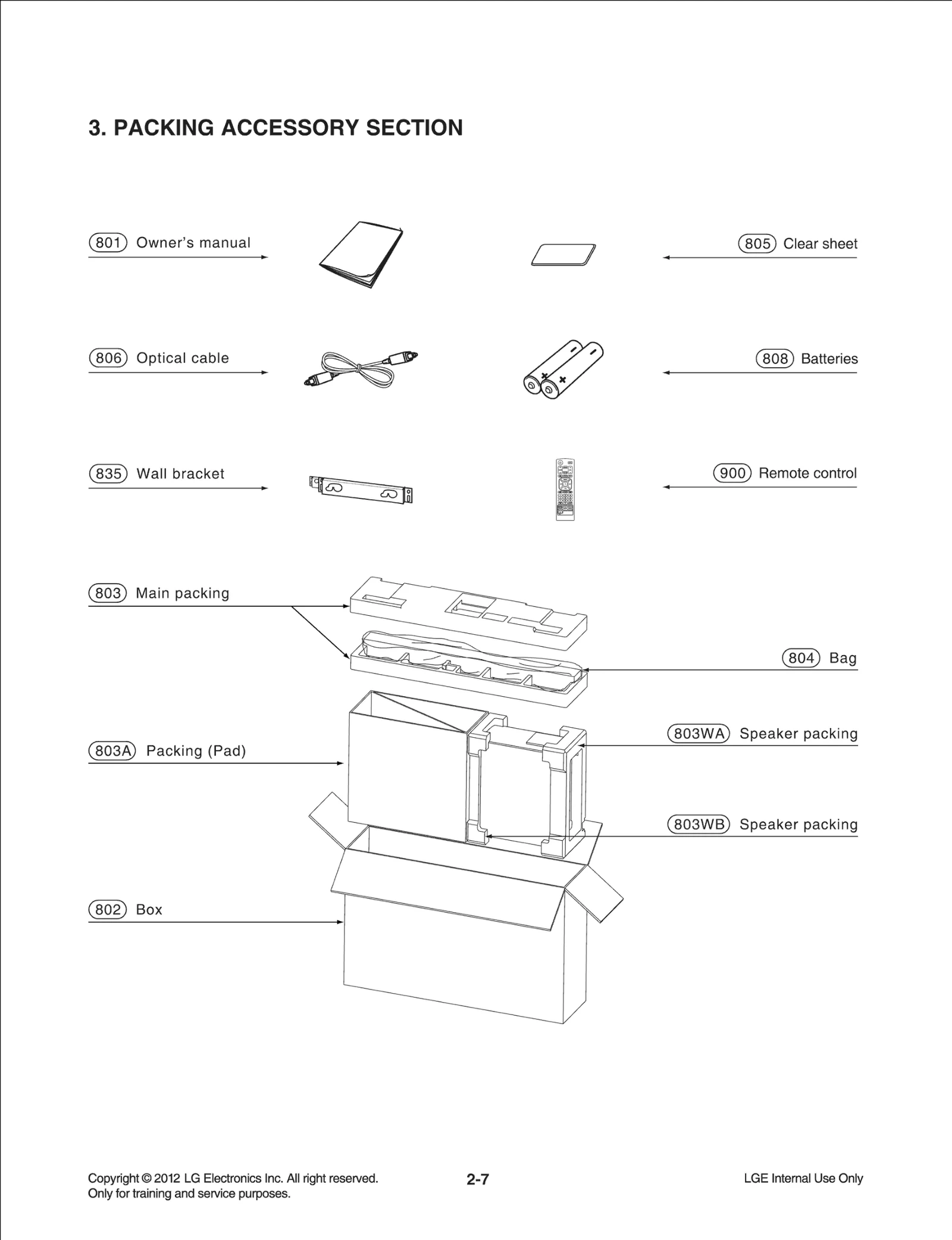

Diagram 2
Diagram 3
Common parts from model LG NB3520A
251
Damper LGE MCQ32325007 Contact Us For Availability
252
Gasket LGE MDS63870401 Contact Us For Availability
253
Speaker,MID,Range LGE EAB62650401 Contact Us For Availability
254
Speaker,Tweeter LGE EAB62670201 Contact Us For Availability
255
Holder LGE MEG63058601 Contact Us For Availability
256
Holder LGE MEG63018701 Contact Us For Availability
257
Chassis LGE MBS62445401 Contact Us For Availability
260
Panel,Rear LGE MGC62739901 Contact Us For Availability
262
Cover LGE MCK66985101 Contact Us For Availability
300W
Power Cord LGE EAD60816718 Contact Us For Availability
454
Screw,Customized LGE 1SZZR-0098W Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75913649 Contact Us For Availability
802
Box,Master LGE MAY65713645 Contact Us For Availability
803
Packing LGE MFZ63331402 Contact Us For Availability
803A
Packing LGE MFZ62114320 Contact Us For Availability
803WA
Packing LGE MFZ62593460 Contact Us For Availability
803WB
Packing LGE MFZ62593459 Contact Us For Availability
804
Bag LGE MAF61906406 Contact Us For Availability
805
Sheet LGE MHK37290701 Contact Us For Availability
806
Cable,Assembly LGE EAD61071205 Contact Us For Availability
806
Cable,Assembly LGE 6850R-ZAA02 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
835
Bracket LGE MAZ63344001 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73575401 Contact Us For Availability
950
Bracket LGE MAZ62333451 Contact Us For Availability
951
Cable,FFC LGE 6850R-EZ06K Contact Us For Availability
952
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
953
Bracket LGE MAZ62333251 Contact Us For Availability
954
Panel,Rear LGE MGC62064253 Contact Us For Availability
955
Bracket LGE MAZ62828351 Contact Us For Availability
956
Bracket LGE MAZ62833001 Contact Us For Availability
958
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
A42
Panel Assembly,Front LGE AGL73872602 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR74293302 Contact Us For Availability
A44A
Frame Assembly LGE ADV74306701 Contact Us For Availability
A44B
Case Assembly LGE ABQ73920102 Contact Us For Availability
A45
PCB Assembly LGE EBR74845402 Contact Us For Availability
A45W
PCB Assembly LGE EBR73181603 Contact Us For Availability
A46
Option Code Assembly LGE EBR75002201 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR74329102 Contact Us For Availability
A47W
PCB Assembly,Power LGE EBR71113003 Contact Us For Availability
A49W
PCB Assembly LGE EBR73218901 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61633101 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT61013305 Contact Us For Availability
A900
Sub Set-Speaker System LGE TCG34928172 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRTW00180B Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C305
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C308
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C347
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C361
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C363
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C365
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C369
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C373
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C376
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C710
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C723
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C730
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C732
Capacitor,Ceramic,Chip LGE EAE61381601 Contact Us For Availability
C802
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C804
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C806
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C810
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C812
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C816
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C819
Capacitor,Ceramic,Chip LGE 0CH1332K512 Contact Us For Availability
C820
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C821
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C840
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C900
Capacitor,AL,Radial LGE 0CE686JV6A0 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE187RV640 Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ2221N409 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C912
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C913
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C914
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C915
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C917
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C918
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C919
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C920
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C924
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C925
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C929
CAPACITOR LGE 624-087D Contact Us For Availability
C930
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C932
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C934
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C937
Capacitor,Ceramic,Radial,Disc LGE 624-087S Contact Us For Availability
C950
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA301
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CA314
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
CA702
Capacitor,AL,Radial LGE 0CE477EJ630 Contact Us For Availability
CA801
Capacitor,AL,Chip LGE EAE60658901 Contact Us For Availability
CA802
Capacitor,AL,Chip LGE 0CZZR00035A Contact Us For Availability
CA807
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
CA808
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62096601 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62096401 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62096301 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR74677201 Contact Us For Availability
CABLE6
Harness,Single LGE EAD35863006 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR75161301 Contact Us For Availability
CM900
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM900
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM900
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM900
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN101
Connector,FFC/FPC/PI LGE 6630XE00116 Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE 6630R-FA04Z Contact Us For Availability
CN302
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN303
Connector,FFC/FPC/PIC LGE 6630R-FB11P Contact Us For Availability
CN801
Connector,BtoB LGE 6630R-BF03J Contact Us For Availability
CN900
Connector,BtoB LGE EAG00743102 Contact Us For Availability
CN901
Harness,Single LGE EAD42218216 Contact Us For Availability
D304
Diode,Zener LGE EAH61433801 Contact Us For Availability
D305
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
D802
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D814
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D903
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D904
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D913
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D913
Diode,Switching LGE EAH32120501 Contact Us For Availability
D920
Diode,Switching LGE EAH61853601 Contact Us For Availability
D922
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D929
Diode,Switching LGE EAH30982402 Contact Us For Availability
D950
Diode,Switching LGE EAH30982401 Contact Us For Availability
F900
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB903
Filter,Bead LGE EAM56488801 Contact Us For Availability
FB903
Filter,Bead LGE 636-004C Contact Us For Availability
FC803
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
FL301
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
IC100A
S/W,System Program LGE SAA35956201 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC301
IC,Display Driver LGE EAN61508101 Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN62408101 Contact Us For Availability
IC302
IC,SDRAM LGE EAN34123102 Contact Us For Availability
IC302A
S/W,System Program LGE SAA35956101 Contact Us For Availability
IC303A
S/W,System Program LGE SAA35956301 Contact Us For Availability
IC304
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC305
IC,A/D Converter LGE EAN30955301 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC802
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC804
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC806
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN60993301 Contact Us For Availability
IC904
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC904
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC920
IC,PWM Controller LGE EAN61607401 Contact Us For Availability
IC950
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK302
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK303
Jack,Phone LGE 6612F00001B Contact Us For Availability
JK304
Connector,Wafer LGE 6630R3S006A Contact Us For Availability
JK772
CONNECTOR CD-910A UG2 LGE 561-711F Contact Us For Availability
JK773
Connector,USB LGE EAG35130501 Contact Us For Availability
L107
Filter,Bead LGE EAM42641607 Contact Us For Availability
L713
Coil,Choke LGE EAP60986503 Contact Us For Availability
L802
Inductor,Wire Wound,Chip LGE EAP61827601 Contact Us For Availability
L922
COIL,CHOKE LGE 633-088G Contact Us For Availability
L922
Coil,Choke LGE EAP60792101 Contact Us For Availability
LF900
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
LF904
FILTER(CIRC),EMC LGE 6200JB8013T Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC900
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC903
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC903
SENSOR LGE 6500RDB011B Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q301
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q302
TR,Bipolar LGE EBK36400001 Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q801
TRANSISTOR,FETS LGE 0TFPH80002A Contact Us For Availability
Q902
FET LGE EBK60872301 Contact Us For Availability
Q910
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q910
TR,Bipolar LGE 0TR320200AD Contact Us For Availability
Q911
TR,Bipolar LGE 0TRKE90005B Contact Us For Availability
Q911
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q911
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q912
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q912
TR,Bipolar LGE 0TR320309AC Contact Us For Availability
Q913
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
R101
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R105
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R302
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R306
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R309
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R310
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R319
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R329
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R335
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R339
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R349
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R369
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R374
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R386
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R712
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R713
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R801
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R802
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R803
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R805
Resistor,Chip LGE 0RH1602C422 Contact Us For Availability
R806
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R807
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R808
Resistor,Chip LGE 0RH3001C422 Contact Us For Availability
R809
Resistor,Chip LGE 0RH1302C422 Contact Us For Availability
R810
Resistor,Chip LGE 0RH9100C622 Contact Us For Availability
R812
Resistor,Chip LGE EBC38990201 Contact Us For Availability
R817
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R825
Resistor,Chip LGE 0RH3002C422 Contact Us For Availability
R826
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R828
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R832
Resistor,Chip LGE 0RH6801C422 Contact Us For Availability
R839
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R840
Resistor,Chip LGE 0RH1600D622 Contact Us For Availability
R842
Resistor,Chip LGE 0RJ2200C477 Contact Us For Availability
R843
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R901
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R902
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0101K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD0332F609 Contact Us For Availability
R907
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R914
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R916
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R918
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R924
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R924
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R925
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R942
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R944
Resistor,Metal Film LGE 0RN2402F409 Contact Us For Availability
R945
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R947
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R948
Resistor,Carbon Film LGE 0RD0471F609 Contact Us For Availability
R949
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R950
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R953
Resistor,Metal Film LGE 0RN1502F409 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM R-E LGE 0RD3901F609 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R956
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R957
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
RC301
Receiver Module LGE EAV61333201 Contact Us For Availability
SW101
Switch,Tact LGE EBF40098802 Contact Us For Availability
T801
Transformer,Switching LGE EBJ61431201 Contact Us For Availability
T900
Transformer,Switching LGE EBJ60770138 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770119 Contact Us For Availability
T903
Transformer,Switching LGE EBJ60770118 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH902
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TM2
Connector,Wafer LGE 6602T25008B Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC103
Capacitor,AL,Chip LGE EAE56703201 Contact Us For Availability
WC107
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
WC113
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
WC115
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
WC125
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
WC607
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
WC615
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
WC632
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
WC633
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
WC638
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC641
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
WC642
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
WC649
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
WCN101
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
WCN103
Connector,Wafer LGE 561-711C Contact Us For Availability
WCN105
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
WCN106
Harness,Single LGE EAD57600602 Contact Us For Availability
WCN601
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
WCN604
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WD102
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
WD103
Diode,Switching LGE 0DD160009AB Contact Us For Availability
WIC103A
S/W,System Program LGE SAA35520101 Contact Us For Availability
WIC104
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
WIC105
IC,EEPROM LGE EAN61548301 Contact Us For Availability
WIC107
IC,LDO Voltage Regulator LGE EAN60989401 Contact Us For Availability
WIC108
IC,Voltage Detector LGE EAN60772201 Contact Us For Availability
WIC601
IC,PWM Controller LGE EAN60993101 Contact Us For Availability
WIC602
IC,Power Amplifier LGE EAN60995802 Contact Us For Availability
WIC604
IC,LDO Voltage Regulator LGE EAN50484701 Contact Us For Availability
WL109
Filter,Bead LGE EAM62151101 Contact Us For Availability
WL611
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
WQ102
TR,Bipolar LGE 0TR102009AC Contact Us For Availability
WQ104
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
WR110
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
WR111
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
WR113
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
WR138
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
WR141
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
WR153
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
WR181
RESISTOR,METAL GLAZE LGE 0RJ1501C477 Contact Us For Availability
WR603
Resistor,Chip LGE 0RH8201C422 Contact Us For Availability
WR604
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
WR605
Resistor,Chip LGE 0RJ1800C477 Contact Us For Availability
WR612
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
WR613
Resistor,Chip LGE 0RH3901C422 Contact Us For Availability
WR617
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
WR619
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
WR627
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
WR659
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
WR672
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
WR680
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
WR685
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
WR686
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
WSW101
Switch,Tact LGE 6600R000005 Contact Us For Availability
WX101
Crystal LGE EAW32918901 Contact Us For Availability
WX102
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
WX601
Crystal LGE 6212AB2192K Contact Us For Availability
X100
Crystal LGE 6212AB2220C Contact Us For Availability
X300
Crystal LGE EAW32919201 Contact Us For Availability
ZD100
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD801
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ270009AH Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD902
Diode,Zener LGE 0DZRM00554A Contact Us For Availability
ZD904
Diode,Zener LGE 0DZRM00484A Contact Us For Availability
ZD905
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
ZD905
Diode,Zener LGE EAH42768301 Contact Us For Availability
ZD906
Diode,Zener LGE EAH61194401 Contact Us For Availability
ZD906
Diode,Zener LGE 0DZSE00154A Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD921
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
× ![]()
Login and Registration Form
