Model LG NB3510A – Common Parts & Diagrams

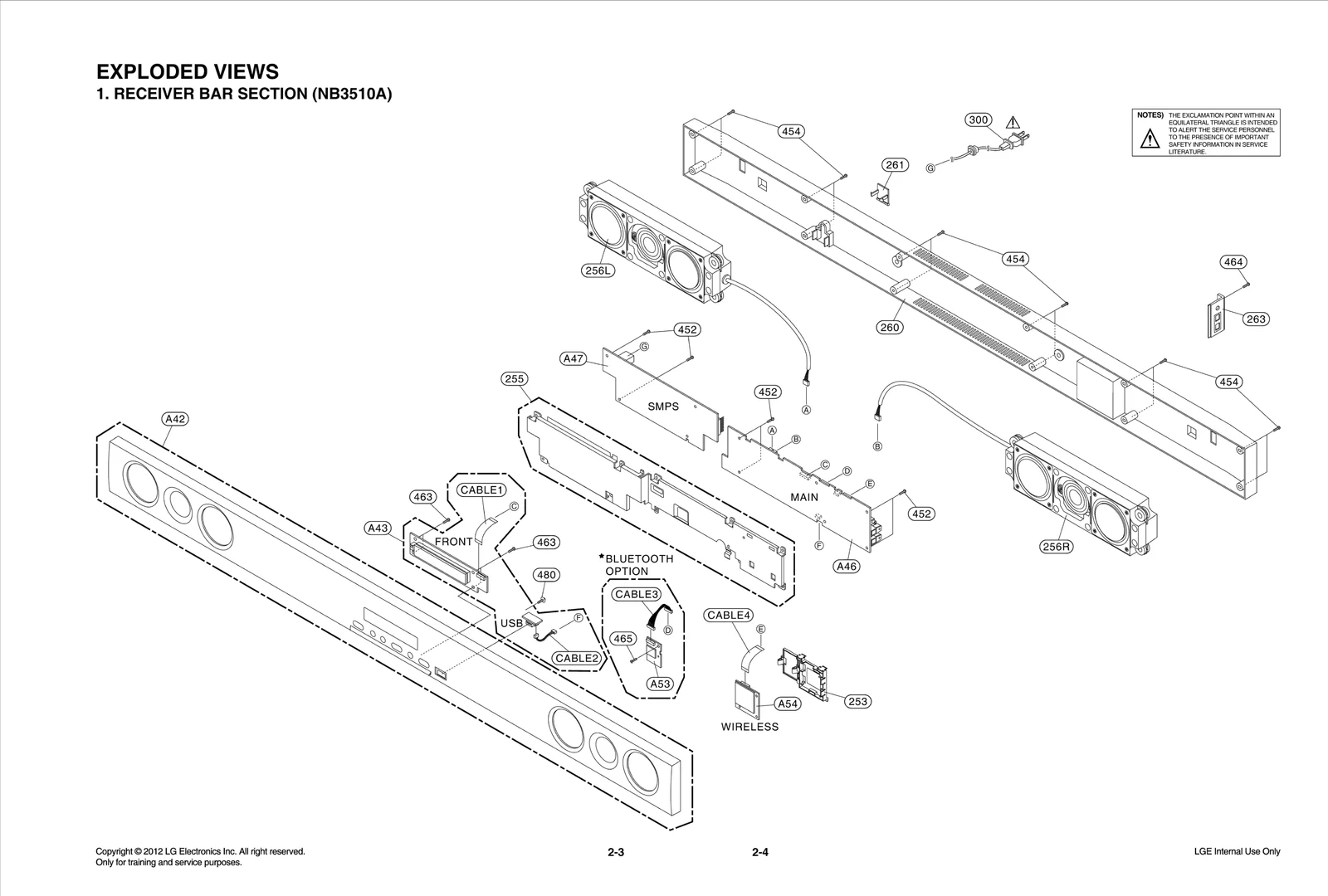

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG NB3510A
253
Holder Assembly LGE AEJ73379401 Contact Us For Availability
255
Frame Assembly LGE ADV73845901 Contact Us For Availability
256L
Cover Assembly LGE ACQ85408101 Contact Us For Availability
256R
Cover Assembly LGE ACQ85408201 Contact Us For Availability
260
Panel Assembly,Rear LGE AGL73453801 Contact Us For Availability
261
Cover LGE MCK66019401 Contact Us For Availability
263
Cover LGE MCK66019501 Contact Us For Availability
300W
Power Cord LGE EAD60816718 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
454
Screw,Customized LGE 1SZZR-0098W Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
480
Screw,Customized LGE 353-100AAAA Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75892371 Contact Us For Availability
802
Box,Master LGE MAY65713646 Contact Us For Availability
803
Packing LGE MFZ62138934 Contact Us For Availability
803W
Packing LGE MFZ61935413 Contact Us For Availability
803WA
Packing LGE MFZ62593460 Contact Us For Availability
803WB
Packing LGE MFZ62593459 Contact Us For Availability
804
Bag LGE MAF58050915 Contact Us For Availability
805
Sheet LGE MHK37290701 Contact Us For Availability
806
Cable,Assembly LGE 6850R-ZAA02 Contact Us For Availability
806
Cable,Assembly LGE EAD61071205 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
835
Bracket LGE MAZ62836401 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73275401 Contact Us For Availability
950
Bracket LGE MAZ62333451 Contact Us For Availability
951
Cable,FFC LGE 6850R-EZ06K Contact Us For Availability
952
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
953
Bracket LGE MAZ62333251 Contact Us For Availability
954
Panel,Rear LGE MGC62064253 Contact Us For Availability
955
Bracket LGE MAZ62828351 Contact Us For Availability
956
Bracket LGE MAZ62833001 Contact Us For Availability
958
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
A42
Panel Assembly,Front LGE AGL73453702 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR72061902 Contact Us For Availability
A45W
PCB Assembly LGE EBR73181603 Contact Us For Availability
A46
Option Code Assembly LGE EBR73048201 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR72338902 Contact Us For Availability
A47W
PCB Assembly,Power LGE EBR71113003 Contact Us For Availability
A49W
PCB Assembly LGE EBR73218901 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61354201 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT61013305 Contact Us For Availability
A900
Sub Set-Speaker System LGE TCG34928172 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
BD901
DIODE,RECTIFIERS LGE 0DRTW00180B Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C105
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C203
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C204
Capacitor,Ceramic,Chip LGE 0CK221BK56A Contact Us For Availability
C208
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C210
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C224
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C234
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C235
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C305
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C311
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C404
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C446
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C540
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C710
Capacitor,AL,Chip LGE 0CH8476H691 Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE 0CK475FHG6A Contact Us For Availability
C726
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C734
Capacitor,AL,Radial LGE 0CE477EJ630 Contact Us For Availability
C741
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C753
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C802
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C804
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C806
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C816
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C825
Capacitor,Ceramic,Chip LGE 0CH1332K512 Contact Us For Availability
C840
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C900
Capacitor,AL,Radial LGE 0CE686JV6A0 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE187RV640 Contact Us For Availability
C907
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ2221N409 Contact Us For Availability
C912
Capacitor,Ceramic,Radial,Disc LGE 624-087A Contact Us For Availability
C913
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C914
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C917
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C919
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C920
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C920
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C922
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C923
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C924
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C925
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C929
CAPACITOR LGE 624-087D Contact Us For Availability
C932
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C934
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C936
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C937
Capacitor,Ceramic,Radial,Disc LGE 624-087S Contact Us For Availability
C950
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C953
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C954
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
CA301
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CA302
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
CA304
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
CA404
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CA405
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
CA502
Capacitor,AL,Chip LGE EAE56703201 Contact Us For Availability
CA805
Capacitor,AL,Chip LGE EAE60658801 Contact Us For Availability
CA806
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
CA815
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD35665116 Contact Us For Availability
CABLE2
Harness,Single LGE EAD33638816 Contact Us For Availability
CABLE3
Harness,Single LGE EAD55699605 Contact Us For Availability
CABLE4
Cable,FFC LGE 6850R-EZ06R Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN101
CONNECTOR (CIRC),FFC LGE 6630XE00112 Contact Us For Availability
CN301
Connector,FFC/FPC/PIC LGE 6630R-FB11L Contact Us For Availability
CN571
Connector,Wafer LGE 6630V90078H Contact Us For Availability
CN801
Connector,BtoB LGE 6630R-BF03J Contact Us For Availability
CN900
Connector,BtoB LGE EAG00743102 Contact Us For Availability
CN901
Harness,Single LGE EAD42218216 Contact Us For Availability
D802
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D806
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
D810
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D903
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D905
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D913
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
D913
Diode,Switching LGE EAH32120501 Contact Us For Availability
D922
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D929
Diode,Switching LGE EAH30982402 Contact Us For Availability
D950
Diode,Switching LGE EAH30982401 Contact Us For Availability
F900
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
FB903
Filter,Bead LGE 636-004C Contact Us For Availability
FB920
Filter,Bead LGE EAM56488801 Contact Us For Availability
FC502
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
FR950
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35479901 Contact Us For Availability
IC102
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN60772201 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC202
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC301
IC,Display Driver LGE EAN41678501 Contact Us For Availability
IC401
IC,Digital Signal Processors LGE EAN61489101 Contact Us For Availability
IC403A
S/W,System Program LGE SAA35480001 Contact Us For Availability
IC404
IC,CMOS LGE EAN60070301 Contact Us For Availability
IC405
IC,Voltage Regulator LGE EAN61607501 Contact Us For Availability
IC501
IC,Digital Signal Processors LGE EAN57796901 Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREO001E Contact Us For Availability
IC503A
S/W,System Program LGE SAA35479801 Contact Us For Availability
IC504
IC,Voltage Regulator LGE EAN61131201 Contact Us For Availability
IC504
IC,LDO Voltage Regulator LGE EAN56746801 Contact Us For Availability
IC702
IC,Power Amplifier LGE EAN60995801 Contact Us For Availability
IC802
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC803
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC805
IC,LDO Voltage Regulator LGE EAN50484701 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986602 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN60986601 Contact Us For Availability
IC902
IC,PWM Controller LGE EAN60993301 Contact Us For Availability
IC904
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC904
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC920
IC,PWM Controller LGE EAN61607401 Contact Us For Availability
IC950
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK201
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK202
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK771
Connector,Wafer LGE 6630V90078D Contact Us For Availability
JK773
Connector,USB LGE EAG35130501 Contact Us For Availability
L201
Filter,Bead LGE 0LCCE00004Y Contact Us For Availability
L301
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L712
Coil,Choke LGE EAP60986503 Contact Us For Availability
L804
Transformer,Switching LGE EBJ60770139 Contact Us For Availability
L842
Filter,Bead LGE EAM42641607 Contact Us For Availability
L921
COIL,CHOKE LGE 633-088G Contact Us For Availability
L921
Coil,Choke LGE EAP60792101 Contact Us For Availability
LF901
FILTER(CIRC),EMC LGE 6200JB8013T Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC900
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC903
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC903
SENSOR LGE 6500RDB011B Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q101
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q102
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q301
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q801
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
Q803
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q804
TRANSISTOR,FETS LGE 0TFPH80002A Contact Us For Availability
Q902
FET LGE EBK60872301 Contact Us For Availability
Q910
TR,Bipolar LGE 0TR320200AD Contact Us For Availability
Q911
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q911
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q911
TR,Bipolar LGE 0TRKE90005B Contact Us For Availability
Q912
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q912
TR,Bipolar LGE 0TR320309AC Contact Us For Availability
Q913
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q951
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
R162
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R167
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R172
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R186
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R191
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R193
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R195
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R203
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R226
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R303
Resistor,Chip LGE 0RH3002C622 Contact Us For Availability
R310
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R400
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R403
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R408
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R409
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R445
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R708
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R771
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R803
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R805
RESISTOR,METAL GLAZE LGE 0RH1602C622 Contact Us For Availability
R806
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R810
Resistor,Chip LGE 0RH3001C422 Contact Us For Availability
R811
Resistor,Chip LGE 0RH1302C422 Contact Us For Availability
R812
Resistor,Chip LGE 0RH9100C622 Contact Us For Availability
R817
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R818
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R823
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R824
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R825
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R832
Resistor,Chip LGE 0RH8201C422 Contact Us For Availability
R833
Resistor,Chip LGE 0RH3002C422 Contact Us For Availability
R835
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R836
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R837
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R841
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R842
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R853
Resistor,Chip LGE EBC38990201 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R901
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R903
Resistor,Metal Oxide Film LGE 0RS0101K619 Contact Us For Availability
R904
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD0332F609 Contact Us For Availability
R908
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R914
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R916
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R918
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD1800F609 Contact Us For Availability
R922
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R923
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R924
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R925
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD1801F609 Contact Us For Availability
R944
Resistor,Metal Film LGE 0RN2402F409 Contact Us For Availability
R945
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R947
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R948
Resistor,Carbon Film LGE 0RD0471F609 Contact Us For Availability
R949
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R950
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R950
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R953
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM R-E LGE 0RD3901F609 Contact Us For Availability
R957
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
R958
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
RC301
Receiver Module LGE EAV37005204 Contact Us For Availability
SW101
Switch,Tact LGE EBF40098802 Contact Us For Availability
SW102
Switch,Tact LGE 6600R000005 Contact Us For Availability
T900
Transformer,Switching LGE EBJ60770138 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770119 Contact Us For Availability
T903
Transformer,Switching LGE EBJ60770118 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TH902
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH902
Thermistor,NTC LGE 6322RC0001A Contact Us For Availability
TM2
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
VFD
VFD LGE EAJ60868406 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC109
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
WC111
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
WC125
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
WC133
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
WC617
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
WC629
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
WC640
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
WC641
Capacitor,AL,Radial LGE 0CE477EK610 Contact Us For Availability
WC646
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
WC649
Capacitor,Ceramic,Chip LGE 0CK475DC6CA Contact Us For Availability
WC650
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
WCN101
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
WCN102
Connector,FFC/FPC/PIC LGE 6630R-FA04Z Contact Us For Availability
WCN103
Connector,Wafer LGE 561-711C Contact Us For Availability
WCN105
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
WCN106
Harness,Single LGE EAD57600602 Contact Us For Availability
WCN601
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
WCN604
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WD102
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
WD103
Diode,Switching LGE 0DD160009AB Contact Us For Availability
WIC103A
S/W,System Program LGE SAA35520101 Contact Us For Availability
WIC104
IC,STANDARD LOGIC LGE 0ISTLTO015A Contact Us For Availability
WIC105
IC,EEPROM LGE EAN61548301 Contact Us For Availability
WIC107
IC,LDO Voltage Regulator LGE EAN60989401 Contact Us For Availability
WIC108
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
WIC601
IC,PWM Controller LGE EAN60993101 Contact Us For Availability
WIC602
IC,Power Amplifier LGE EAN60995802 Contact Us For Availability
WL104
Filter,Bead LGE EAM62151101 Contact Us For Availability
WL611
COIL,CHOKE LGE 6140RCC012C Contact Us For Availability
WQ102
TR,Bipolar LGE 0TR102009AC Contact Us For Availability
WQ103
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
WR105
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
WR141
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
WR142
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
WR147
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
WR153
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
WR181
RESISTOR,METAL GLAZE LGE 0RJ1501C477 Contact Us For Availability
WR182
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
WR605
Resistor,Chip LGE 0RJ1800C477 Contact Us For Availability
WR609
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
WR612
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
WR613
Resistor,Chip LGE 0RH3901C422 Contact Us For Availability
WR615
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
WR616
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
WR632
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
WR637
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
WR675
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
WR682
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
WR686
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
WX101
Crystal LGE EAW32918901 Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X200
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X501
Crystal LGE 6212AB2120G Contact Us For Availability
X601
Crystal LGE 6212AB2192K Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD771
Diode,TVS LGE EAH54696501 Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ620009AF Contact Us For Availability
ZD902
Diode,Zener LGE 0DZRM00554A Contact Us For Availability
ZD903
Diode,Zener LGE 0DZ270009AH Contact Us For Availability
ZD904
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
ZD904
Diode,Zener LGE 0DZRM00484A Contact Us For Availability
ZD905
Diode,Zener LGE 0DZSE00084A Contact Us For Availability
ZD905
Diode,Zener LGE EAH42768301 Contact Us For Availability
ZD906
Diode,Zener LGE 0DZSE00154A Contact Us For Availability
ZD906
Diode,Zener LGE EAH61194401 Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD920
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD921
Diode,Zener LGE 0DZSE00044B Contact Us For Availability
ZD950
Diode,Zener LGE 0DZSE00164A Contact Us For Availability
× ![]()
Login and Registration Form
