Model LG NB2530A – Common Parts & Diagrams

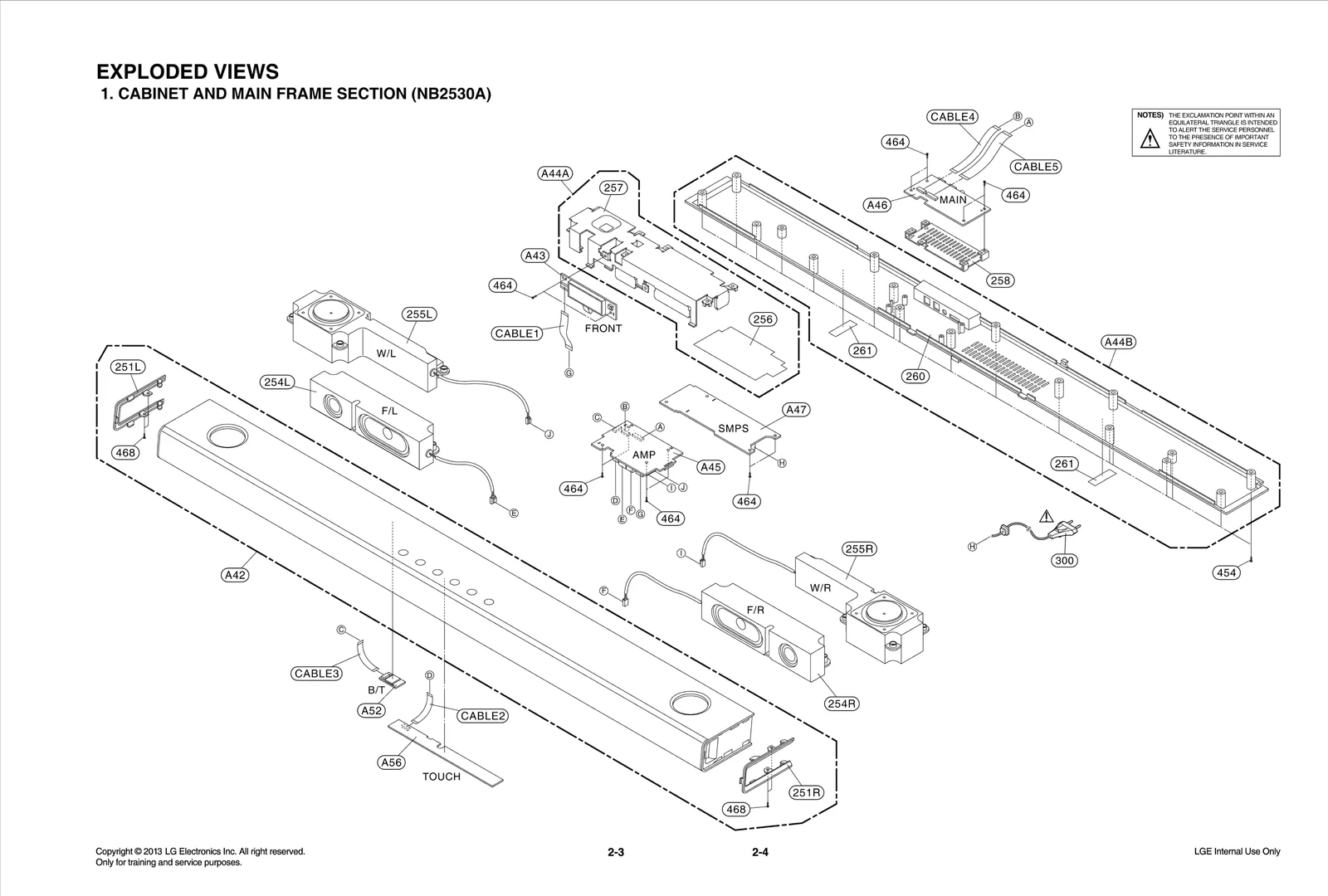

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG NB2530A
251L
Decor LGE MCR65046601 Contact Us For Availability
251R
Decor LGE MCR65086301 Contact Us For Availability
254L
Housing Assembly LGE AEN73591501 Contact Us For Availability
254R
Housing Assembly LGE AEN73572501 Contact Us For Availability
255L
Housing Assembly LGE AEN73572401 Contact Us For Availability
255R
Housing Assembly LGE AEN73591401 Contact Us For Availability
256
Sheet LGE MHK64005401 Contact Us For Availability
257
Chassis LGE MBS62665401 Contact Us For Availability
258
Bracket LGE MAZ63784101 Contact Us For Availability
260
Case LGE MBN63062901 Contact Us For Availability
261
Damper LGE MCQ67285101 Contact Us For Availability
300
Power Cord LGE EAD60816718 Contact Us For Availability
454
Screw,Customized LGE 1SZZR-0098W Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76051865 Contact Us For Availability
802
Box,Master LGE MAY65988575 Contact Us For Availability
803
Packing LGE MFZ63331445 Contact Us For Availability
804
Bag LGE MAF61906406 Contact Us For Availability
806
Cable,Assembly LGE EAD61071206 Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
828
Cable,Assembly LGE EAD62440501 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
835
Bracket LGE MAZ63440301 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73575421 Contact Us For Availability
A42
Case Assembly LGE ABQ74283204 Contact Us For Availability
A43
Auto SMT PCB Assembly LGE EBR77766801 Contact Us For Availability
A44A
Frame Assembly LGE ADV74526901 Contact Us For Availability
A44B
Case Assembly LGE ABQ74264901 Contact Us For Availability
A45
PCB Assembly LGE EBR77766601 Contact Us For Availability
A46
PCB Assembly LGE EBR77766501 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR77861801 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
A56
Auto SMT PCB Assembly LGE EBR77766901 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
C105
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C108
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C206
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C315
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C317
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C318
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C322
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C331
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C708
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C717
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C720
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C727
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C730
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C802
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C805
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C806
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C809
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C816
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C818
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C827
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C829
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C900
Capacitor,AL,Radial LGE 0CE686JV6A0 Contact Us For Availability
C901
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C920
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C922
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C923
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C924
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C925
CAPACITOR LGE 624-087B Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA703
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CA705
Capacitor,AL,Chip LGE 0CE227WH6D8 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62227804 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD61049020 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62096401 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD61049021 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD62131507 Contact Us For Availability
CM900
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM900
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM900
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM900
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN201
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN202
Connector,FFC/FPC/PIC LGE EAG61090451 Contact Us For Availability
CN302
Connector,Wafer LGE 6630R3S006A Contact Us For Availability
CN801
CONNECTOR (CIRC),BOA LGE 6630R-BF03F Contact Us For Availability
CN802
Connector,FFC/FPC/PIC LGE EAG61090452 Contact Us For Availability
CN804
Connector,Wafer LGE EAG62611104 Contact Us For Availability
CN805
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN806
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN900
Connector,BtoB LGE EAG63270301 Contact Us For Availability
D801
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D807
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D920
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D920
Diode,Switching LGE EAH61853601 Contact Us For Availability
D921
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D950
Diode,Schottky LGE EAH62095001 Contact Us For Availability
D950
Diode,Switching LGE EAH30982401 Contact Us For Availability
F900
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB920
Filter,Bead LGE EAM56488801 Contact Us For Availability
FC801
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
FL301
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL703
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
IC100A
S/W,System Program LGE SAA36461801 Contact Us For Availability
IC101
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN62408102 Contact Us For Availability
IC302
IC,SDRAM LGE 0IMMREB004H Contact Us For Availability
IC302
IC,SDRAM LGE EAN60700802 Contact Us For Availability
IC303A
S/W,System Program LGE SAA36461701 Contact Us For Availability
IC305
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC502A
S/W,System Program LGE SAA36461901 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC802
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC803
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC920
IC,PWM Controller LGE EAN61607401 Contact Us For Availability
IC950
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC950
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC950
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
JK302
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK303
Connector,USB LGE EAG35130503 Contact Us For Availability
JK304
Jack,Phone LGE EAG63270601 Contact Us For Availability
L311
Filter,Bead LGE EAM42641607 Contact Us For Availability
L712
Inductor,Wire Wound,Chip LGE EAP62267601 Contact Us For Availability
L803
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L803
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC900
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q801
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q802
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q803
TR,Bipolar LGE EBK36400001 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R202
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R204
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R302
Resistor,Chip LGE 0RH5600C422 Contact Us For Availability
R303
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
R305
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R306
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R353
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R364
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R368
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R376
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R382
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R713
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R717
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R722
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R728
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R806
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R808
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R811
RESISTOR,METAL GLAZE LGE 0RJ9100C478 Contact Us For Availability
R812
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R814
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R816
Resistor,Chip LGE 0RH1102C422 Contact Us For Availability
R817
Resistor,Chip LGE 0RH2001C422 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R820
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R829
Resistor,Chip LGE EBC38990201 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R920
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R921
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R923
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R953
Resistor,Metal Film LGE 0RN1502F409 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R957
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
RC201
Receiver Module LGE EAV61333201 Contact Us For Availability
T900
Transformer,Switching LGE EBJ60770138 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TM3
Connector,Wafer LGE 6602T25008B Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X100
Crystal LGE EAW60117002 Contact Us For Availability
X300
Crystal LGE EAW61645208 Contact Us For Availability
X300
Crystal LGE EAW32919201 Contact Us For Availability
ZD201
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD803
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD804
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD920
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD921
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
× ![]()
Login and Registration Form
