Model LG NB2520A – Common Parts & Diagrams
Diagram 0

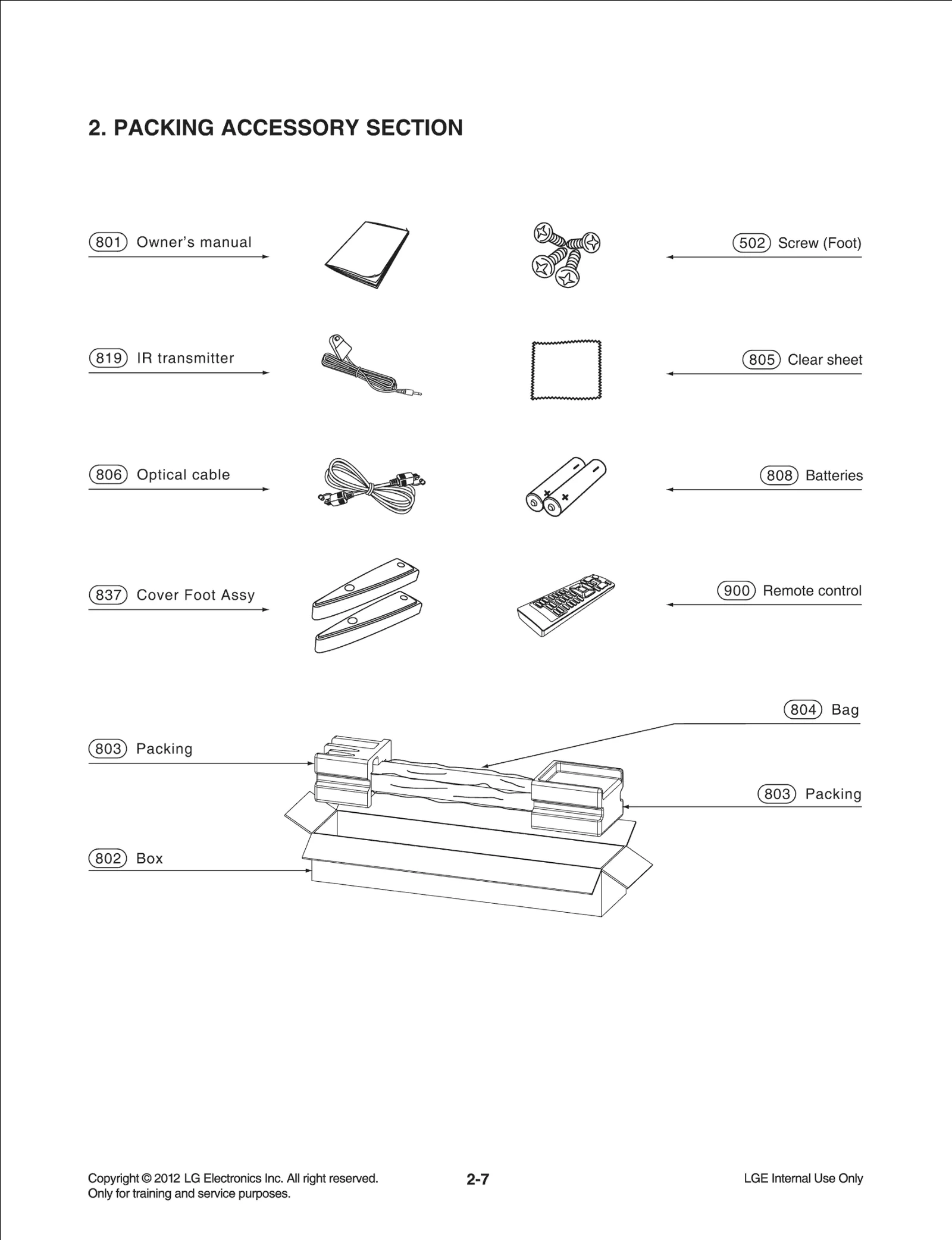

Diagram 1
Diagram 2
Common parts from model LG NB2520A
252
Plate,Ground LGE MGJ63306001 Contact Us For Availability
253
Holder LGE MEG63061301 Contact Us For Availability
255
Case Assembly LGE ABQ73945203 Contact Us For Availability
256
Case Assembly LGE ABQ73945202 Contact Us For Availability
258
Case Assembly LGE ABQ73945104 Contact Us For Availability
259
Case Assembly LGE ABQ73945002 Contact Us For Availability
260
Chassis LGE MBS62465701 Contact Us For Availability
262
Panel,Front LGE MGC62801801 Contact Us For Availability
263
Foot LGE MDP62527102 Contact Us For Availability
300
Power Cord LGE EAD60816718 Contact Us For Availability
454
Screw,Customized LGE 1SZZR-0098W Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
502
Screw,Customized LGE 1SZZR-0097D Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75876602 Contact Us For Availability
802
Box,Master LGE MAY65713652 Contact Us For Availability
803
Packing LGE MFZ63286601 Contact Us For Availability
804
Bag LGE MAF58050920 Contact Us For Availability
805
Sheet LGE MHK37290701 Contact Us For Availability
806
Cable,Assembly LGE EAD61071205 Contact Us For Availability
806
Cable,Assembly LGE 6850R-ZAA02 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
819
Cable,Assembly LGE EAD61273111 Contact Us For Availability
837
Cover Assembly LGE ACQ85974303 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73575401 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL73935605 Contact Us For Availability
A43
PCB Assembly LGE EBR75204902 Contact Us For Availability
A44
Panel Assembly,Rear LGE AGL73857204 Contact Us For Availability
A46
Option Code Assembly LGE EBR75451605 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR74329102 Contact Us For Availability
A55
PCB Assembly LGE EBR75304502 Contact Us For Availability
A56
PCB Assembly LGE EBR75177103 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
C105
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C206
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C328
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C352
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C360
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C363
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C367
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C368
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C373
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C376
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C503
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C506
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C604
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C605
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C606
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C610
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C612
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C613
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C628
Capacitor,Ceramic,Chip LGE 0CH1332K512 Contact Us For Availability
C638
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C641
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C708
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C715
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C716
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C723
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C731
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C733
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C851
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C852
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C864
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C866
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C882
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
C885
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C900
Capacitor,AL,Radial LGE 0CE686JV6A0 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C920
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C922
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C923
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C924
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C925
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA201
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
CA301
Capacitor,AL,Chip LGE 0CZZQE2018A Contact Us For Availability
CA602
Capacitor,AL,Chip LGE 0CZZR00035A Contact Us For Availability
CA603
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
CA611
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
CA703
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CA704
Capacitor,AL,Chip LGE 0CE227WH6D8 Contact Us For Availability
CA800
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CA801
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
CA805
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62185601 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62185801 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62185701 Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN101
CONNECTOR (CIRC),FFC LGE 6630XE00112 Contact Us For Availability
CN102
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN103
Connector,FFC/FPC/PI LGE 6630XE00116 Contact Us For Availability
CN201
Connector,FFC/FPC/PIC LGE 6630R-FB11L Contact Us For Availability
CN202
Connector,FFC/FPC/PIC LGE EAG61090451 Contact Us For Availability
CN501
Connector,FFC/FPC/PIC LGE 6630R-FB11H Contact Us For Availability
CN601
Connector,BtoB LGE 6630R-BF03J Contact Us For Availability
CN801
Connector,FFC/FPC/PIC LGE 6630R-FB11P Contact Us For Availability
CN900
Connector,BtoB LGE EAG00743102 Contact Us For Availability
D201
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
D603
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D608
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D802
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D920
Diode,Switching LGE EAH61853601 Contact Us For Availability
D920
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D921
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D950
Diode,Switching LGE EAH30982401 Contact Us For Availability
F803
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
F900
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB920
Filter,Bead LGE EAM56488801 Contact Us For Availability
IC100A
S/W,System Program LGE SAA36009501 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN62408101 Contact Us For Availability
IC302
IC,SDRAM LGE EAN34123102 Contact Us For Availability
IC303A
S/W,System Program LGE SAA36009601 Contact Us For Availability
IC304
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC305
IC,A/D Converter LGE EAN30955301 Contact Us For Availability
IC501A
S/W,System Program LGE SAA36046401 Contact Us For Availability
IC602
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC604
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC606
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC800
IC,Tx/Rx LGE EAN60923601 Contact Us For Availability
IC803
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC805
IC,LDO Voltage Regul LGE EAN40230101 Contact Us For Availability
IC920
IC,PWM Controller LGE EAN61607401 Contact Us For Availability
IC950
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC950
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC950
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
JK101
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK301
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK302
Connector,USB LGE EAG35130503 Contact Us For Availability
JK303
Jack,Phone LGE EAG63270601 Contact Us For Availability
JK800
Connector,HDMI LGE EAG62611202 Contact Us For Availability
L604
Inductor,Wire Wound,Chip LGE EAP61827601 Contact Us For Availability
L622
Filter,Bead LGE EAM42641607 Contact Us For Availability
L713
Coil,Choke LGE EAP60986503 Contact Us For Availability
L802
Filter,Bead LGE EAM62151101 Contact Us For Availability
L811
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
L815
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
LD6
LED,Chip LGE 0DLLP0058AC Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC900
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC900
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q103
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q104
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q501
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q508
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
R100
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RH2702C422 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R163
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R204
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R333
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R340
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R349
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R364
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R369
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R375
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R379
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R517
Resistor,Chip LGE 0RH4700B622 Contact Us For Availability
R601
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R603
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R604
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R605
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R606
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R608
Resistor,Chip LGE 0RH3001C422 Contact Us For Availability
R609
Resistor,Chip LGE 0RH1302C422 Contact Us For Availability
R610
Resistor,Chip LGE 0RH9100C622 Contact Us For Availability
R616
Resistor,Chip LGE 0RH8201C422 Contact Us For Availability
R618
Resistor,Chip LGE 0RH3002C422 Contact Us For Availability
R620
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R624
Resistor,Chip LGE 0RH6801C422 Contact Us For Availability
R626
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R628
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R629
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R631
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R632
Resistor,Chip LGE 0RH1600D622 Contact Us For Availability
R634
Resistor,Chip LGE 0RJ2200C477 Contact Us For Availability
R635
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R642
Resistor,Chip LGE 0RH5100C422 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R711
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R713
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R723
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R729
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R800
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R806
Resistor,Chip LGE EBC61057301 Contact Us For Availability
R831
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R835
RESISTOR,METAL GLAZE LGE 0RH1201C422 Contact Us For Availability
R837
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R849
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R850
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R851
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R852
Resistor,Chip LGE 0RJ0332C477 Contact Us For Availability
R859
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R867
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R868
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R869
Resistor,Chip LGE 0RH0512C622 Contact Us For Availability
R874
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R877
Resistor,Chip LGE EBC35243001 Contact Us For Availability
R892
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R898
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R920
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R923
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R951
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R953
Resistor,Metal Film LGE 0RN1502F409 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R956
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R957
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
RC301
Receiver Module LGE EAV61333201 Contact Us For Availability
SW101
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
T900
Transformer,Switching LGE EBJ60770138 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TM3
Connector,Wafer LGE 6602T25008B Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X100
Crystal LGE 6212AB2220C Contact Us For Availability
X300
Crystal LGE EAW32919201 Contact Us For Availability
X800
RESONATOR,CRYSTAL LGE 6212AB2286K Contact Us For Availability
ZD102
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD103
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD920
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD921
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
× ![]()
Login and Registration Form
