Model LG NB2430A – Common Parts & Diagrams

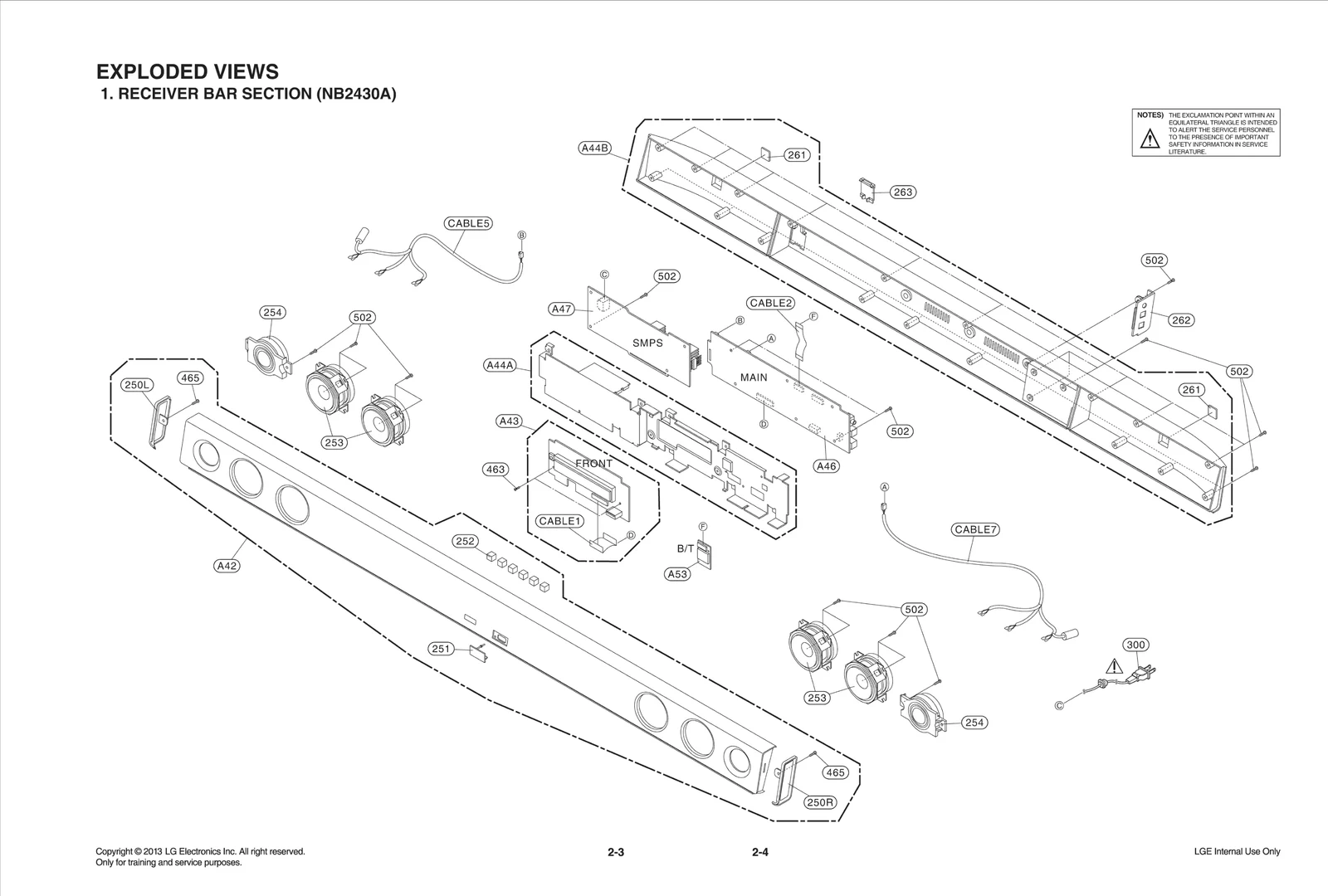

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG NB2430A
250L
Decor LGE MCR64969901 Contact Us For Availability
250R
Decor LGE MCR64969801 Contact Us For Availability
251
Cover LGE MCK67007901 Contact Us For Availability
252
Gasket LGE MDS63870401 Contact Us For Availability
253
Speaker,Woofer LGE EAB62851801 Contact Us For Availability
254
Speaker,Tweeter LGE EAB62870201 Contact Us For Availability
261
Damper LGE MCQ32325007 Contact Us For Availability
262
Cover LGE MCK67390001 Contact Us For Availability
263
Holder LGE MEG63340701 Contact Us For Availability
300
Power Cord LGE EAD60816718 Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
502
Screw,Customized LGE 1SZZR-0097D Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75754894 Contact Us For Availability
802
Box,Master LGE MAY67008458 Contact Us For Availability
803
Packing LGE MFZ63598201 Contact Us For Availability
804
Bag LGE MAF61906411 Contact Us For Availability
806
Cable,Assembly LGE EAD61071206 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
835
Bracket LGE MAZ63344001 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73575422 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL74154429 Contact Us For Availability
A43
PCB Assembly LGE EBR76827801 Contact Us For Availability
A44A
Frame Assembly LGE ADV74467704 Contact Us For Availability
A44B
Case Assembly LGE ABQ74102002 Contact Us For Availability
A46
Option Code Assembly LGE EBR76944401 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR76282802 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61633102 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CH1223K562 Contact Us For Availability
C315
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C318
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C512
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C524
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C709
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C715
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C717
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C721
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C727
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C728
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C802
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C804
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C806
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C810
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C823
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C828
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C829
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C830
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C833
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C840
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C842
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C900
Capacitor,AL,Radial LGE 0CE686JV6A0 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C901
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C920
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C922
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C923
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C924
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C925
CAPACITOR LGE 624-087B Contact Us For Availability
C950
Capacitor,AL,Radial LGE EAE63162002 Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA703
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CA801
Capacitor,AL,Chip LGE 0CZZR00035A Contact Us For Availability
CA805
Capacitor,AL,Chip LGE EAE60658901 Contact Us For Availability
CA807
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62246404 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD61049024 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR77745407 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR77745408 Contact Us For Availability
CM900
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM900
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM900
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM900
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN101
Connector,Wafer LGE EAG62611106 Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE EAG61090452 Contact Us For Availability
CN302
Connector,Wafer LGE EAG62611104 Contact Us For Availability
CN802
CONNECTOR (CIRC),BOA LGE 6630R-BF03F Contact Us For Availability
CN900
Connector,BtoB LGE EAG63270301 Contact Us For Availability
D501
Diode,TVS LGE EAH56919501 Contact Us For Availability
D801
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D808
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D920
Diode,Switching LGE EAH61853601 Contact Us For Availability
D920
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D921
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D921
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D950
Diode,Schottky LGE EAH62095001 Contact Us For Availability
D950
Diode,Switching LGE EAH30982401 Contact Us For Availability
F900
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB920
Filter,Bead LGE EAM56488801 Contact Us For Availability
FC802
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
FL501
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL701
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
FL701
Filter,Line Noise LGE EAM62634203 Contact Us For Availability
IC100A
S/W,System Program LGE SAA36413601 Contact Us For Availability
IC101
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC102
IC,NOR Flash Memory LGE EAN61868201 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN62408102 Contact Us For Availability
IC302
IC,SDRAM LGE EAN60700802 Contact Us For Availability
IC302
IC,SDRAM LGE 0IMMREB004H Contact Us For Availability
IC303A
S/W,System Program LGE SAA36413501 Contact Us For Availability
IC501
IC,Display Driver LGE EAN62790501 Contact Us For Availability
IC502A
S/W,System Program LGE SAA36372401 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC802
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC804
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC805
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC920
IC,PWM Controller LGE EAN61607402 Contact Us For Availability
IC920
IC,PWM Controller LGE EAN61607401 Contact Us For Availability
IC950
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC950
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC950
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
JK302
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK303
Jack,Phone LGE EAG63411501 Contact Us For Availability
JK501
Connector,USB LGE EAG40457701 Contact Us For Availability
L713
Inductor,Wire Wound,Chip LGE EAP62267602 Contact Us For Availability
L803
Inductor,Wire Wound,Chip LGE EAP61827601 Contact Us For Availability
L822
Filter,Bead LGE EAM42641607 Contact Us For Availability
LF900
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC900
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q501
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q801
TR,Bipolar LGE EBK36400001 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R319
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R336
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R338
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R359
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R501
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R503
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R509
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R521
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R530
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R711
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R714
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R806
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R807
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R810
RESISTOR,METAL GLAZE LGE 0RJ9100C478 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R814
Resistor,Chip LGE EBC38990201 Contact Us For Availability
R815
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R817
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R822
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R826
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R827
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R829
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R832
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R834
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R839
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R840
Resistor,Chip LGE 0RH1600D622 Contact Us For Availability
R841
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R842
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R843
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R847
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R920
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R921
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R924
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R951
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R953
Resistor,Metal Film LGE 0RN1502F409 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R957
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
RC501
Receiver Module LGE EAV61333201 Contact Us For Availability
T801
Transformer,Switching LGE EBJ61651201 Contact Us For Availability
T900
Transformer,Switching LGE EBJ60770138 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TM2
Connector,Wafer LGE 6602T25008B Contact Us For Availability
VFD
VFD LGE EAJ60868406 Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X100
Crystal LGE 6212AB2220C Contact Us For Availability
X100
Crystal LGE EAW60117002 Contact Us For Availability
X300
Crystal LGE EAW32919201 Contact Us For Availability
X300
Crystal LGE EAW61645208 Contact Us For Availability
ZD100
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD506
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD701
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD802
Diode,Zener LGE EAH43050901 Contact Us For Availability
ZD802
Diode,Zener LGE EAH62096201 Contact Us For Availability
ZD805
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
ZD920
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD921
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
× ![]()
Login and Registration Form
