Model LG NB2420A – Common Parts & Diagrams
Diagram 0

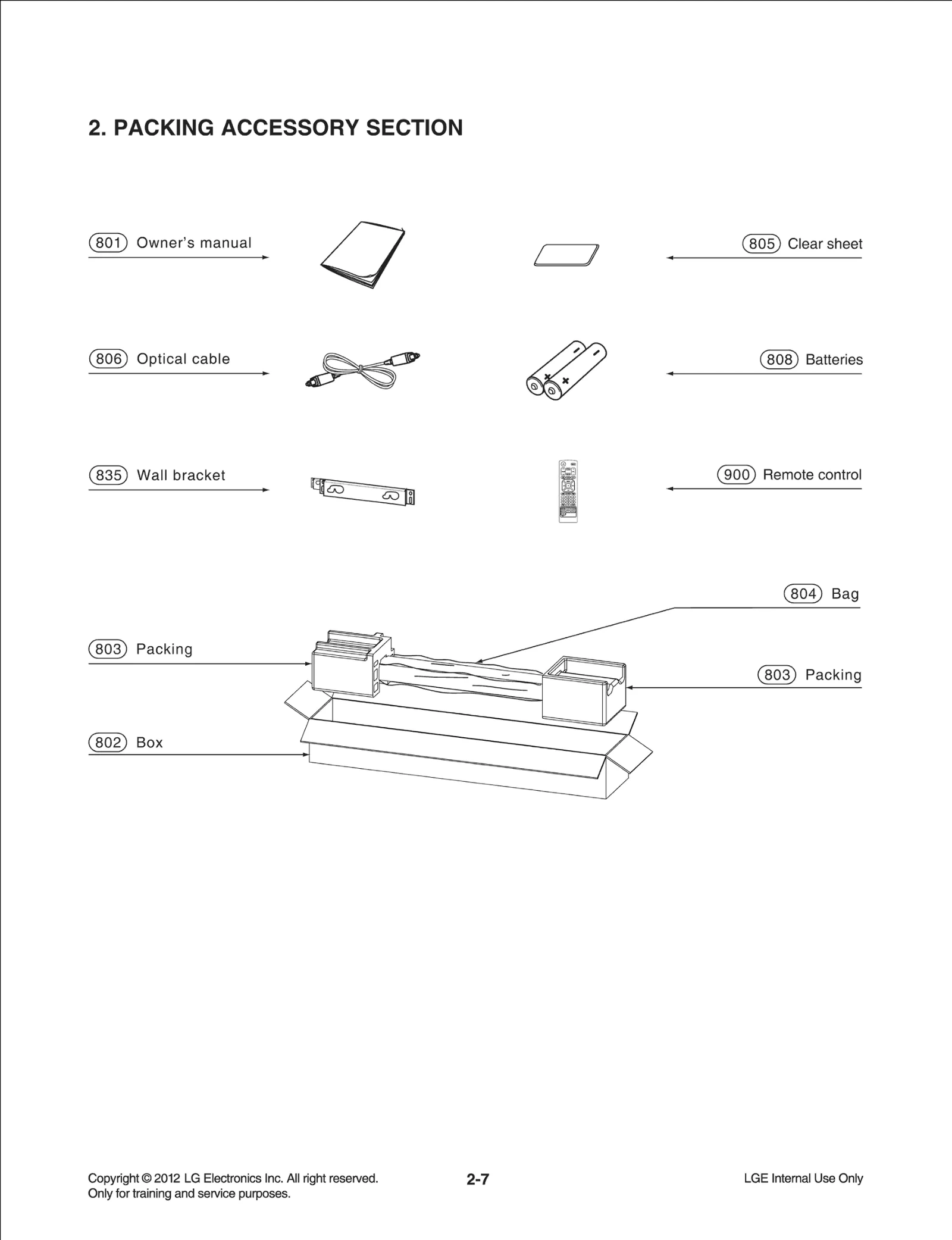

Diagram 1
Diagram 2
Common parts from model LG NB2420A
252
Gasket LGE MDS63870401 Contact Us For Availability
253
Speaker,MID,Range LGE EAB62650401 Contact Us For Availability
254
Speaker,Tweeter LGE EAB62670201 Contact Us For Availability
255
Holder LGE MEG63058601 Contact Us For Availability
256
Holder LGE MEG63018701 Contact Us For Availability
257
Chassis LGE MBS62445401 Contact Us For Availability
258
Damper LGE MCQ32325007 Contact Us For Availability
260
Panel,Rear LGE MGC62739901 Contact Us For Availability
262
Cover LGE MCK66985101 Contact Us For Availability
300
Power Cord LGE EAD60816718 Contact Us For Availability
454
Screw,Customized LGE 1SZZR-0098W Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75913647 Contact Us For Availability
802
Box,Master LGE MAY65713653 Contact Us For Availability
803
Packing LGE MFZ63341001 Contact Us For Availability
804
Bag LGE MAF61906406 Contact Us For Availability
805
Sheet LGE MHK37290701 Contact Us For Availability
806
Cable,Assembly LGE 6850R-ZAA02 Contact Us For Availability
806
Cable,Assembly LGE EAD61071205 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
835
Bracket LGE MAZ63344001 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73575402 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL73872603 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR74293302 Contact Us For Availability
A44A
Frame Assembly LGE ADV74306702 Contact Us For Availability
A44B
Case Assembly LGE ABQ73920102 Contact Us For Availability
A45
PCB Assembly LGE EBR74845402 Contact Us For Availability
A46
Option Code Assembly LGE EBR75036801 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR74329102 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61633101 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C305
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C308
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C353
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C361
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C362
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C367
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C368
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C369
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C374
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C376
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C705
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C714
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C716
Capacitor,Ceramic,Ch LGE 0CK333DN56A Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C723
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C724
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C730
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C732
Capacitor,Ceramic,Chip LGE EAE61381601 Contact Us For Availability
C802
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C804
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C810
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C811
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C812
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C819
Capacitor,Ceramic,Chip LGE 0CH1332K512 Contact Us For Availability
C822
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C830
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C832
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C840
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C900
Capacitor,AL,Radial LGE 0CE686JV6A0 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C920
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C922
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C923
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C924
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C925
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA302
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CA312
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
CA703
Capacitor,AL,Radial LGE 0CE477EJ630 Contact Us For Availability
CA801
Capacitor,AL,Chip LGE EAE60658901 Contact Us For Availability
CA802
Capacitor,AL,Chip LGE 0CZZR00035A Contact Us For Availability
CA806
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
CA810
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62096601 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62096401 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR74677201 Contact Us For Availability
CABLE6
Harness,Single LGE EAD35863006 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR75161301 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN101
Connector,FFC/FPC/PI LGE 6630XE00116 Contact Us For Availability
CN102
Connector,FFC/FPC/PIC LGE 6630R-FA04Z Contact Us For Availability
CN302
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN303
Connector,FFC/FPC/PIC LGE 6630R-FB11P Contact Us For Availability
CN801
Connector,BtoB LGE 6630R-BF03J Contact Us For Availability
CN900
Connector,BtoB LGE EAG00743102 Contact Us For Availability
D304
Diode,Zener LGE EAH61433801 Contact Us For Availability
D306
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
D802
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D813
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D920
Diode,Switching LGE EAH61853601 Contact Us For Availability
D920
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D921
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D950
Diode,Switching LGE EAH30982401 Contact Us For Availability
F900
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB920
Filter,Bead LGE EAM56488801 Contact Us For Availability
FC803
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
FL301
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
IC100A
S/W,System Program LGE SAA35965401 Contact Us For Availability
IC102
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC301
IC,Display Driver LGE EAN61508101 Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN62408101 Contact Us For Availability
IC302
IC,SDRAM LGE EAN34123102 Contact Us For Availability
IC302A
S/W,System Program LGE SAA35956101 Contact Us For Availability
IC303A
S/W,System Program LGE SAA35965601 Contact Us For Availability
IC304
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC305
IC,A/D Converter LGE EAN30955301 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC802
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC803
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC806
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC920
IC,PWM Controller LGE EAN61607401 Contact Us For Availability
IC950
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC950
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC950
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
JK302
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK303
Jack,Phone LGE 6612F00001B Contact Us For Availability
JK304
Connector,Wafer LGE 6630R3S006A Contact Us For Availability
JK772
CONNECTOR CD-910A UG2 LGE 561-711F Contact Us For Availability
JK773
Connector,USB LGE EAG35130501 Contact Us For Availability
L714
Coil,Choke LGE EAP60986503 Contact Us For Availability
L803
Inductor,Wire Wound,Chip LGE EAP61827601 Contact Us For Availability
L826
Filter,Bead LGE EAM42641607 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC900
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC900
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q301
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q302
TR,Bipolar LGE EBK36400001 Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q801
TRANSISTOR,FETS LGE 0TFPH80002A Contact Us For Availability
R100
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R111
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R114
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R115
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R302
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R309
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R311
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R324
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R332
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R333
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R341
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R348
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R373
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R374
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R379
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R385
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R713
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R801
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R802
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R803
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R804
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R805
Resistor,Chip LGE 0RH1602C422 Contact Us For Availability
R806
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R808
Resistor,Chip LGE 0RH3001C422 Contact Us For Availability
R809
Resistor,Chip LGE 0RH1302C422 Contact Us For Availability
R810
Resistor,Chip LGE 0RH9100C622 Contact Us For Availability
R811
Resistor,Chip LGE EBC38990201 Contact Us For Availability
R815
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R816
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R819
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R824
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R825
Resistor,Chip LGE 0RH3002C422 Contact Us For Availability
R826
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R828
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R830
Resistor,Chip LGE 0RH8201C422 Contact Us For Availability
R831
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R832
Resistor,Chip LGE 0RH6801C422 Contact Us For Availability
R836
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ2200C477 Contact Us For Availability
R839
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R840
Resistor,Chip LGE 0RH1600D622 Contact Us For Availability
R843
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R920
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD0182F609 Contact Us For Availability
R923
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R953
Resistor,Metal Film LGE 0RN1502F409 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R956
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R957
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
RC301
Receiver Module LGE EAV61333201 Contact Us For Availability
T801
Transformer,Switching LGE EBJ61431201 Contact Us For Availability
T900
Transformer,Switching LGE EBJ60770138 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TM2
Connector,Wafer LGE 6602T25008B Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X100
Crystal LGE 6212AB2220C Contact Us For Availability
X300
Crystal LGE EAW32919201 Contact Us For Availability
ZD100
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD801
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD920
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD921
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
× ![]()
Login and Registration Form
